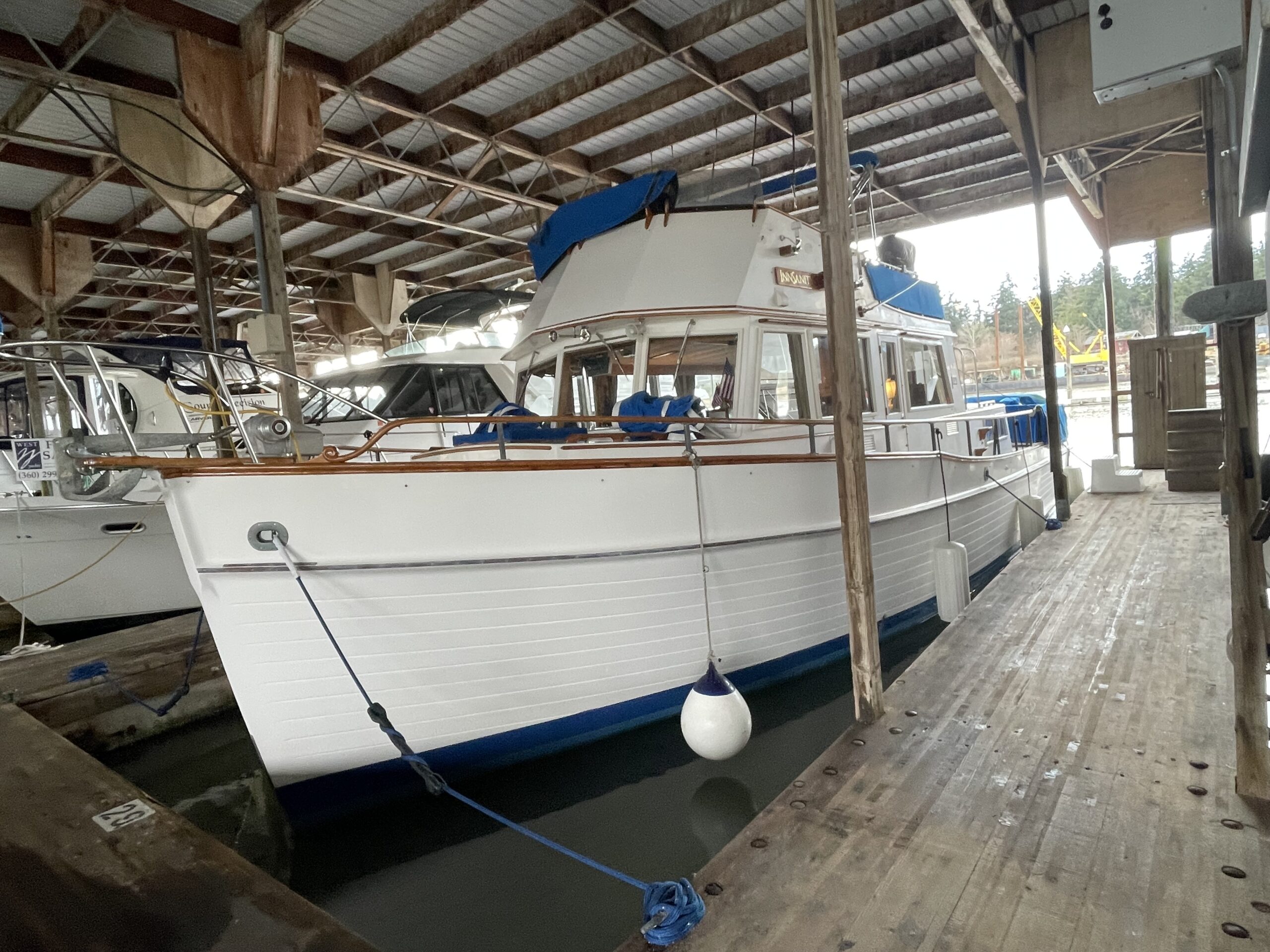

SPEECIFICATIONS:

• LOA –46′
• LOD – 42”
• LWL – 41’
• Beam – 13’ 6”
• Draft 4’ 2”
• Displacement – 37,400lbs.
• Hull – Fiberglass Semi-Displacement
• Deck – Fiberglass Sub-Deck with Teak Deck Cover
• Keel – Fiberglass Molded Box
• Rudder – Spade – Fiberglass Shell on Stainless Steel Frame
• Rudder Angle Indicator
• Weight – 32,000lbs.
• Vintage 197
• Designer – Ken Smith
• Builder – American Marine Limited
• Built in Singapore

TANKAGE:

• FUEL – 600 Gallons in 2 Steel Tanks – Line of Sight Tubes
• WATER – 200Gallons in 2 Stainless Steel Tanks –
•                  Line of Sight Tubes & Dipstick

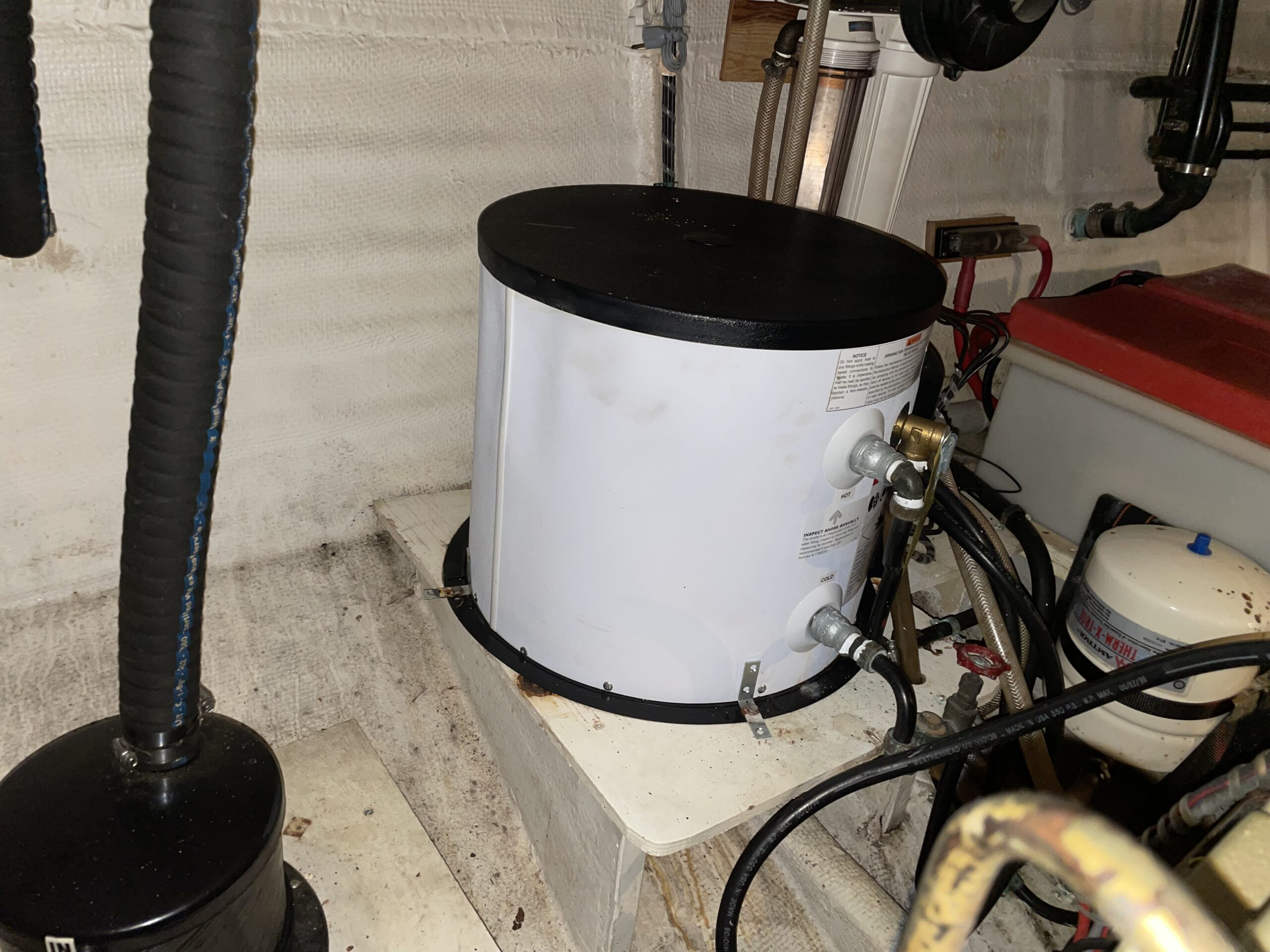

• HOT WATER TANK – 12 Gallons – Raritan Heated by Engine or
•                                                          120V AC – NEW 2022
• WASTE – 50 Gallons in 1 FRP Tank w/ Gauge
•                  Y-Valve Deck Pump-Out or Overboard
• PROPANE – (2) 10# LPG Tanks in Deck Locker under Flybridge Setting

INTERIOR:

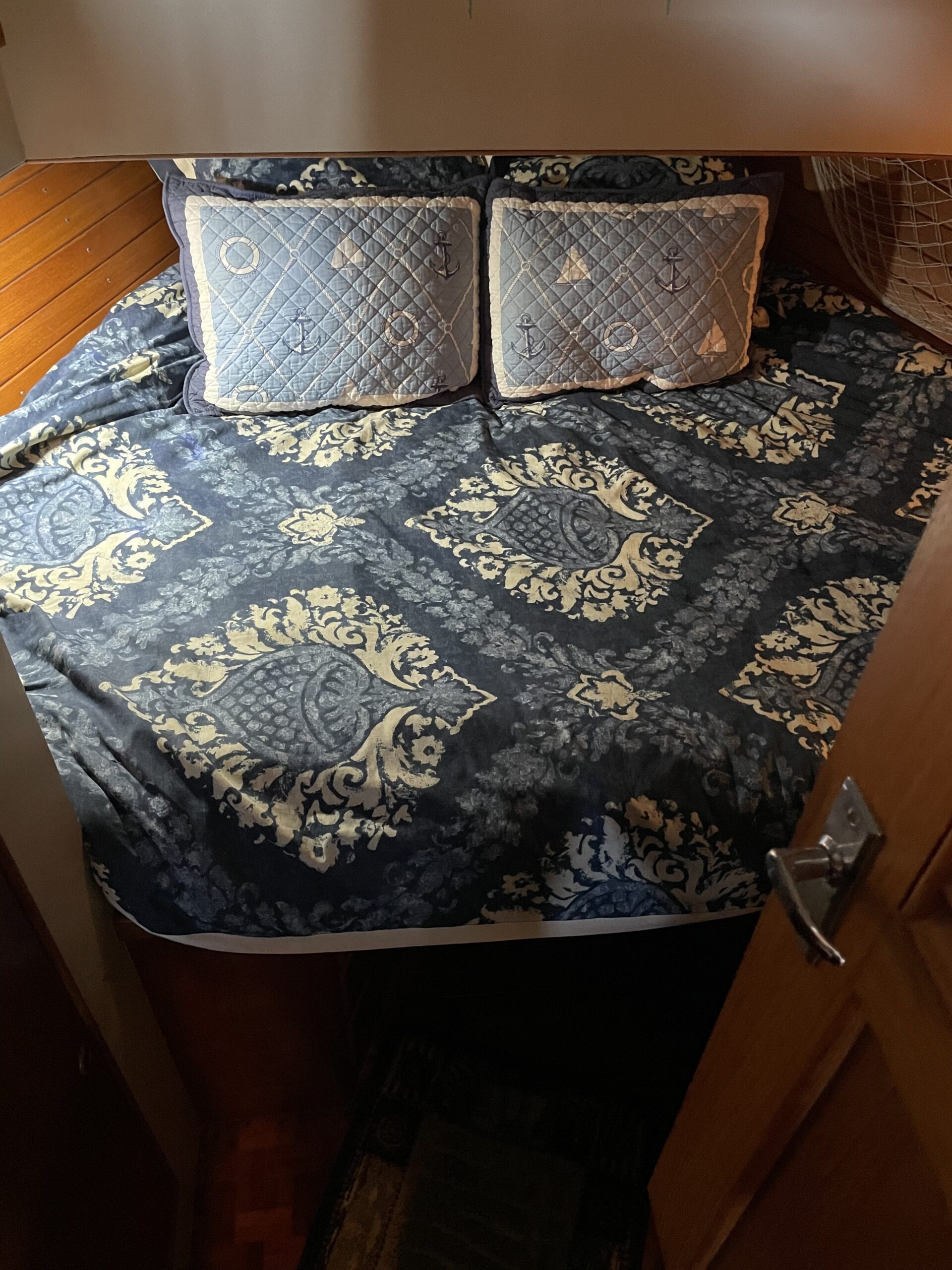

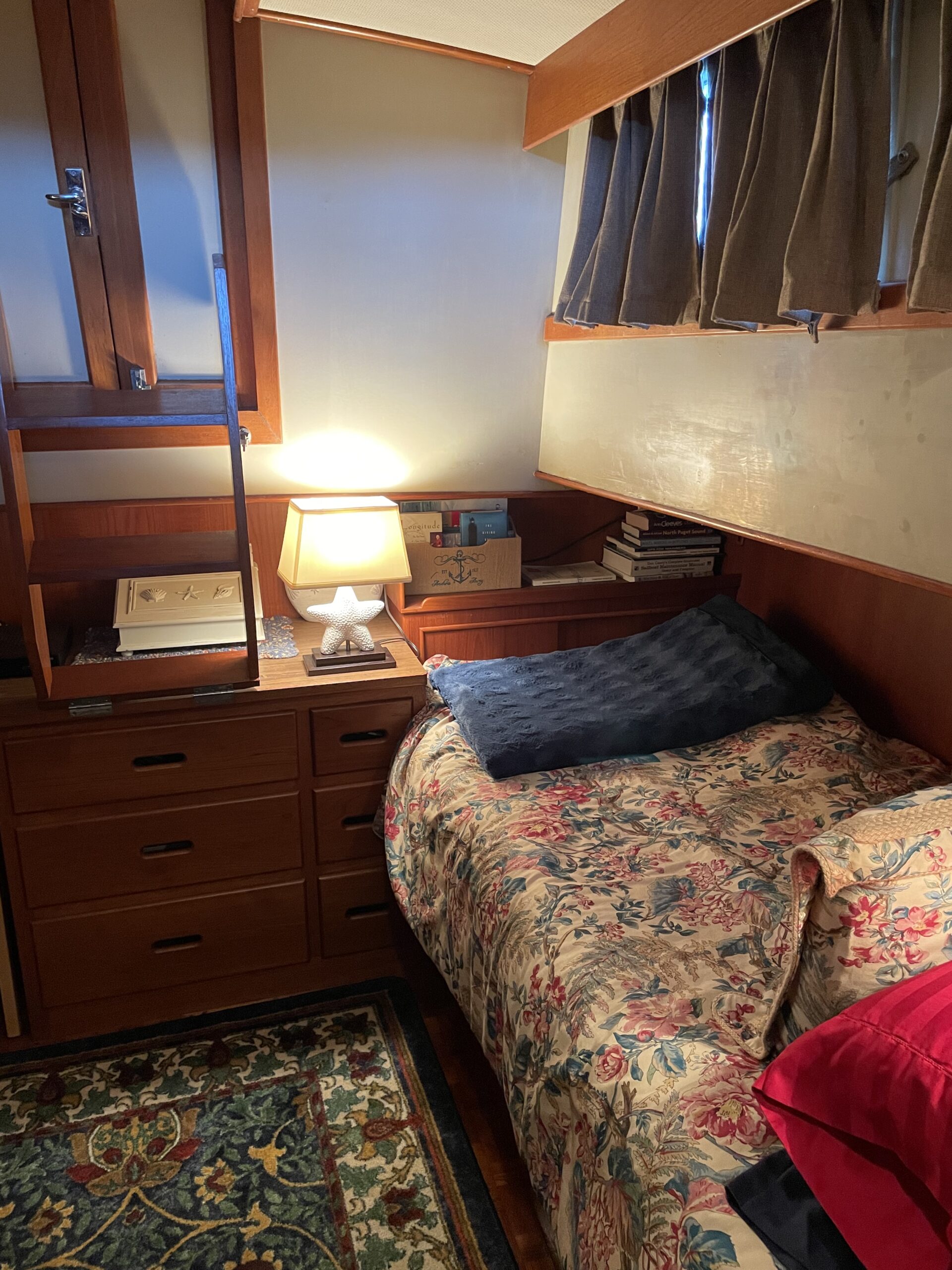

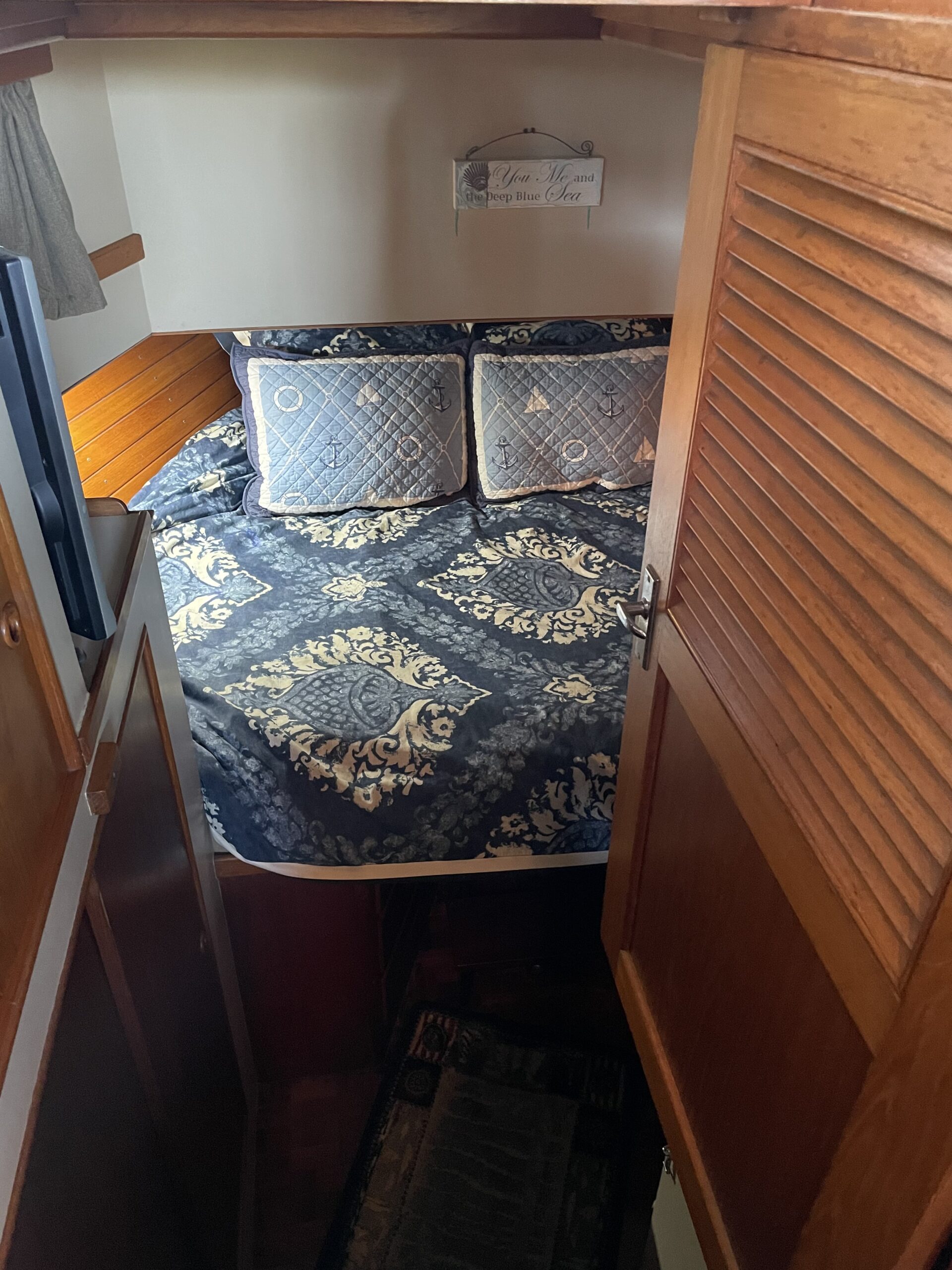

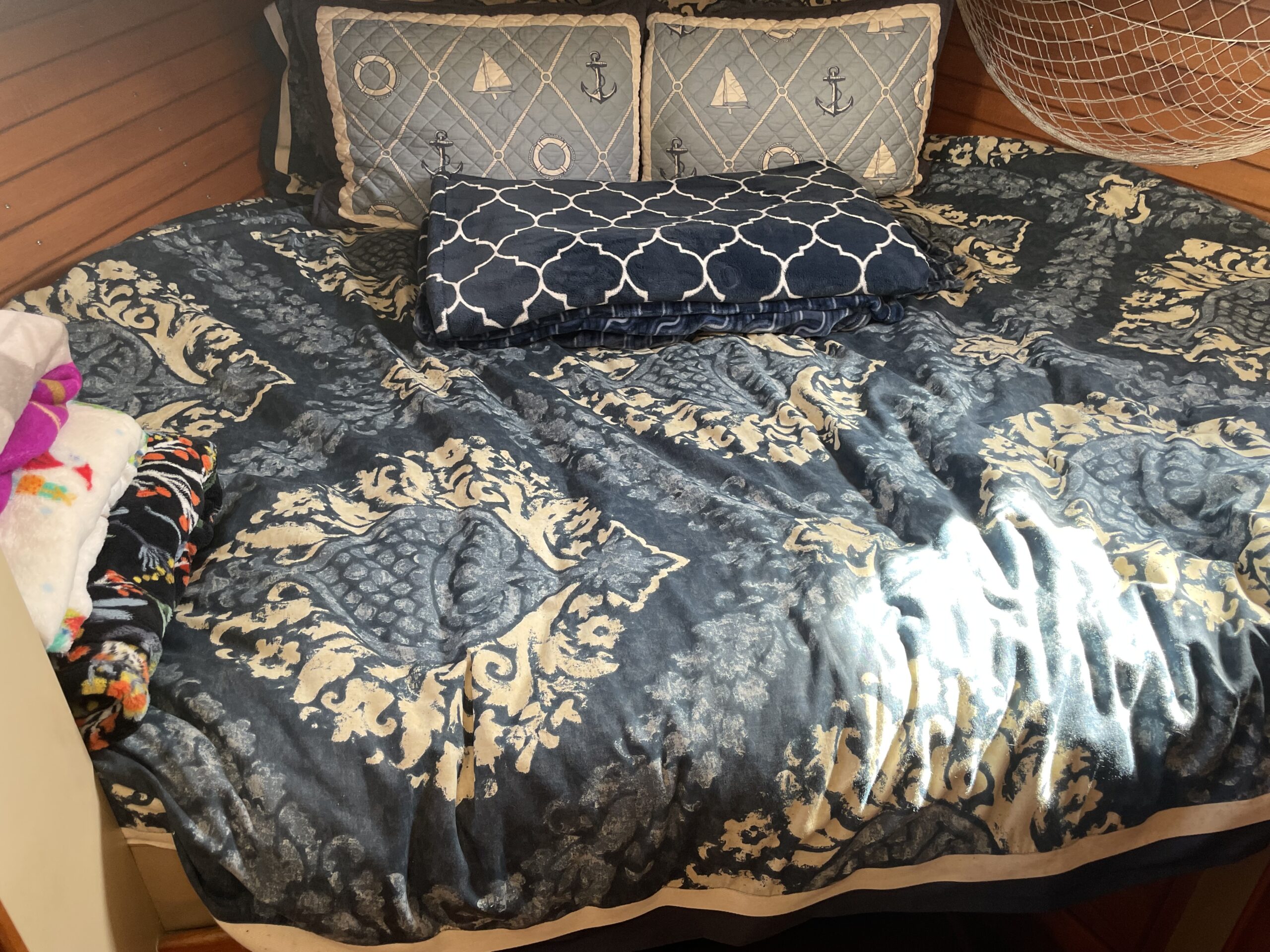

• Sleeps – (6) – 2 in Forward Cabin V-Berth

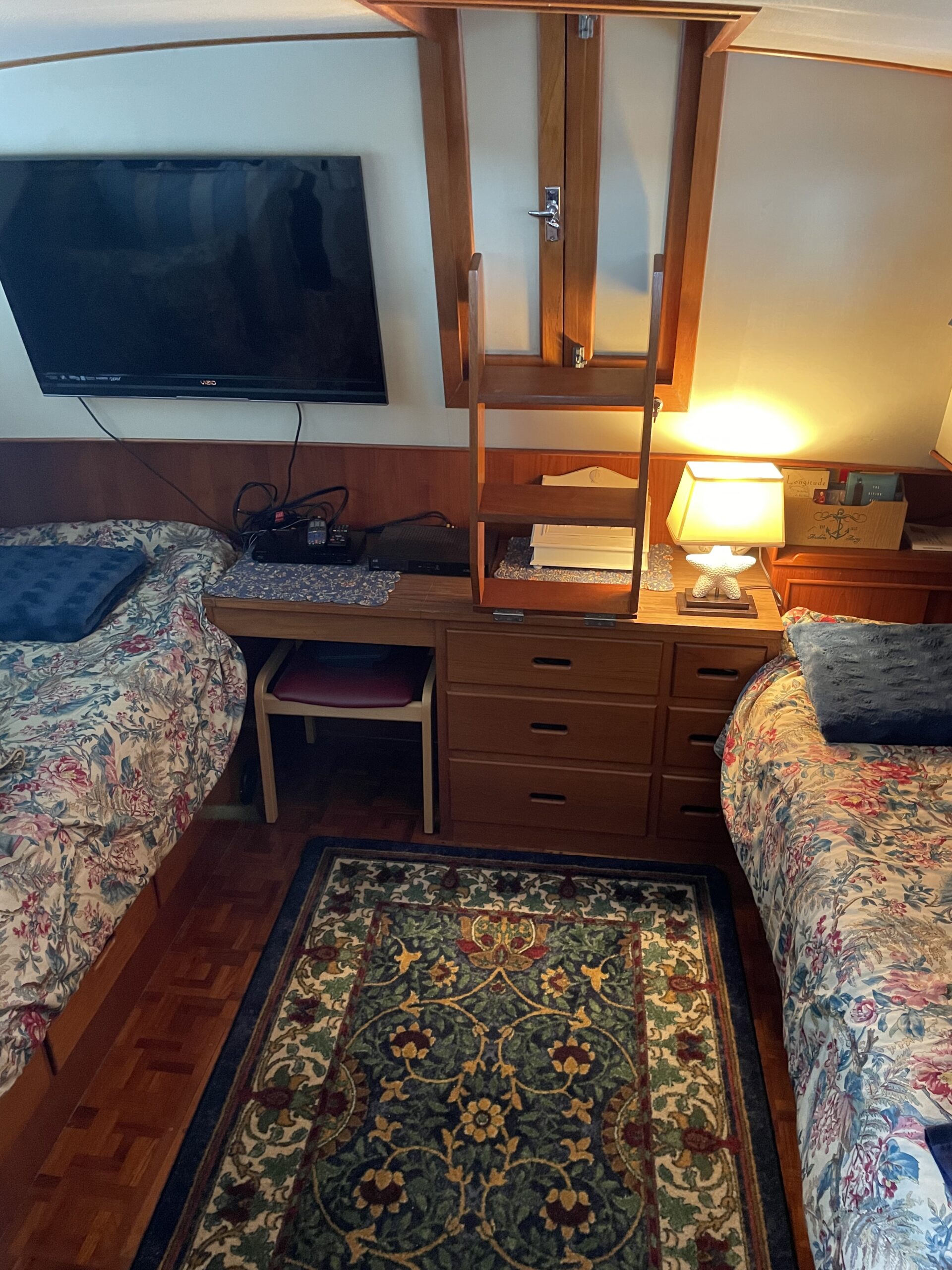

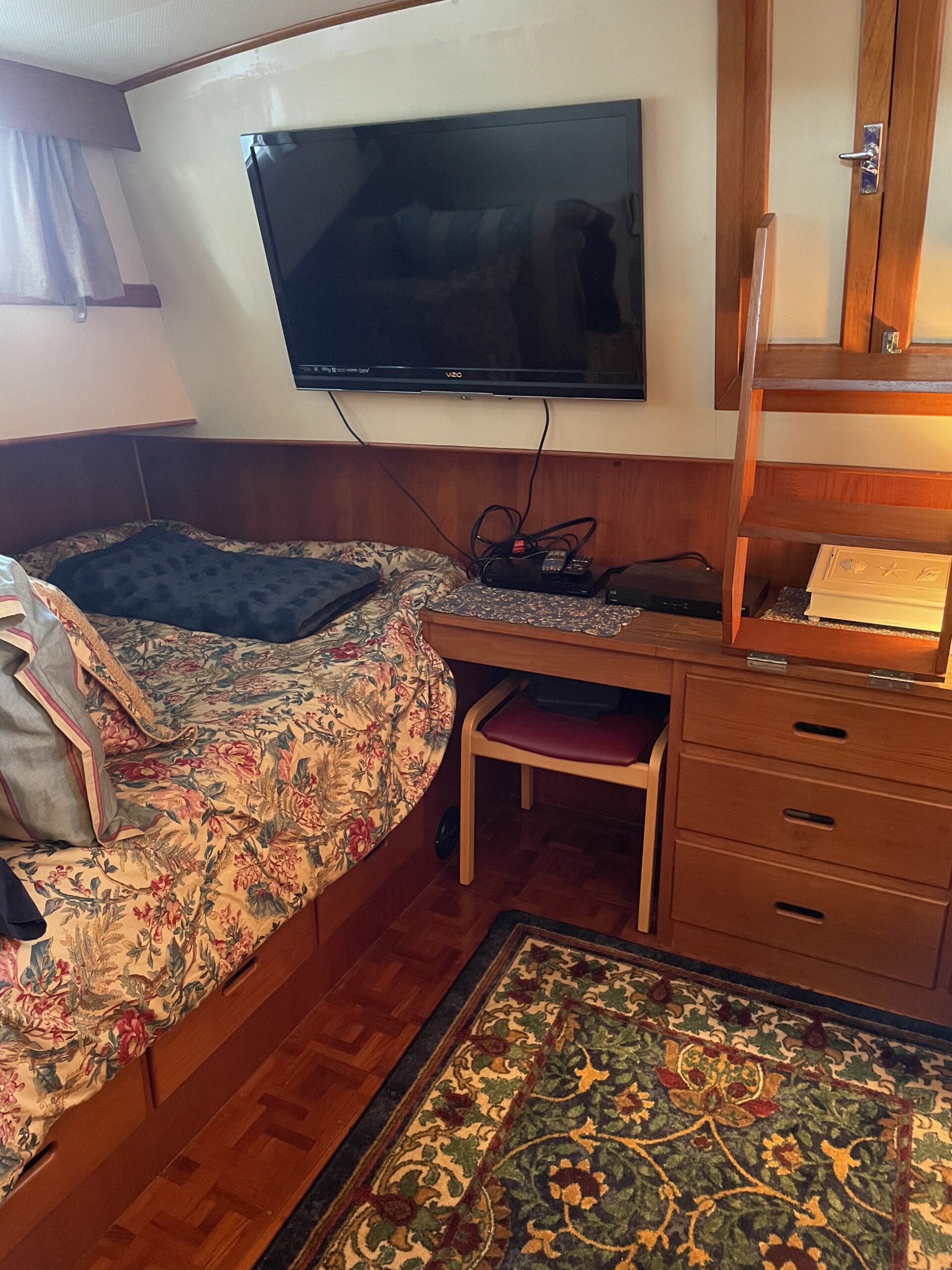

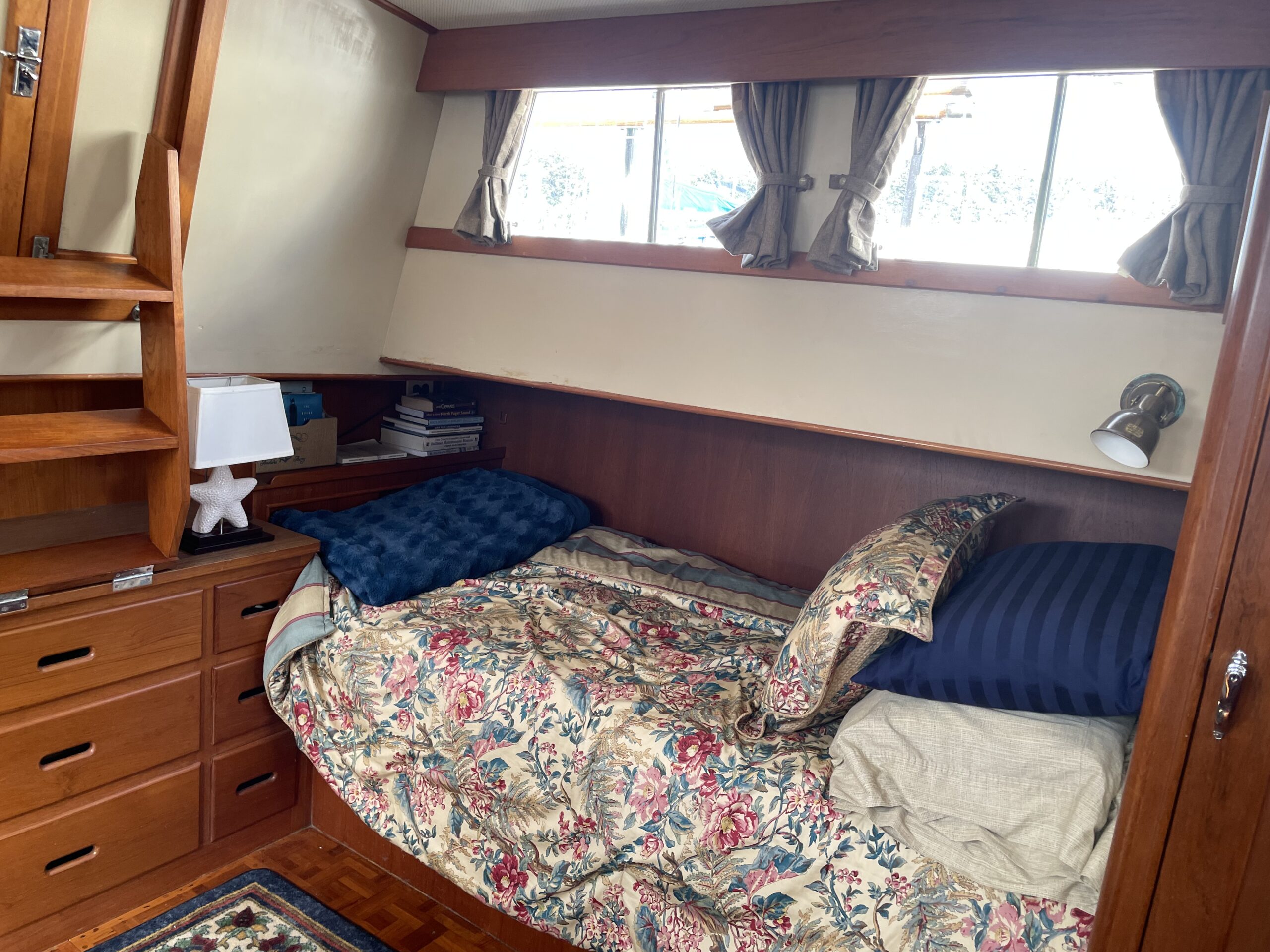

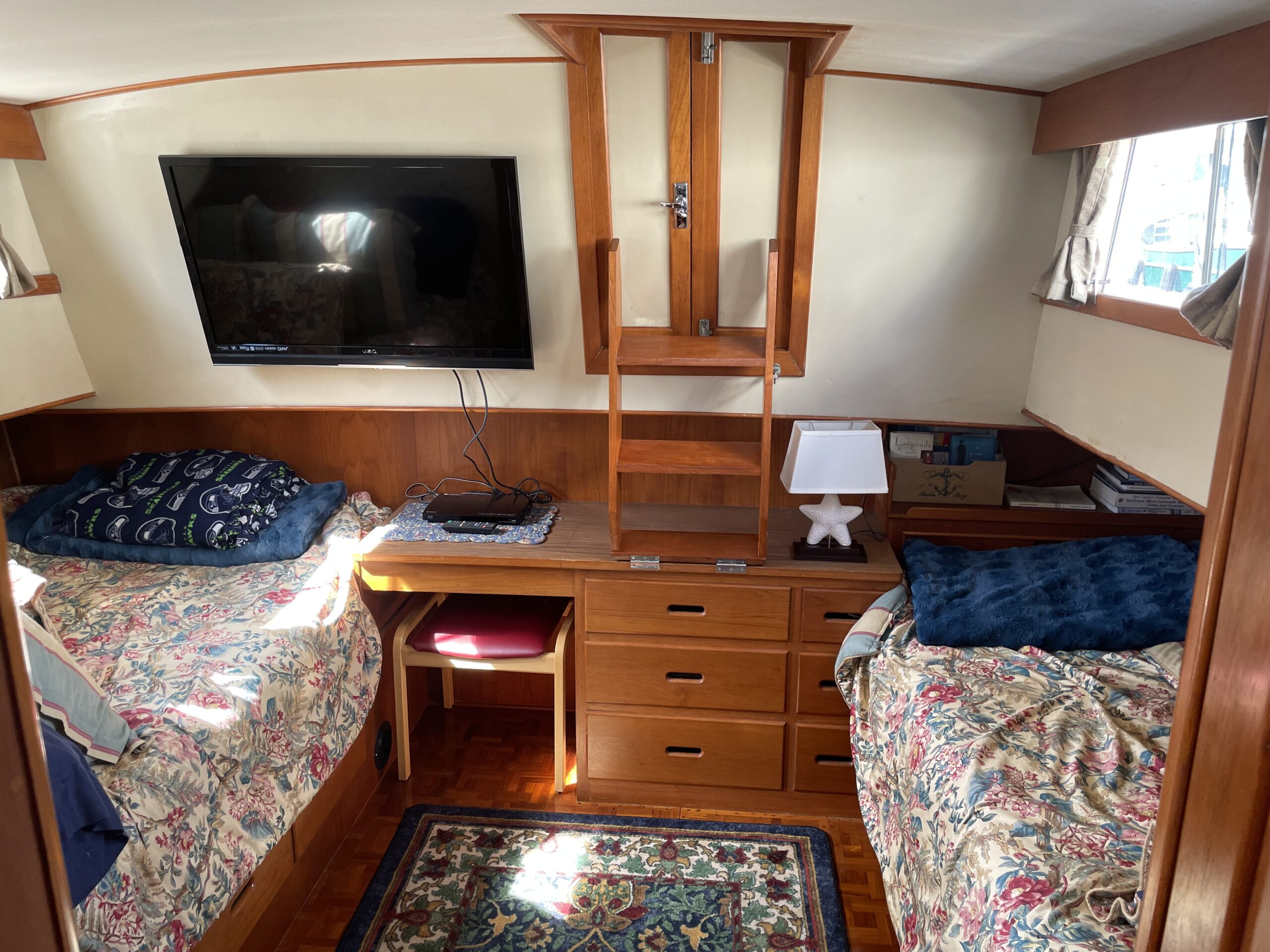

• 2 in Aft Cabin Double Berth

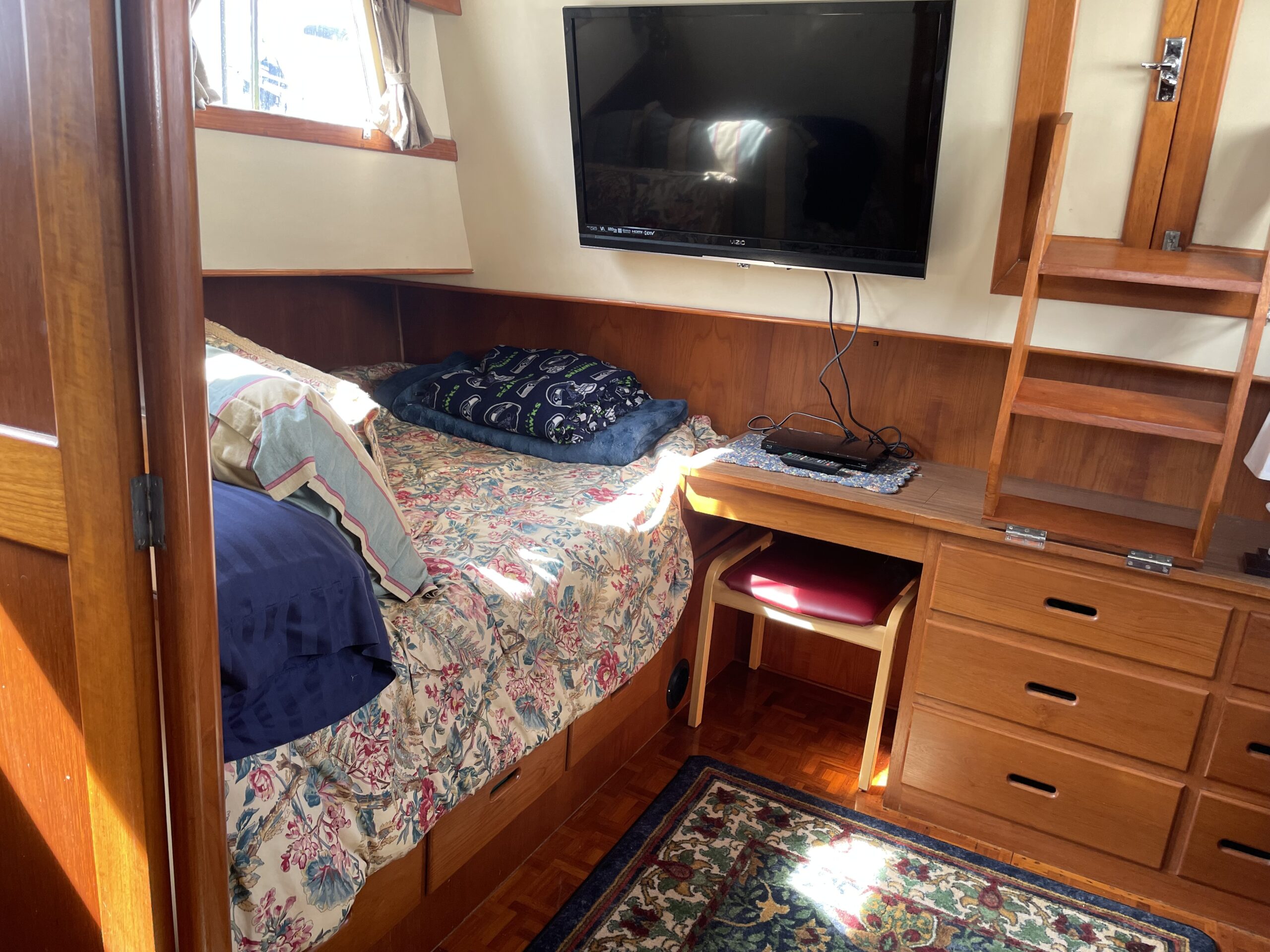

• 1 in Aft Cabin Single Berth

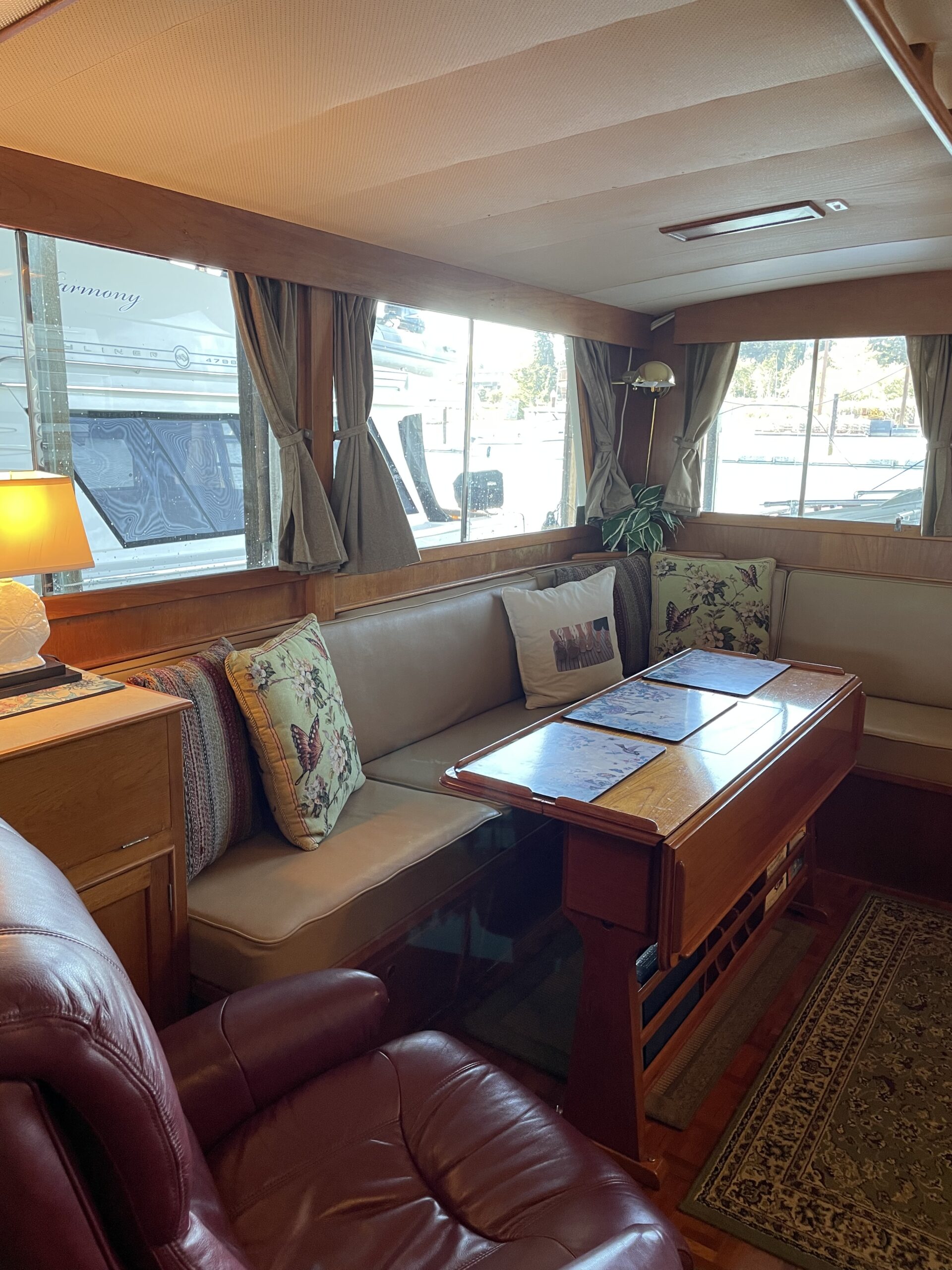

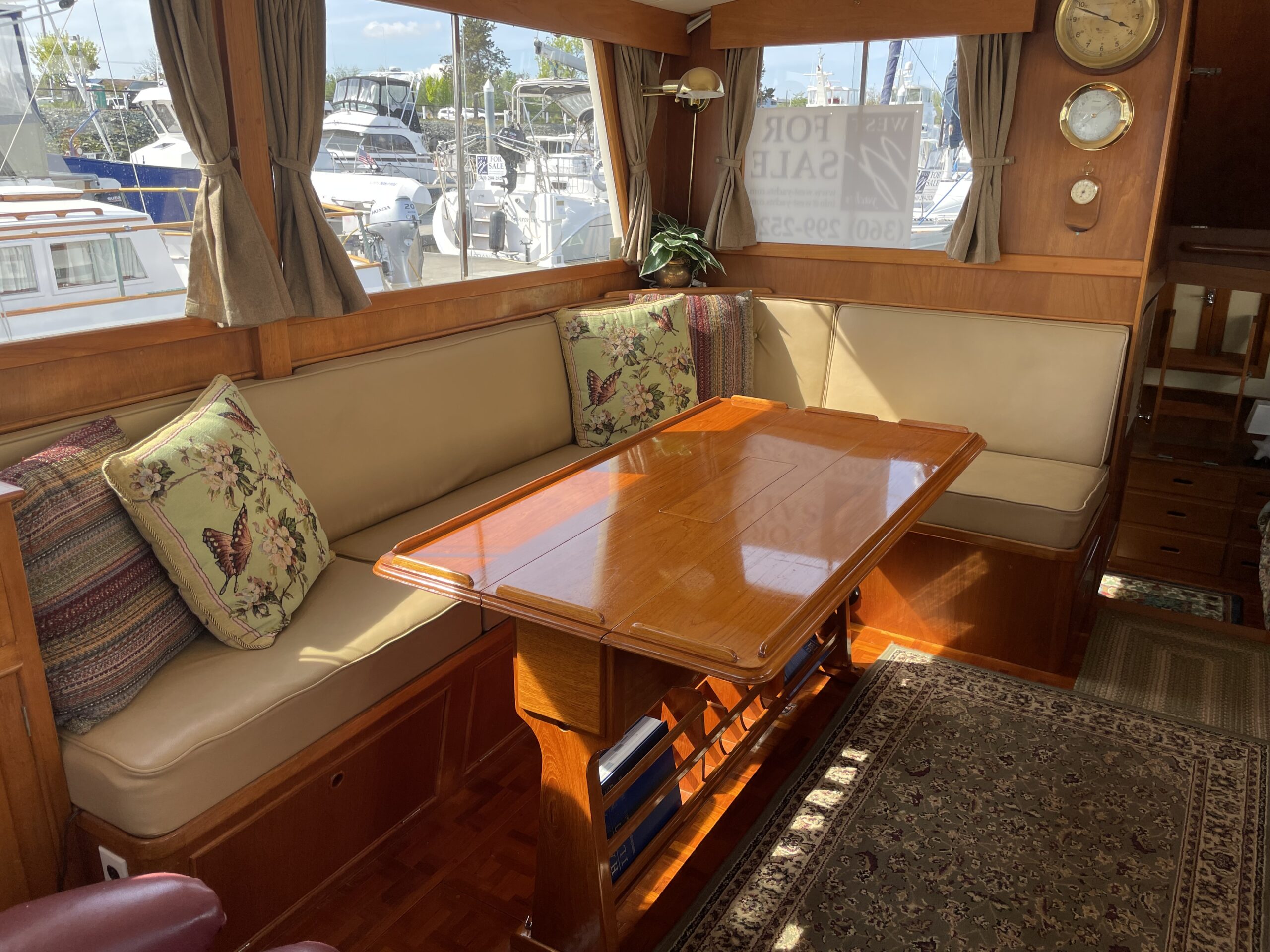

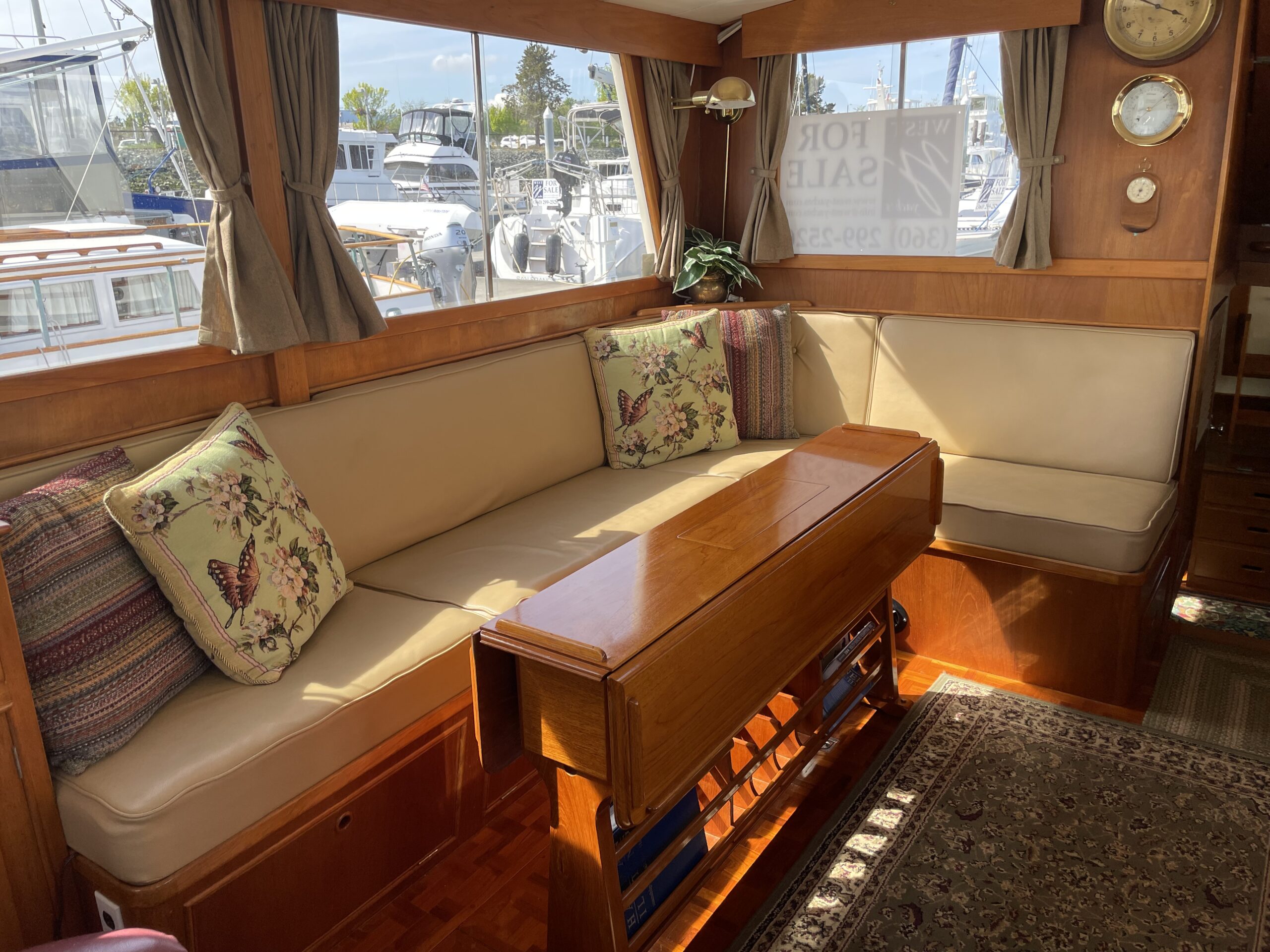

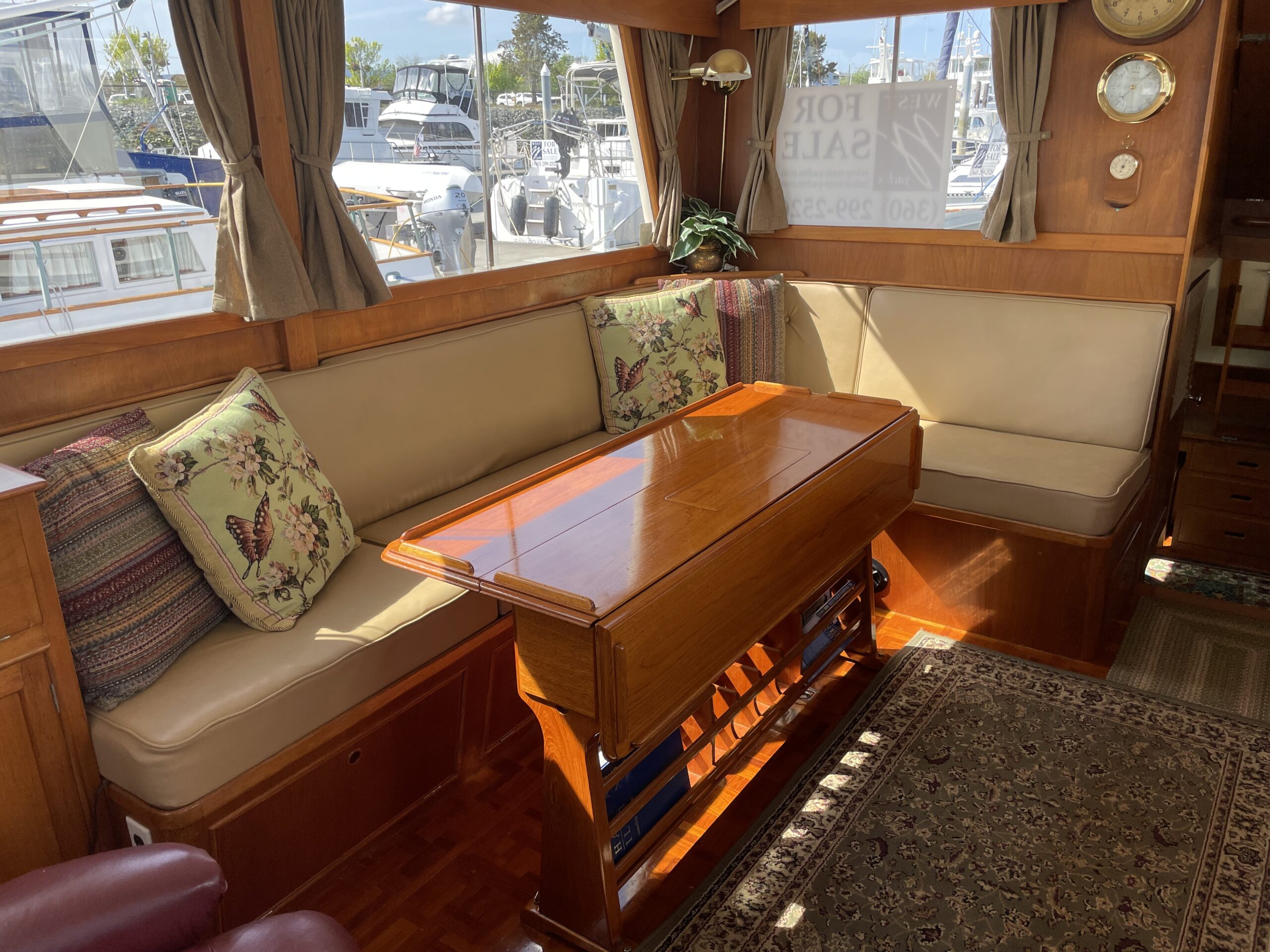

• 1 on Salon Settee

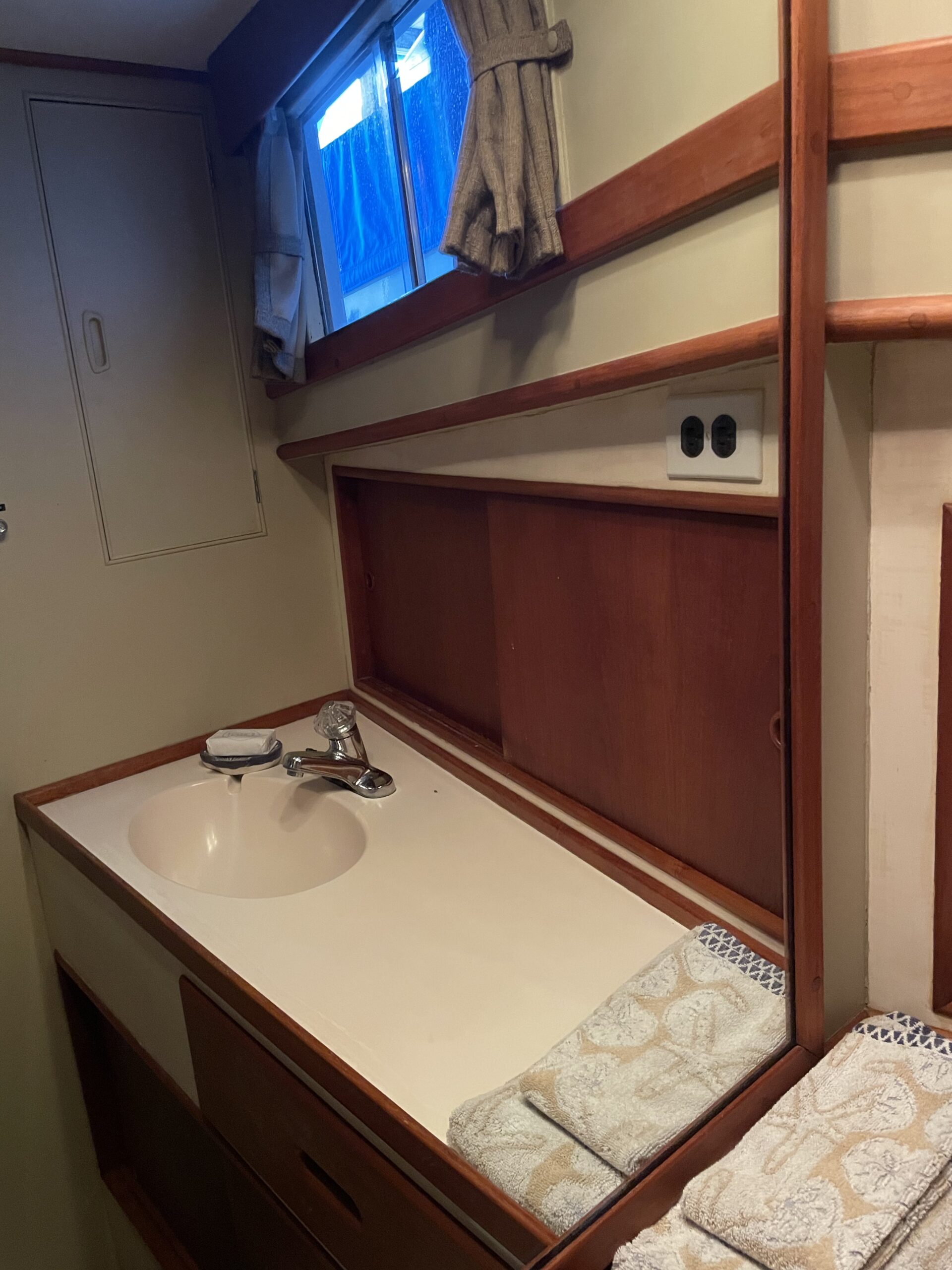

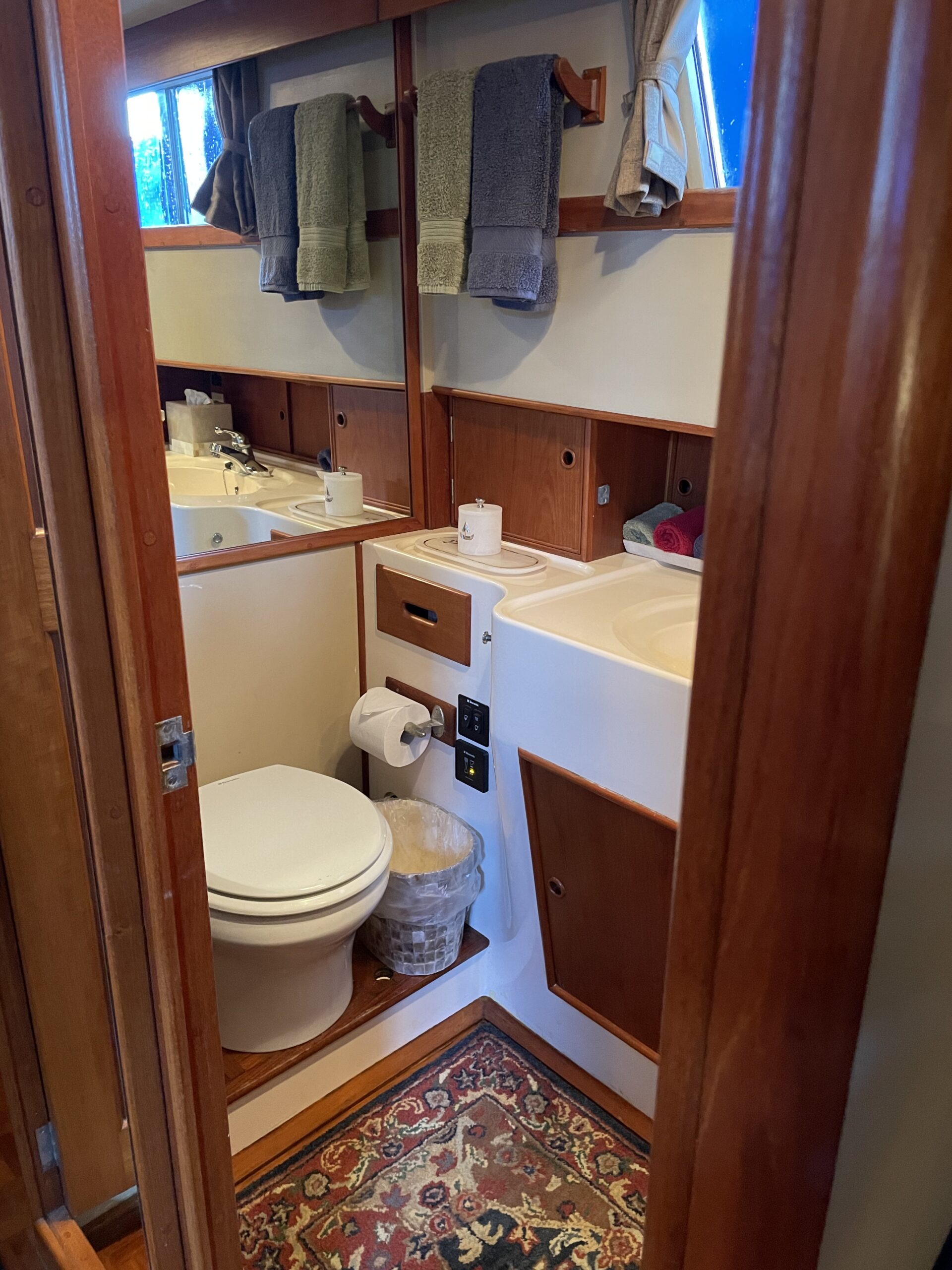

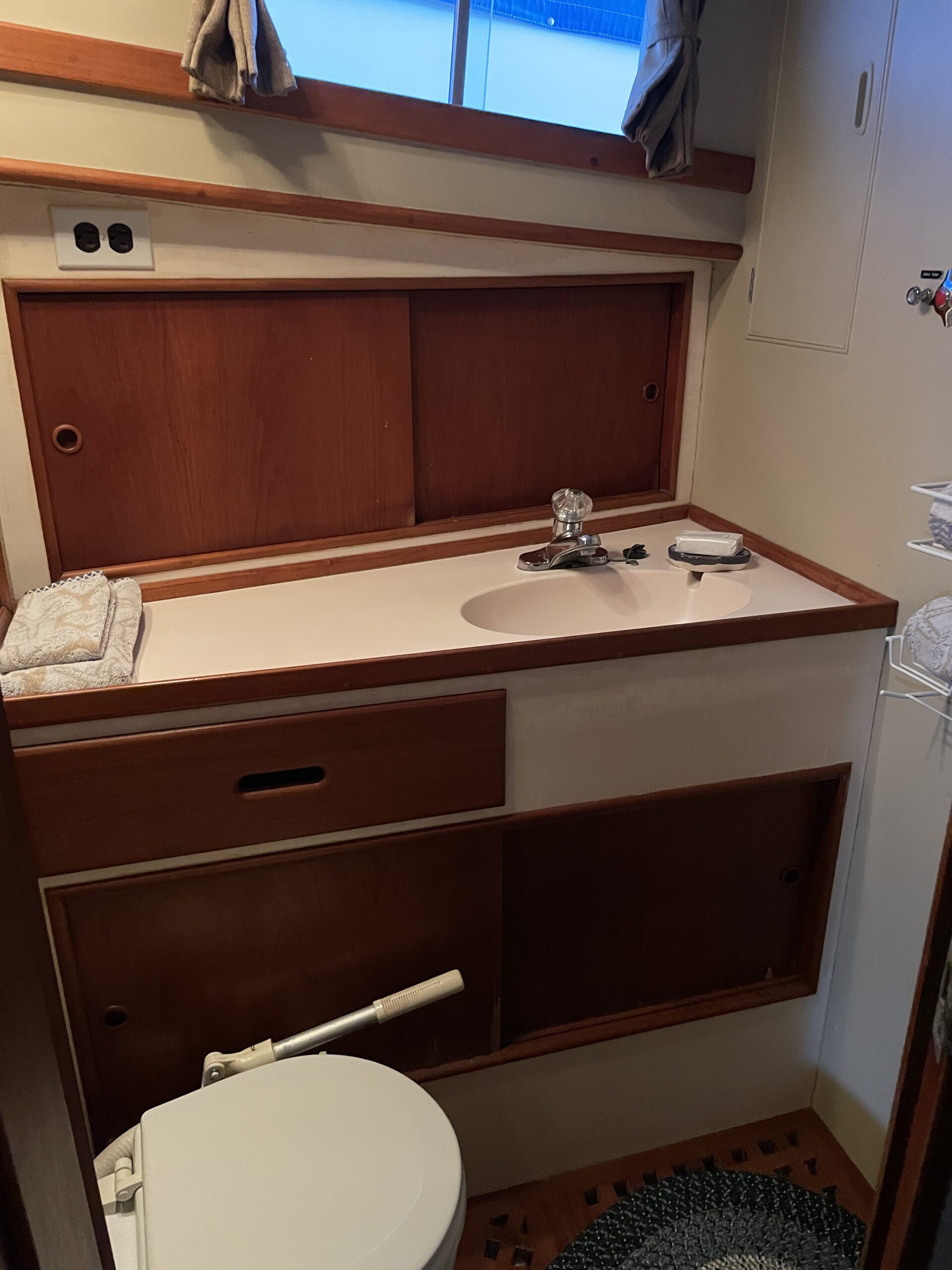

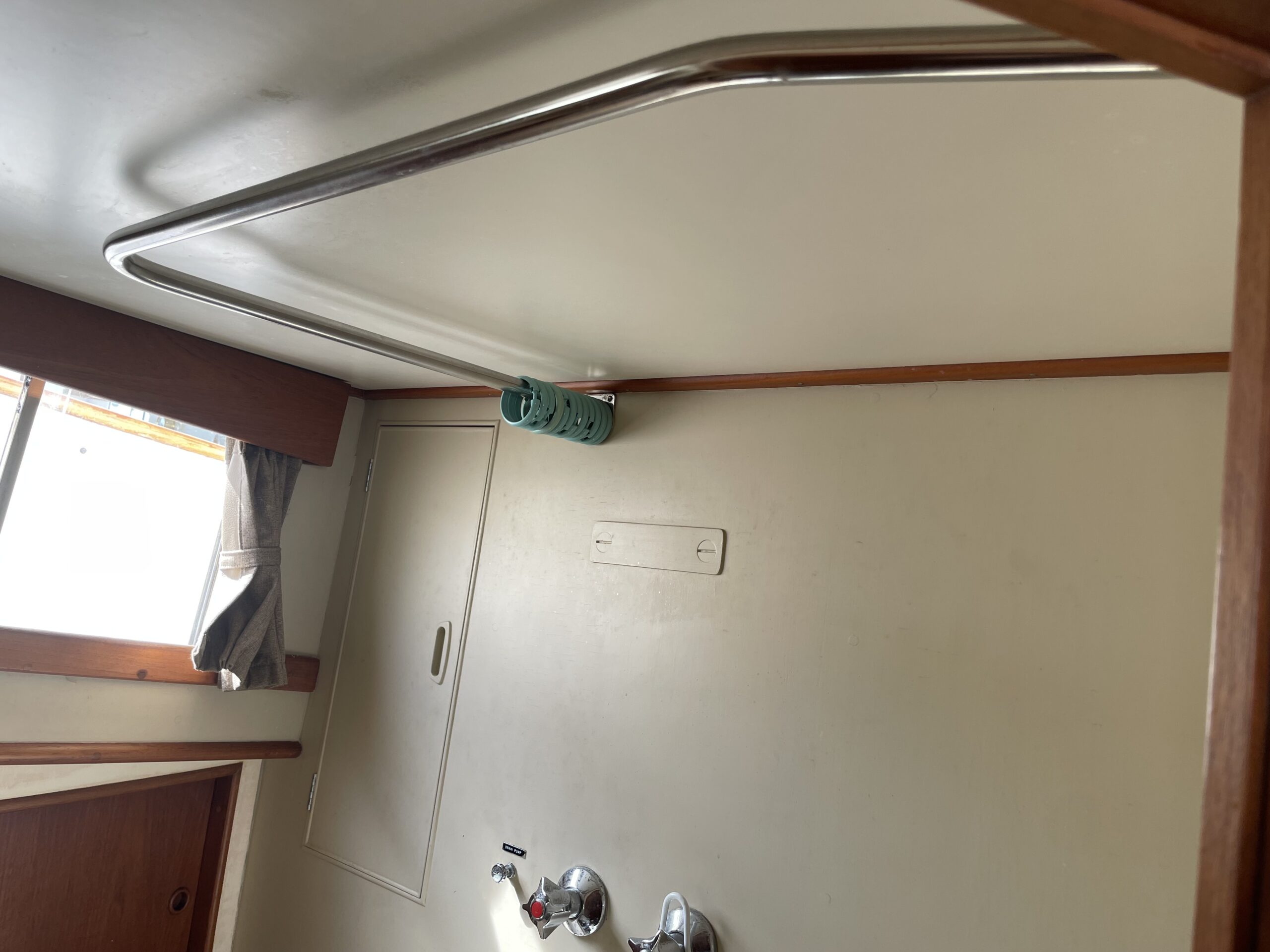

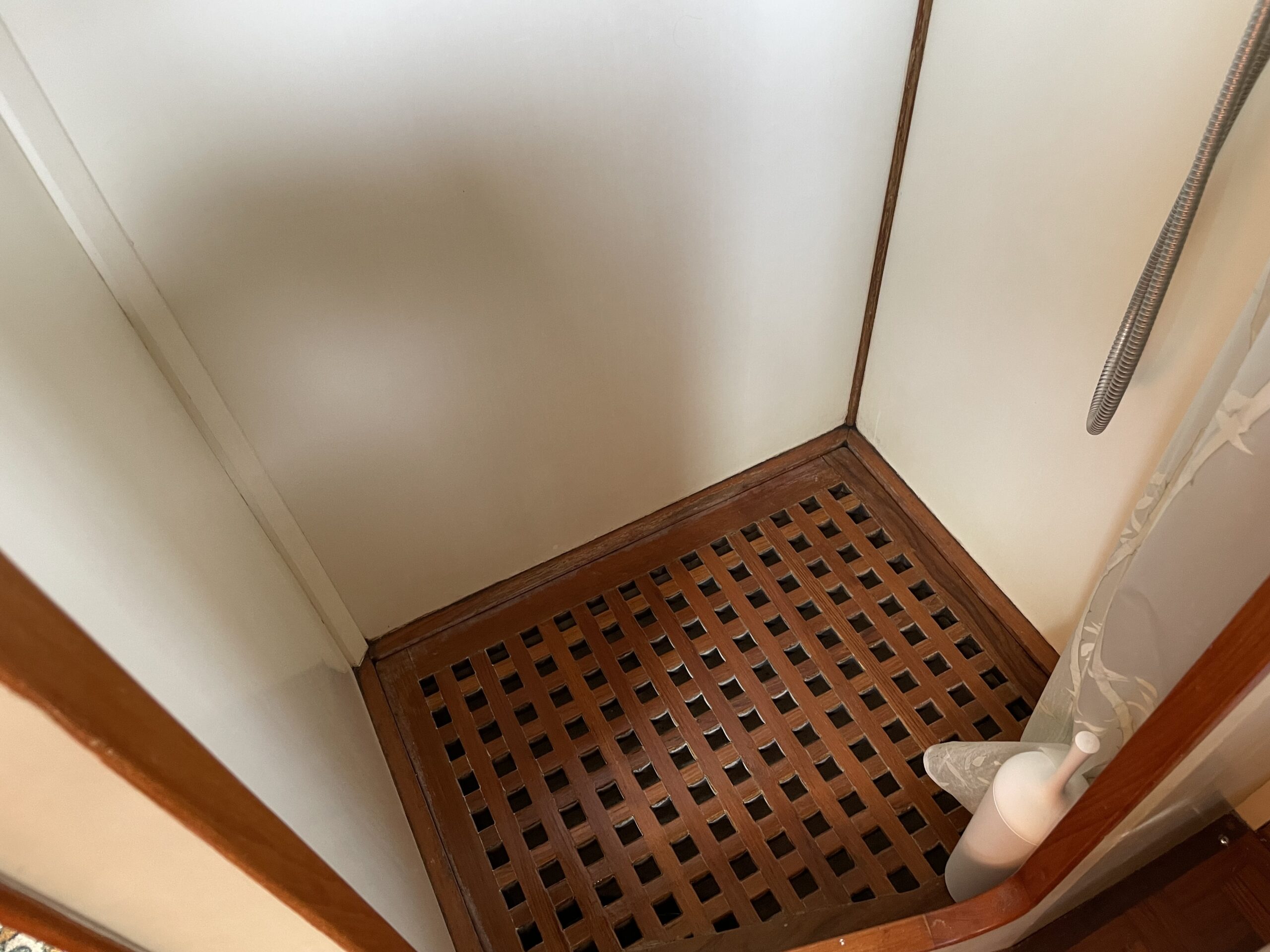

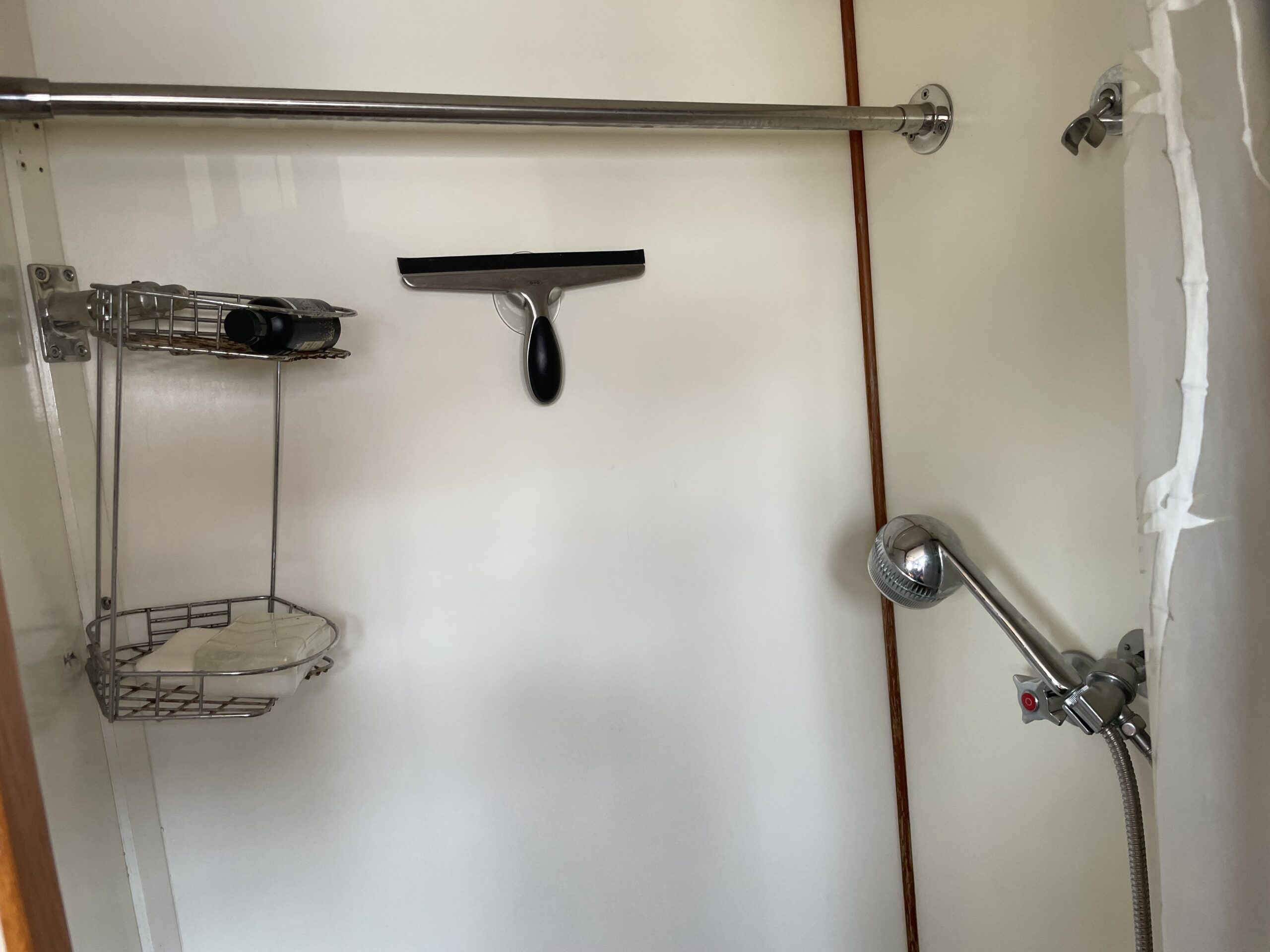

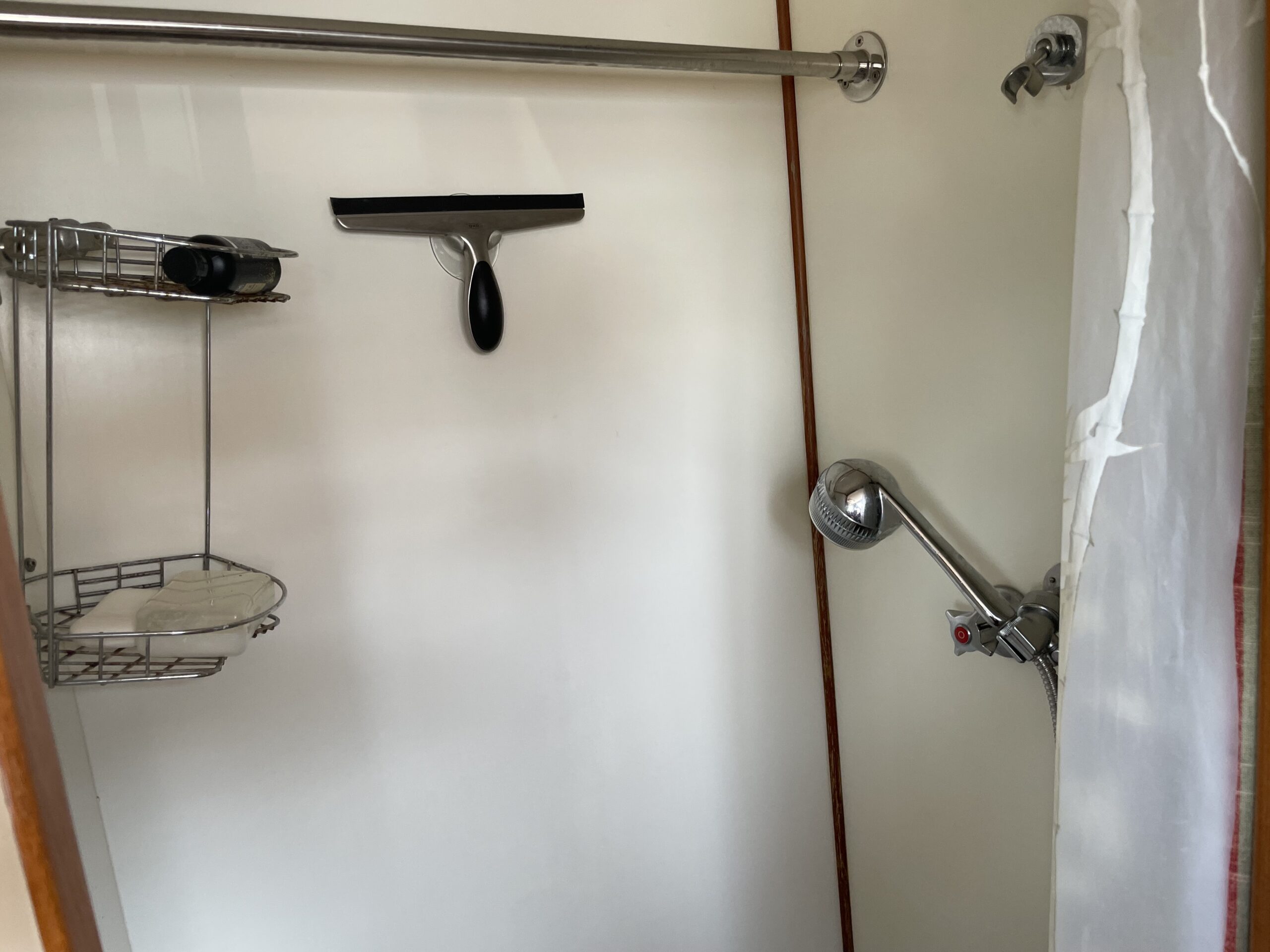

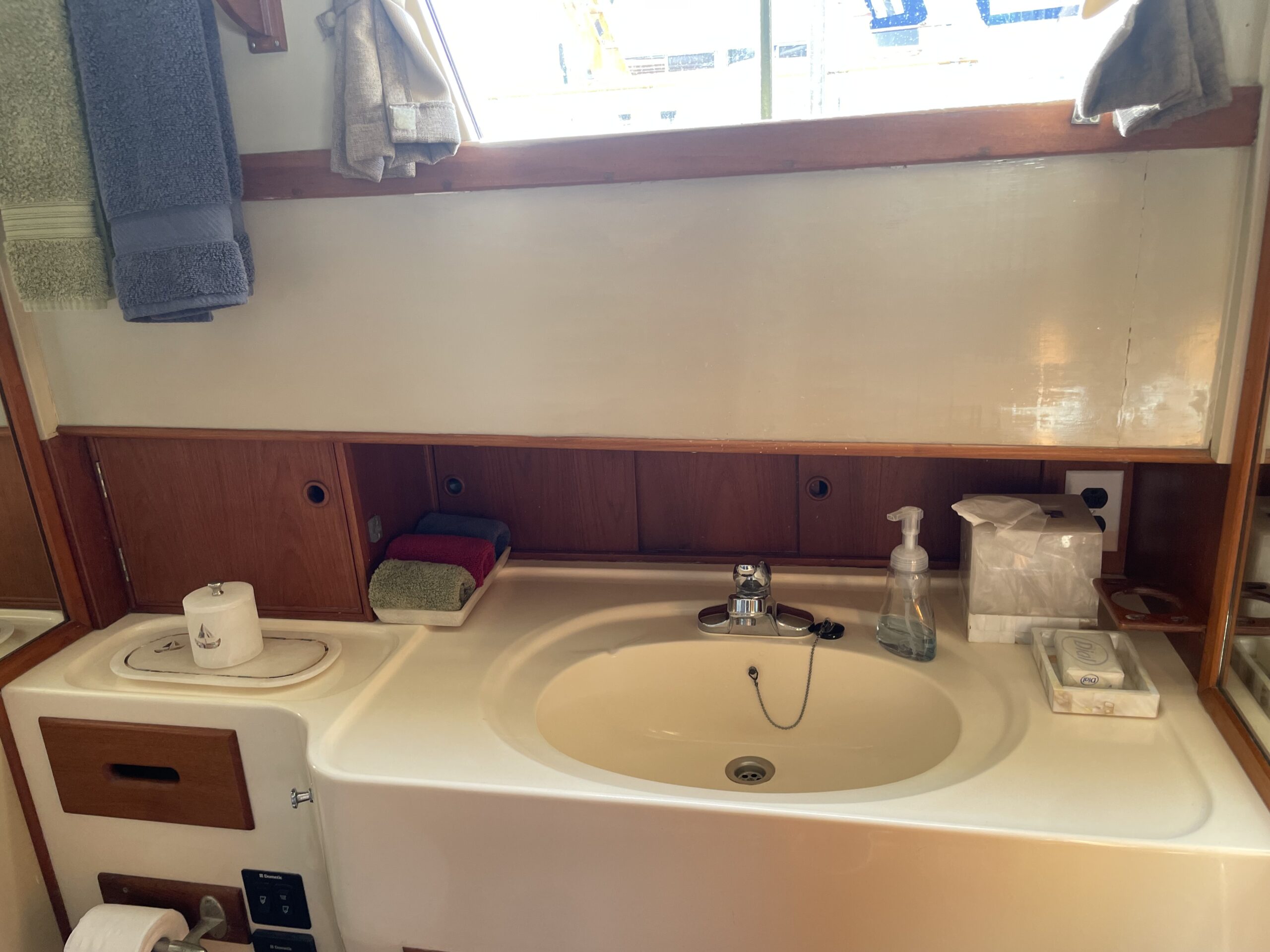

• Private Enclosed Heads (2) – Aft Head with Electric Toilet & Stall Shower

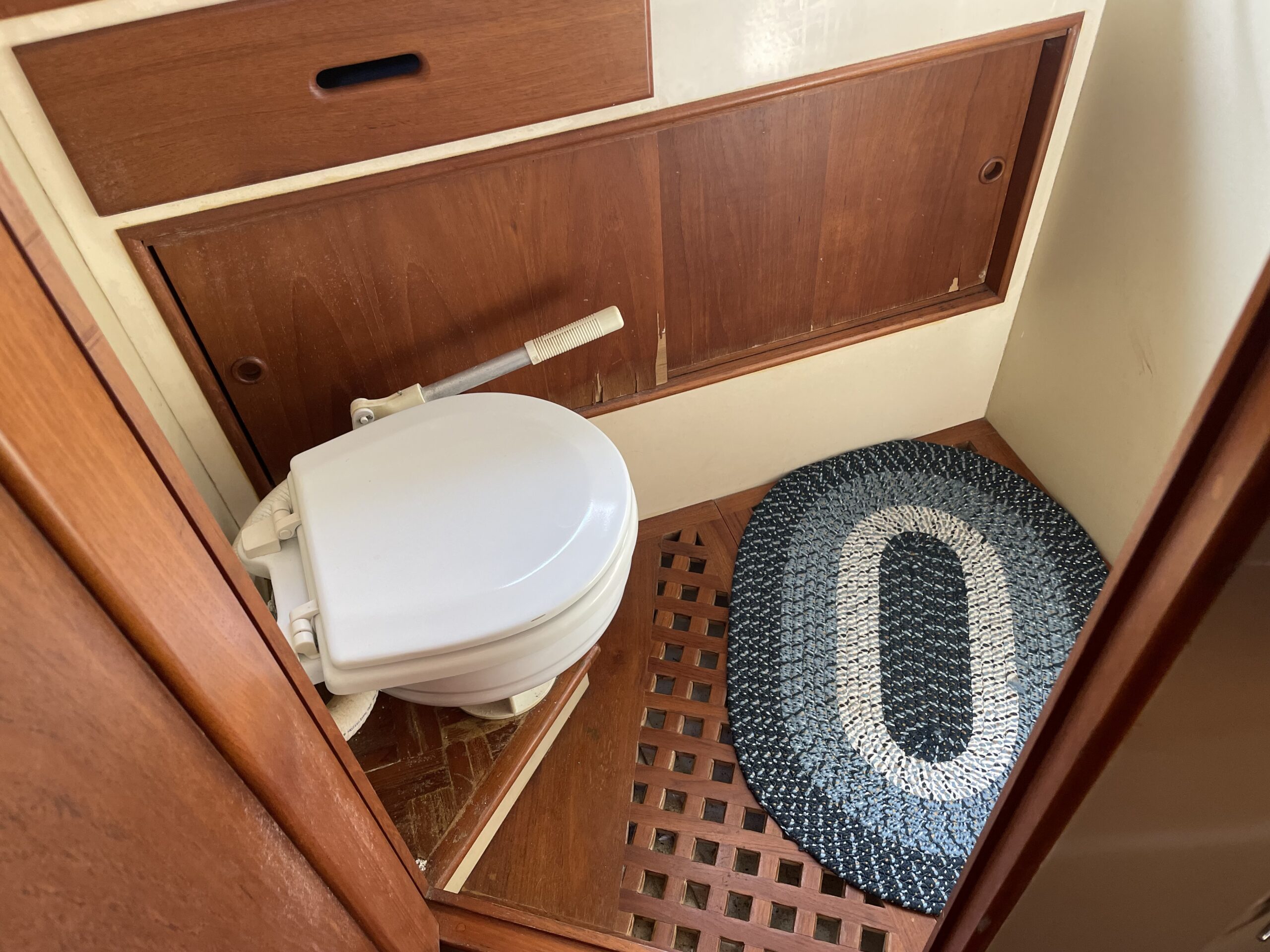

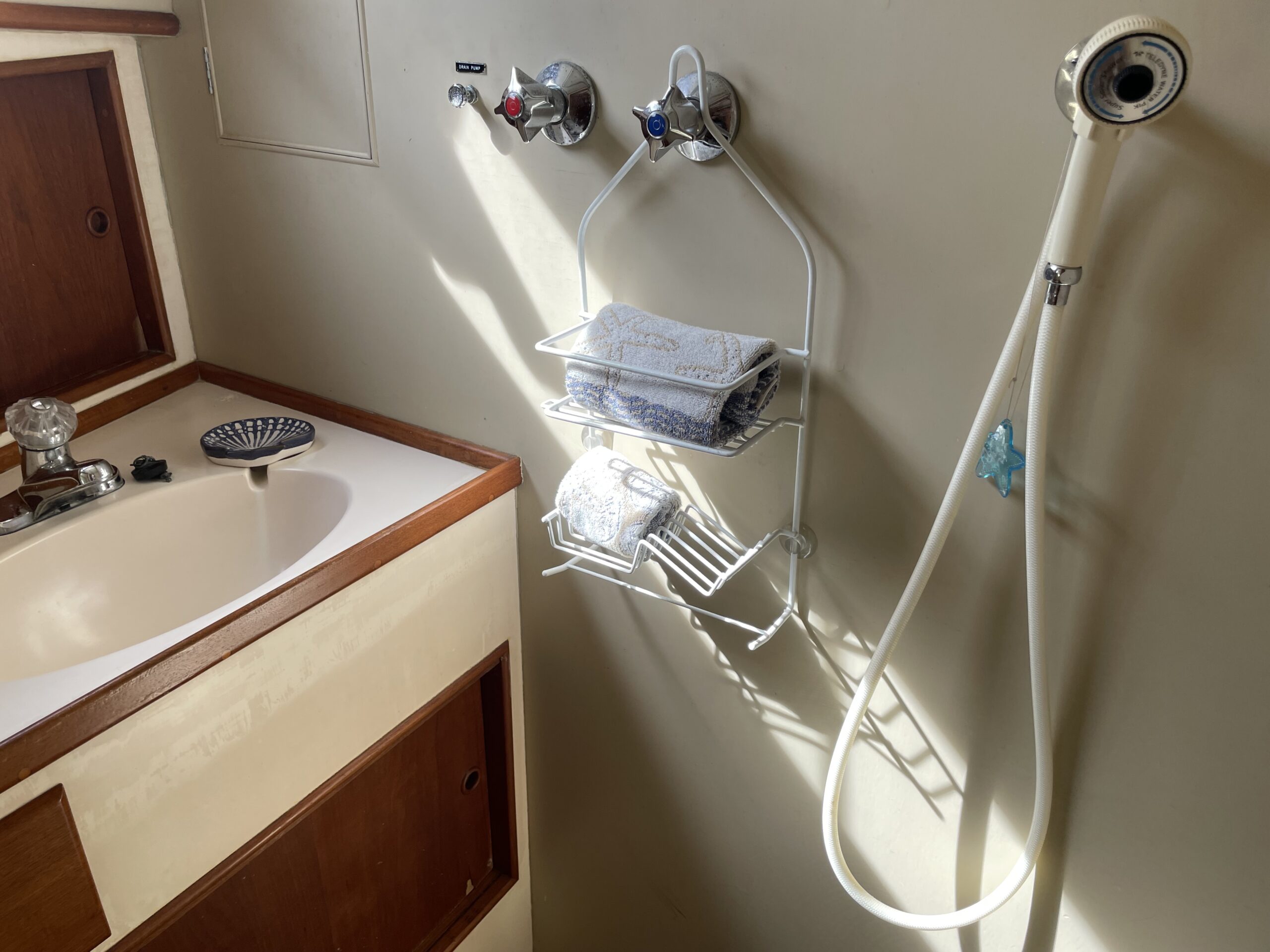

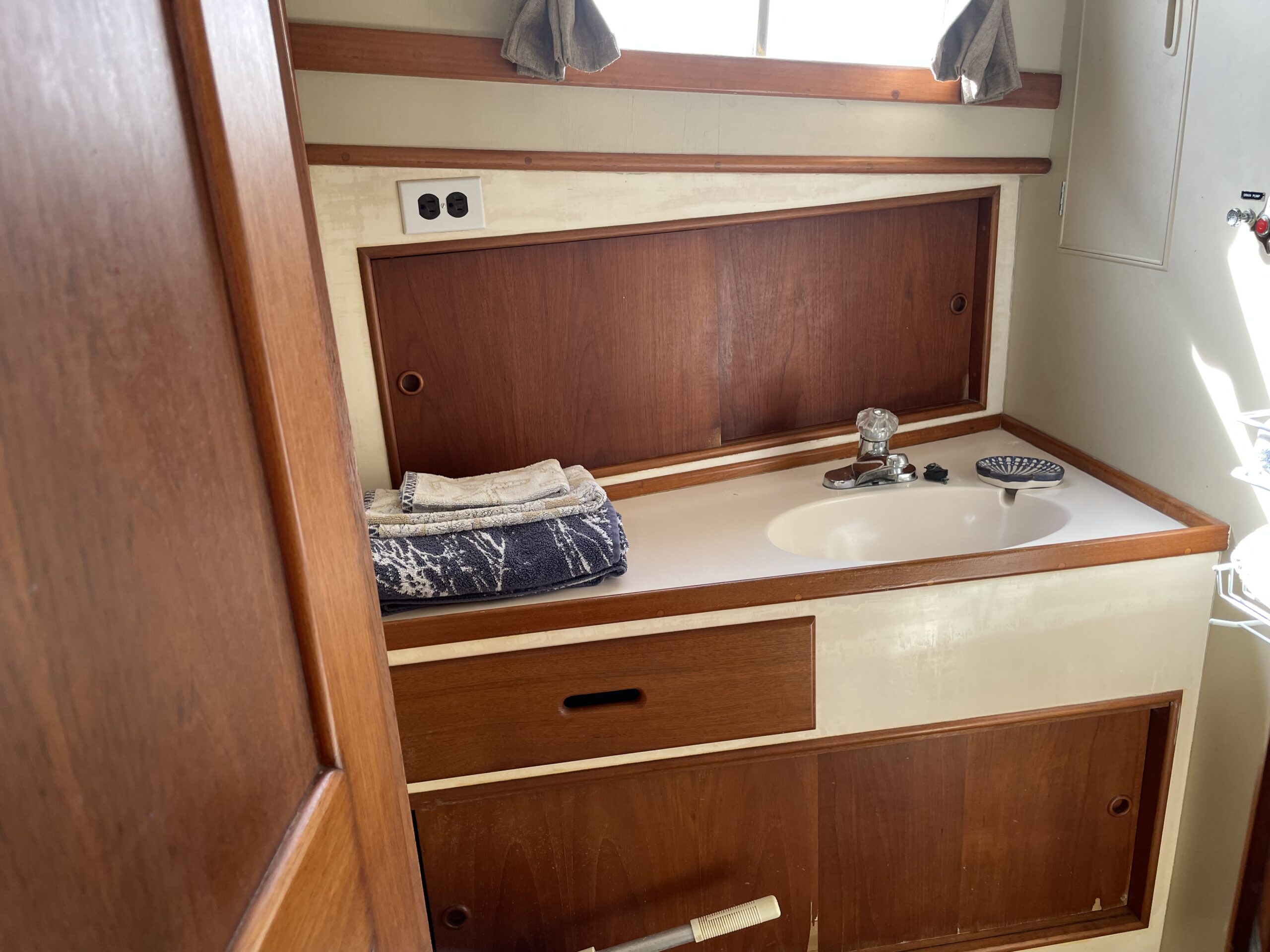

• Forward with Manual Toilet & Handheld Shower
• Shower Sump Pump – (1) 12Volt DC 300gph
• Hot & Cold Pressure Water System – Accumulator Tank including Filter

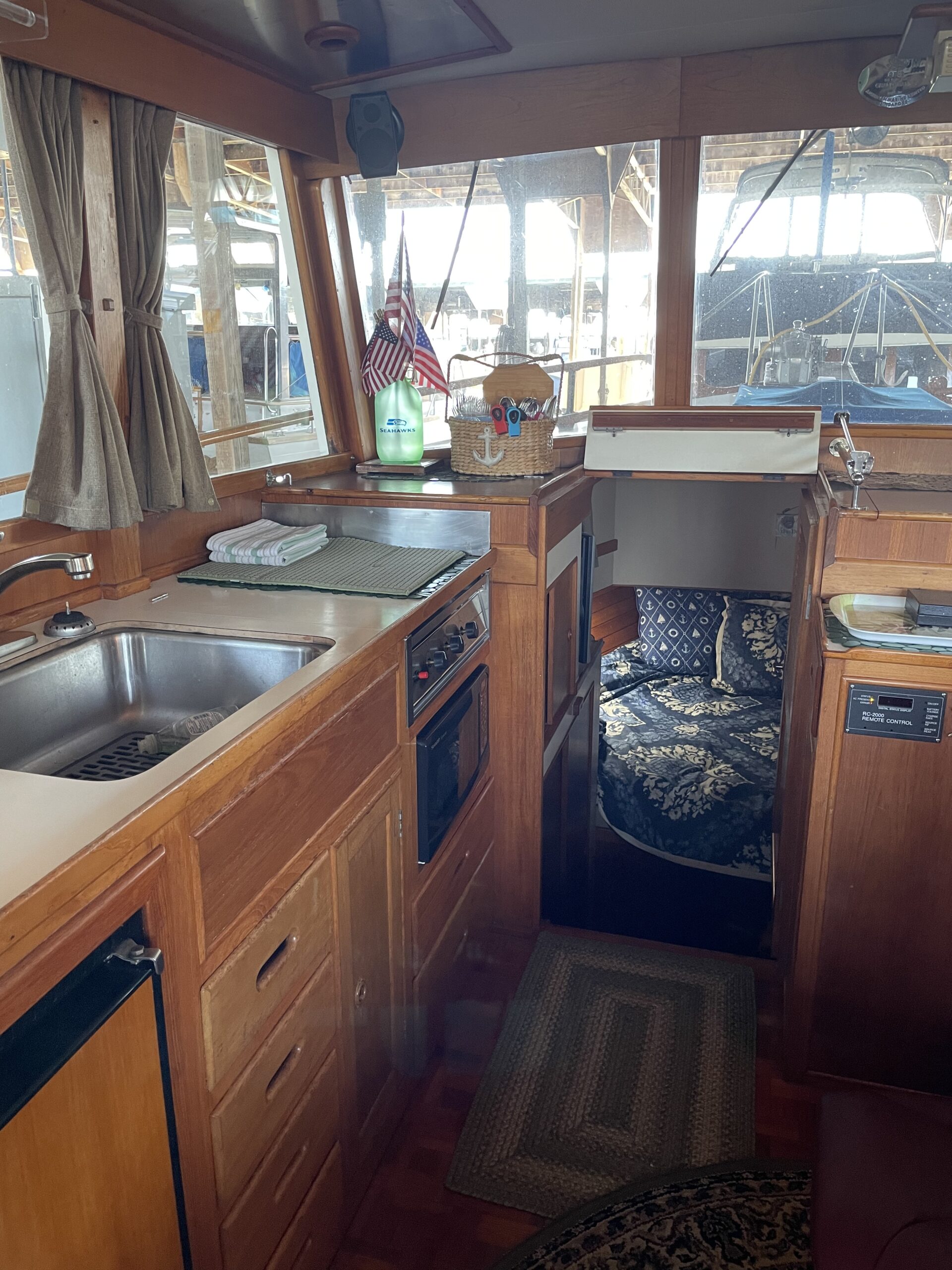

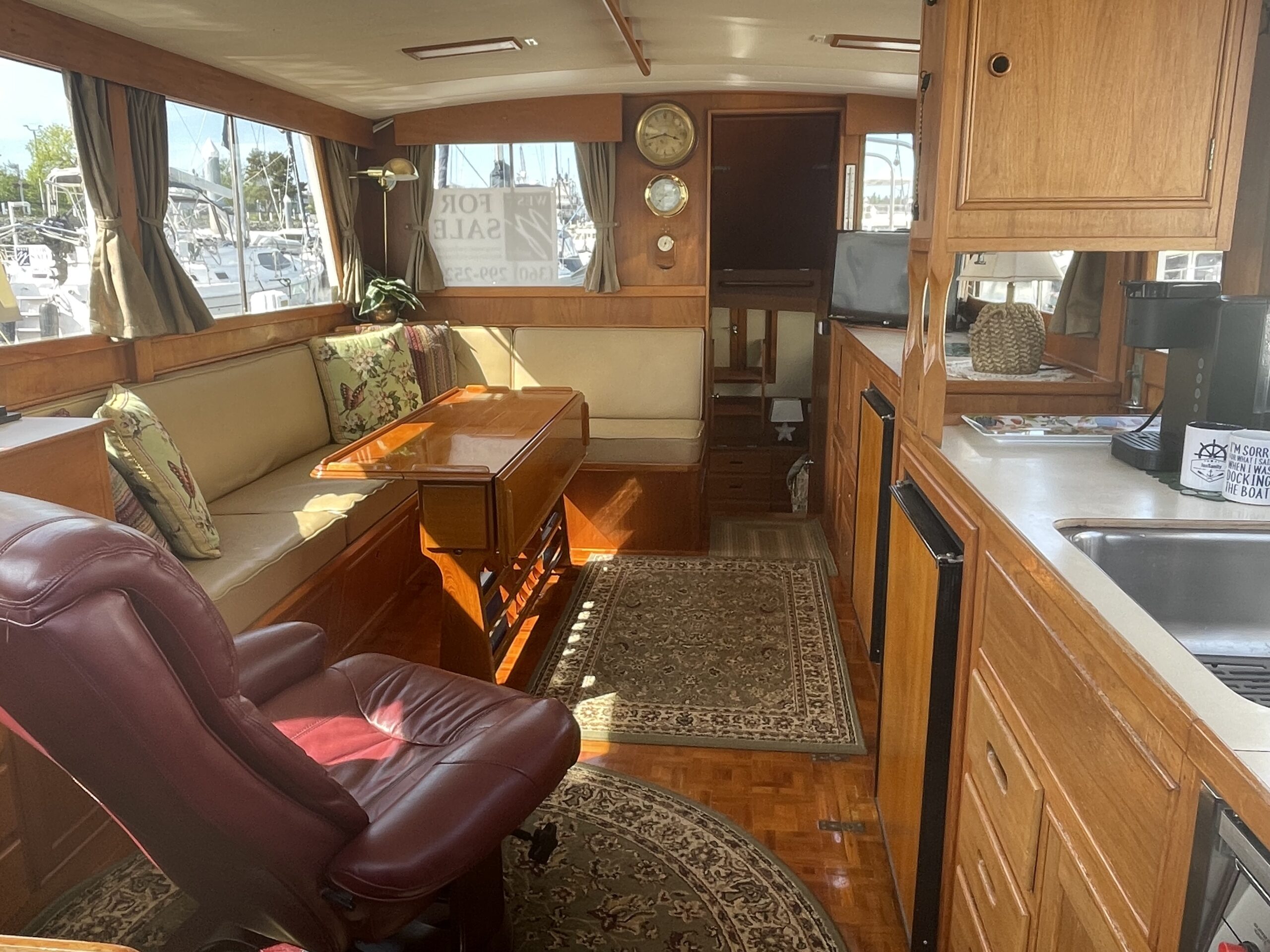

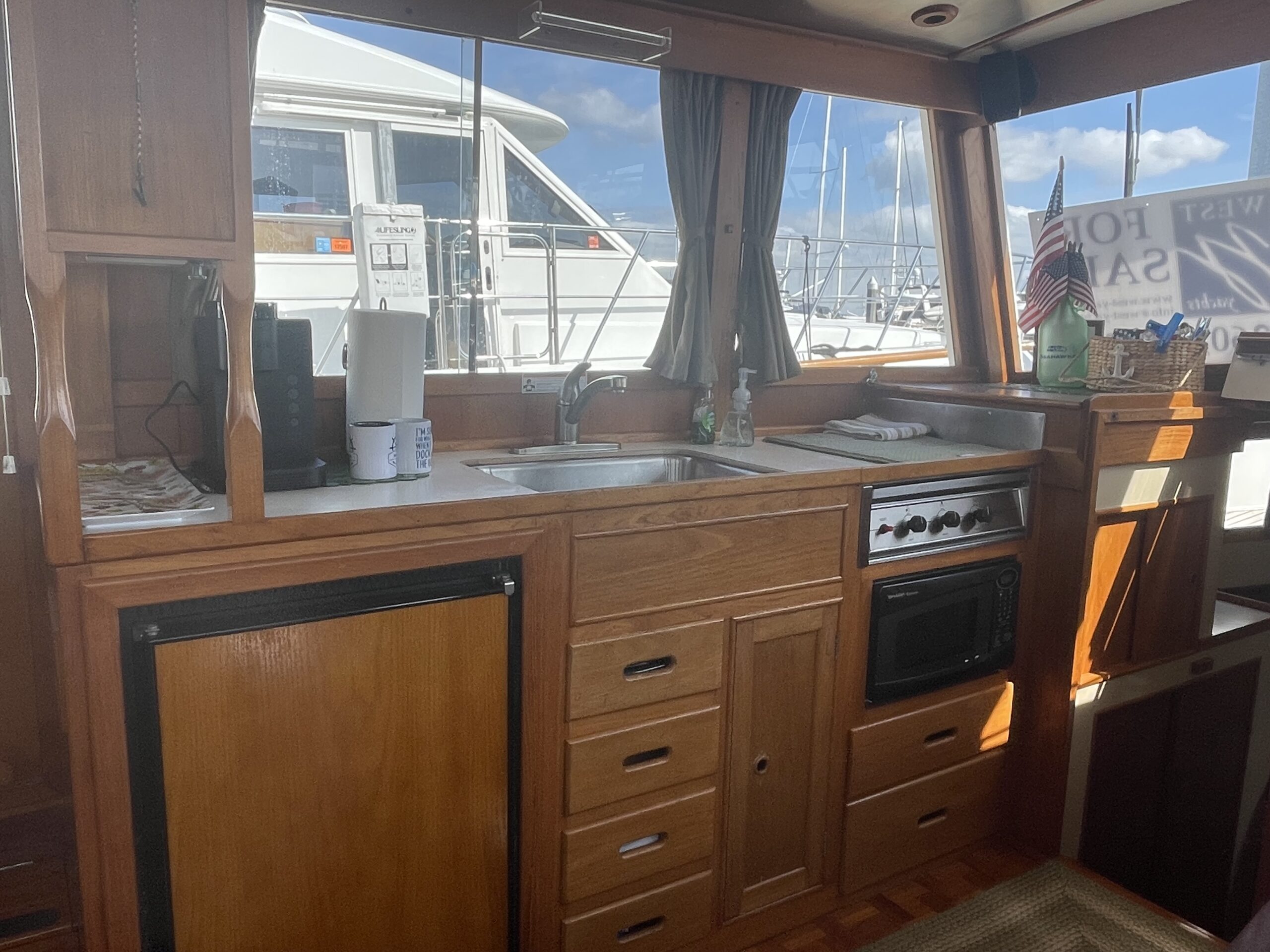

• Galley Sink – Big Single Stainless Steel
• Galley Refrigeration System – NovaKool 4cu.ft. Refrigerator w/Small Freezer – Updated
• Galley Freezer System – NovaKool 4cu.ft. Freezer
• Galley Stove – Princess Stainless-Steel 3-Burner Propane Cooktop
• Galley Microwave Oven – Sharp One

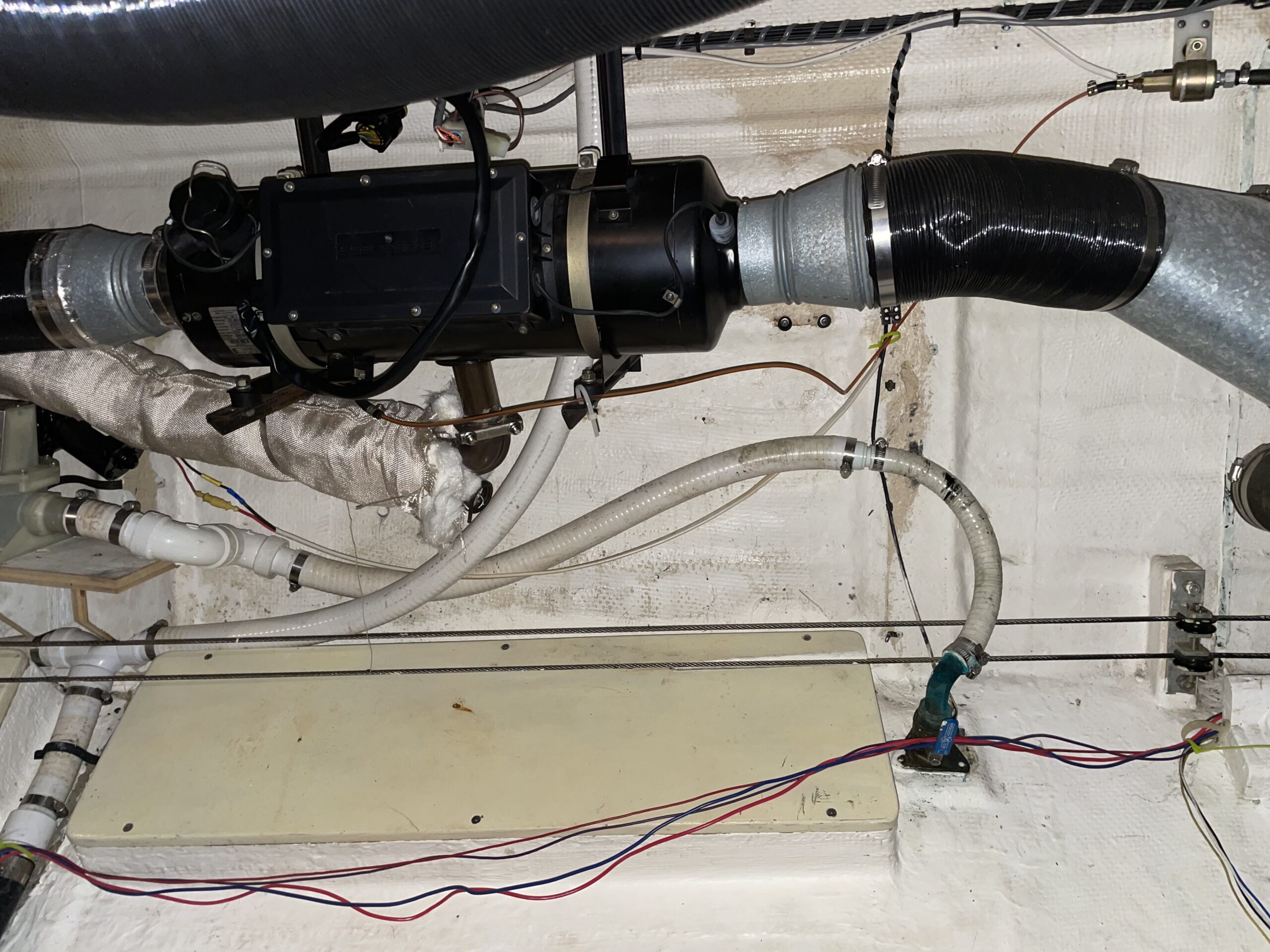

• Cabin Heat – Espar D8LHydronic Diesel Furnace

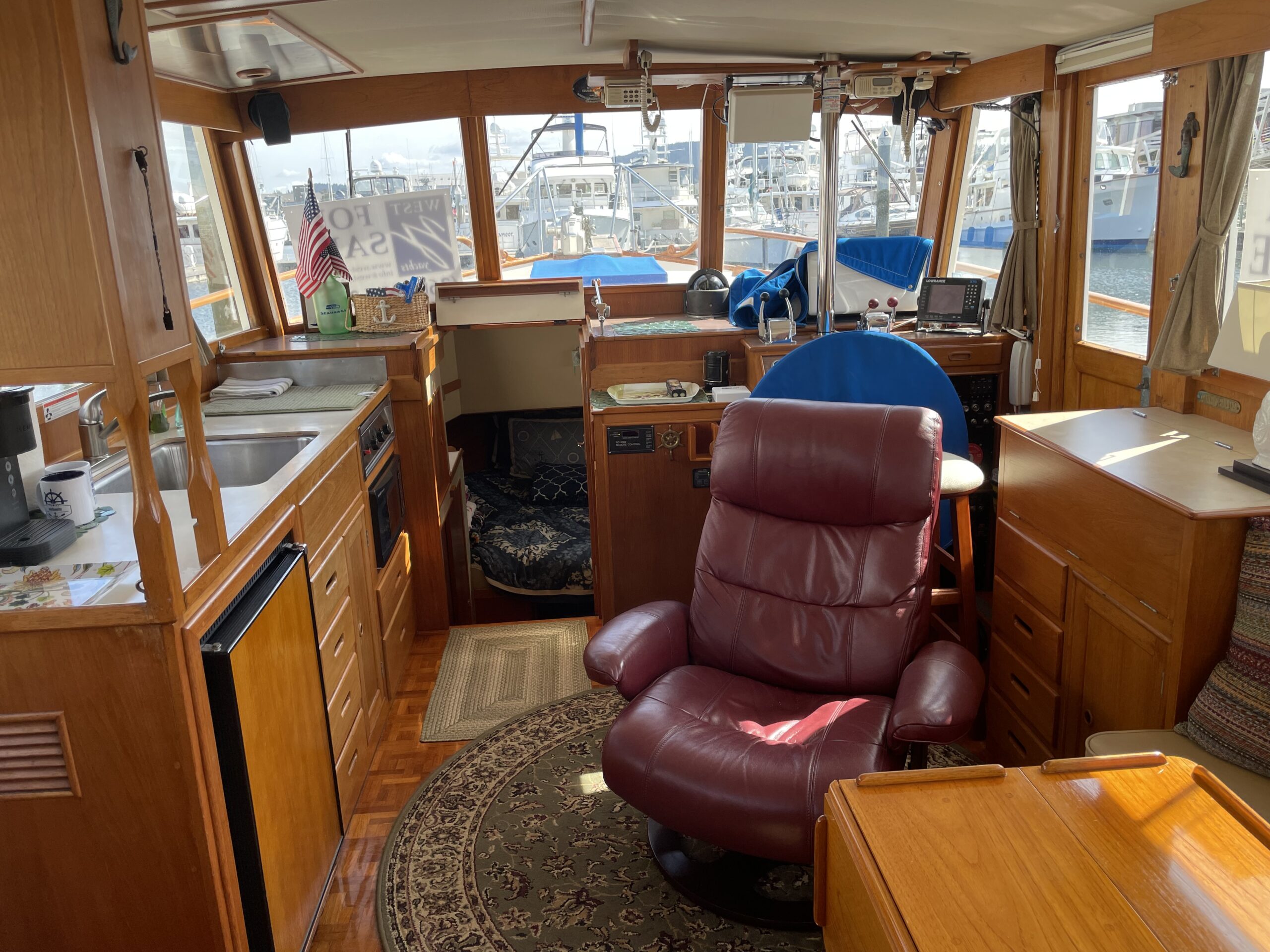

• Interior Finish – Flooring – Teak Parquet
• Trim – Teak
• Counter Tops – Laminate
• Headliner – Vinyl
• Curtains – Cloth
• Cushions – Leather & Vinyl

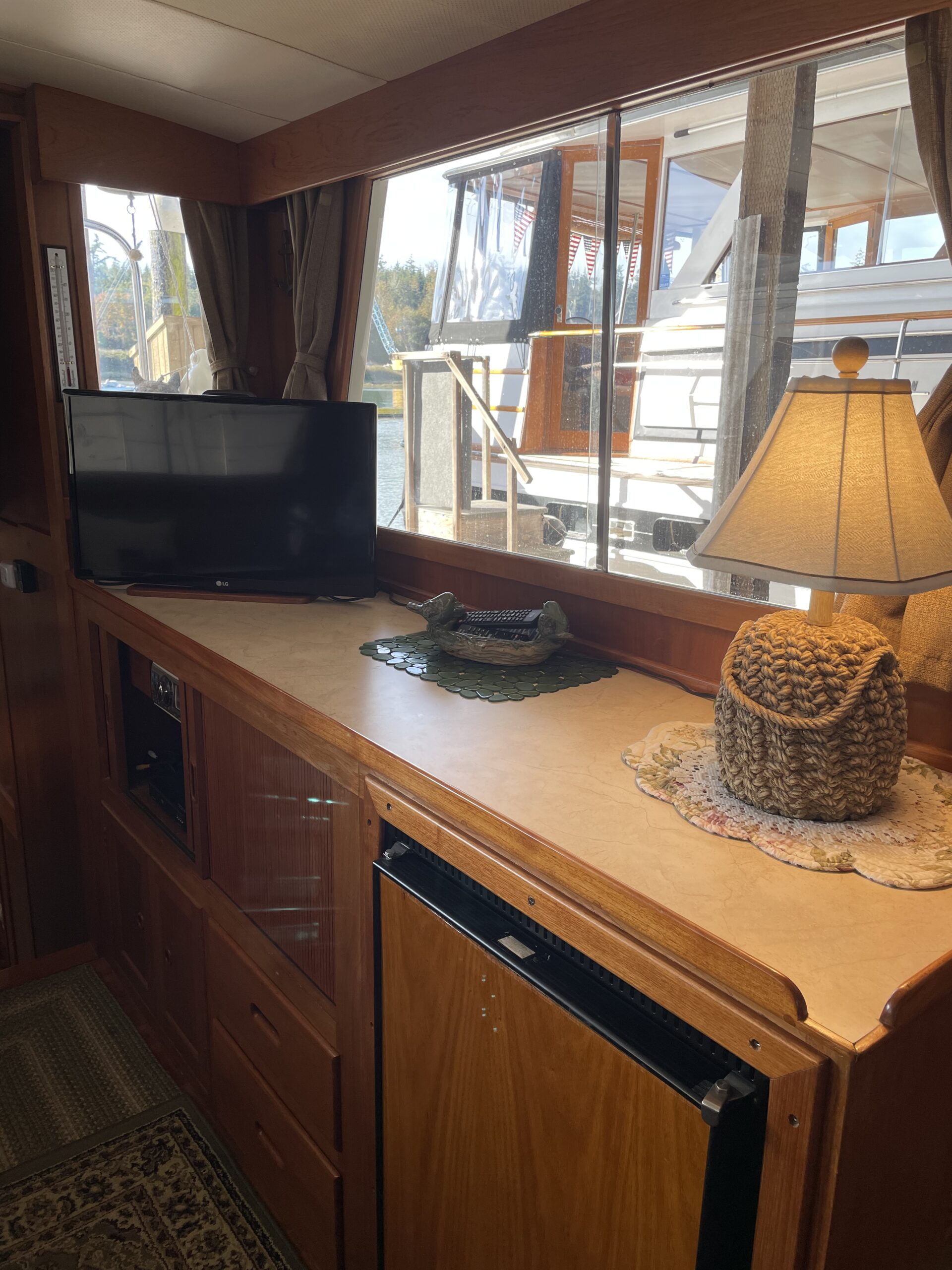

• TV – Vizio 22” in Salon
• Emerson 20” in Forward Stateroom
• Clock – Gerdau 10” Brass Bell Clock
• Barometer – Weems & Plath 7”

MECHANICAL:

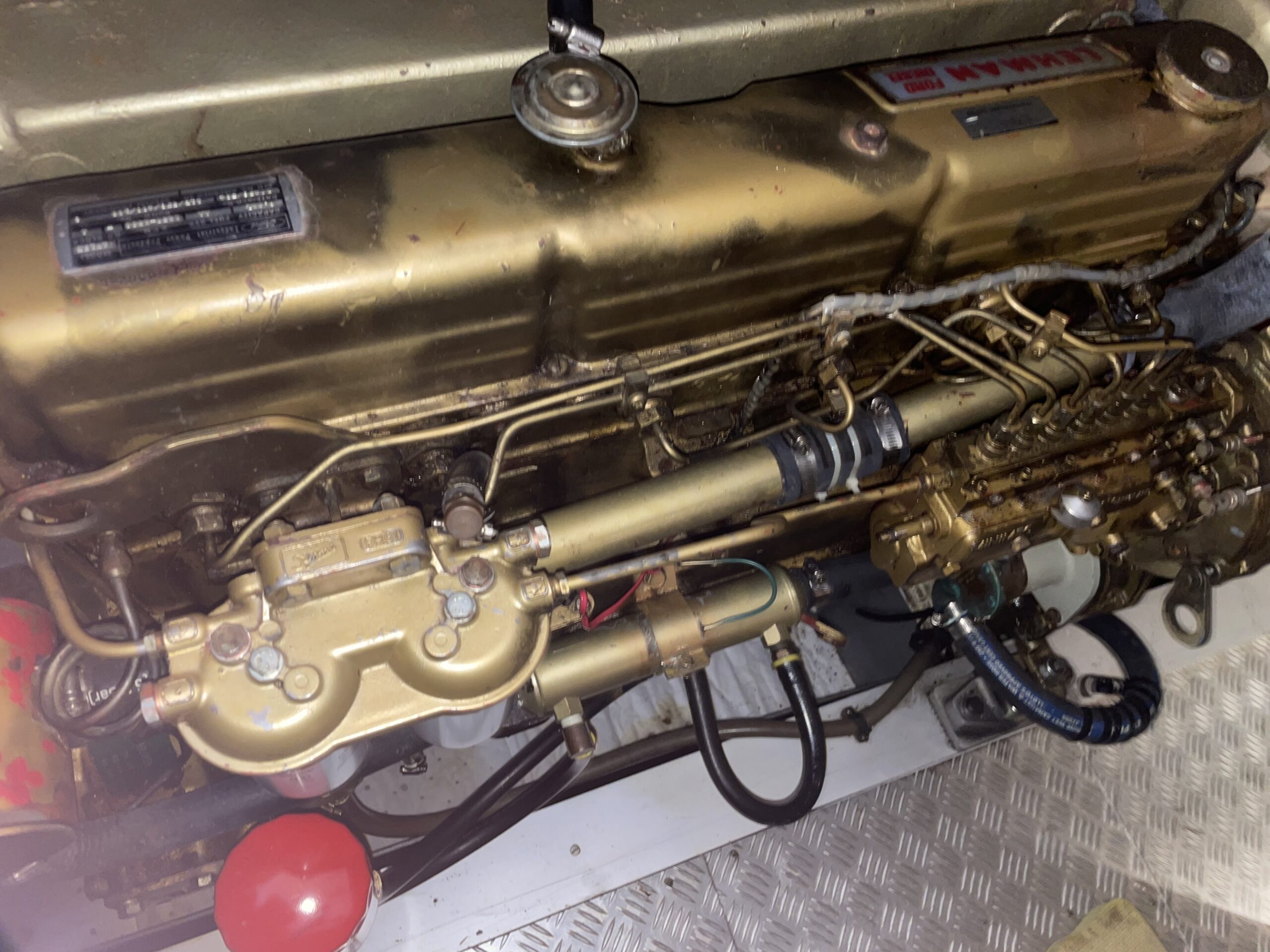

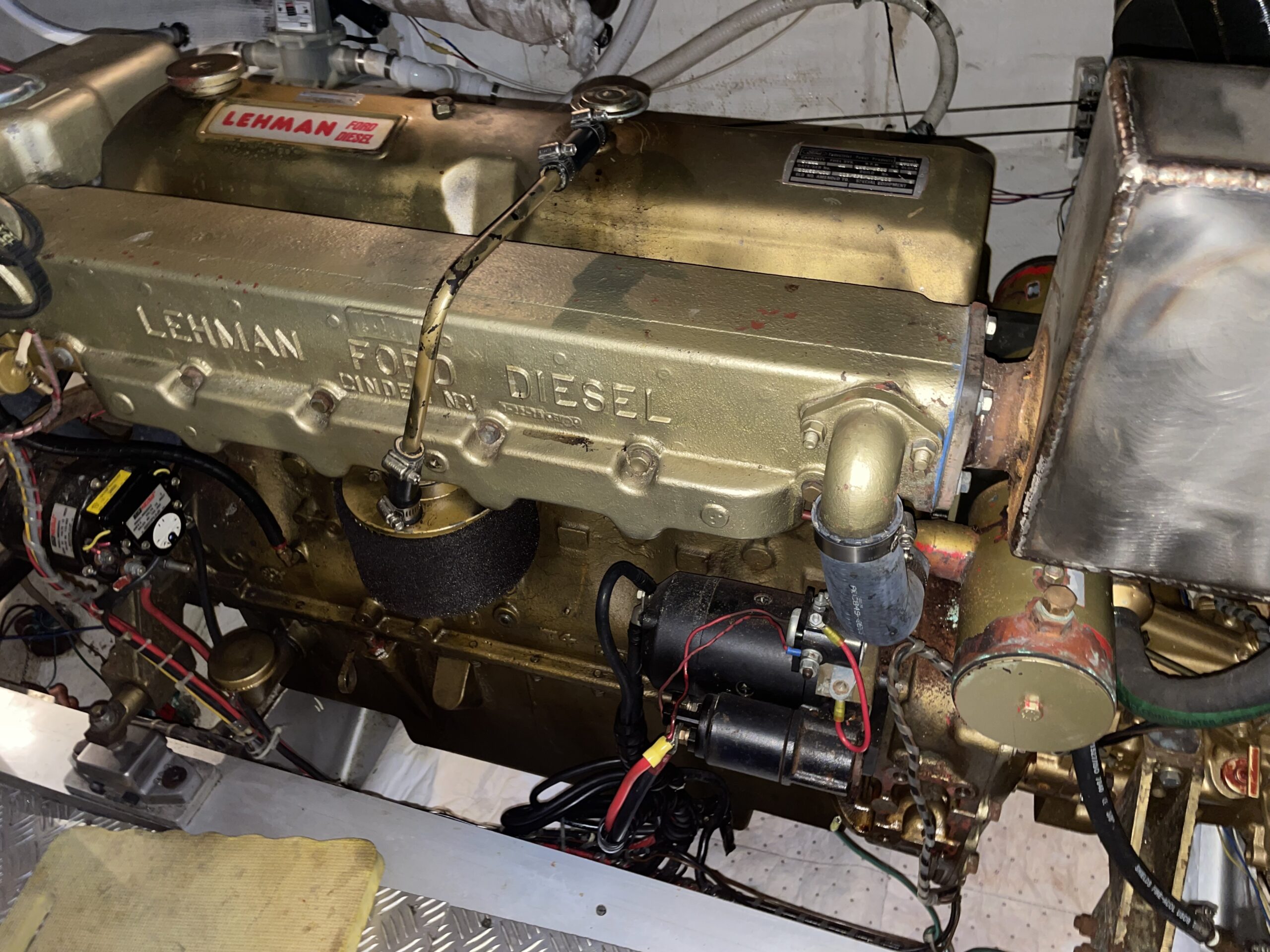

• Twin Ford Lehman 2715E, 120hp@, 6-Cylinder Freshwater Cooled, Naturally Aspirated,
•  Direct-Drive, Inboard, Diesels
• Hours – Port – 3,300
• Starboard – 3,300
• Engine – Serviced 10/2025
• Engine Alternators – Leece-Naville 90amp – Upgraded
• Engine Exhaust System – Wet Injected
• Engine Fuel Filters – One Primary – Racor Filter serves each Engine
•                                   Secondary Filter – on each Engine
• Engine Control System – (2) Helm Stations with Morse Cable Throttle/Shift
• Engine Control Instrument Panels w/ Gauges, Indicator Lights &Audible Alarms
• Engine Steering System – (2) Helms Wheel Steering to Chain & Cable System

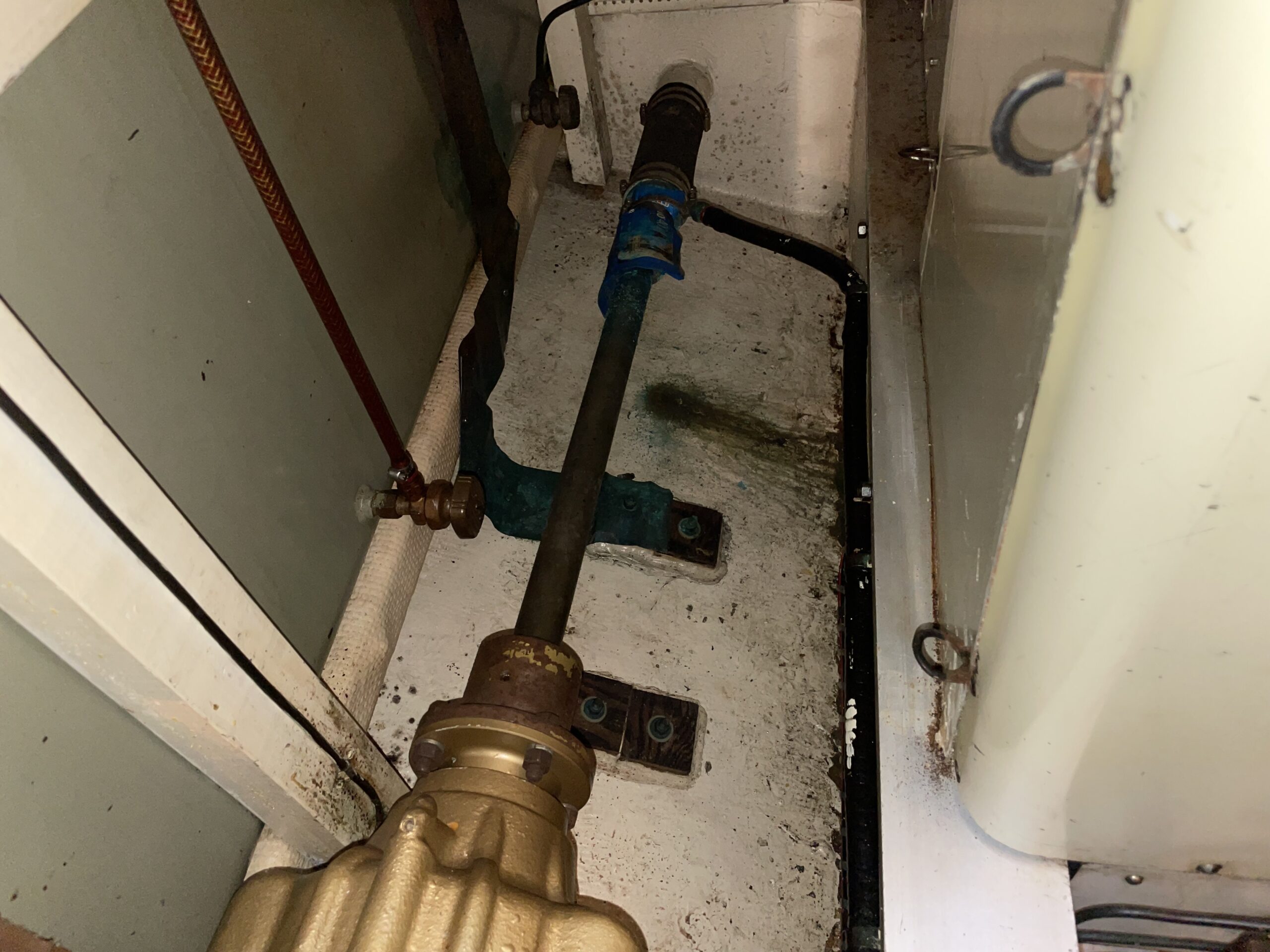

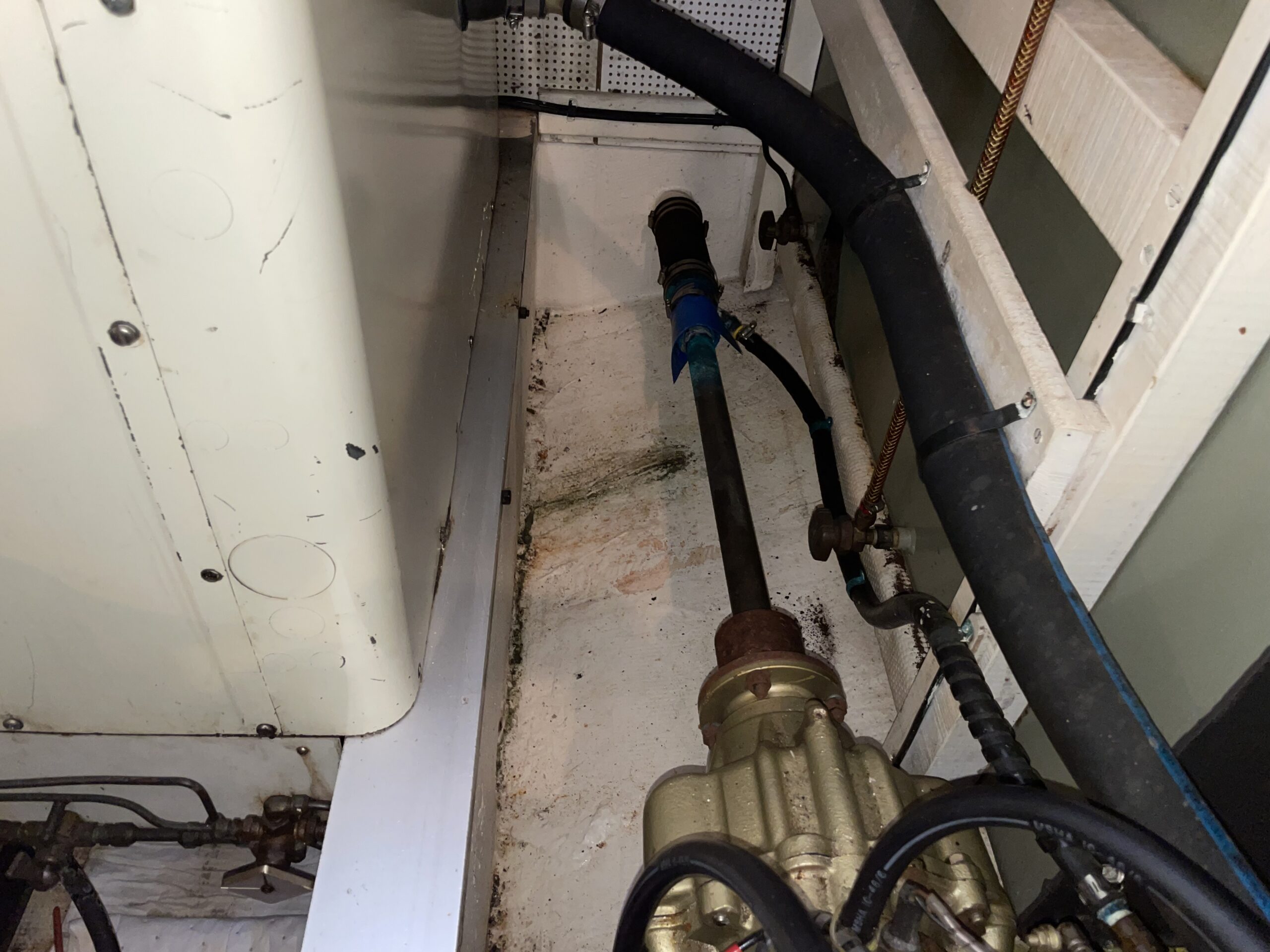

• Engine Shaft – One Piece Bronze 1 ½”
• Engine Strut – One I Strut & One V Strut Support Each Propeller Shaft
• Engine Propellers – (2) Michigan, 4-Blade Bronze, 24 Diameter x 17 Pitch
•                                 (1) Right-Hand Rotation & (1) Left-Hand Rotation
• Cruise Speed – 8 Knots
• 11 Knots WOT
• Marine Gear – Borg Warner Velvet Drives Transmissions
• Reduction Gear 2.0 to 1
• Thru-Hull Fittings Below Waterline – All Are Bronze
• Raw Water Heat Exchangers – (1) for Cooling each Engine
• (1) for Each Transmission Oil
• (1) for Each Engine Oil
• Bilge Pumps – (1) Rule 1500 Submersible in Forward Engine Room Bilge
•                         (1) Rule 3700 Submersible in Forward Engine Room Bilge
•                         (1) Manual Pump
•                         Total Pumping Capacity about 5200gph

ELECTRICAL:

• Systems – 12Volt DC & 120Volt AC

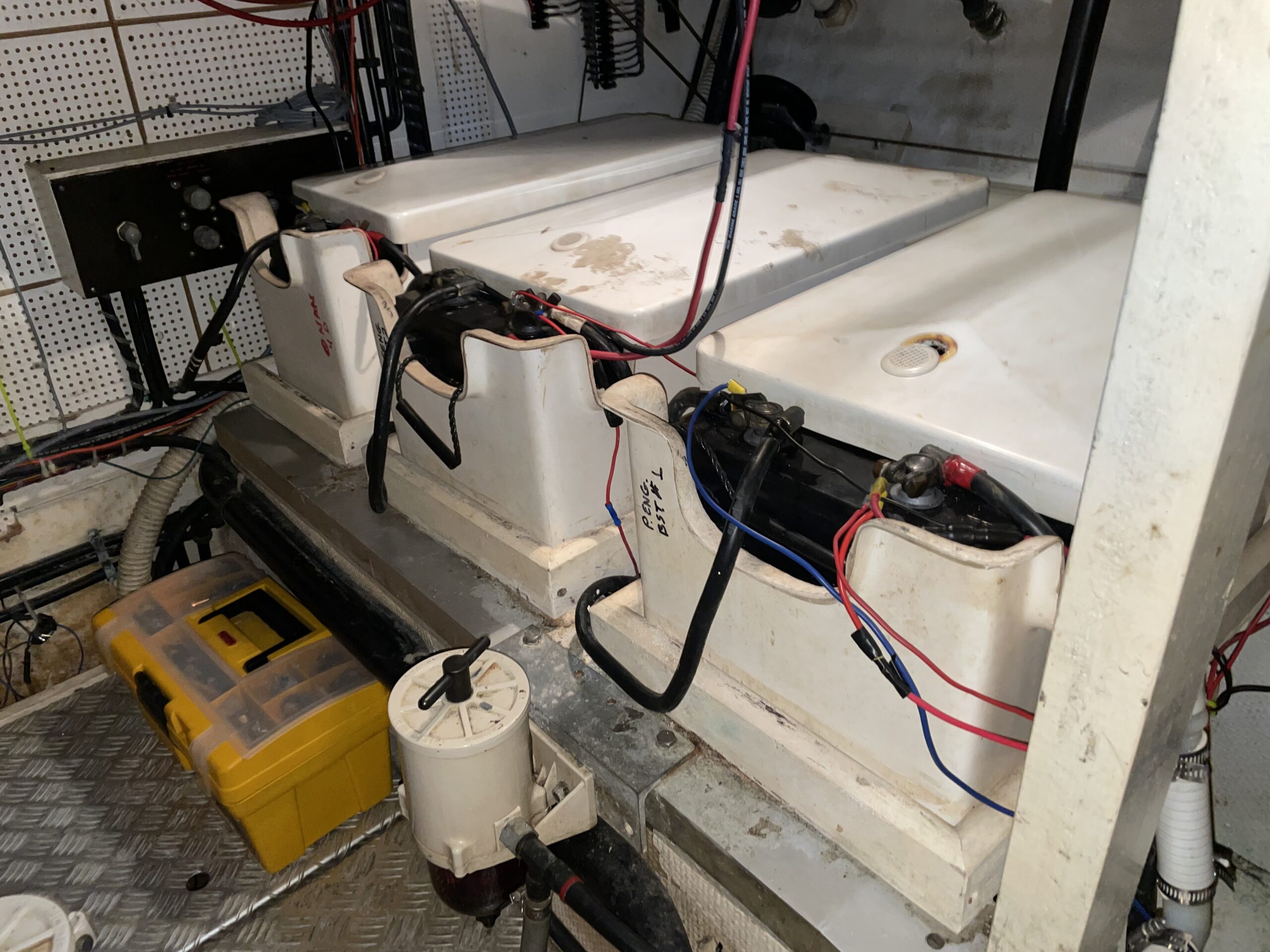

• Systems Supply – Batteries (2 Banks), Shore Power, Inverter, Generator
• Master Battery Switch (1)
• Polarity Indicator
• Shore Power – 30amp
• 50’ Shore Power Cord
• Inverter / Charger – Trace Engineering 2500watt
• RC-2000 Inverter Controller & Charge Monitor
• Generator – Onan 7.5kw with Sound Shield
• Hours – 2000

NAVIGATION & COMMUNICATION:

• LOWER HELM – Compass 5” Danforth
•                             Radar – Furuno NavNet MFD 12 – LCD 30 Miles Display
•                             GPS – Furuno NavNet MFD 12 GPS
•                                        GP7000 GPS
•                             Autopilot – Simrad
•                             Fathometer – Furuno NavNet MFD 12 Depth
•                                                   Lowrance X70 – Depth
•                            VHF – Icom IC-M45 VHF
•                            Load Hailer/Horn – Horizon L45
•                            Intercom System – Airphone
• UPPER HELM – Compass – 5” Danforth
•                            GPS – Garmin 192 GPS/MAP
•                            Auto Pilot – Simrad
•                            Fathometer – Furuno Depth
•                            VHF – Standard Horizon Quest VHF
•                            Intercom System – Airphone

GROUND TACKLE:

• Windlass – Lofrans Tigres
• Anchor – Primary – Bruce 20kg
•                 Chain – 300’ 5/16^th inch High Test Rode
• Anchor – Secondary – Fortress FX23
• Anchor Stopper – Deck Cleats & Anchor Windlass
• Anchor Deck – Wash-Down System

SAFETY:

• Navigation Lights

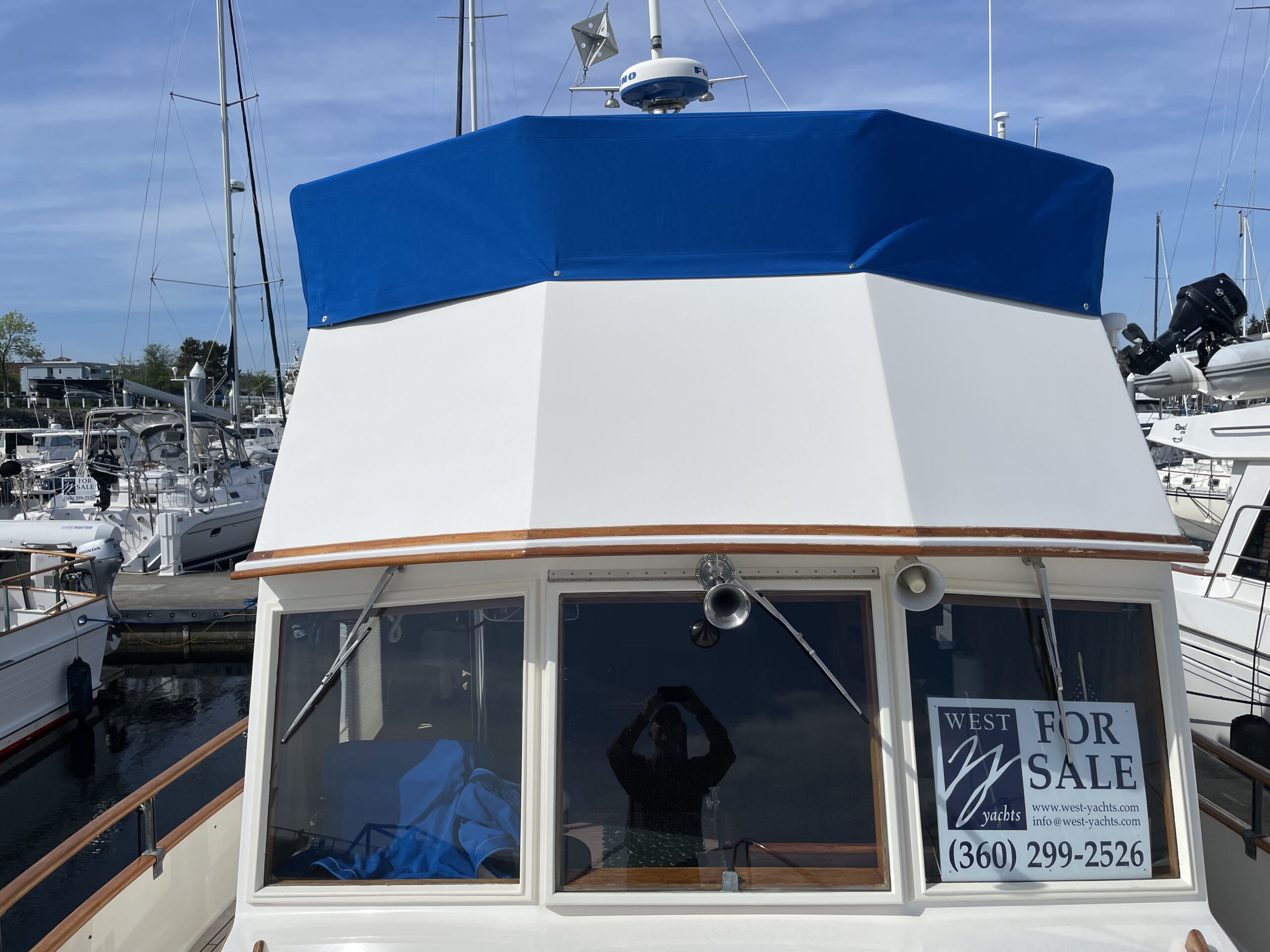

• Windshield Wipers – (3) 12Volt DC
• Bell
• Horn – 12Volt DC
• Emergency Steering Tiller
• Emergency Ladder – Stainless Steel fixed to Swim Platform
• Teak Handrails
• Bow Railing – Stainless Steel Tube
• Stern Railing – Stern Transom with Railing Gate
• Bulwarks – 20” to 10” above Deck Bow to Stern
• Lifelines – Bronze Stanchions with Teak Cap

MISCELLANNEOUS:

• Zincs – NEW 9/24/25
• Bottom Paint – Scrubbed Bottom 9/24/25 – Diver said ”it still looks good”
• Tender – 9’ Caribe C9 RIB Inflatable
• Out Board – 8hp Evinrude
• Davit System – Weaver Brackets & Sea Wise Manual Hoist on Swim Platform
• Transom Pass-Thru Door
• Mast/Boom – Hinged Aluminum Mast with Lifting Boom & Power Hoist
• Radar Mount Mast – Stainless Steel Bracket on Aluminum Hinged Mast

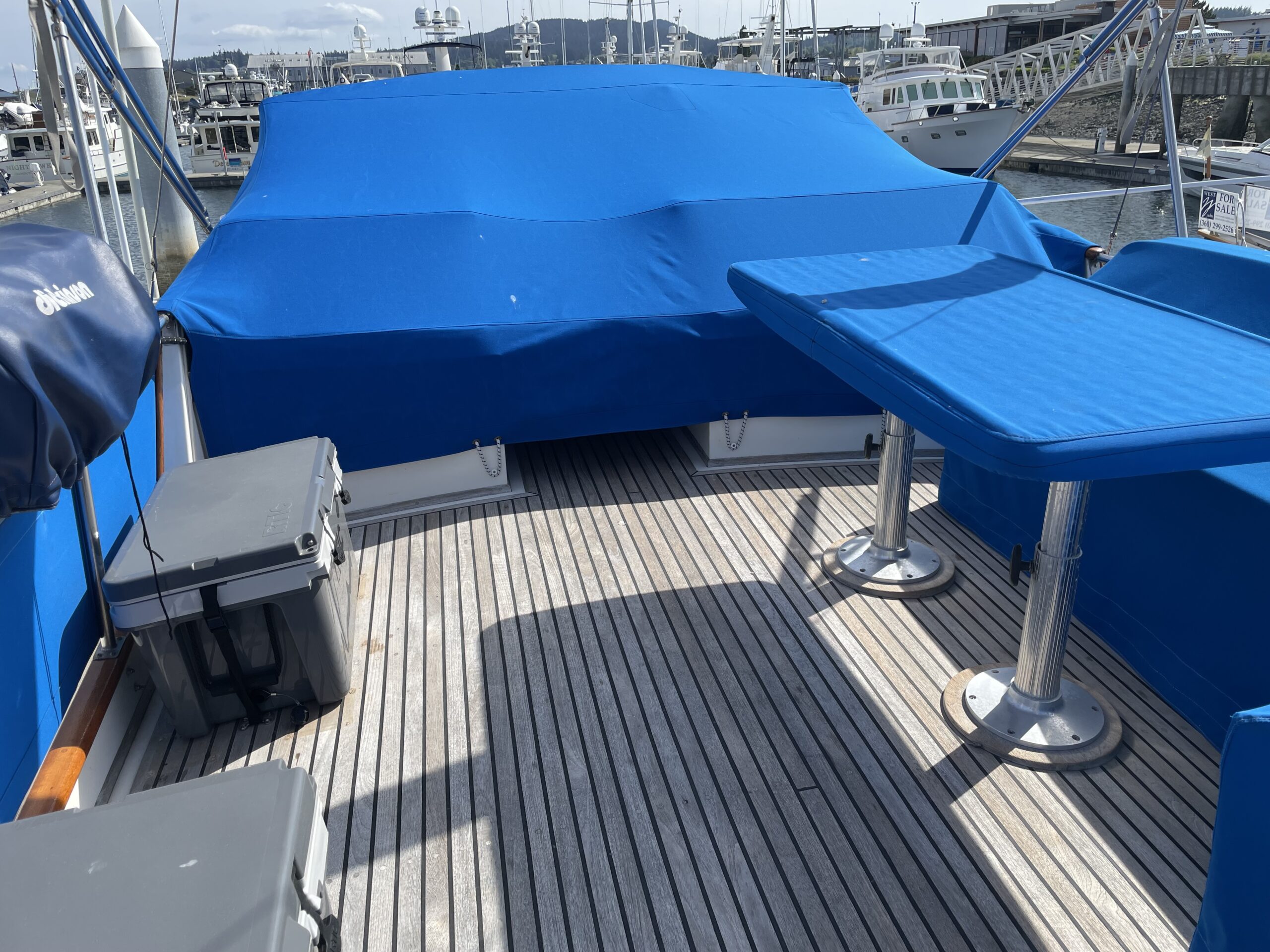

• Canvas Covers – Flybridge Bimini
•                             Upper Deck Seating Railing Dodgers
•                             Deck Gear Covers
•                             Teak Railing Cap & Teak Bulwarks Cap Covers

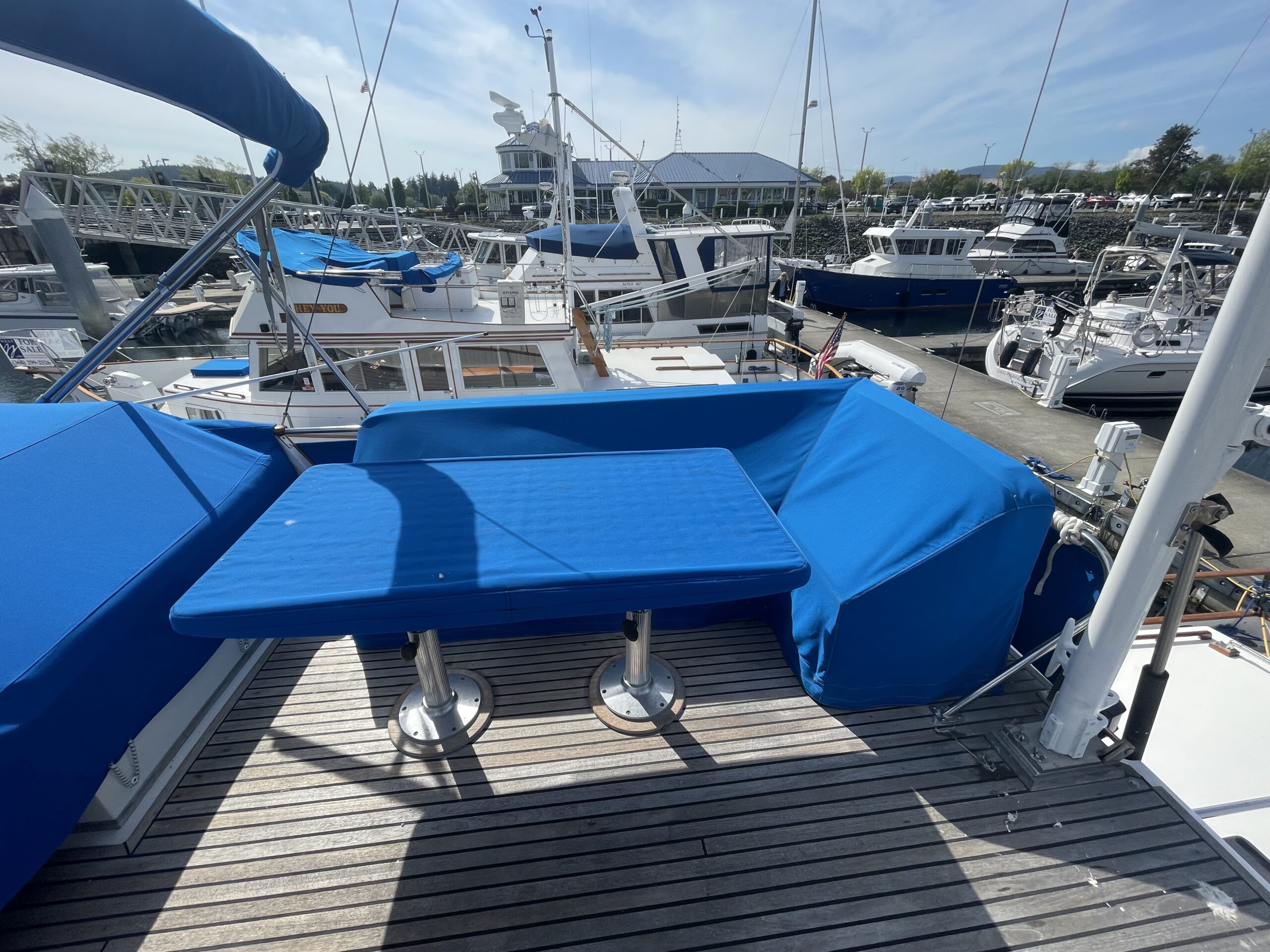

• Cockpit Table
