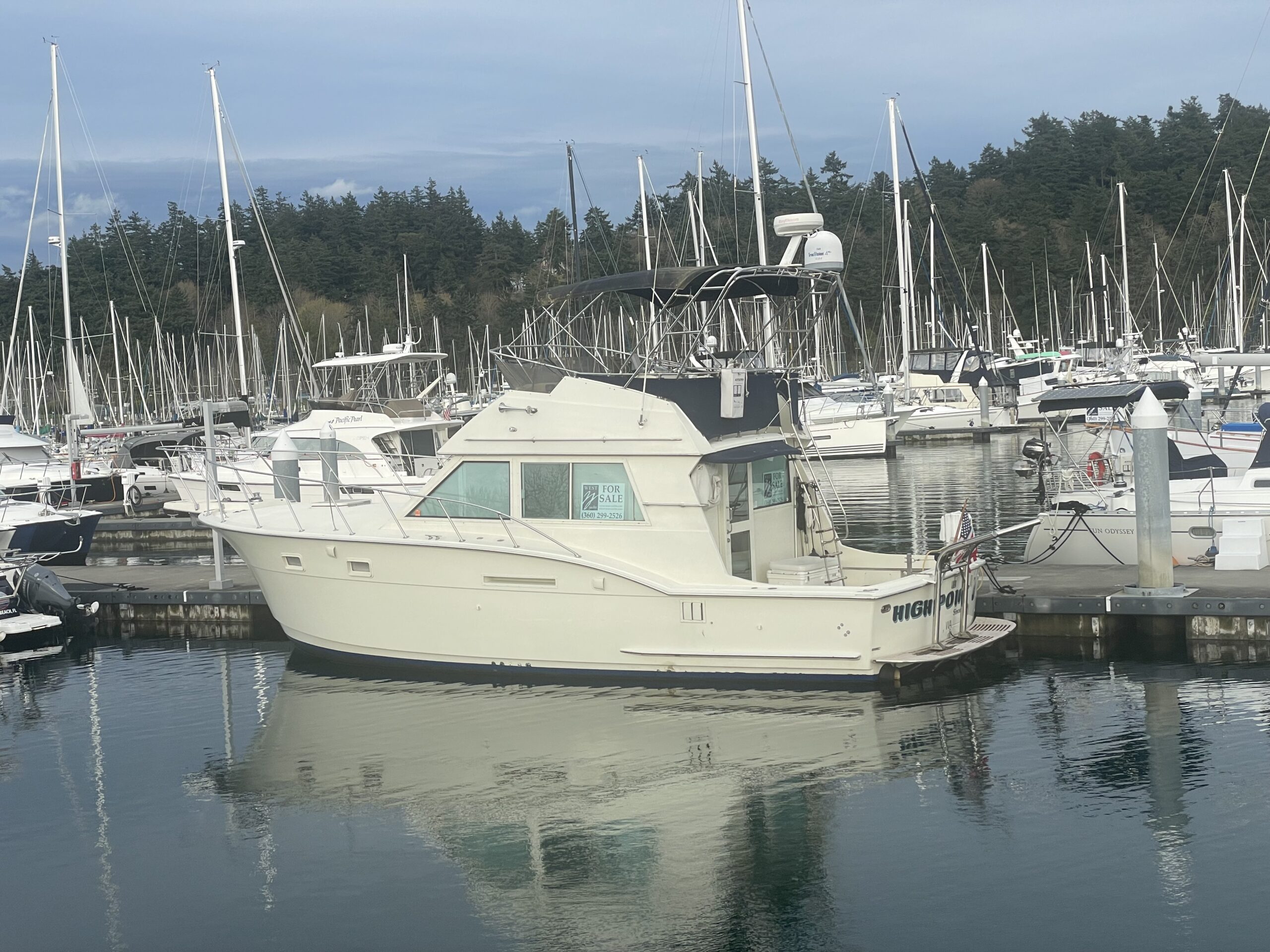

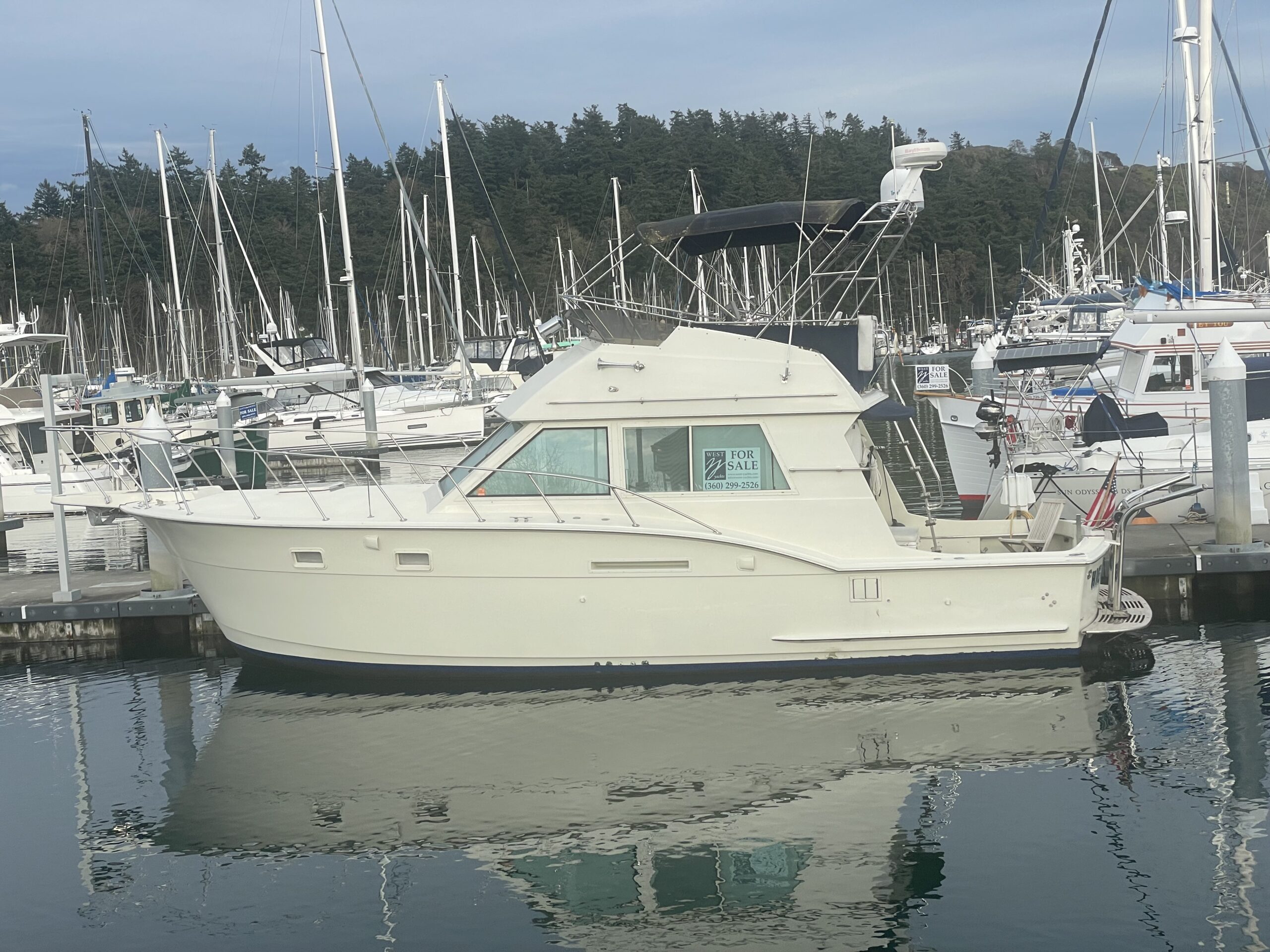

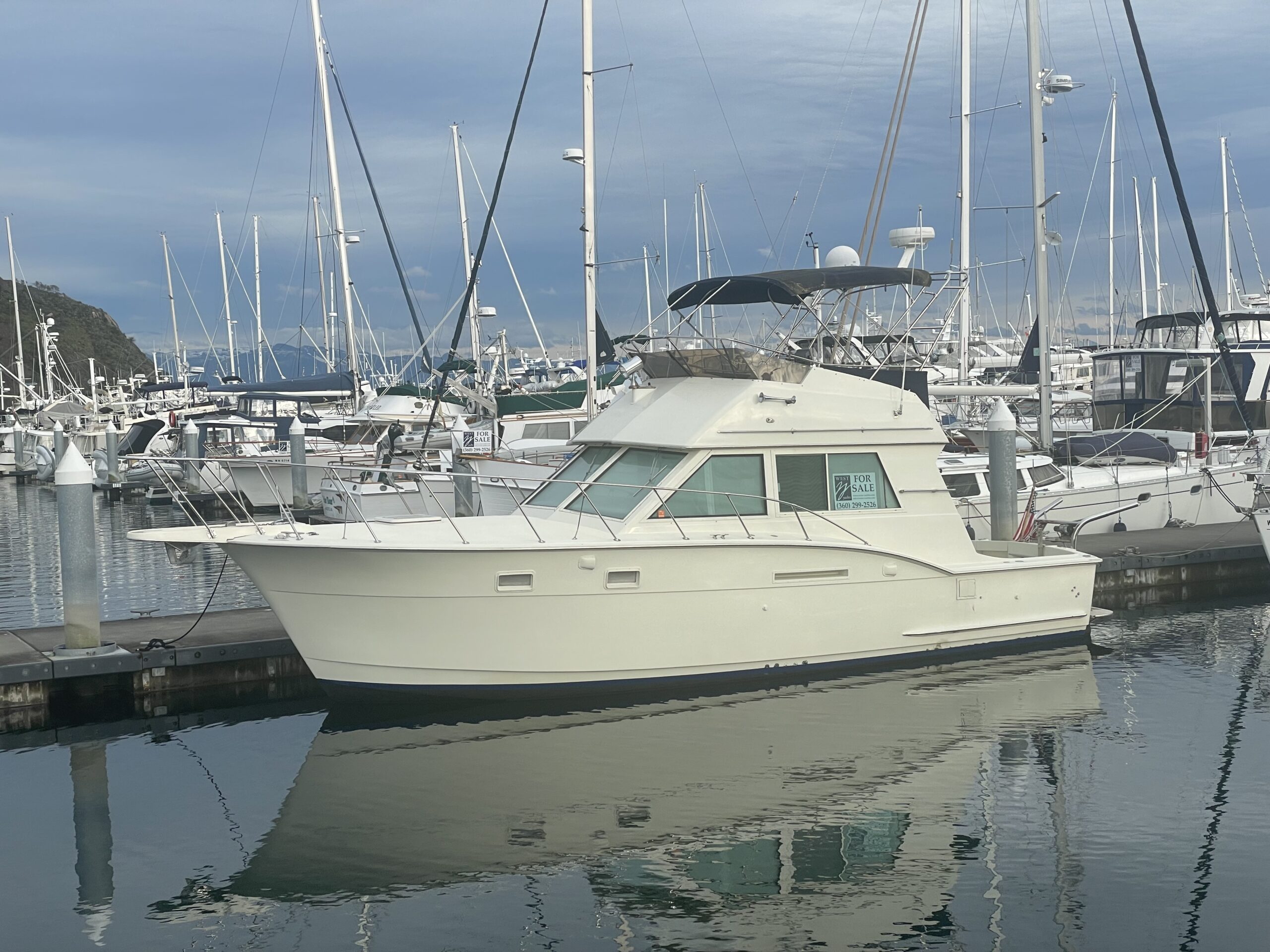

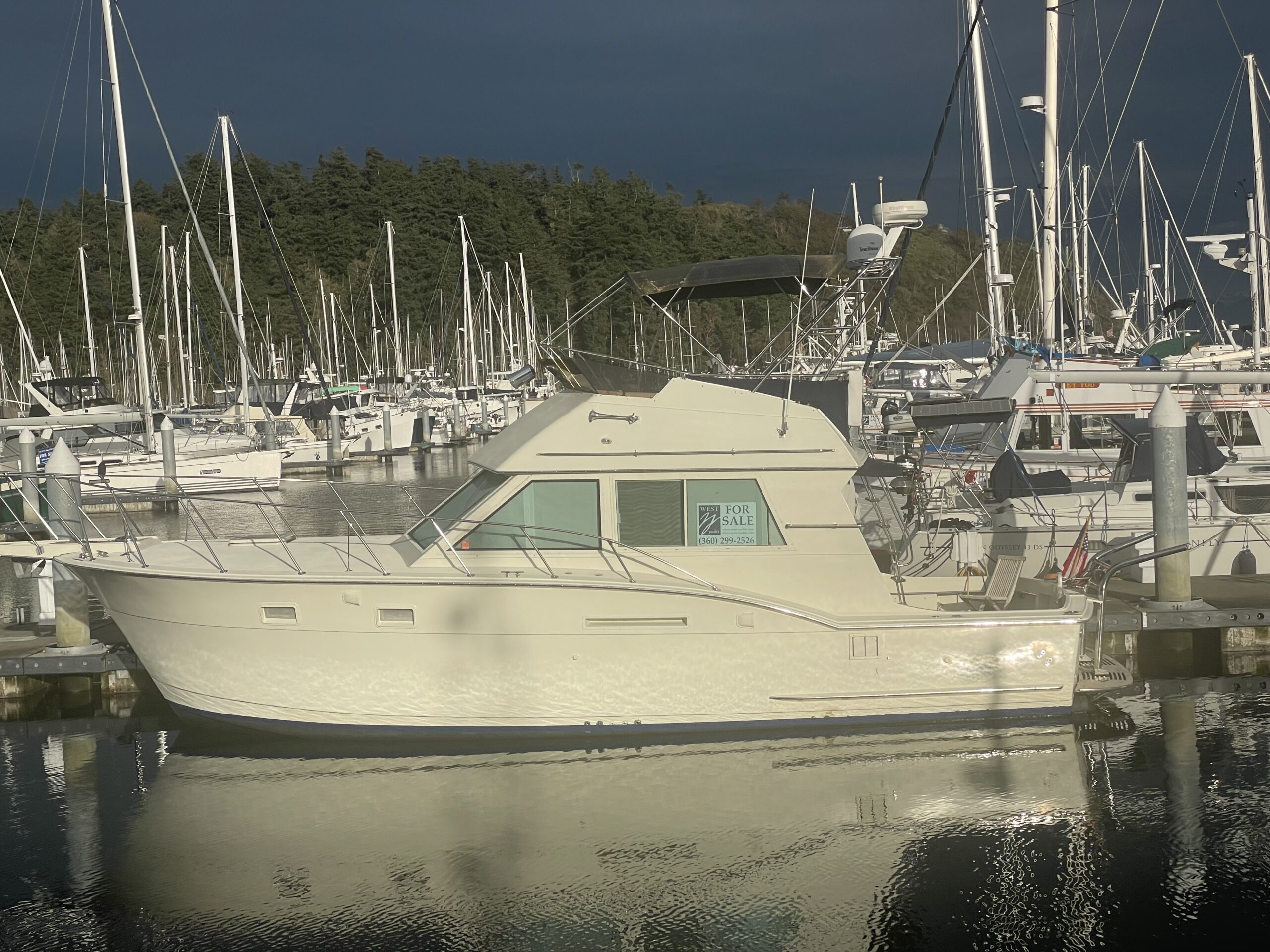

1978 37’ Hatteras Convertible Sport Fish 1978

Anacortes, WA

US $99,900

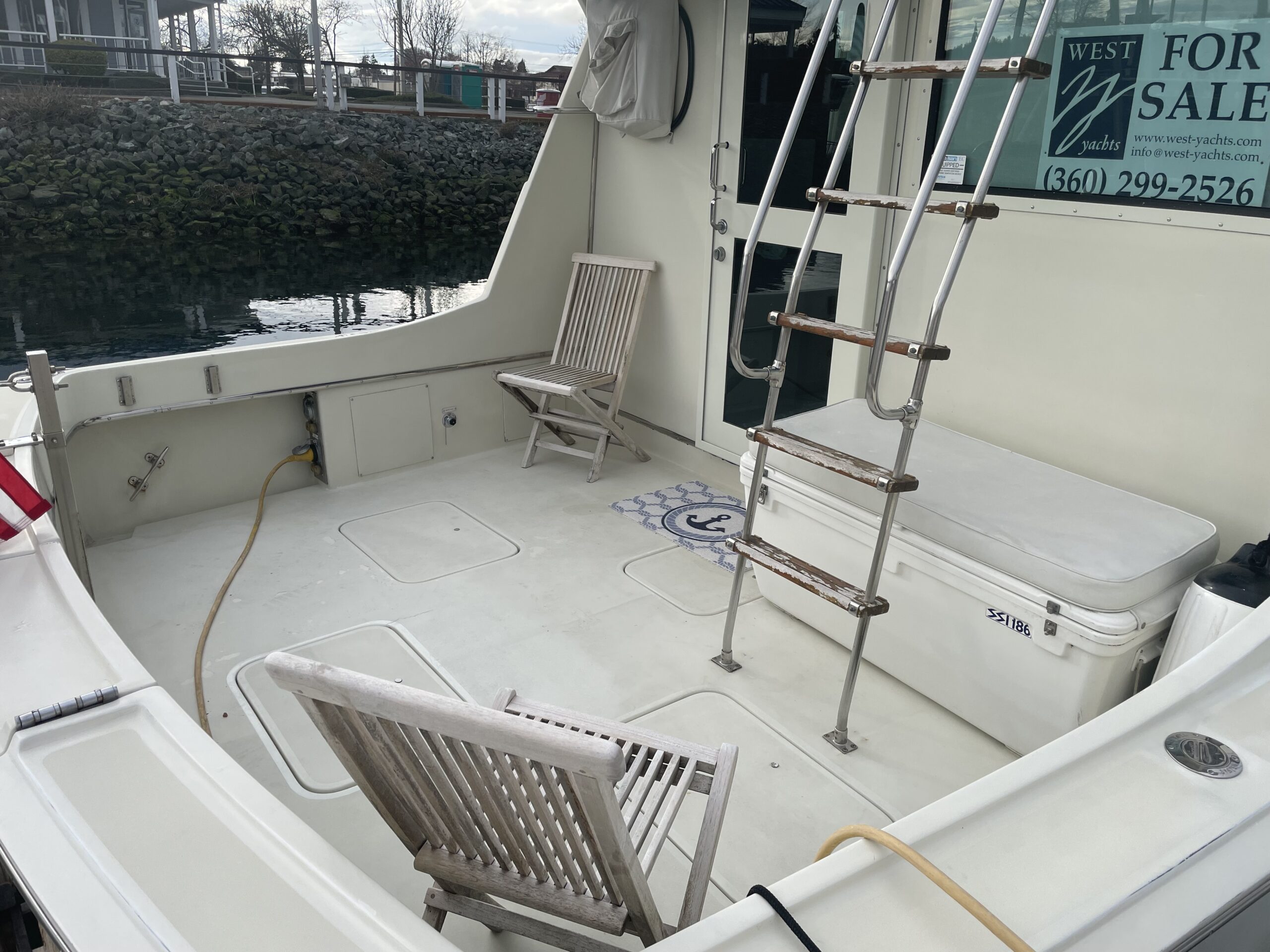

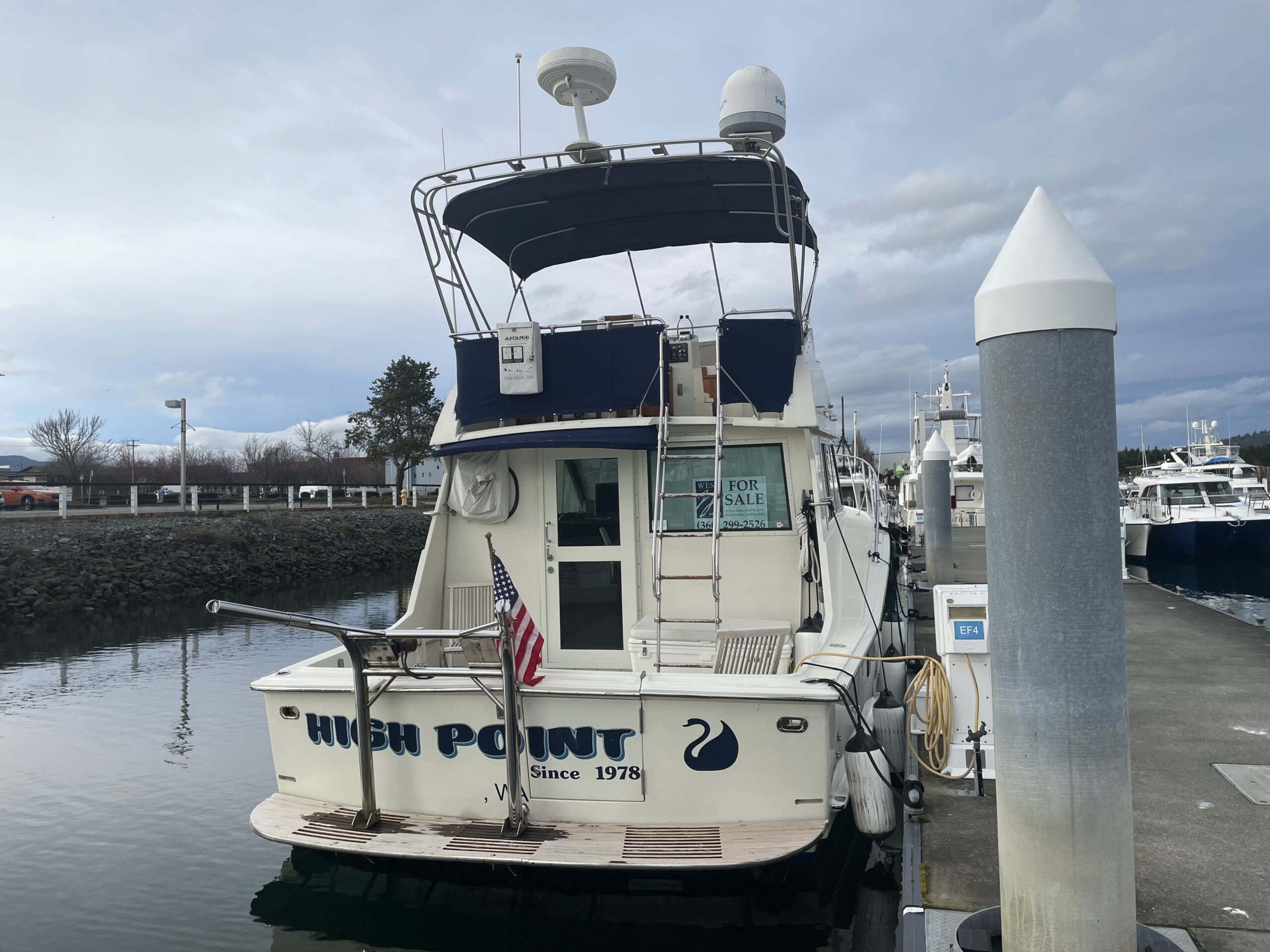

Your first realization that the boat is indeed, heavier than other 37 footers, when you step into the cockpit and there is hardly a murmur of boat movement. It is a solid feeling wears favorably on your sense of welling being at sea. The cockpit is almost 11 feet wide and 8 feet long. It’s big enough for several deck chairs for morning coffee or evening relaxing at anchor with a glass of wine.

The flybridge is reached by a rugged, six step stainless steel ladder. Central to the Bridge is the helm control console which can be operated comfortably while standing and even more comfortably sitting. This is a fishing boat helm, the captain can watch fishing activity in the cockpit and at the same time monitor forward movement in the fishing grounds amongst the other boats. Instruments and controls are within easy reach and the visibility is excellent. Seating on the bridge includes two bench seats which provides seating for an additional six persons. The Flybridge windscreen deserves a special note. It is made of smoke acrylic plastic and positioned with the usual reverse slope to deflect main wind Windstream well over the heads of the occupants on the bridge. The transparent acrylic panels are solidly bolted together and screwed in place, then sealed along the coaming.

Unlike other boats, that need a raised forward trunk cabin for interior headroom, the Hatteras 37 has a relatively flat and large bow deck which makes a wonderful place for sunning.

Full Specifications

SPECIFICATIONS:

LOA – 43’ Without Tender
46’ With Tender
LOD – 37’
Beam – 14’
Draft 3’ 3”
Height – Flybridge Clearance – 13’ 5”
Displacement (Approximate Dry Weight) – 28,000lbs.
Gross Tonnage – 26 GRT (USCG Documentation)
Net Tonnage – 20 NRT (USCG Documentation)
Hull – Hull Lay-Up is Solid Fiberglass
Hull Exterior Finish – Paint – Hatteras White Polyurethane Paint Over the Exterior Gel-
Coated Surfaces resulting in smooth, glossy exterior finish. This
improves the surface durability, ease of maintenance & repair work
Hull Design Type – Modified-V, Planning Type, with Rising Sheer-Line, Flared Bow, Hard Chines, Propeller Pockets, Partial Keel.
Decks – Cored Fiberglass Sandwiched Construction with Textured Non-Skid
Toe-Rails – Molded Fiberglass Toe-Rails were part of the Decks Layup.
Rub Rails – PVC Plastic Composite Compression Rail with Stainless Steel Striker Strip.
Hull-To-Deck Joint Type – Overlapping Joint
Superstructure Arrangement – Material Fiberglass with Sandwich Cored Fiberglass Deck.
Bridge Arrangement – Flybridge Provides the Helm Station & Crew Seating Areas
Designer – Jack Hargrave
Manufacturer – Hatteras Yachts – High Point, North Carolina

TANKAGE:

FUEL – 330 Gallons in 2 Fiberglass Tanks with Line-of-Sight Gauges
Located Port & Starboard Under Cockpit Deck
WATER – 136 Gallons in 1 Fiberglass Tank in Bilge – Deck Fill Port Side Deck
HOT WATER TANK – 120Volt AC Electric
HOLDING – Type III MSD Waste System in 1 Polyethylene Blackwater Tank
12Volt Macerating Type Overboard Discharge Pump with Y-Valve
Deck Pump-Out Fitting
PROPANE – 2 Tanks

INTERIOR:

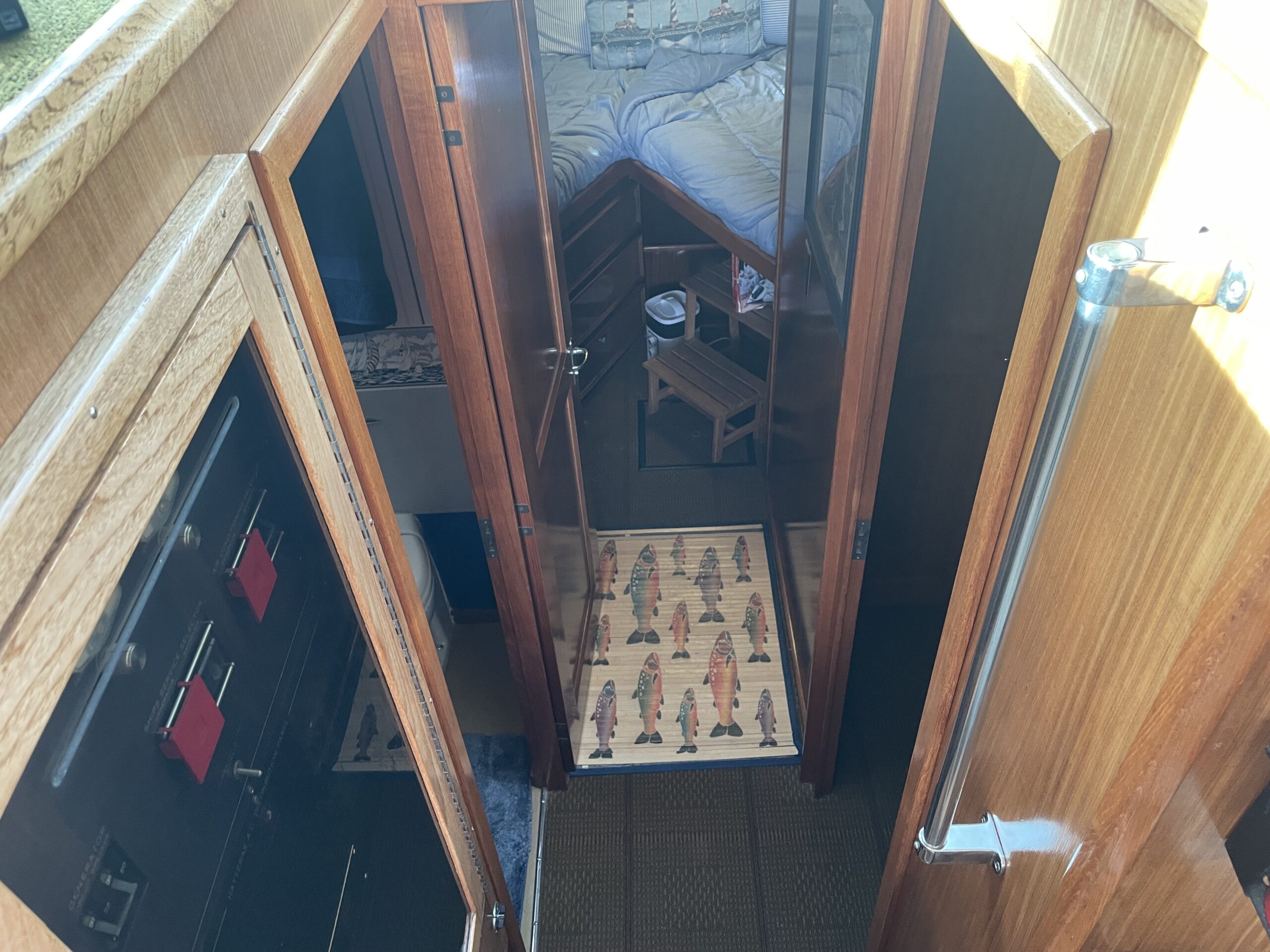

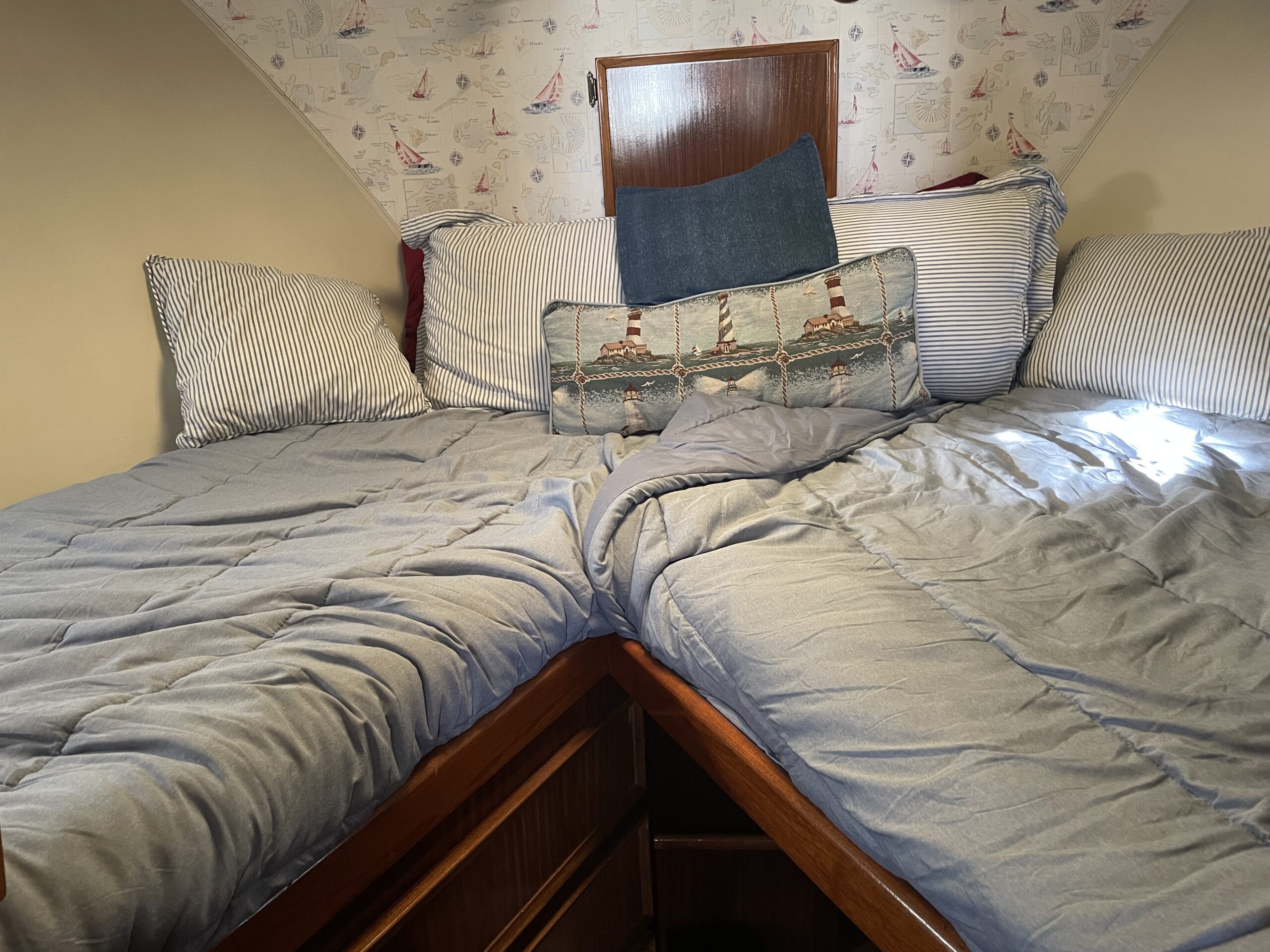

Sleeps 4 – 2 in Twin Forward V-Berth Master Stateroom

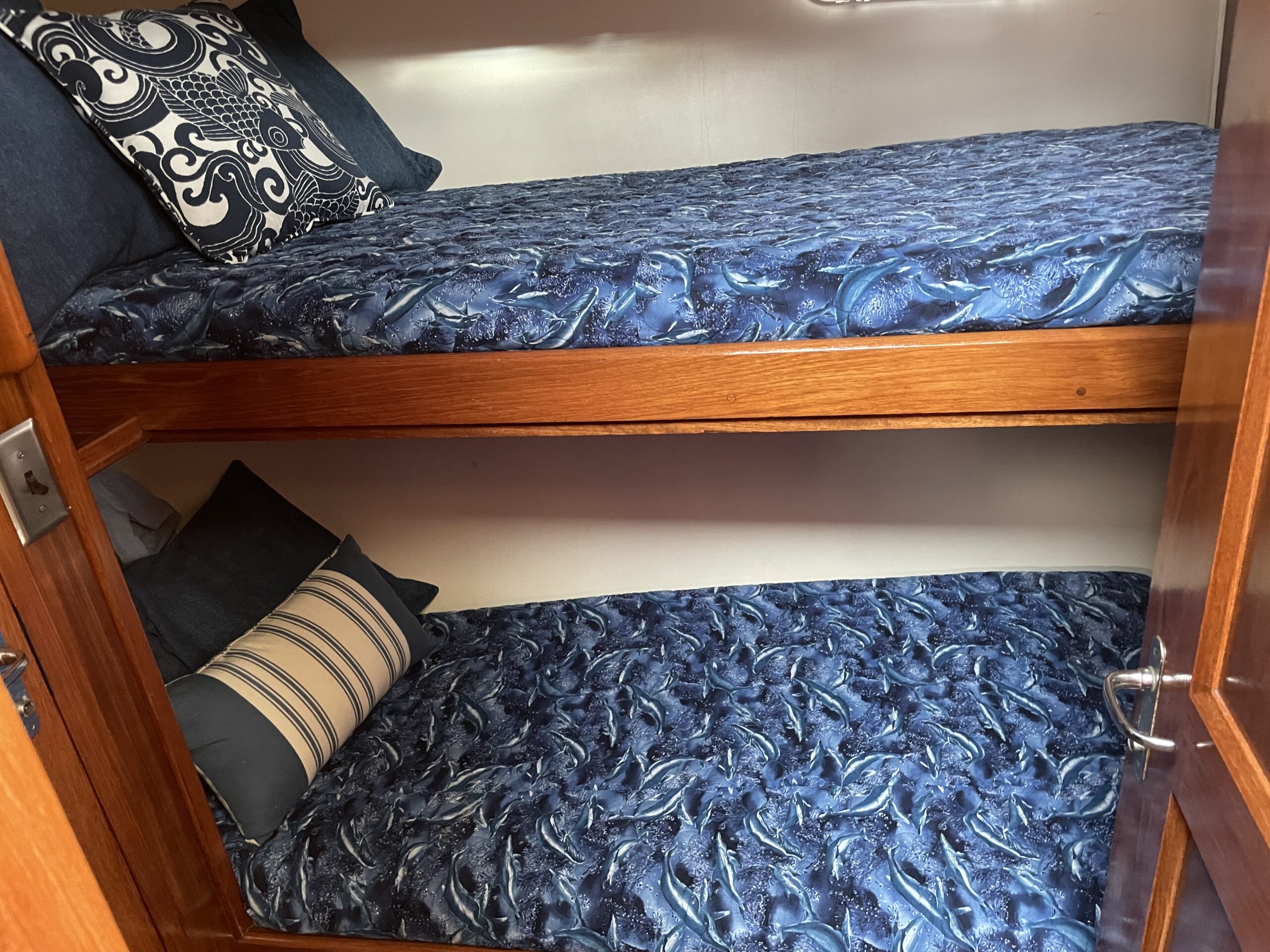

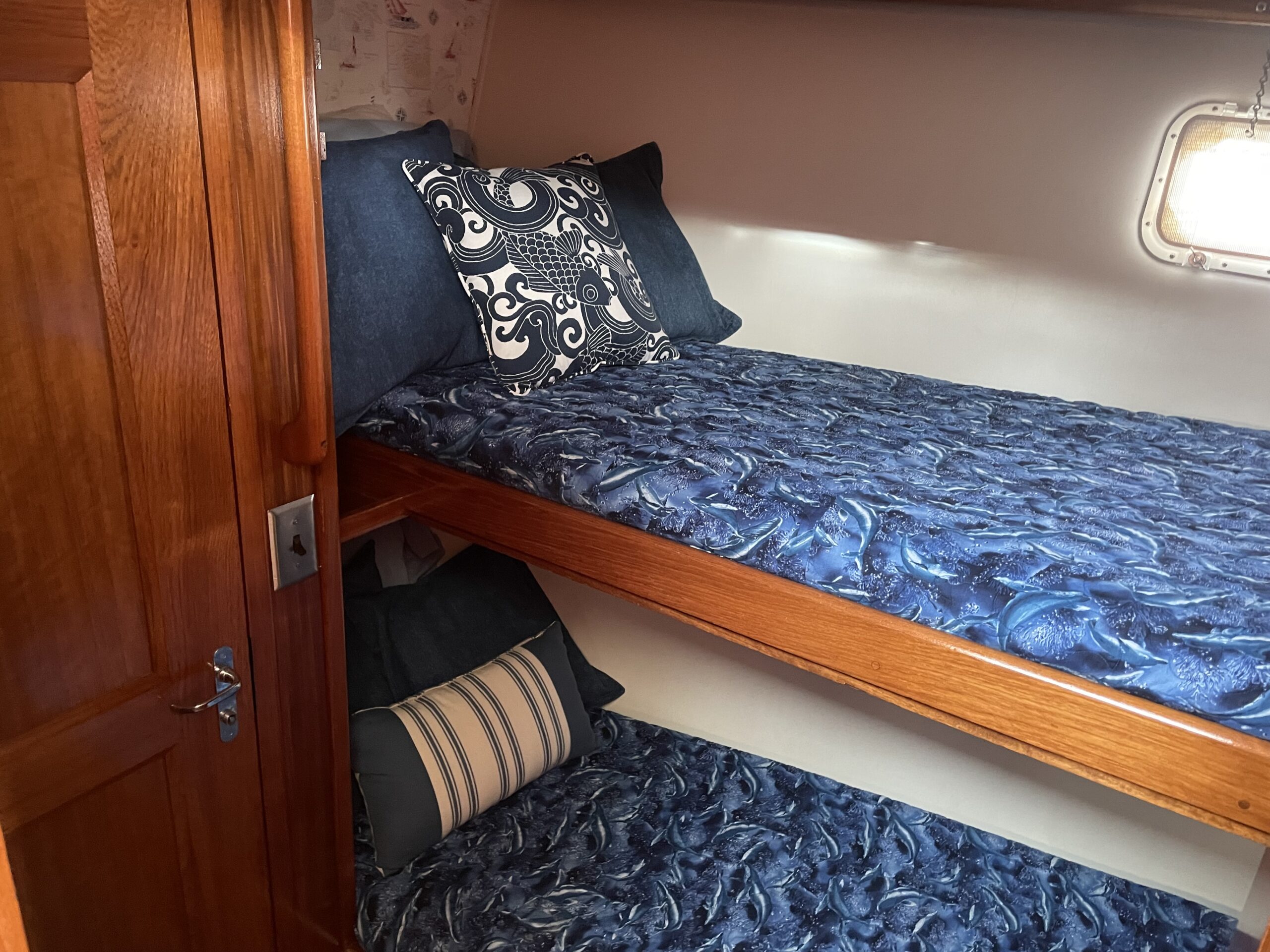

2 in Starboard VIP Bunk Stateroom

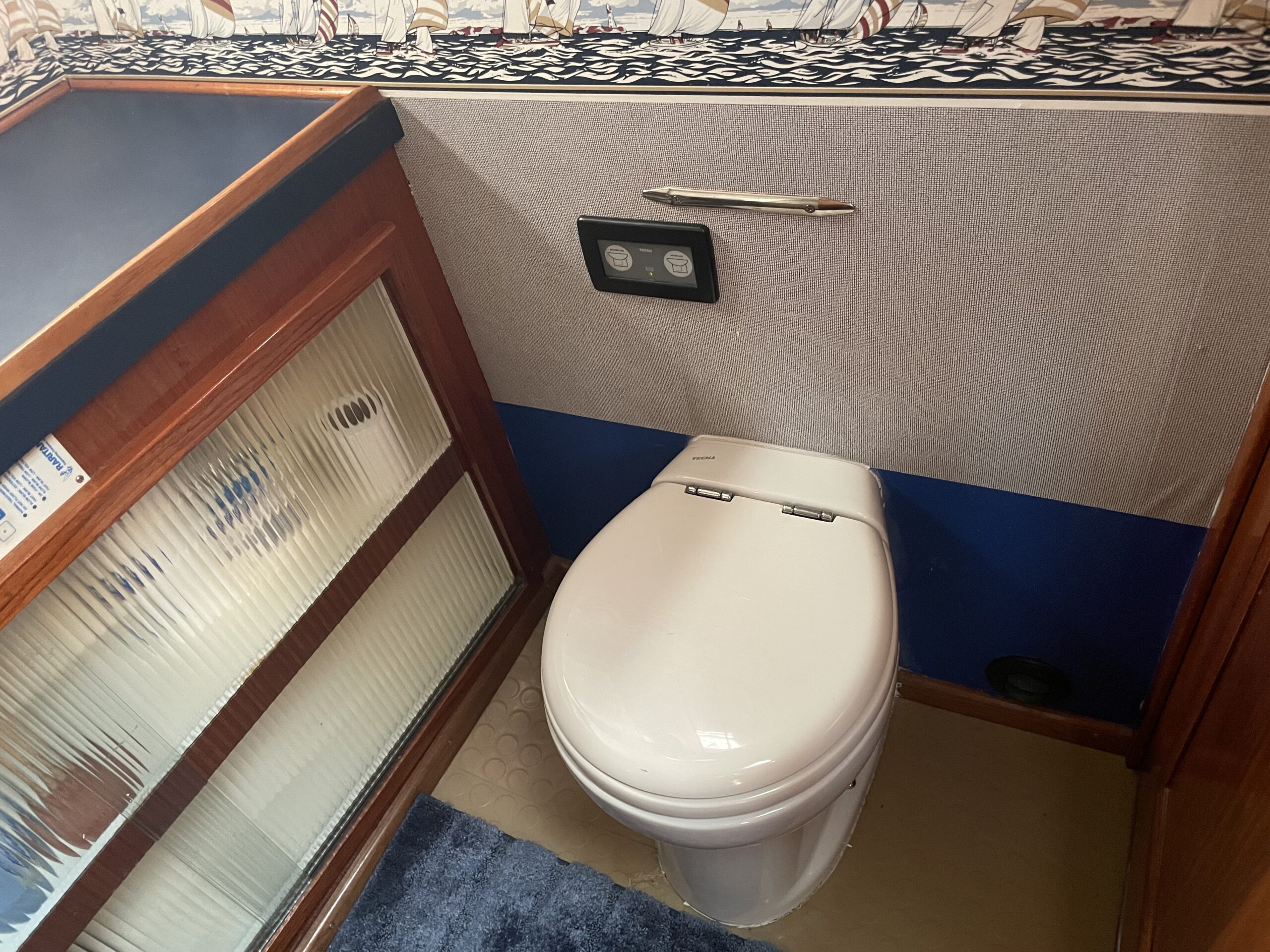

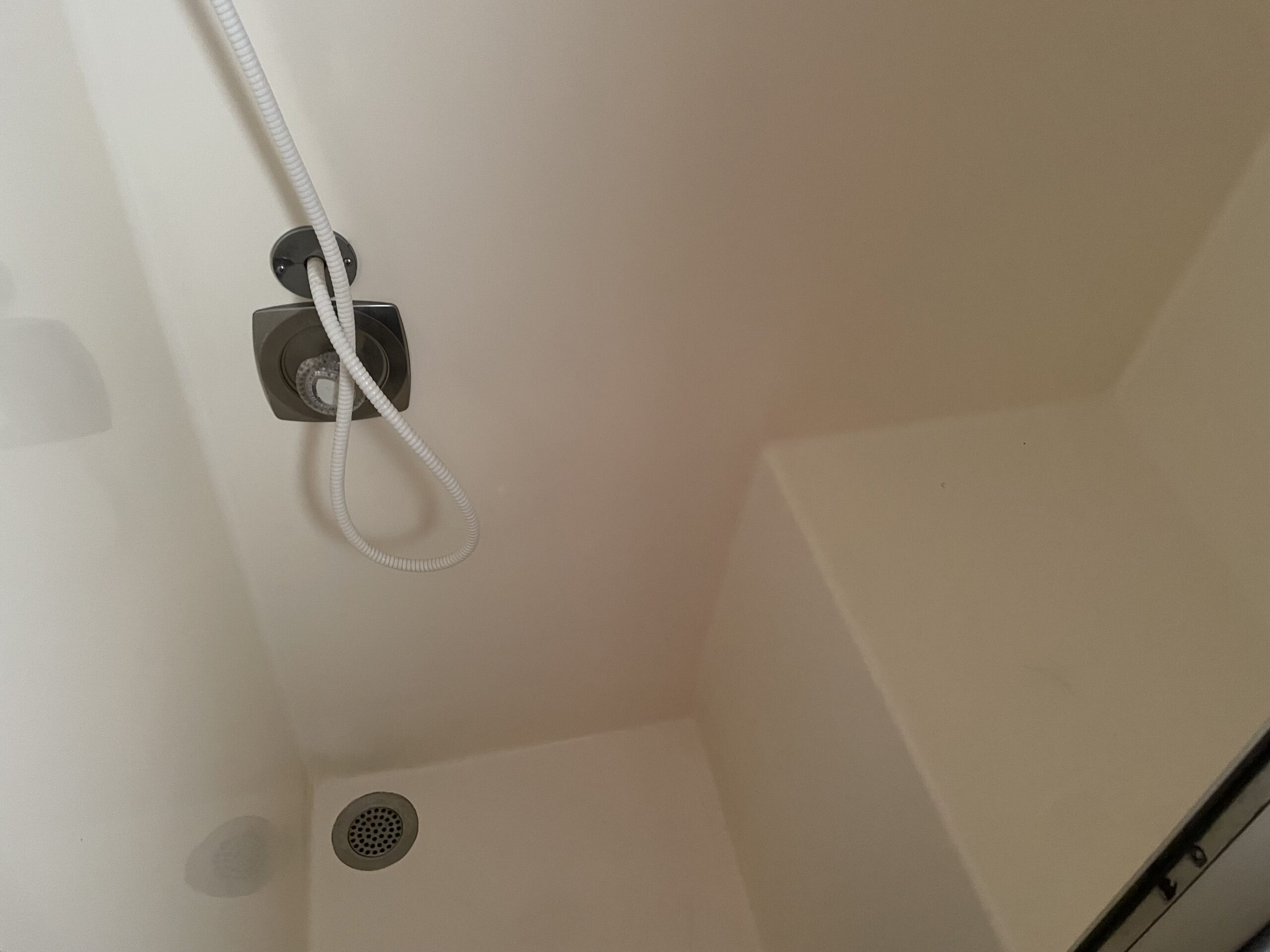

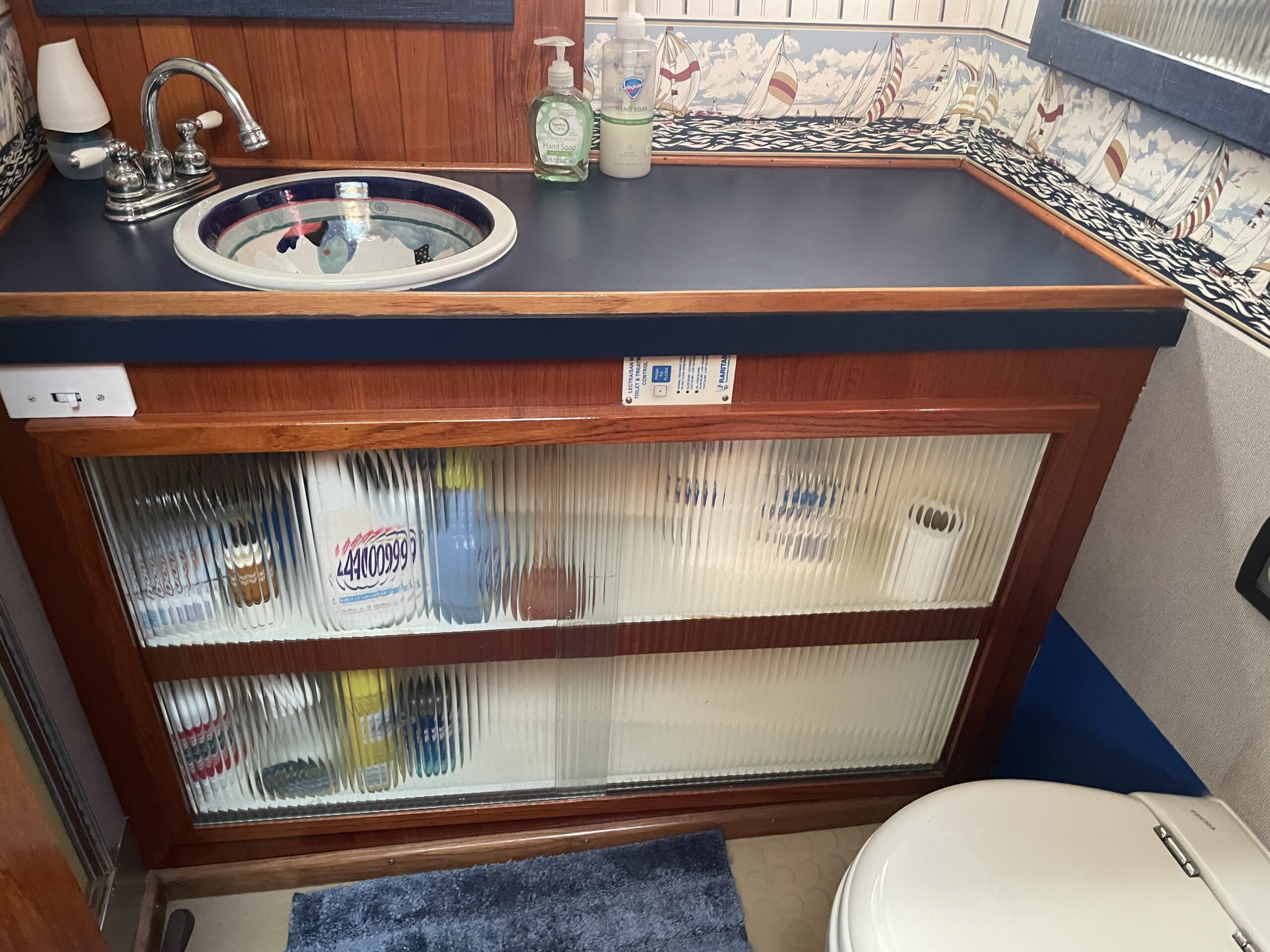

Private Enclosed Head with Separate Larger Shower
Groco Electric Toilet
Large Vanity & Sink
Hot & Cold Pressure Water System

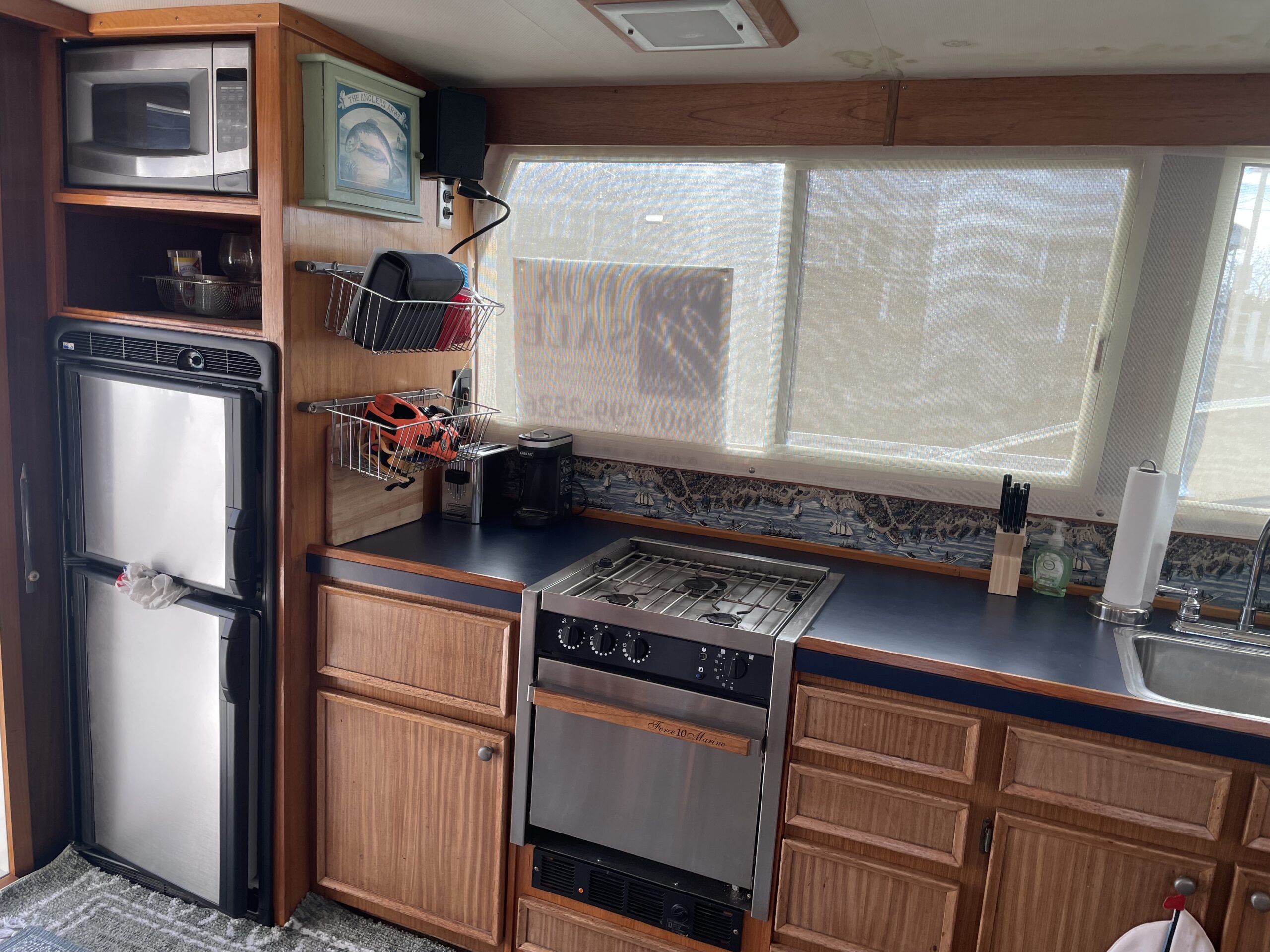

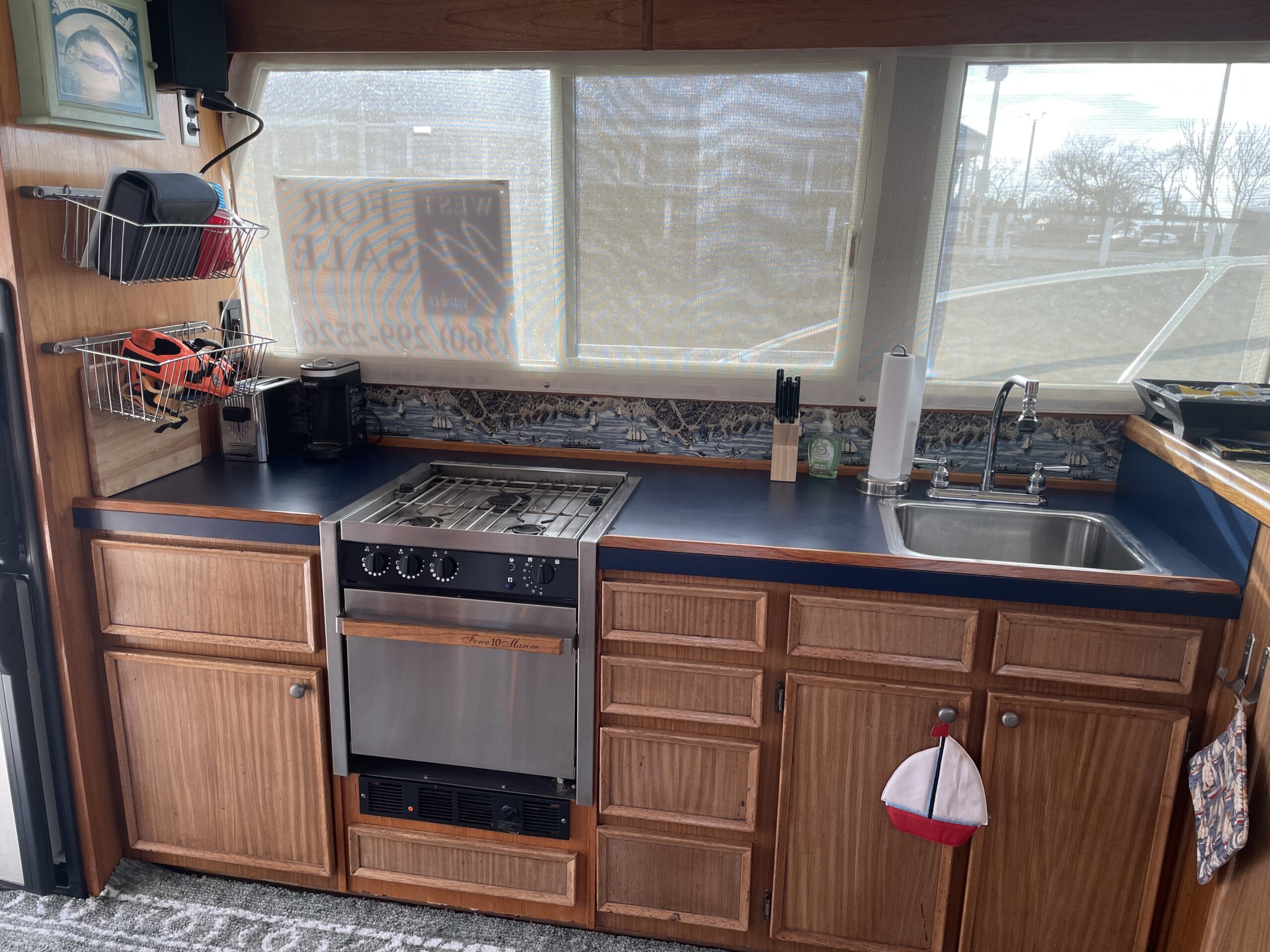

Galley Sink – Large Stainless Steel
Hot Water Heater – Engine/Generator/Shore Power
Refrigerator – Norcold 6 Cubic Foot
Stove/Oven – Force 10 3-Burner with Oven
Microwave – Kitchen Aid 120Volt AC
Cabin Heating System – Espar 12Volt DC Diesel Heating System
Stereo – Pioneer Model CDXP1220X – 12Volt DC with Exterior Speakers
Exterior Doors – White Powder Coated Aluminum w/Tempered Glass & Sliding Door
Windows – Tempered, Tinted, Fixed & Opening Windows
Windshield – (3) Tempered Glass Units

MECHANICAL

Twin Cummins Marine 6CTA8.3-M3 Diamond Performance Series, 6-Cylinder,
450hp@Turbo Charged, After-Cooled Freshwater Cooled,
Direct-Drive, Inboard Diesel Engine –
Manufacture Date- 1999 Vintage
Hours – Port 615
Hours – Starboard 559
Engine Fuel Filters – Primary – Racor Filter/Water Separator
Secondary – Engine Fuel Filter

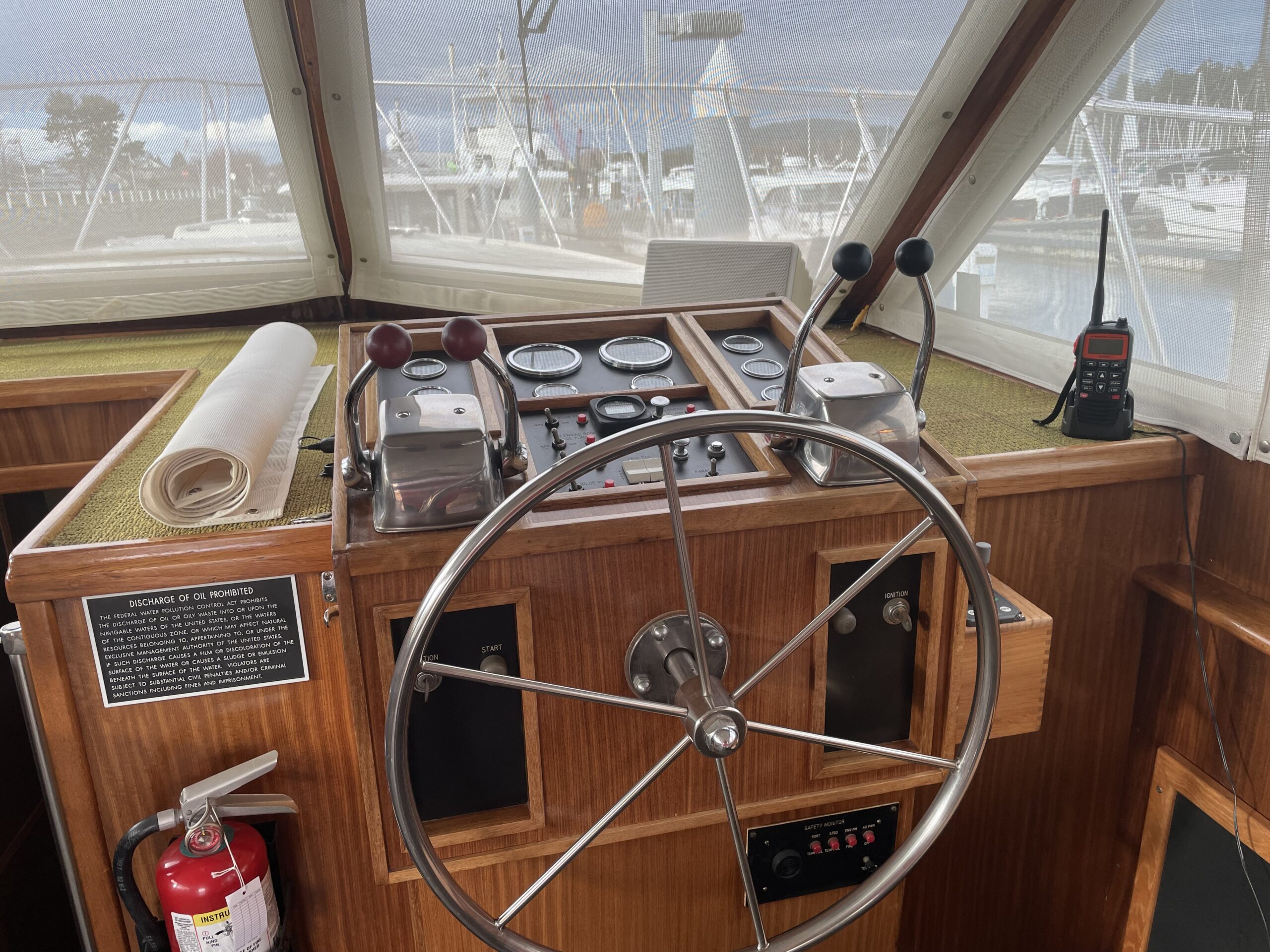

Engine Instrumentation – Salon Helm & Flybridge Helm
Engine Alternators – (2) 12Volt Engine Mounted Belt Driven
Engine Throttle & Shift Controls – Morse Mechanical Lever/Cable Type Controls
Steering – Hydraulic Steering
Rudders – Bronze
Bilge Pumps – (4) 12Volt with Float Switches
Raw Water Strainers – Bronze Alloy with Sight Glass
Seacocks / Sea-Valves – Raw Water Seacocks – Bronze Alloy Ball Valve Type
Transmission – Twin Disc MG-506-1
Gear Ratio – 1.54:1
Trim Tabs – Electric Hydraulic
Thrusters – Side Power Bow & Stern
Propeller Shafts – 1 ¾” Stainless Steel
Propeller Shaft Seals – Dripless Shaft Seals
Propellers – (2) – 4-Blade Bronze

ELECTRICAL:

DC Electrical Systems – 12Volt DC
DC Electrical Panel – Main DC Breaker, Breakers & Fuses in the Main Salon Breaker Panel
Analog DC Voltage Gauge Located in Mian Breaker Panel
AC Electrical Systems – 120Volt AC
Phase Rating – Single Phase
Main AC Shore Power Breakers I Main Electrical Panel
Galvanic Isolation System
Shore Power – 30amp/125Volt Inlet
30amp Shore Power Cord
Batteries – Start – (2) 4D 12volt Lead Acid
House – (2) Group 31 12volt Lead Acid
Battery Switches – (6) Rotary Switches
Battery Charger – Phase Three Charger
Generator – Diesel Onan Marine 8MDKA 8kw @ 1800rpm
Freshwater-Cooling System with Stainless Steel Water-Lift Muffler
Located Engine Room Port-Side Forward

NAVIGATION / COMMUNICATION:

Compass – Danforth – Flybridge
VHF – Flybridge
Hand-Held – Salon Helm
Garmin
Radar – Raytheon Pathfinder RL70C – Flybridge
Depth Sounder – Datamarine – Flybridge

GROUND TACKLE:

Anchor Platform – Molded Fiberglass Bow Pulpit
with Stainless Steel Fairlead Anchor Roller Chute
Anchor Windlass – Vertical Simpson Lawrence 12Volt DC
Anchor – Bruce
Anchor Chain Rode – Ample Amount

SAFETY:

Navigation Lights
Anchor Light
Swim Platform – Teak
Safety Railings – Substantial Stainless Steel Handrails from the Cockpit to the Bow Pulpit.
One Railing is the Short Handrail that Wraps Around Aft Cabin Corners.
Life Jackets – (3) USCG Type II PFDs
Fire Extinguishers – (2) USCG Type ABC 2.5lb. Dry Chemical
Engine Room Automatic Fire Suppression System
Horn – 12Volt Electric Air Horn

MISCELLANIOUS:

Bottom Paint –
Zincs –
Davit Crane – Warn Industrial DC 800 12Volt Transom Davit
Canvas – Flybridge Bimini Top with Sunbrella Type Fabric with Stainless Steel Piping
Radar Arch – Stainless Steel
