• LOA – 37’
• LOD – 36’ 4”
• Beam – 11’ 11”
• Draft 4’ 5”
• Displacement – 13,500lbs.
• Ballast – 6,600lbs
• Bridge Clearance – 52”

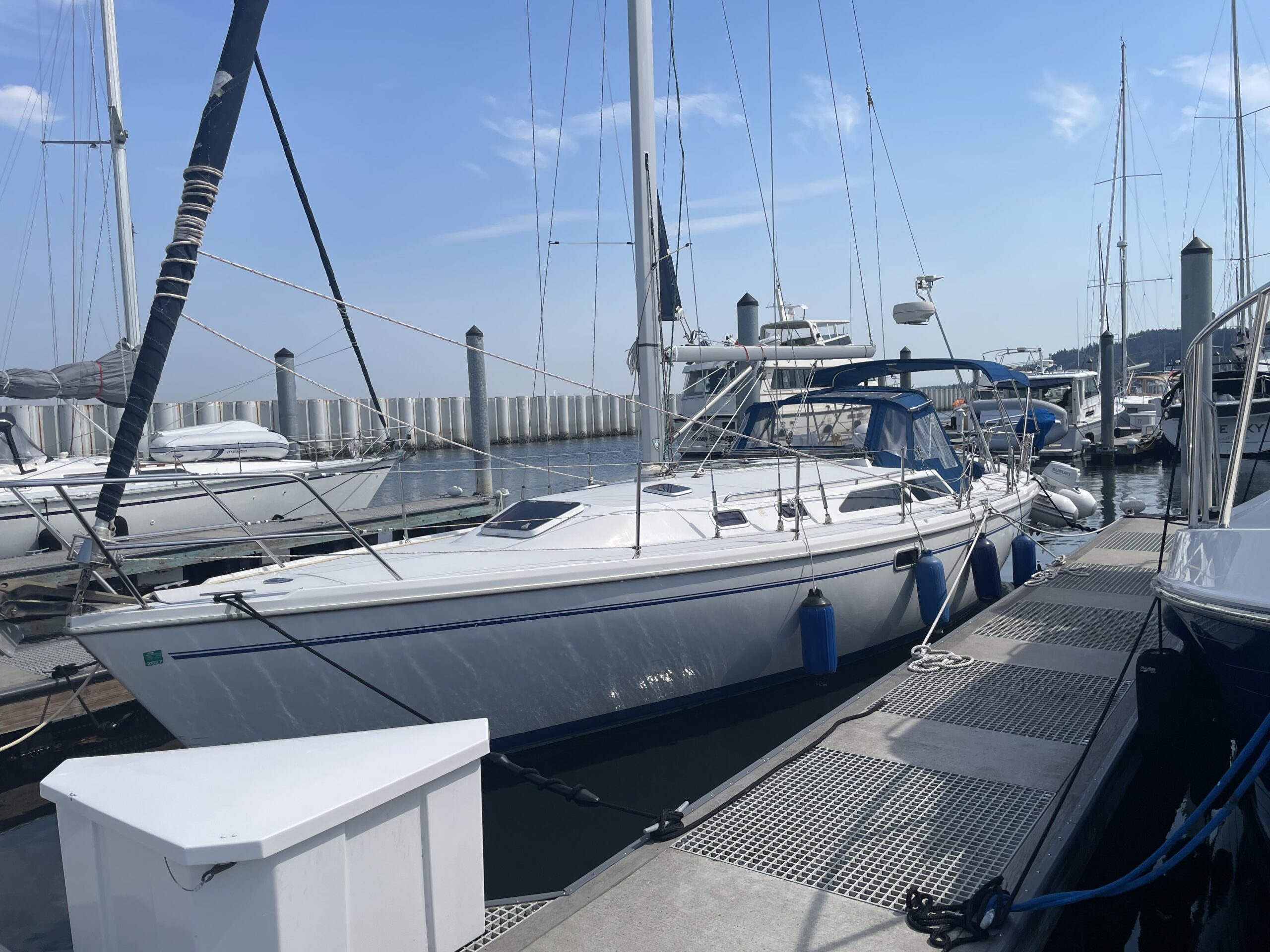

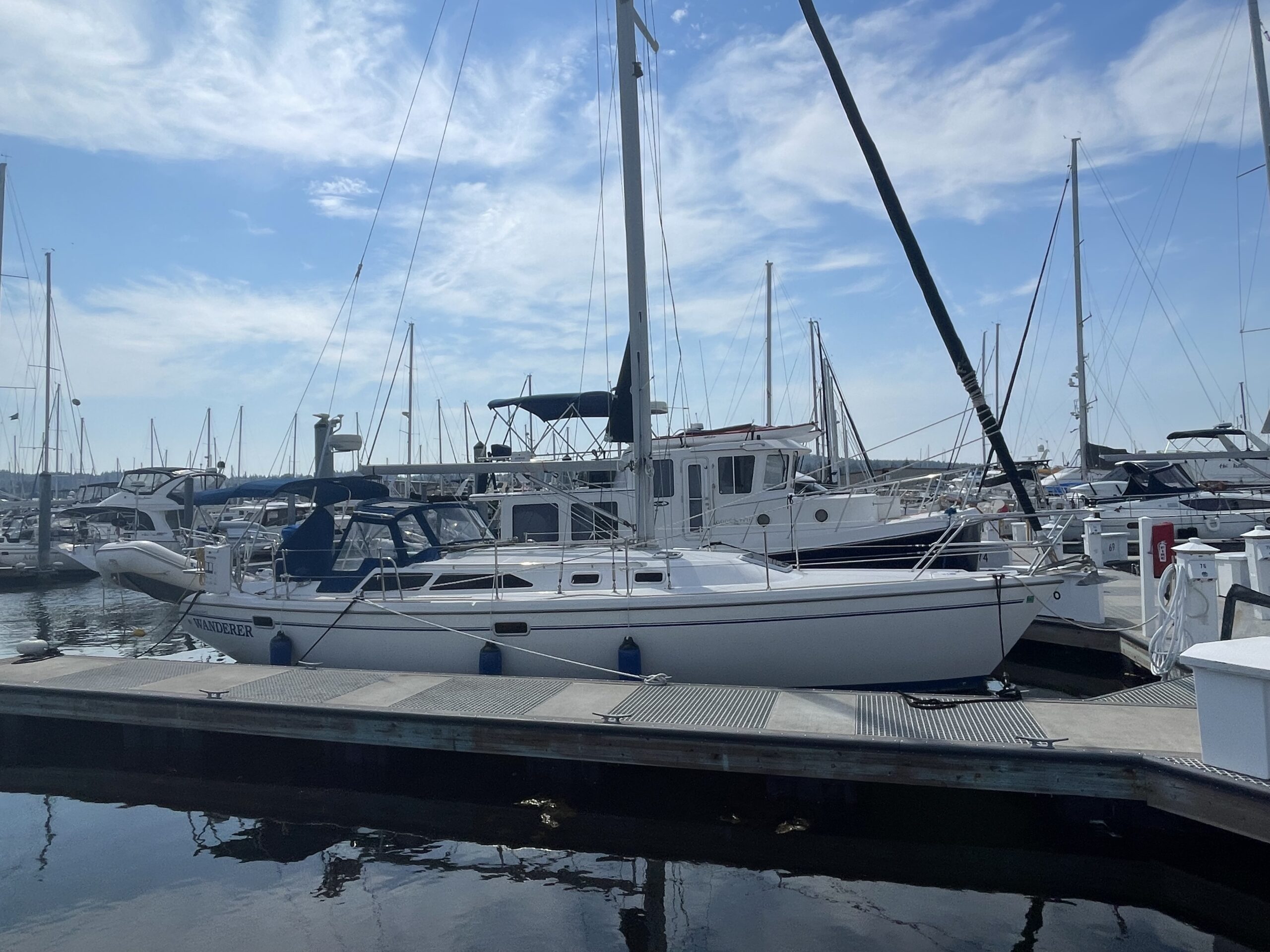

• Type – Production Built Catalina 36 Mark II Sloop
• Vintage – 1999

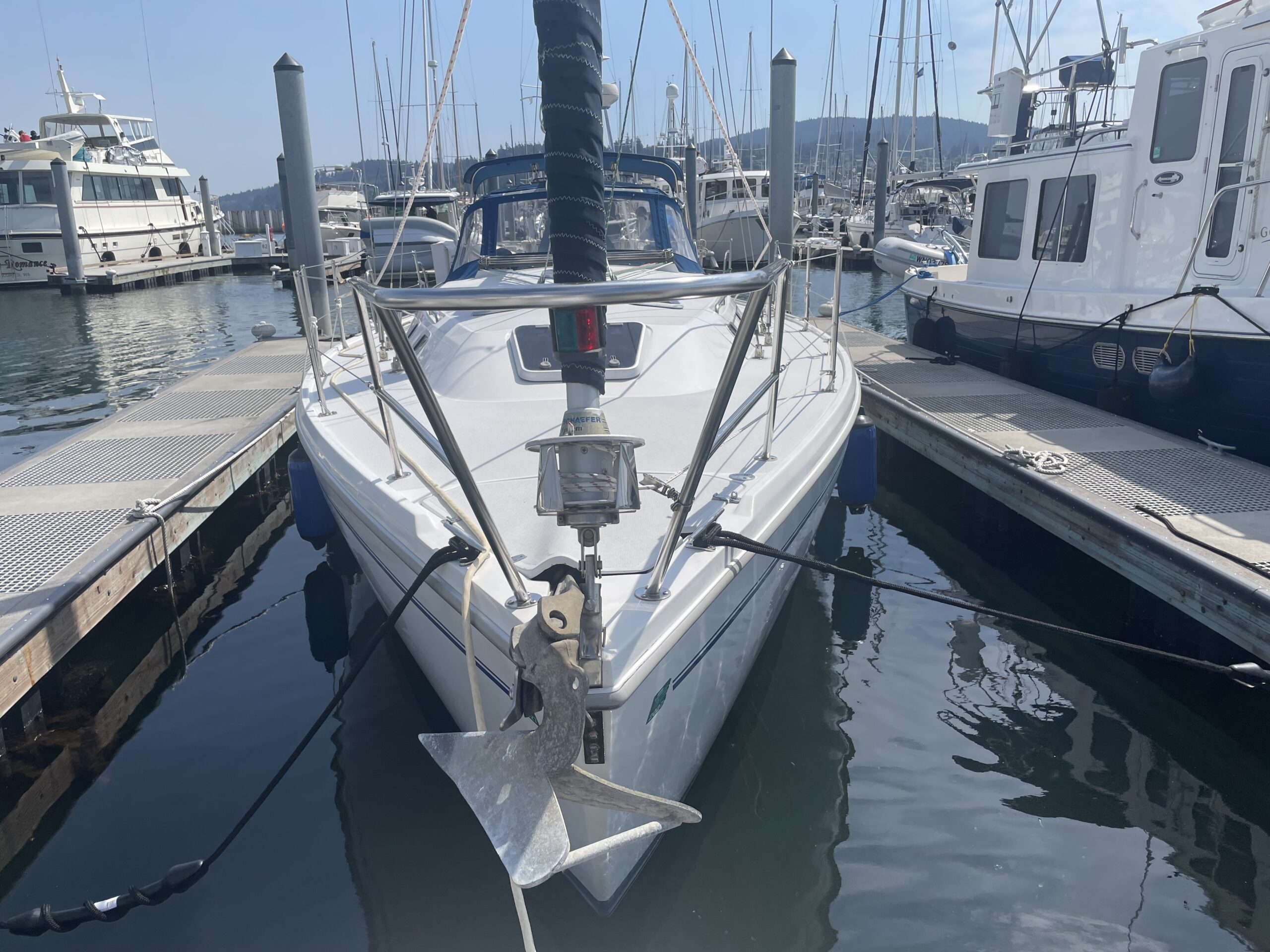

• Hull – The hull with round bilge & has a raked stem with anchor roller, transom stern with swim platform, ladder and davit,.
• Keel – Shallow Draft External Ballast Lead Wing Ballast Keel
• Rudder – Inboard spade rudder
• Deck – Layout is Conventional Trunk Cabin/Aft Cockpit Design
• Cored Fiberglass Non-Skid Finish
• Designer – Frank Butler & Gerry Douglas
• Builder – Catalina Yachts, USA

TANKAGE:

• FUEL – 47 Gallons in (1) 25 Gallon Aluminum Center Tank &
• (1) 22 Gallon Aluminum Port Tank
• Fuel Tank Gauge in Lazarette next to black Expansion Tank – “UP” = Center Tank & “DOWN” = Port Tank
• WATER – 56 Gallons in (1) 30 Gallon Plastic Forward Tank & (1) 26 Gallon Plastic Starboard Tank including Tank Monitor
• HOT WATER HEATER – 4 Gallons – 115Volts AC & Hydronic – NEW 2018
• WASTE – 17 Gallons in (1) Plastic Tank with Macerator Pump, Deck Pump-Out including Tank Monitor
• PROPANE – 2.4 Gallons

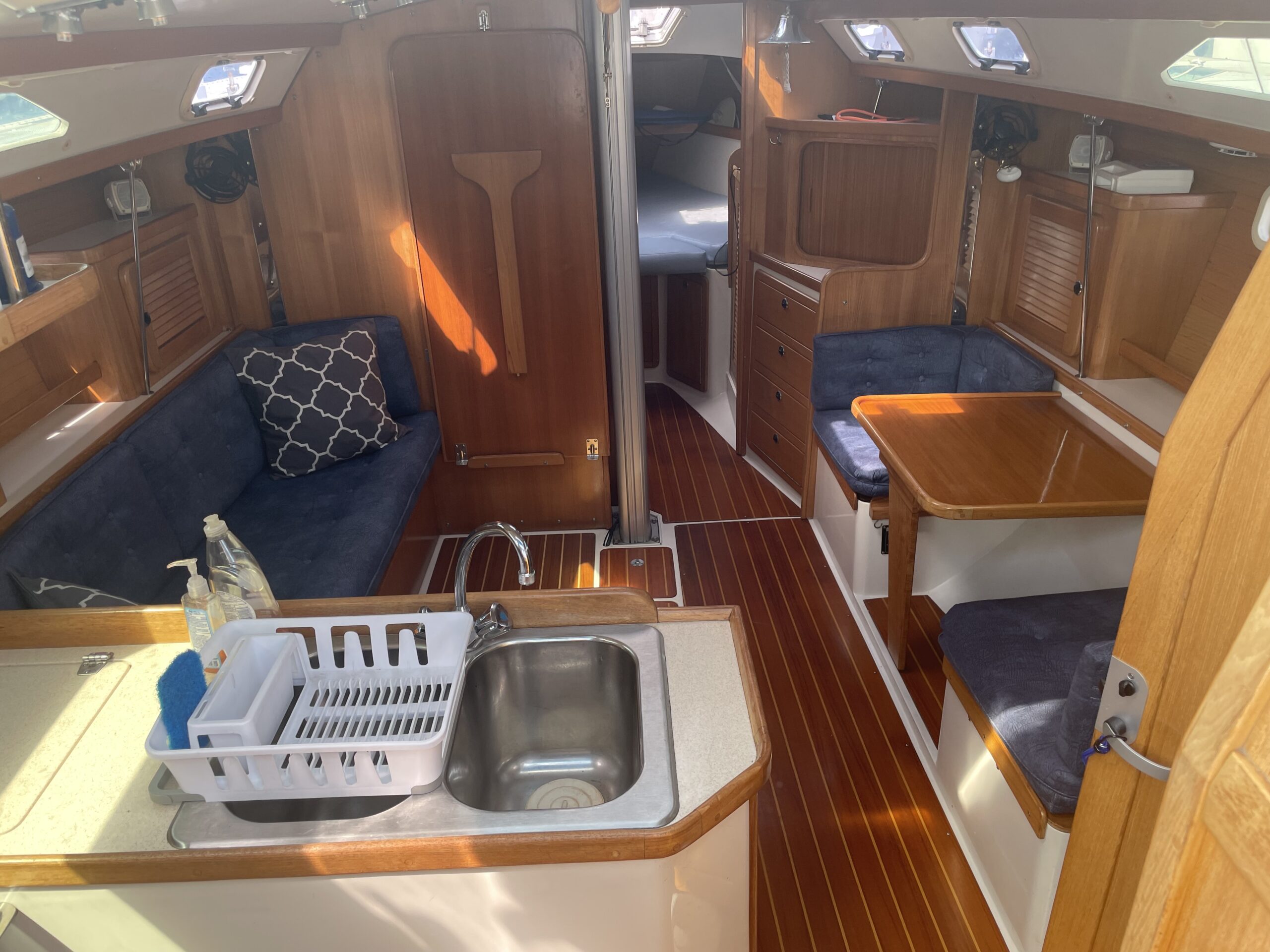

INTERIOR:

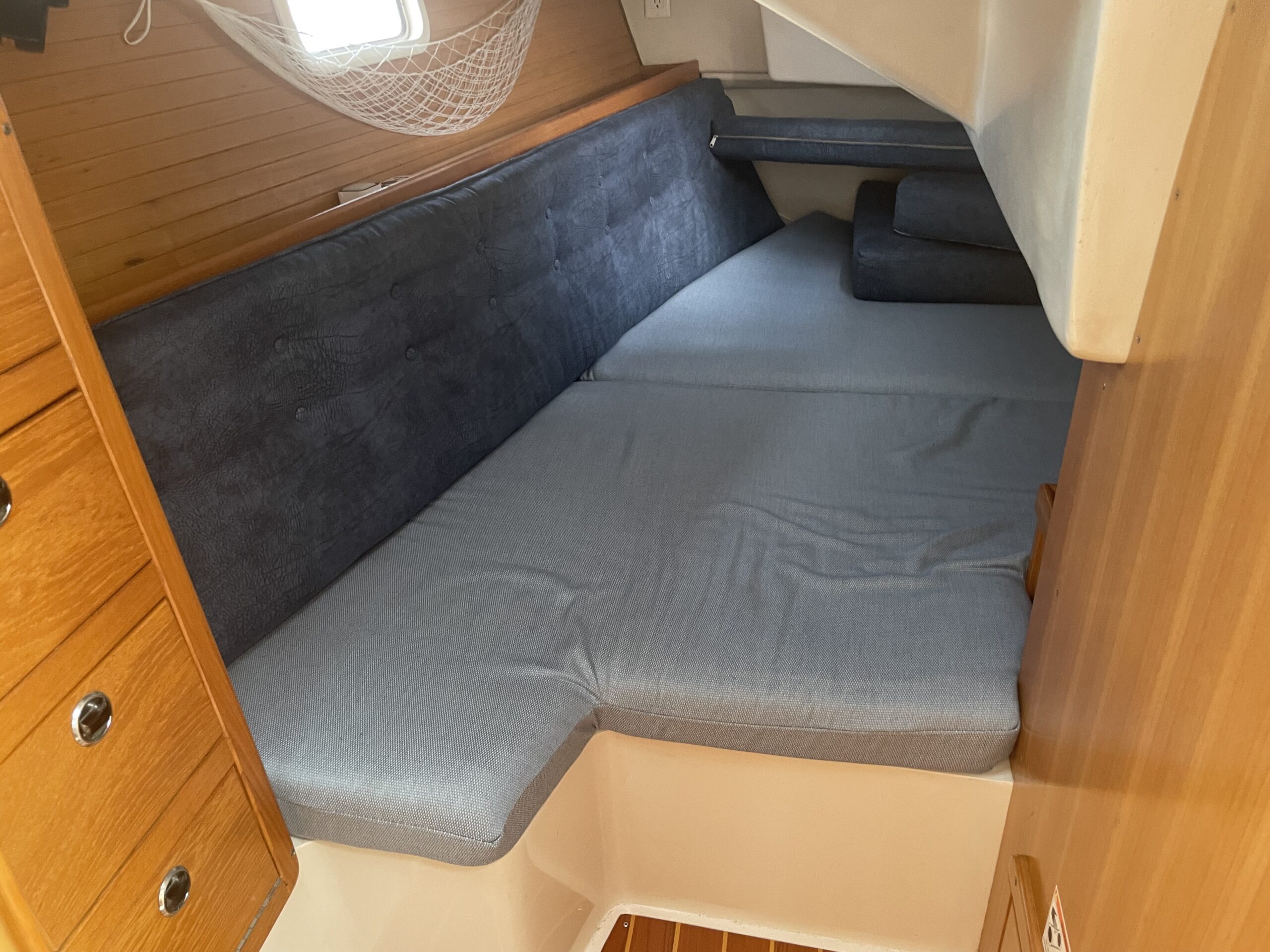

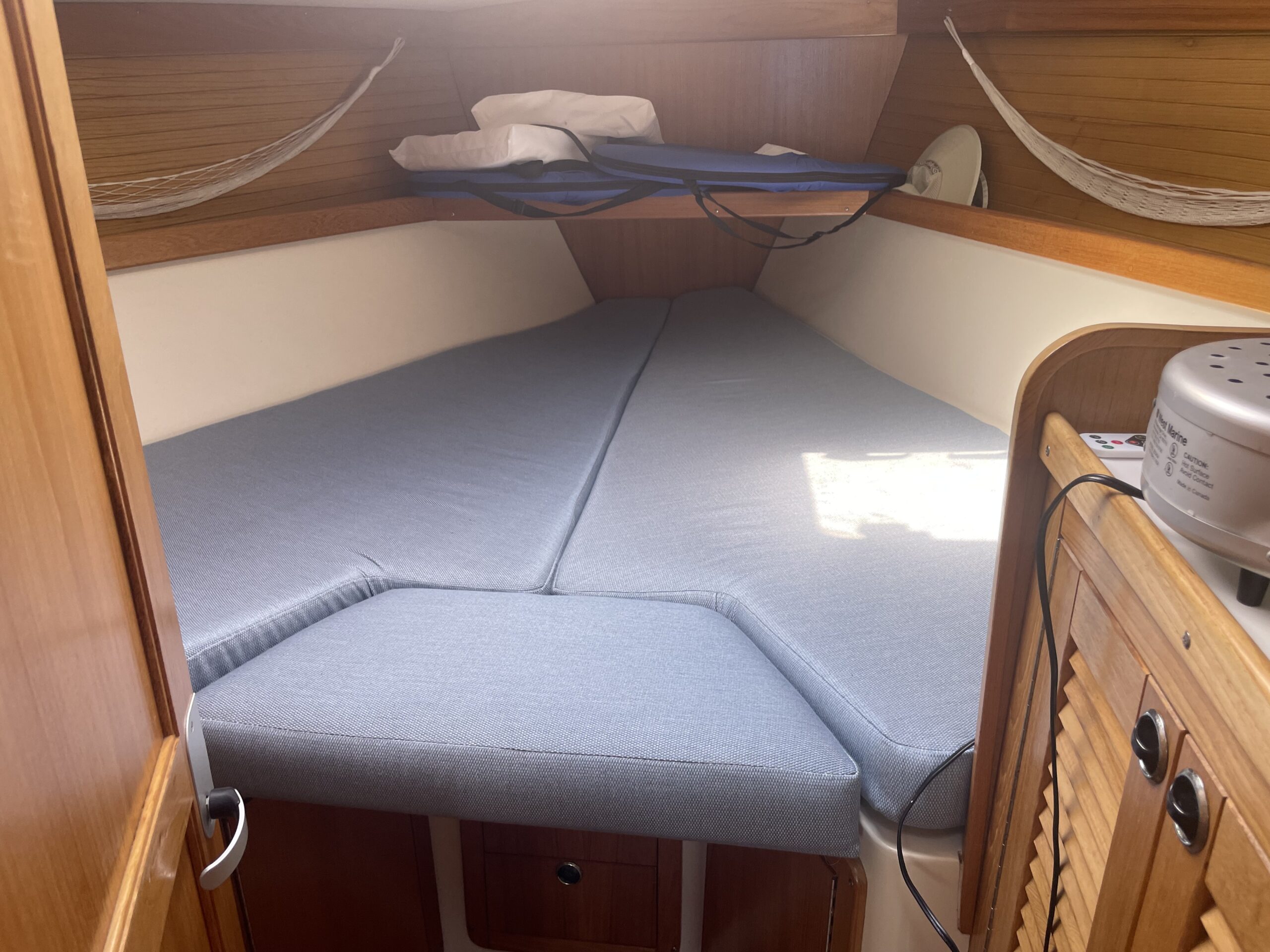

• Sleeps 7 – (2) in Forward V-Berth – NEW Upholstery August 2025

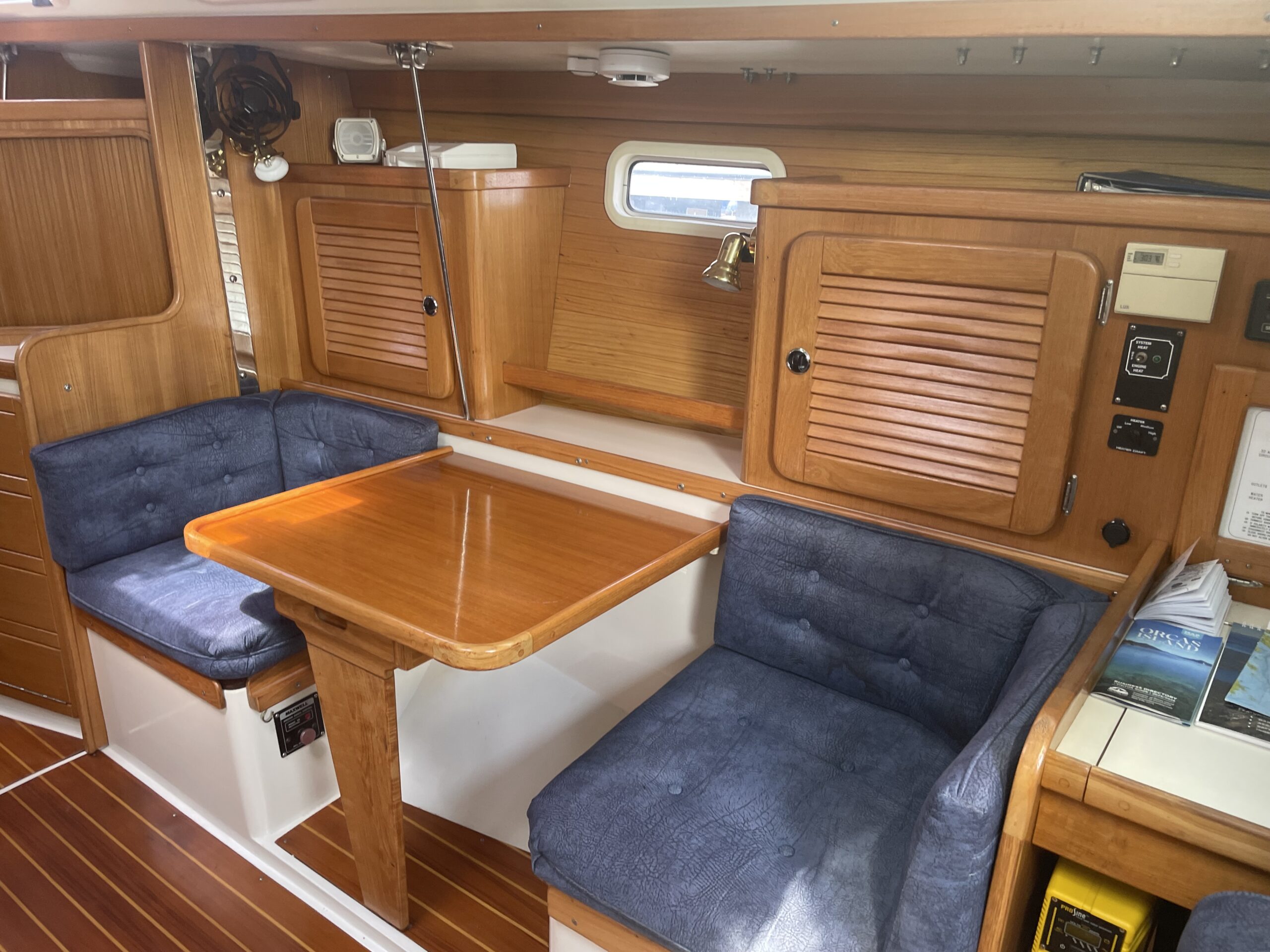

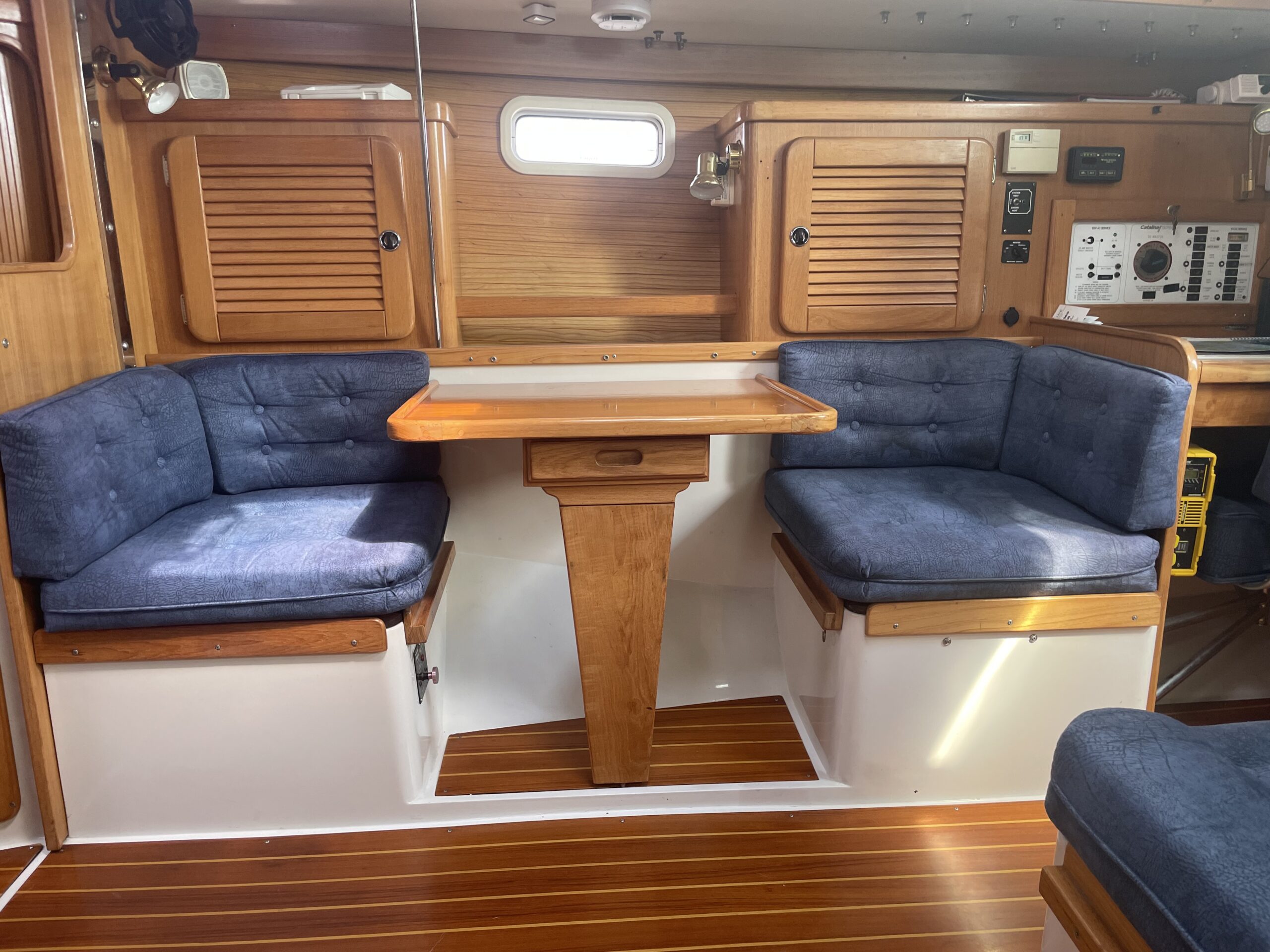

•                   (2) on Convertible Dinette
•                   (2) in Aft Quarter Berth – NEW Upholstery August 2025

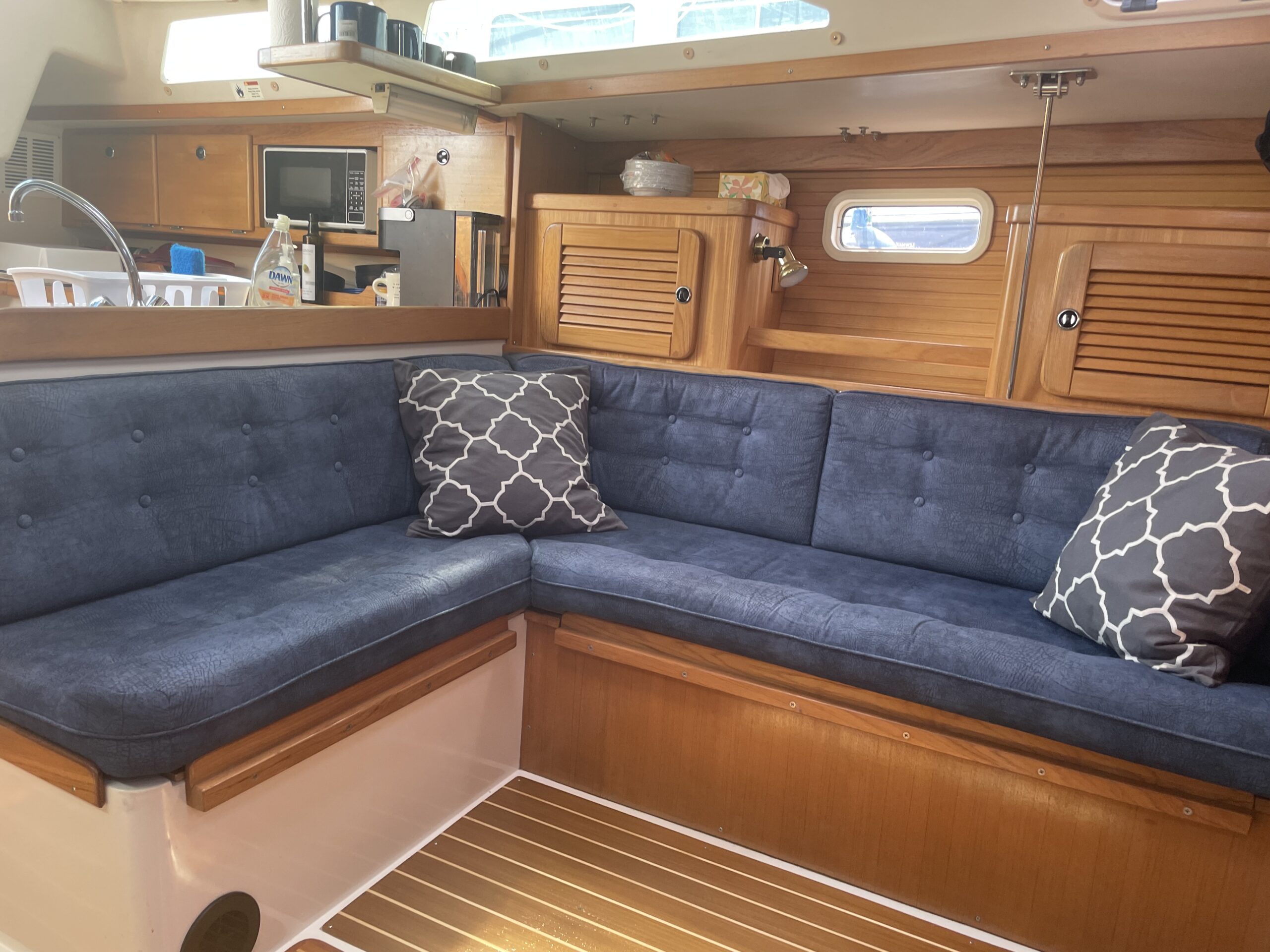

•                   (1) on Salon Sofa

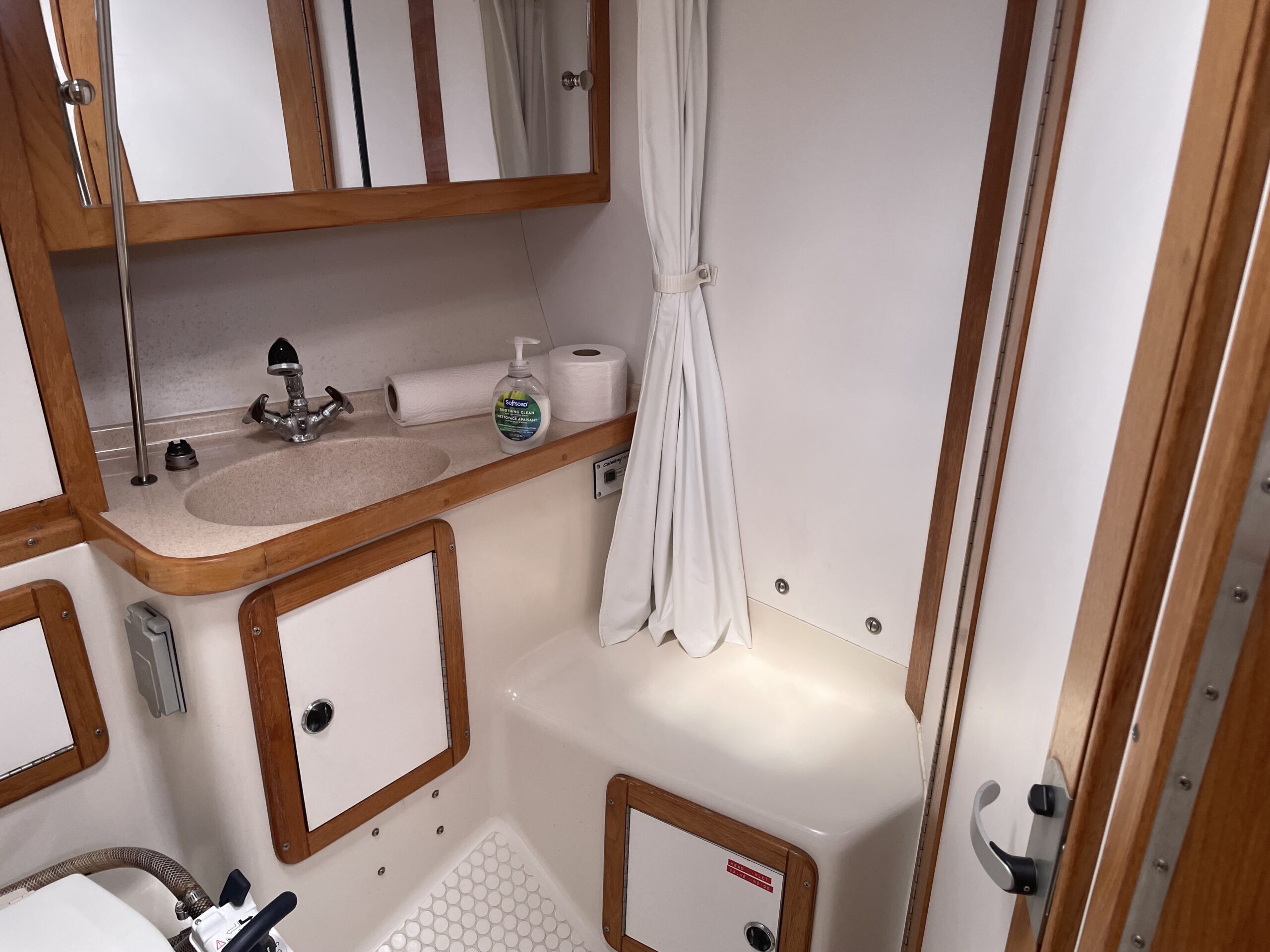

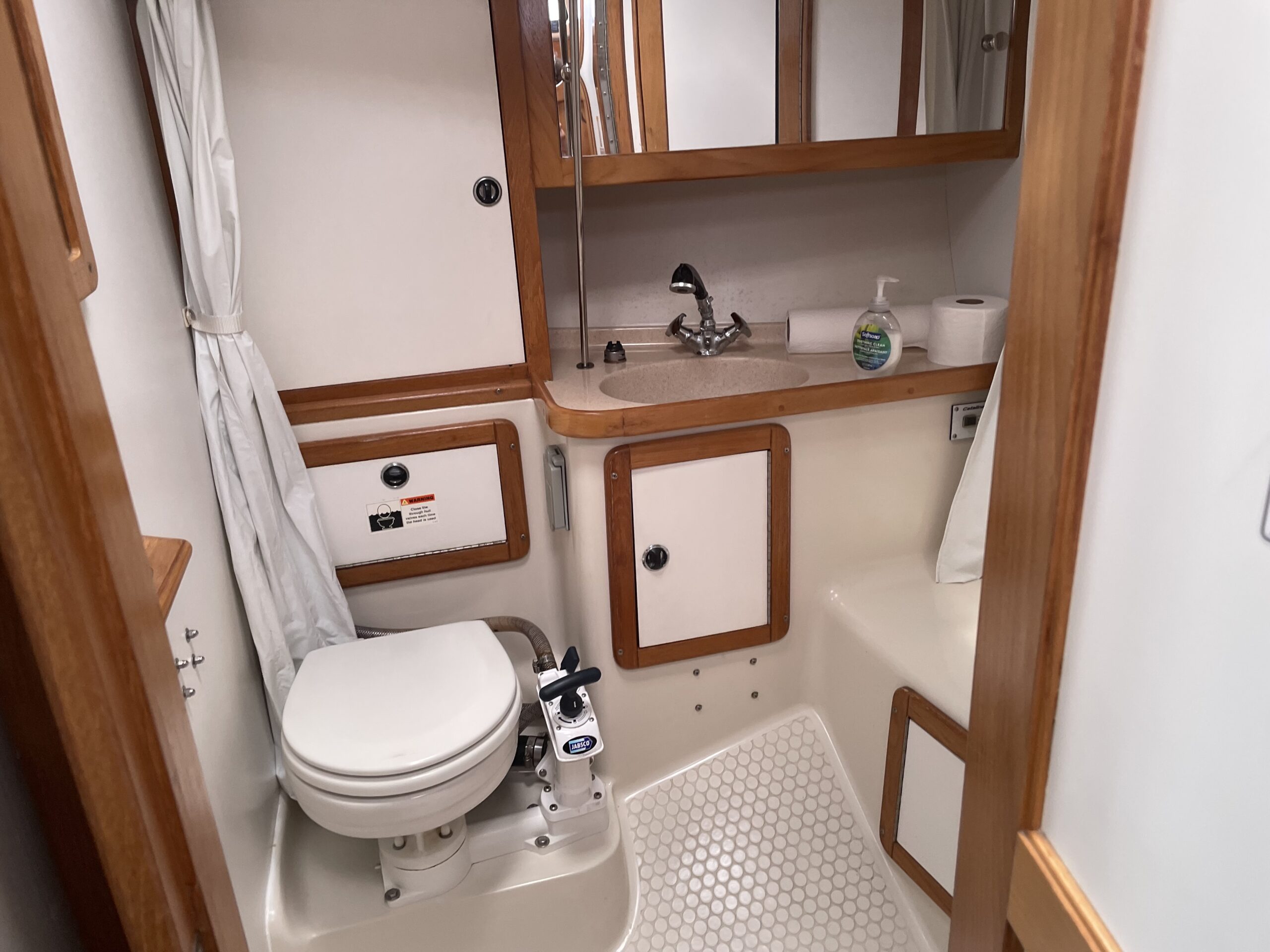

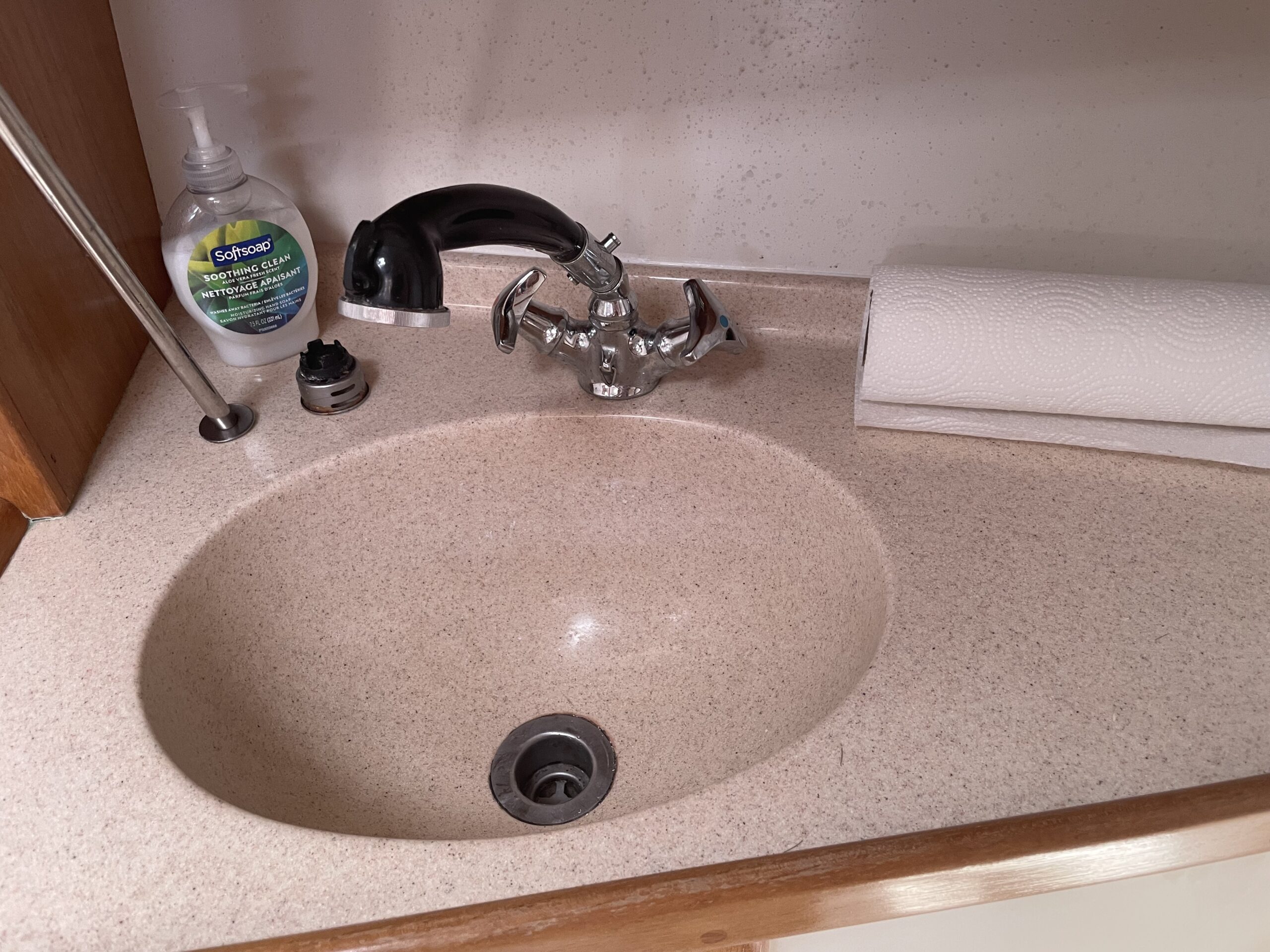

• Private Enclosed Head with Jabsco Manual Pump Toilet – NEW March 2018
•                        Replaced Macerator, Head Pump & Hoses NEW April 2025
• Hot & Cold Pressure Water System – Shurflo 2.8GPM Freshwater Pump
• Hot Water Heater – Isotemp Spa 15 – NEW 2018
• Water Maker – PUR Power Survivor 40E Reverse Osmosis

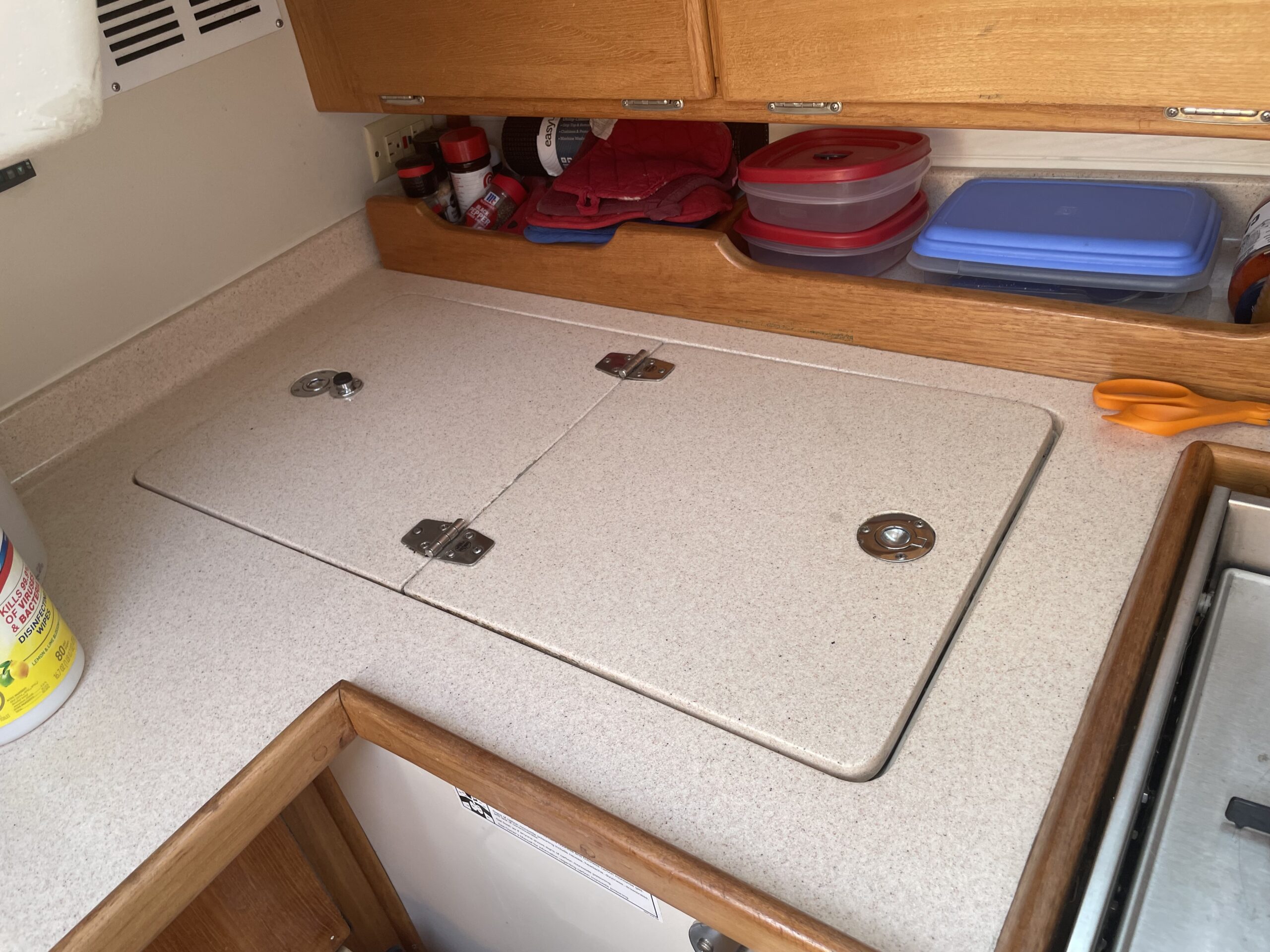

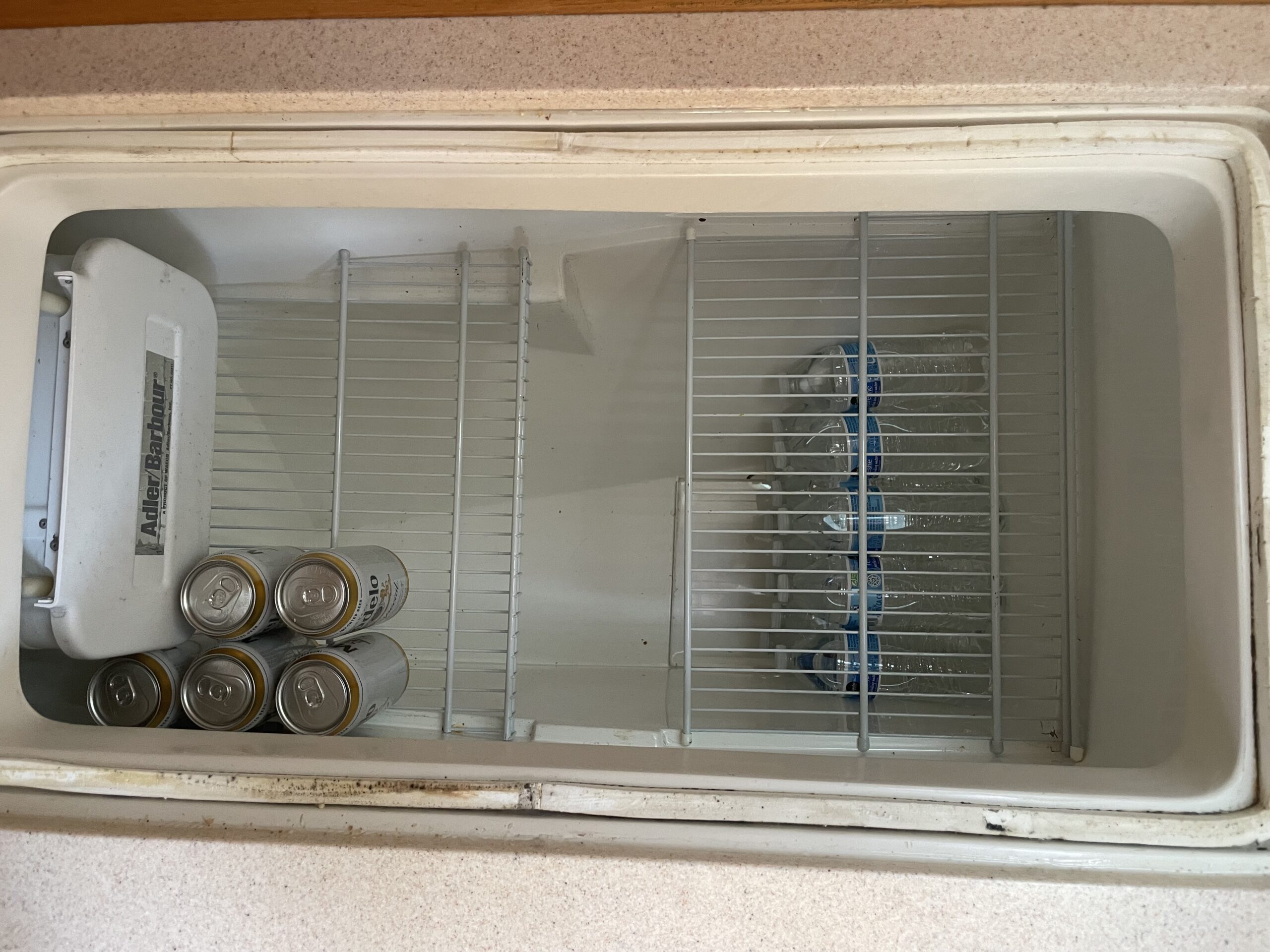

• Refrigerator/Freezer – Adler Barbour 12Volt DC – Repaired March 2026

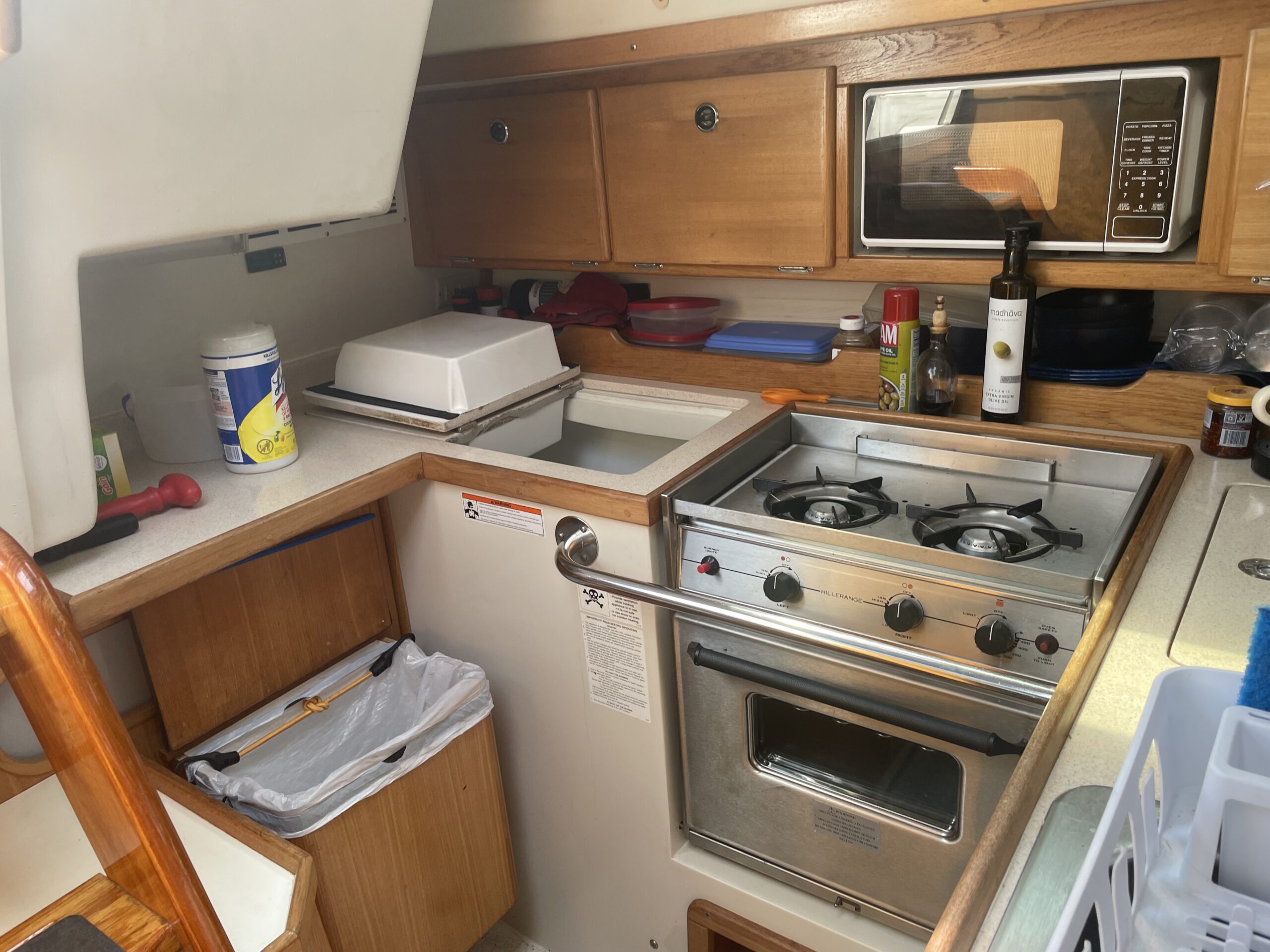

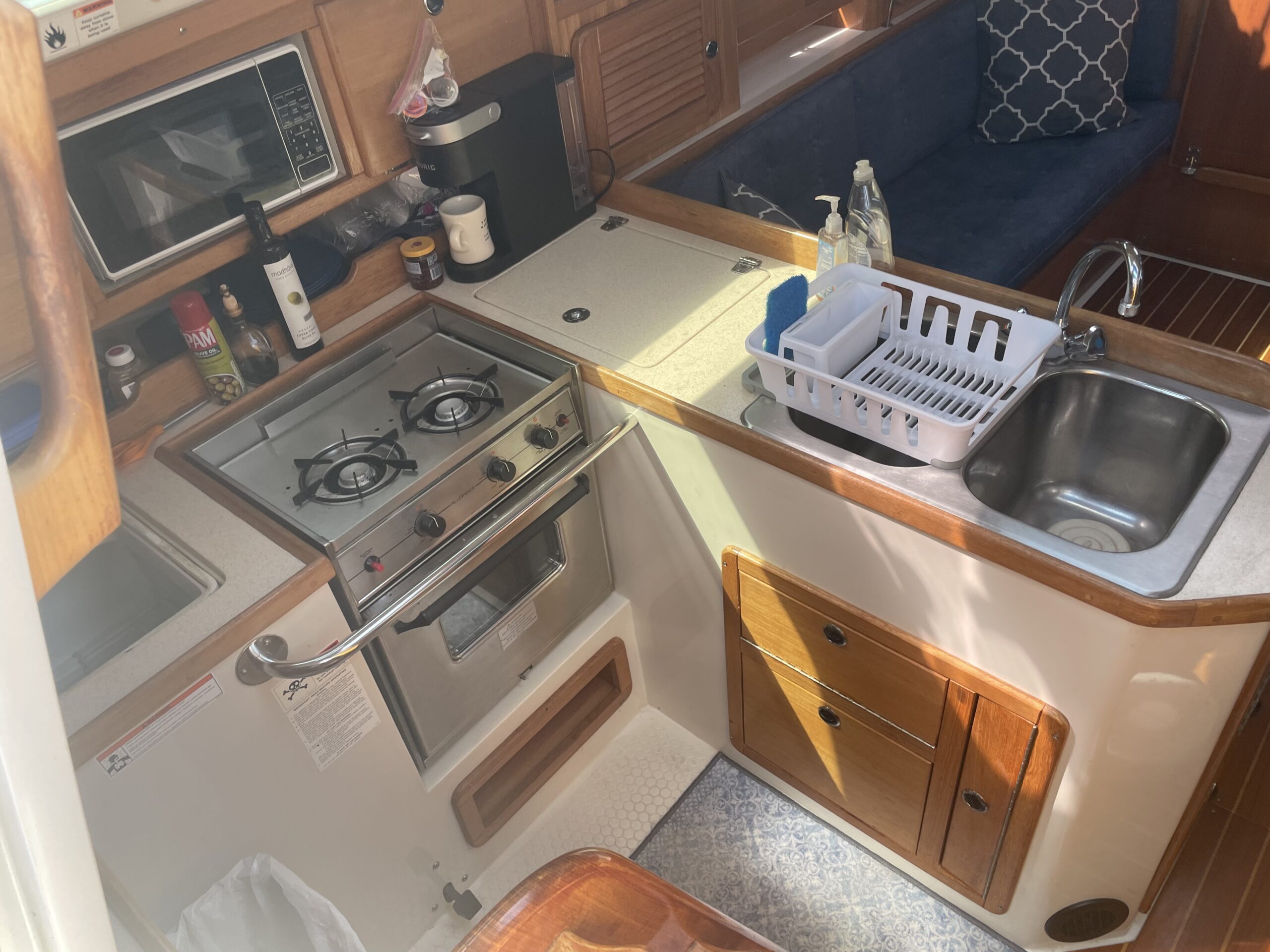

• Stove/Oven – HilleRange 2-Burner Propane Stove/Oven
• Cabin Lights – LED
• Cabin Hatches – (4) Lewmar New Standard – NEW 2015
• Cabin Heat – Webasto Thermo 90 ST D, 31,000btu,
• Diesel Fired Hot Water System – NEW 2014
• Red Dot Type Heater from Engine
• Either Engine or Furnace Heats Hot Water Tank
• Cabin Heat Blower – Sure Marine REAL – NEW 2020

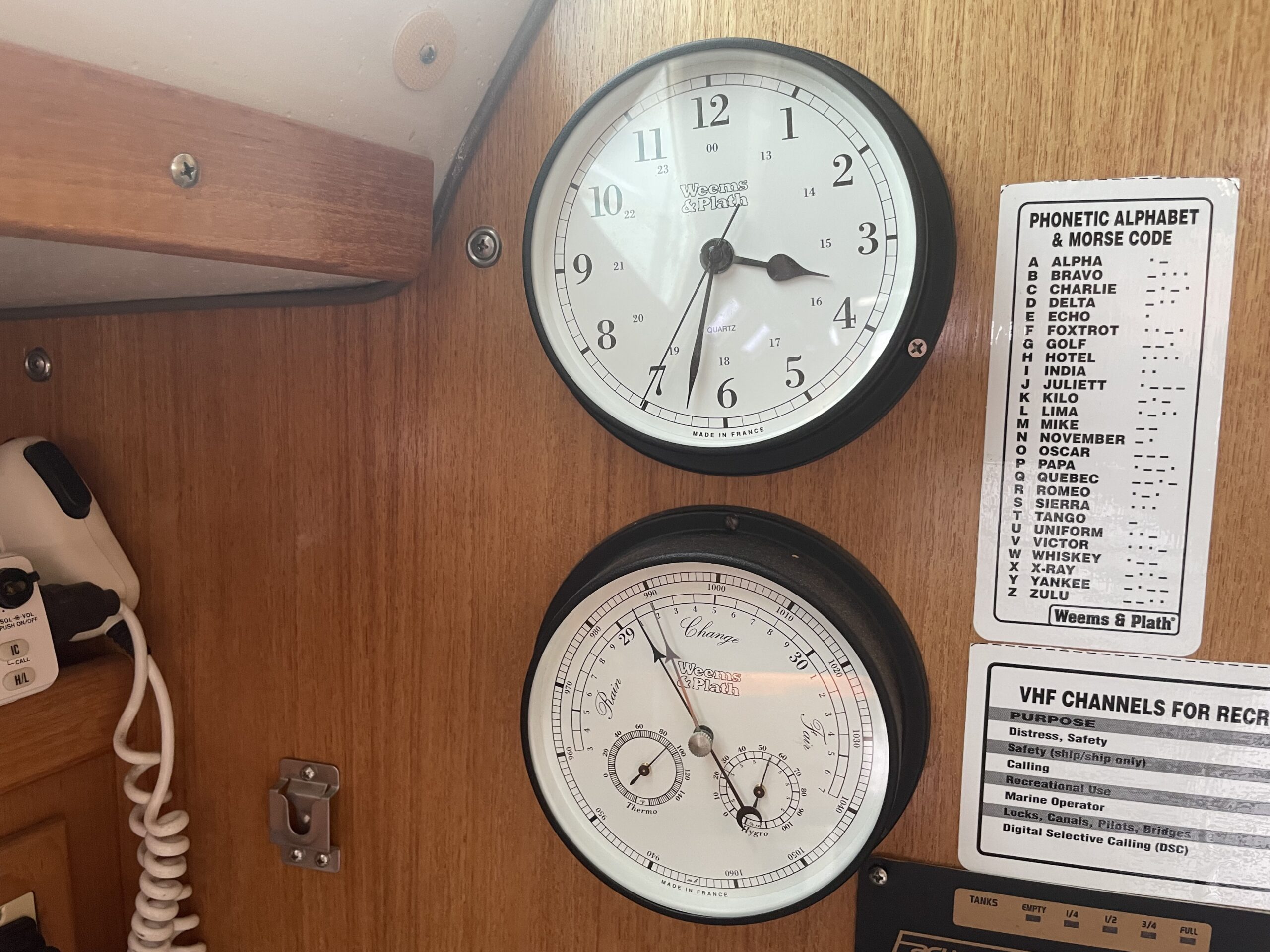

• Clock – Weems & Plath
• Barometer – Weems & Plath

MECHANICAL / ELECTRICAL:

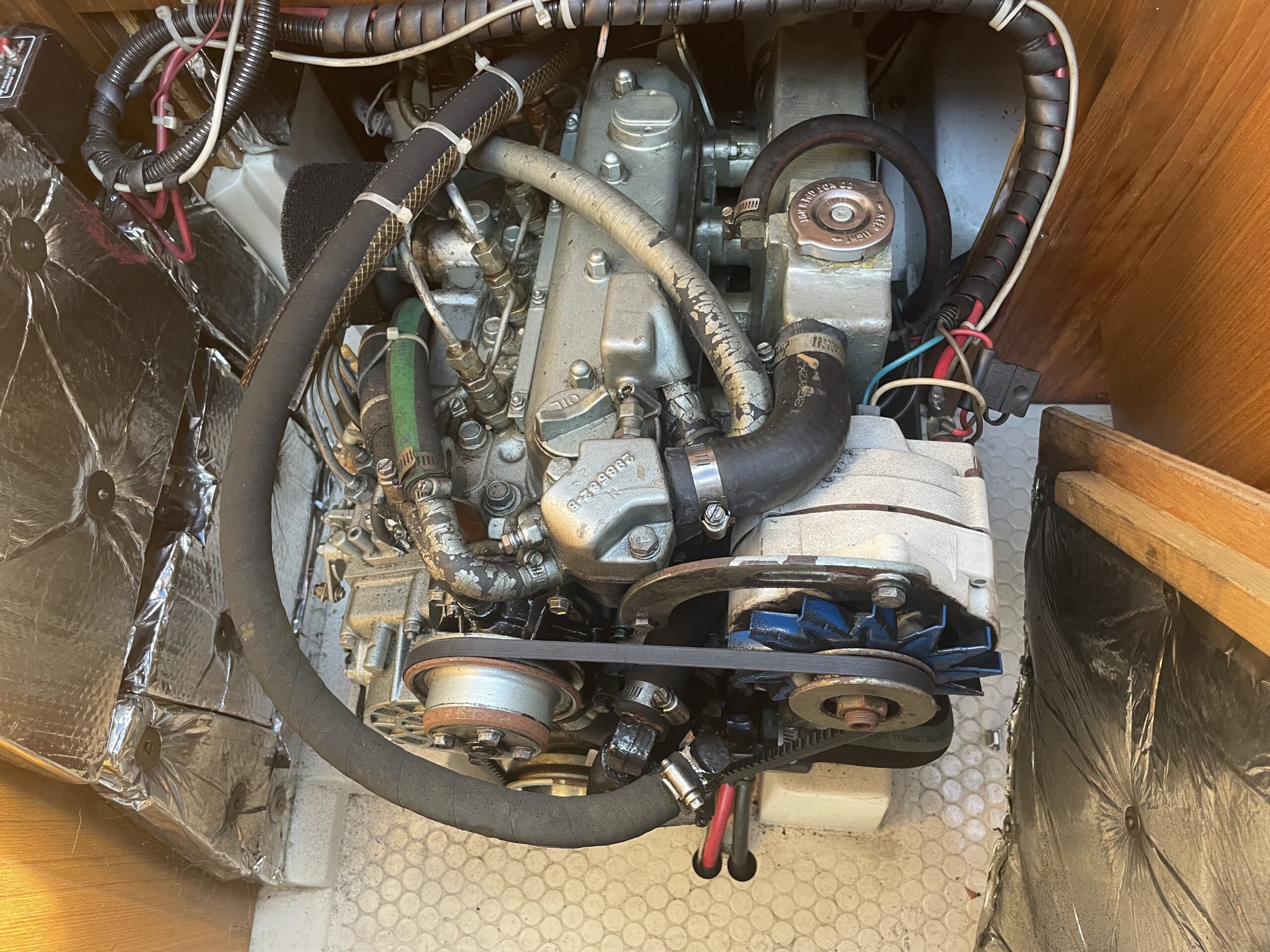

• Single Universal 4M-35BC, 4-Cylinder, 35hp, Freshwater-Cooled, Direct-Drive, Inboard Diesel Engine
• Hours – 2,090
• Engine – Serviced Sept 2025
•                Checked Valves, Fuel Lines & Bled System – June 2025
• Engine Oil – Delo 400 SDE SAE 15W-40
• Engine Heat Exchanger – NEW 2017
• Engine Alternator – Balmar 75Amp, 14Volt
• 6 to 8 Hours of Cruising to Recharge Batteries
• Engine Regulator – Balmar Max Charge MC-612 Multi-Stage
• Engine Fuel Filters – Primary – Racor R24S (2 Micron)
• Secondary on Engine – Shaun WIX 33390
• Engine Fuel Pump – Electronic Powerflow PFS-10700
• Engine Exhaust – Wet Exhaust with Water-Lift Muffler – NEW 2023
• Engine Room – Blower
• Engine Cruising Speed – 2,750 – WOT
•                                          2,060rpm – 75%
•                                          2,200rpm – 80%
•                                          2,000rpm – Max Efficient Cruising Speed
• Engine Controls – Mechanical Cables

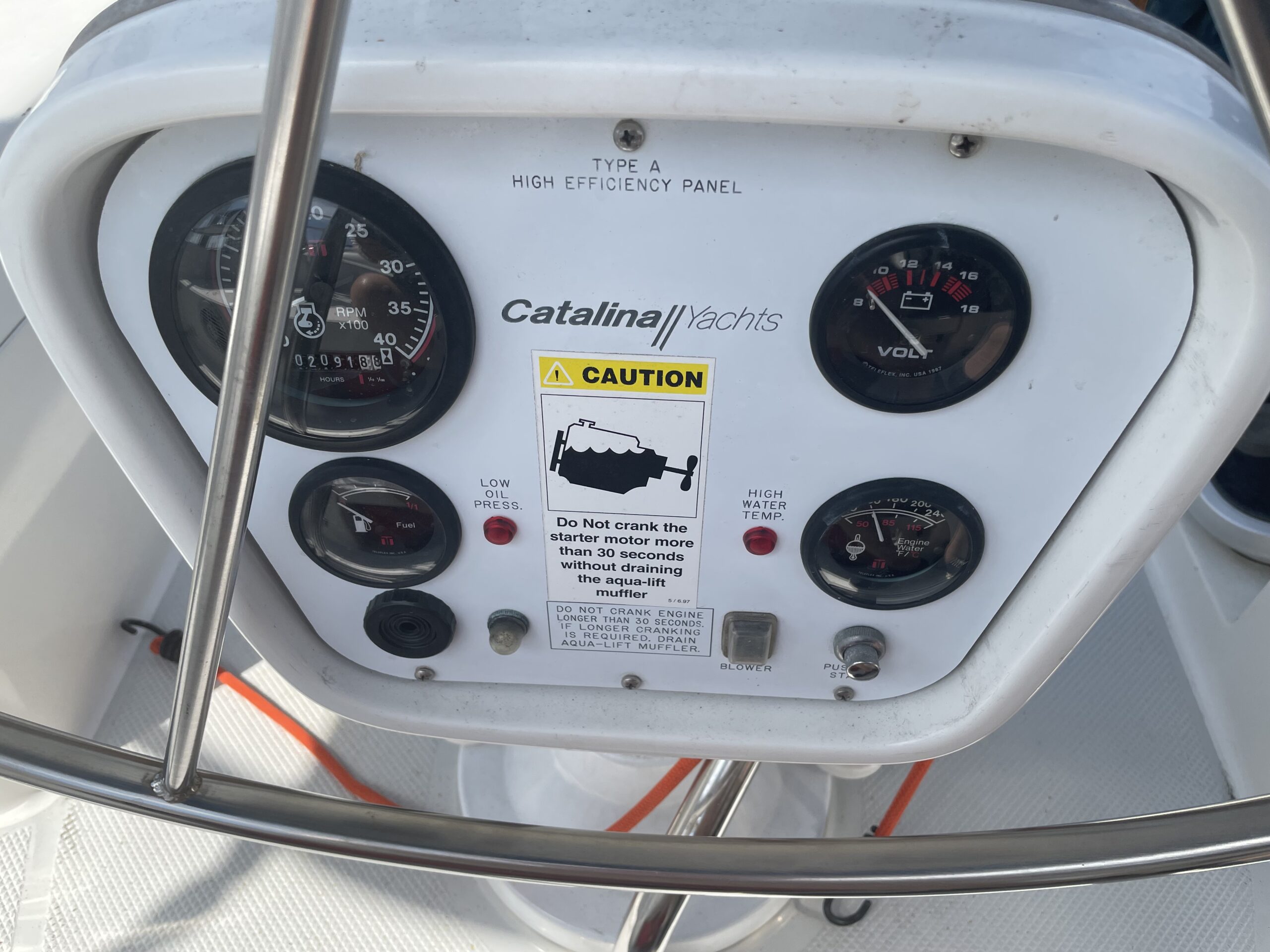

• Fuel Gauge – At Cockpit Helm
• Transmission – ZF HBW 100-20R
• Gear Ratio – 2.68
• Synthetic ATF – Dex/Merc or Valvoline Sexton III
• Transmission – Serviced June 2023
• Engine Shaft Seal – Hose Mounted Packing Gland
• Engine Drive Shaft – Stainless Steel 1” Shaft – NEW 2014
• Engine Propeller – 3-Blade
• Struts & Bearings – Cutlass Bearing in Strut

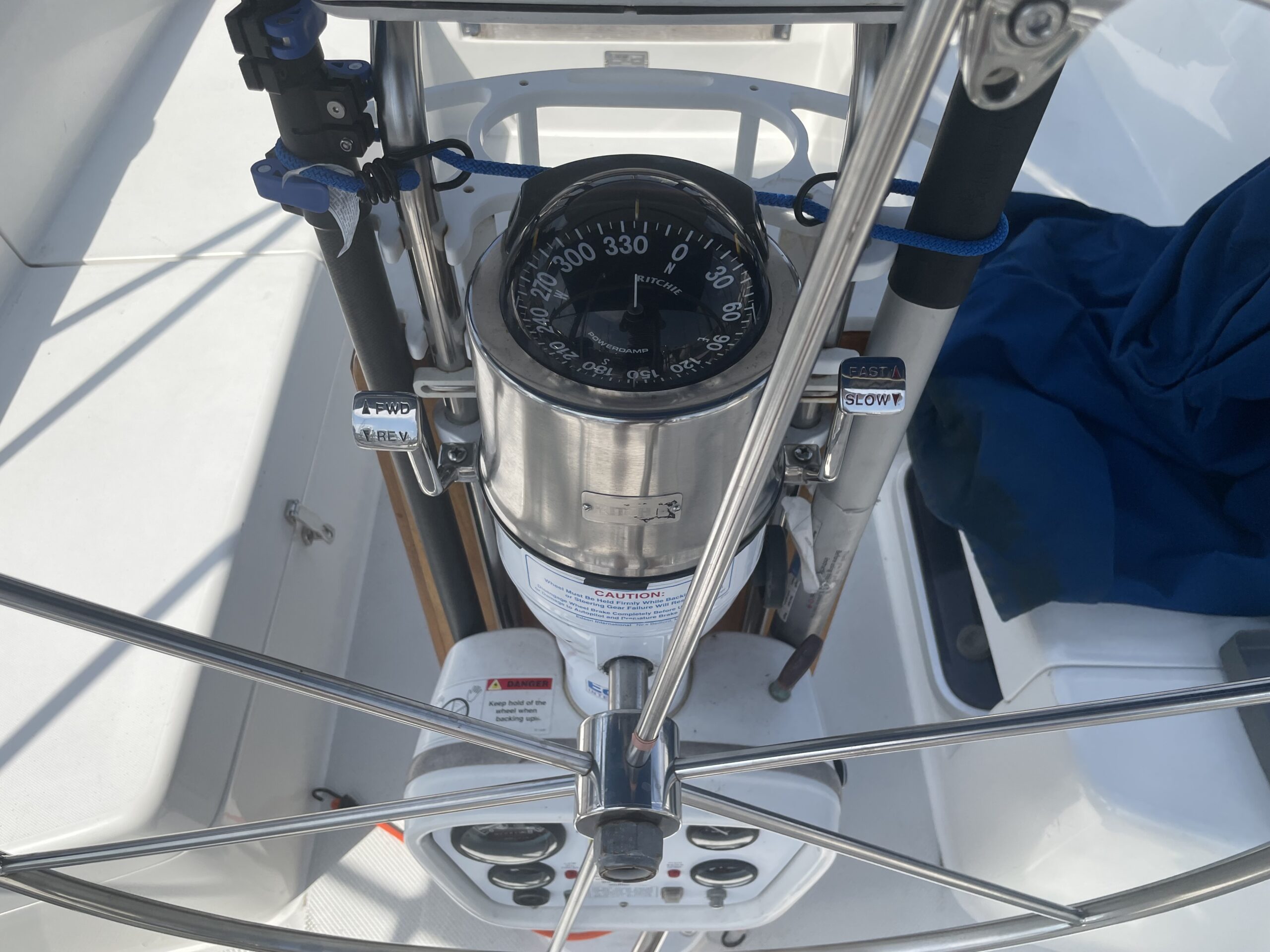

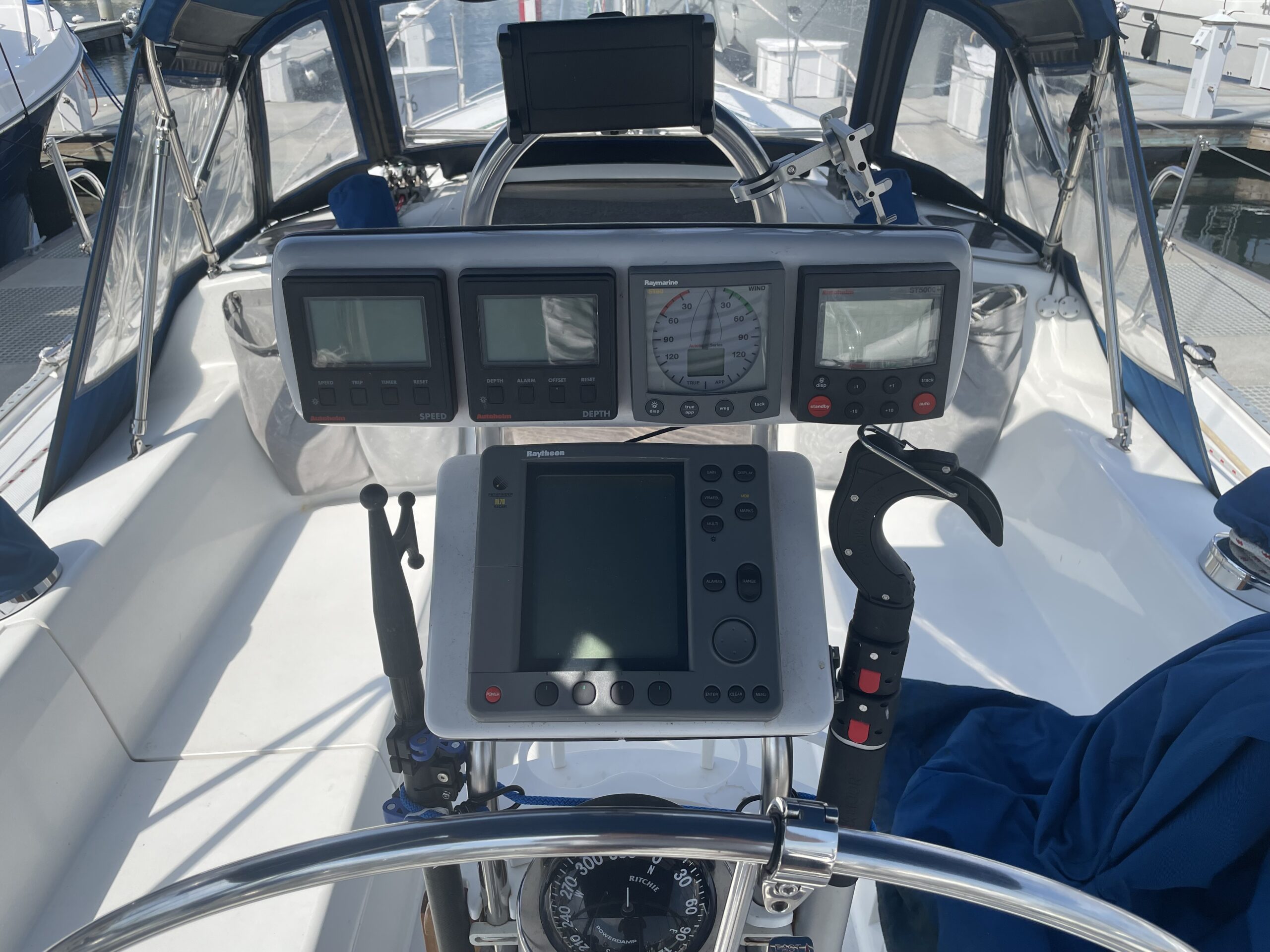

• Steering – Edson Pedestal Steering, Pull/Pull & Cable Over Sheave to Rudder Quadrant
• Rudder – Inboard Semi-Balanced Foil Shaped Fiberglass Cored Spade Rudder
• Rudder Bearings – Synthetic
• Rudder Seal – Packing Gland
• Bilge Pumps – (1) Rule 2000 Auto/Manual
• (1)  Manual Pump in Cockpit
• Batteries – House – (2) Lifeline AGM 12Volt 200amp – NEW April 2024
• Start – (1) Interstate Group 24DC Marine 12Volt – NEW 2020
• Battery Charger – Master Volt ChargeMaster 12/35-3 – NEW 2020
• Battery – Blue Sea Automatic Charging Relay

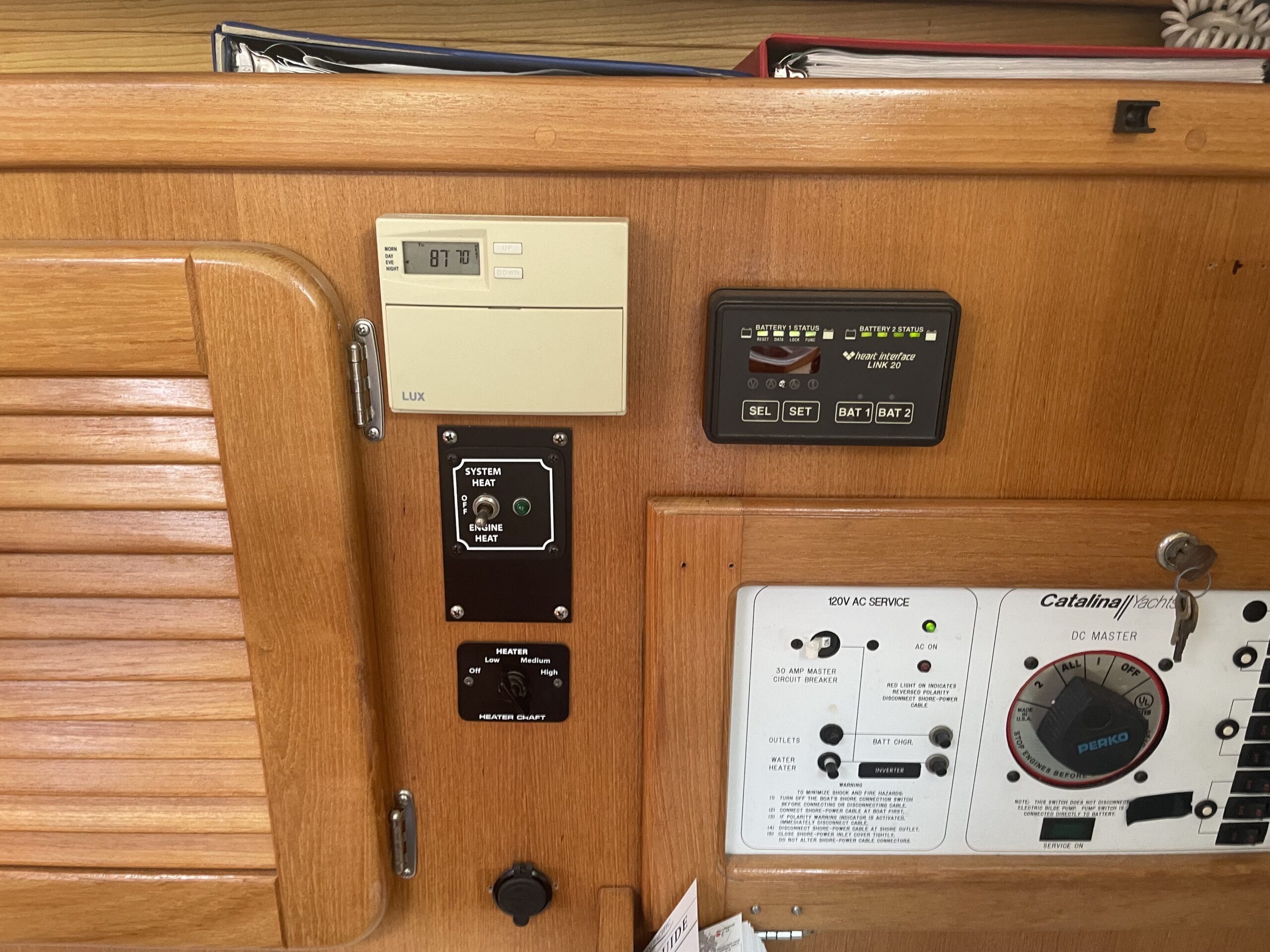

• Battery Monitor – Heart Interface Link 20

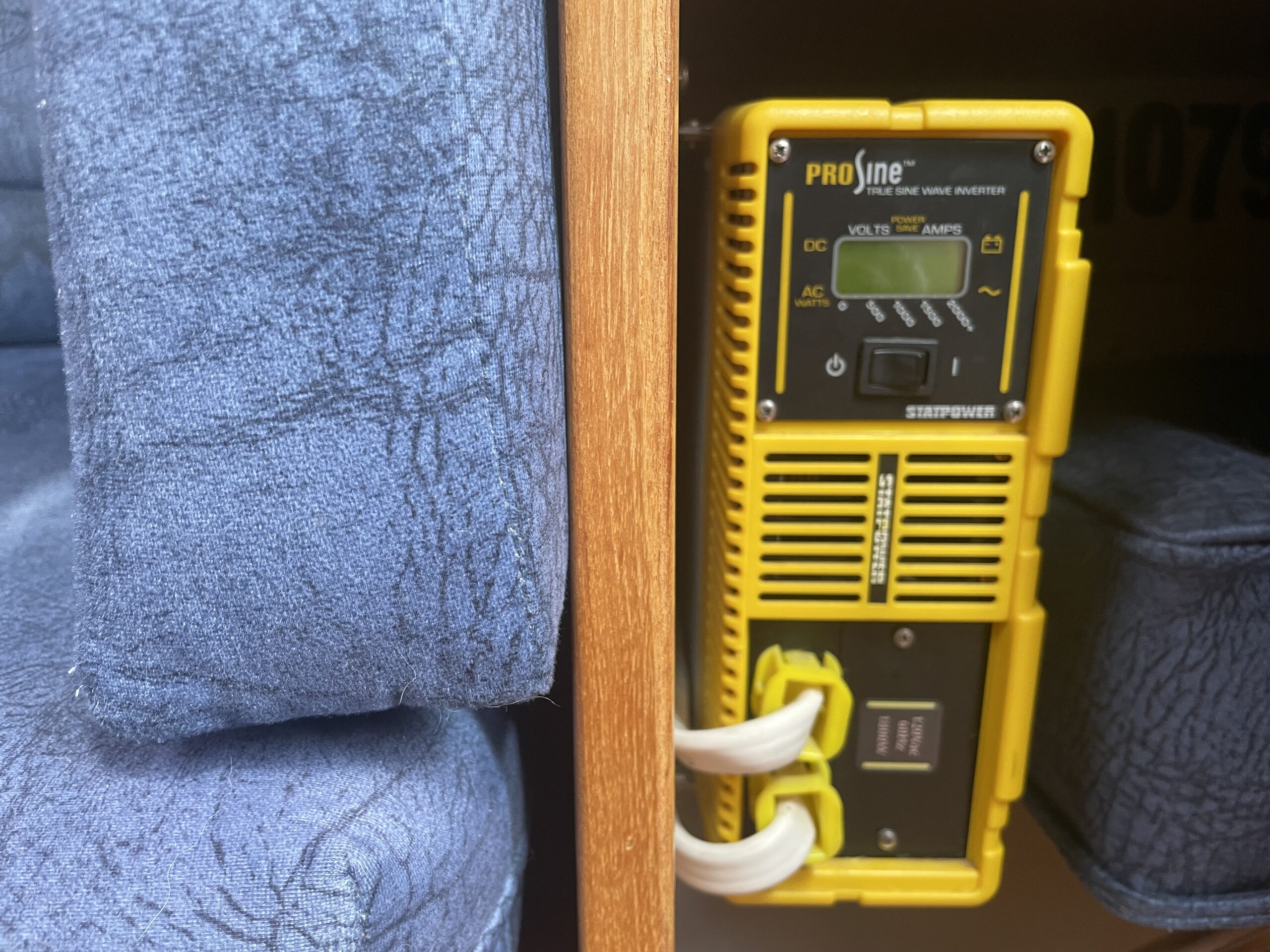

• Inverter – StatPower ProSine True Sine Wave 2000+

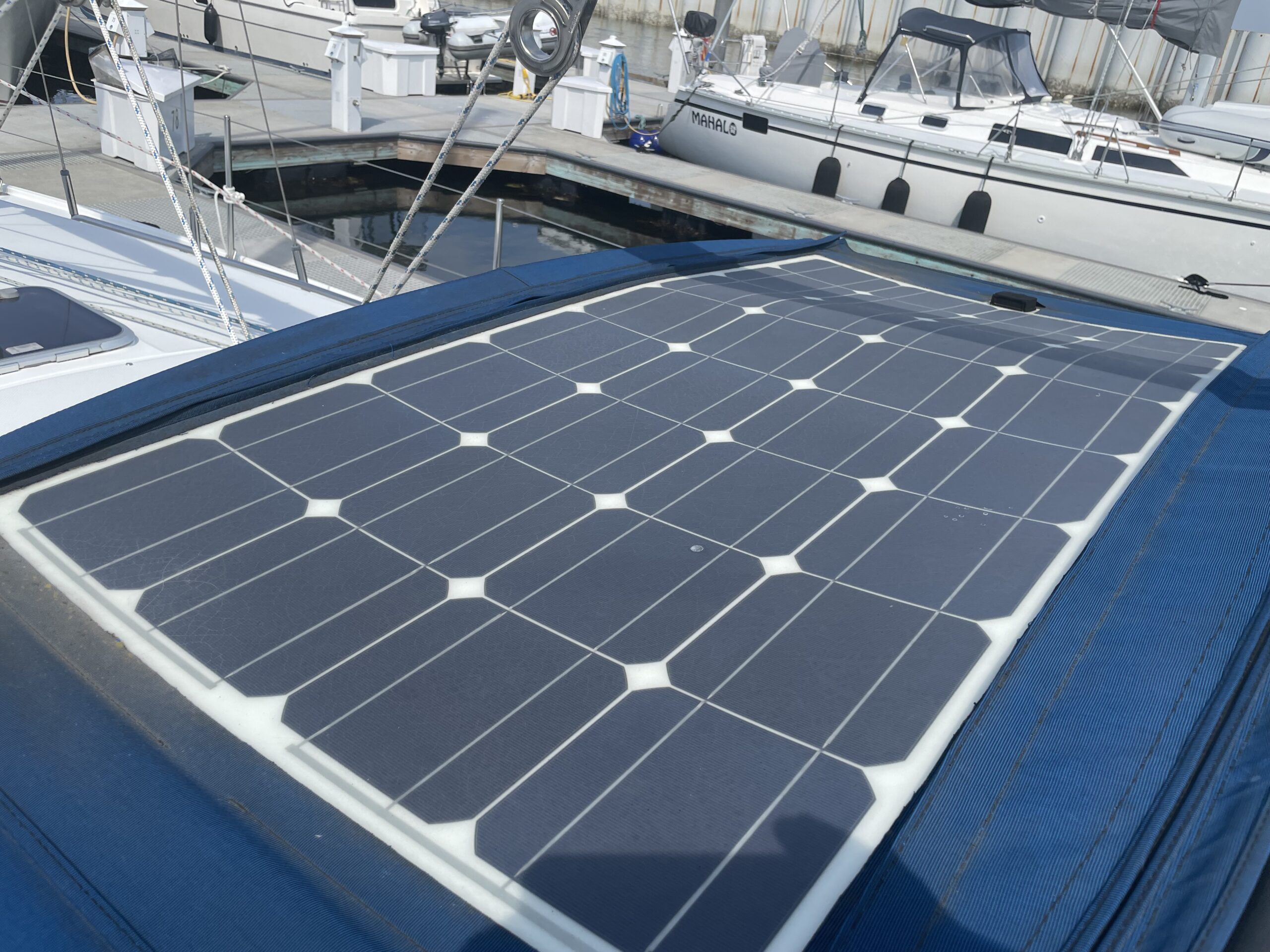

• Solar – Solbian CP-125 Flexible Solar Panel on Dodger
• Solar Charger Controller – Genasun GV-10 MPPT

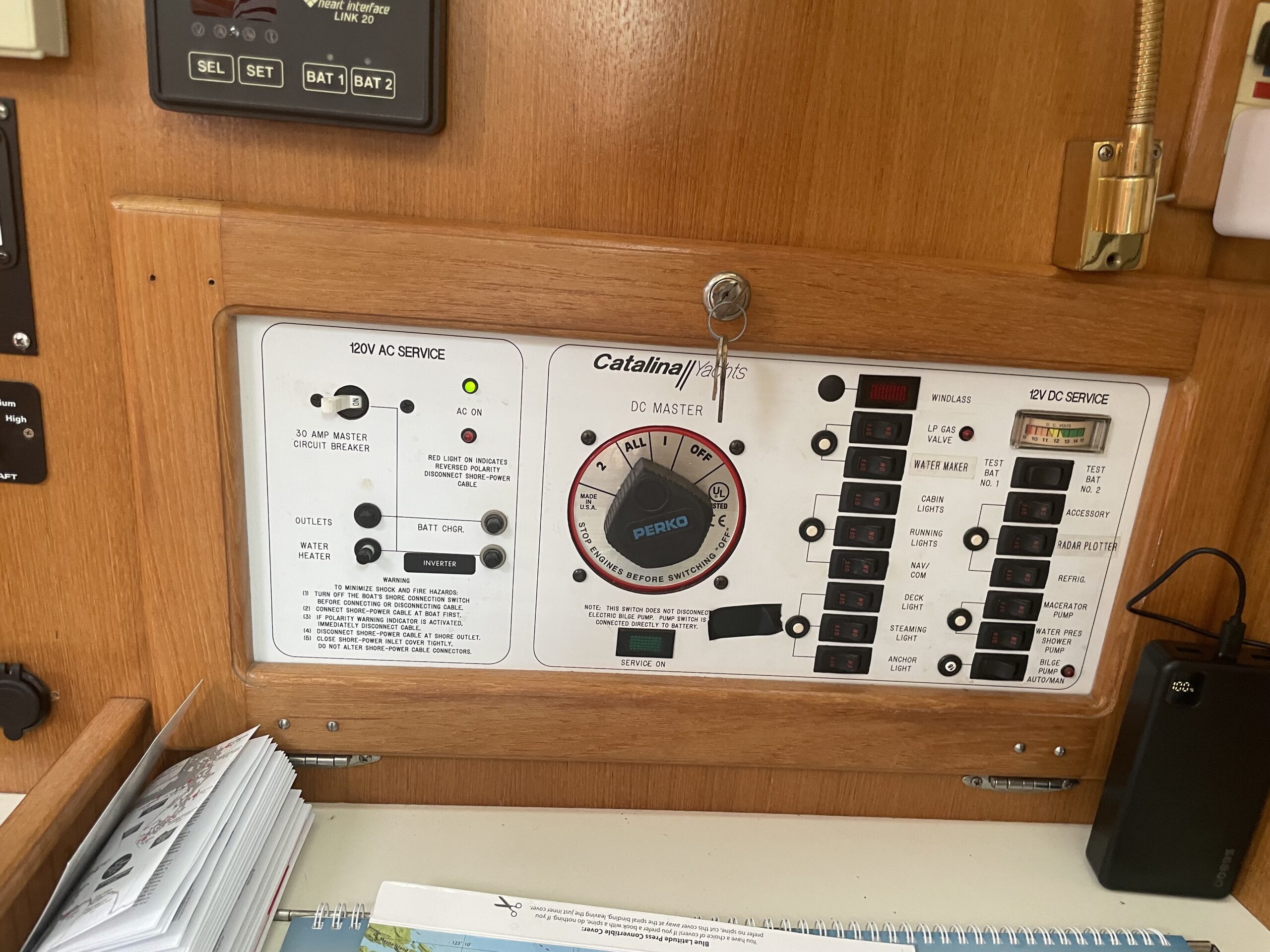

• DC Master Switch – “On All” Before Starting Engine
• AC Service – “Must Be Off” – When Plugging In and Unplugging
• Shore Power – 30amo with 50’ Cord
• Galvanic Isolator – Saver II

NAVIGATION / COMMUNICATION:

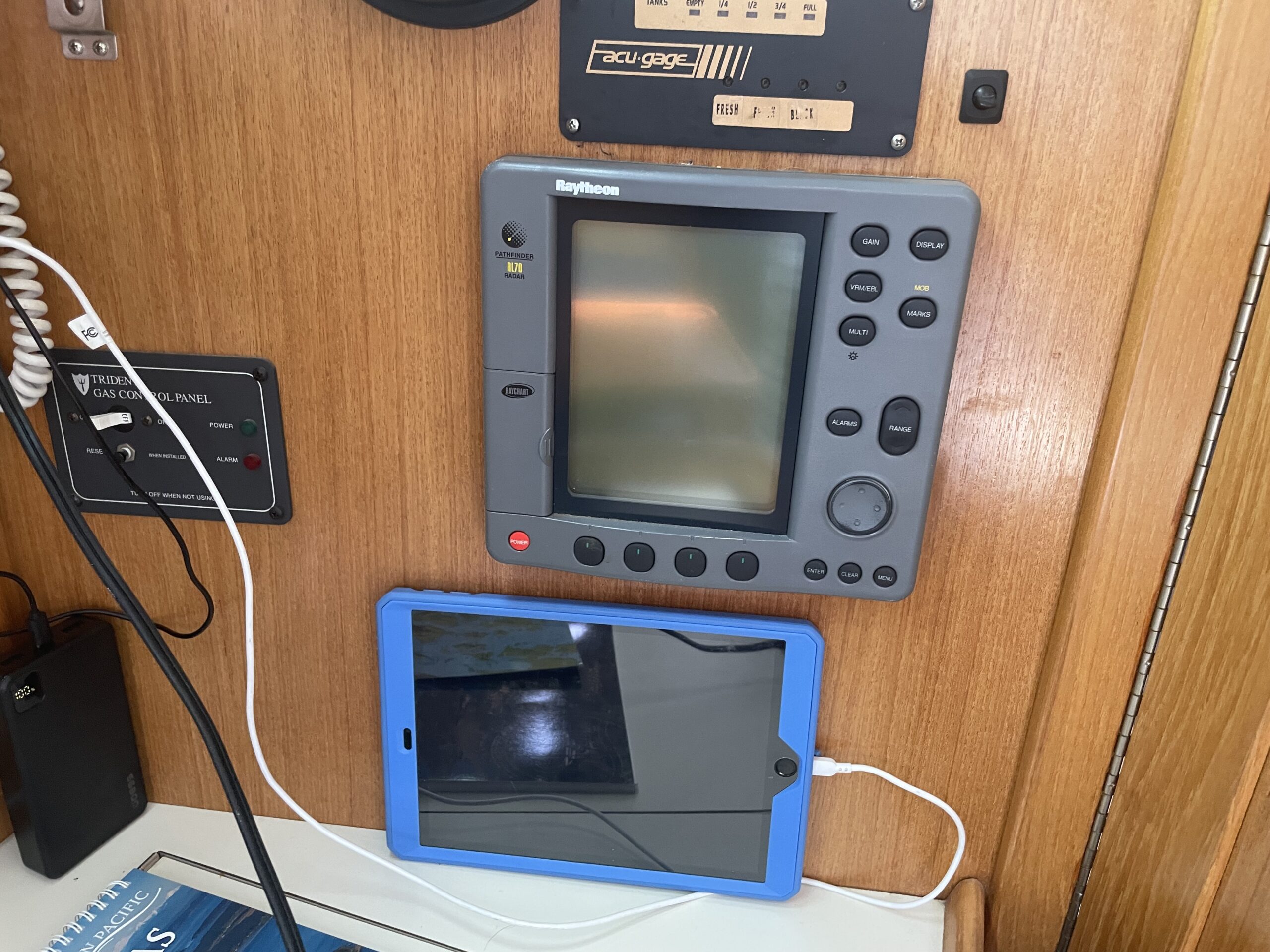

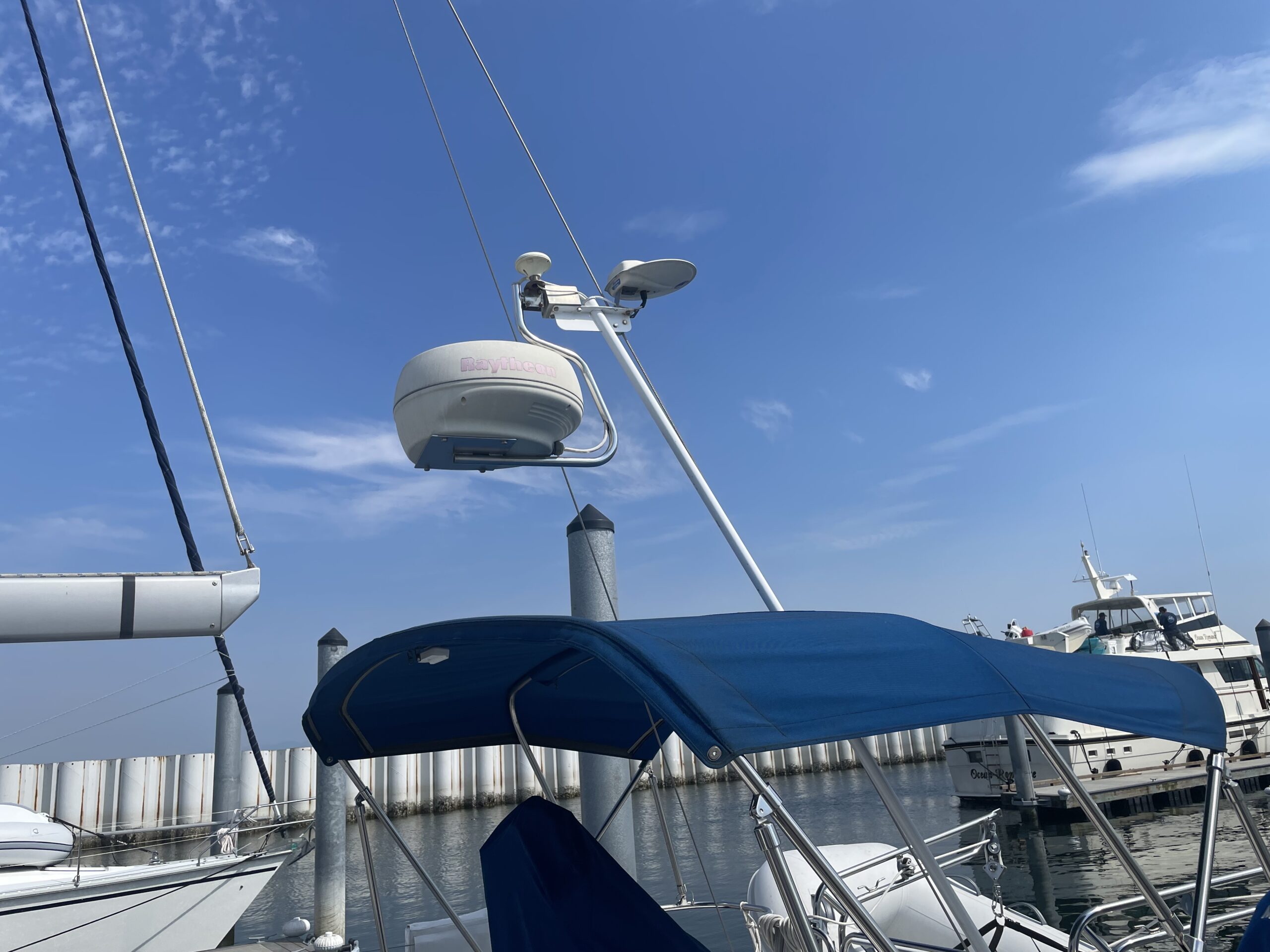

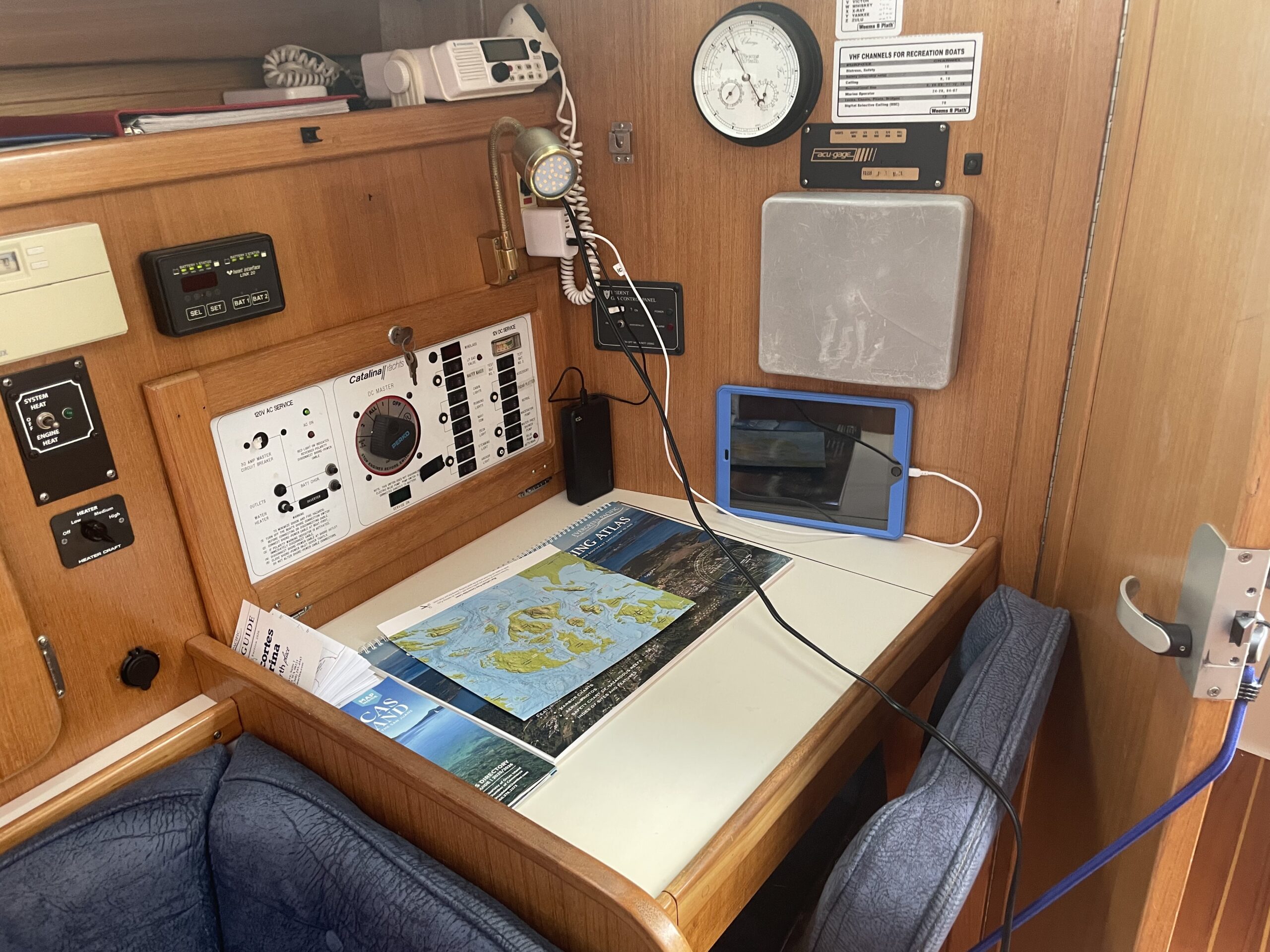

• Nav Station – Radar/ Plotter – Raytheon Pathfinder RL70 RC
• VHF – Standard Horizon
• Cockpit Helm – iPad Mapping
• Auto Pilot – Raytheon Autohelm ST5000 Plus (Code Lock “0000”)
• Speed – Raymarine ST50
• Depth – Raymarine ST50
• Wind – Raymarine ST60
• VHF – Standard Horizon RAM Mic

MAST / RIGGING / WINCHES / SAILS:

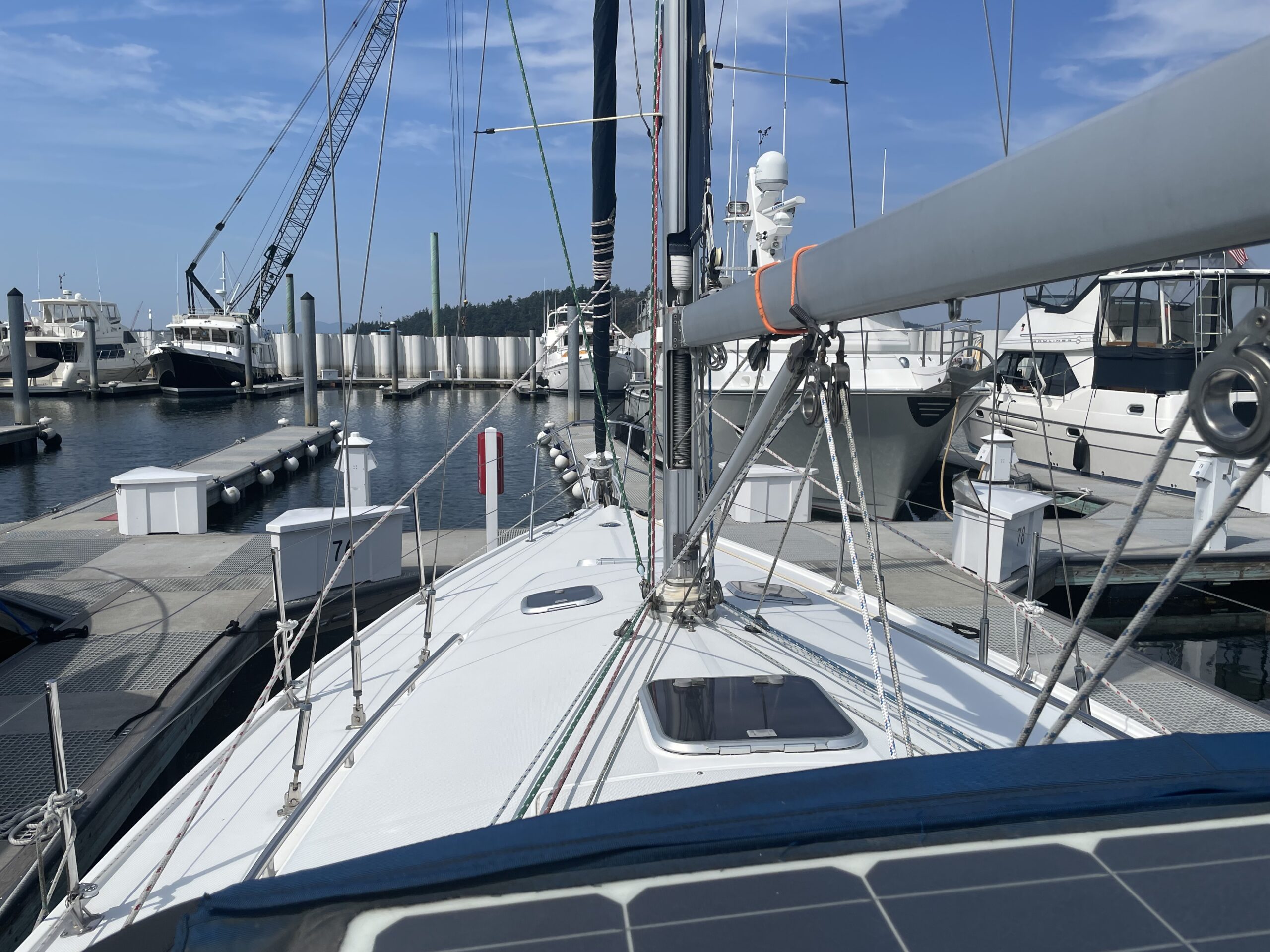

• Mast – Keel Stepped
• Boon-Vang
• Rigging – Updated 2018
• Winches – (2) Lewmar 48ST
• (2) Lewmar 30ST
• Roller Furling – Schaefer System 2100
• In-Mast Furler – Serviced – May 2025
• Sails – Main Sail
• Foresail – 135% Jib

SAFETY:

• Navigation Lights
• Spreader Lights
• Anchor Light
• Rub Rails – Aluminum/Rubber at the Sheer
• Bow & Stern Railings – Stainless Steel
• Lifelines – Double Lifelines Run thru Stainless Steel Stanchions Around the Deck
• Ships Bell
• Emergency Tiller
• Folding Boarding/Swim Ladder

GROUND TACKLE:

• Windlass – Maxwell RC88 12Volt – NEW Sept 2025
•                   Windlass Breaker Under Dinette Table
•                   Use Windlass Only While Engine is Running
• Anchor – CQR 35lb.
• Anchor Washer – Bellevillw -Installed Cone Narrow Side Down
• Chain – 70’of 5/16” HT
• Nylon Rode – 300’ Nylon Line

MISCELLANEOUS:

• Bottom Paint – NEW 2024
• Zincs – NEW March  2026

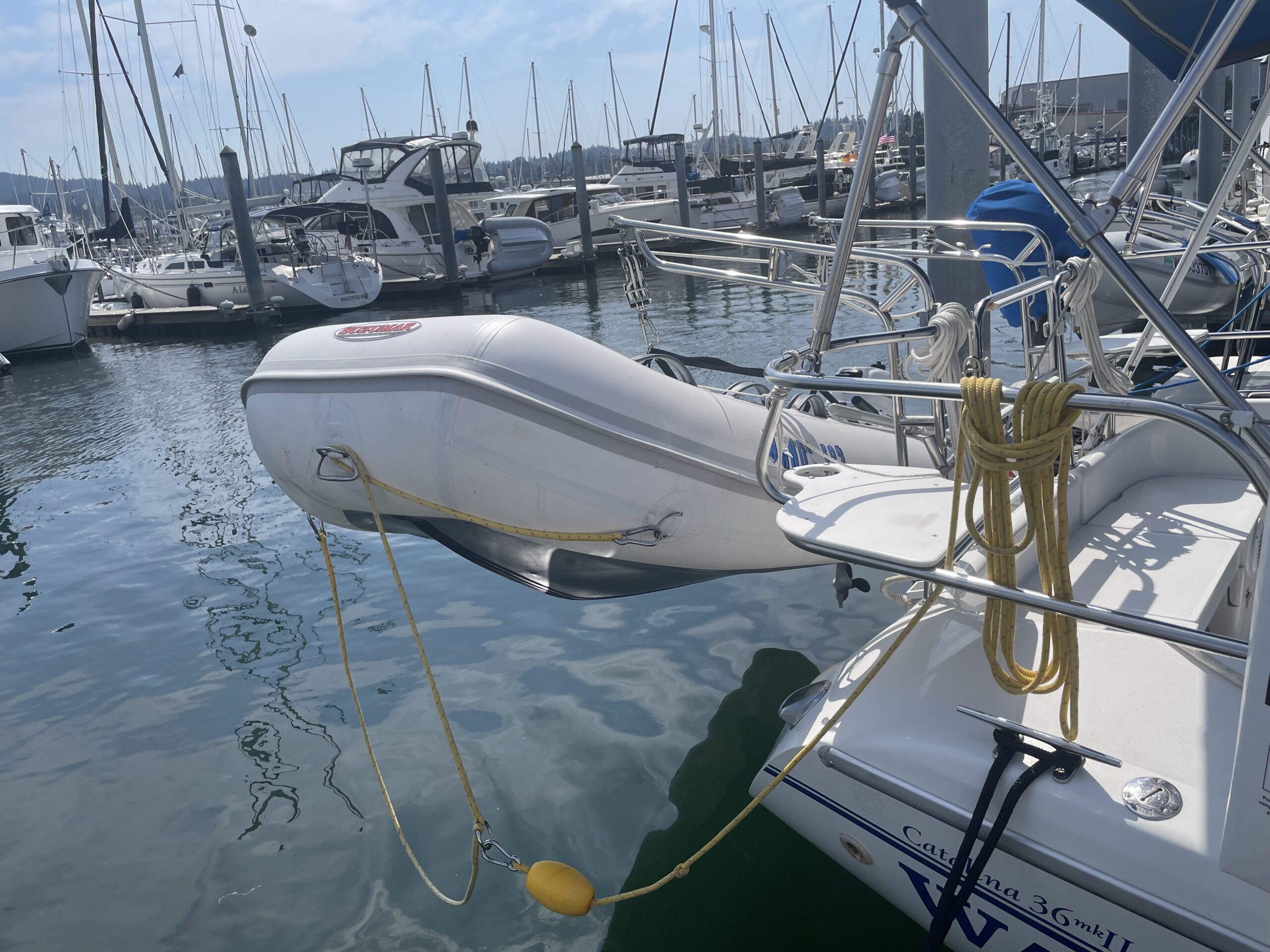

• Tender – 10′ 6″ Suzumar RIB Inflatable

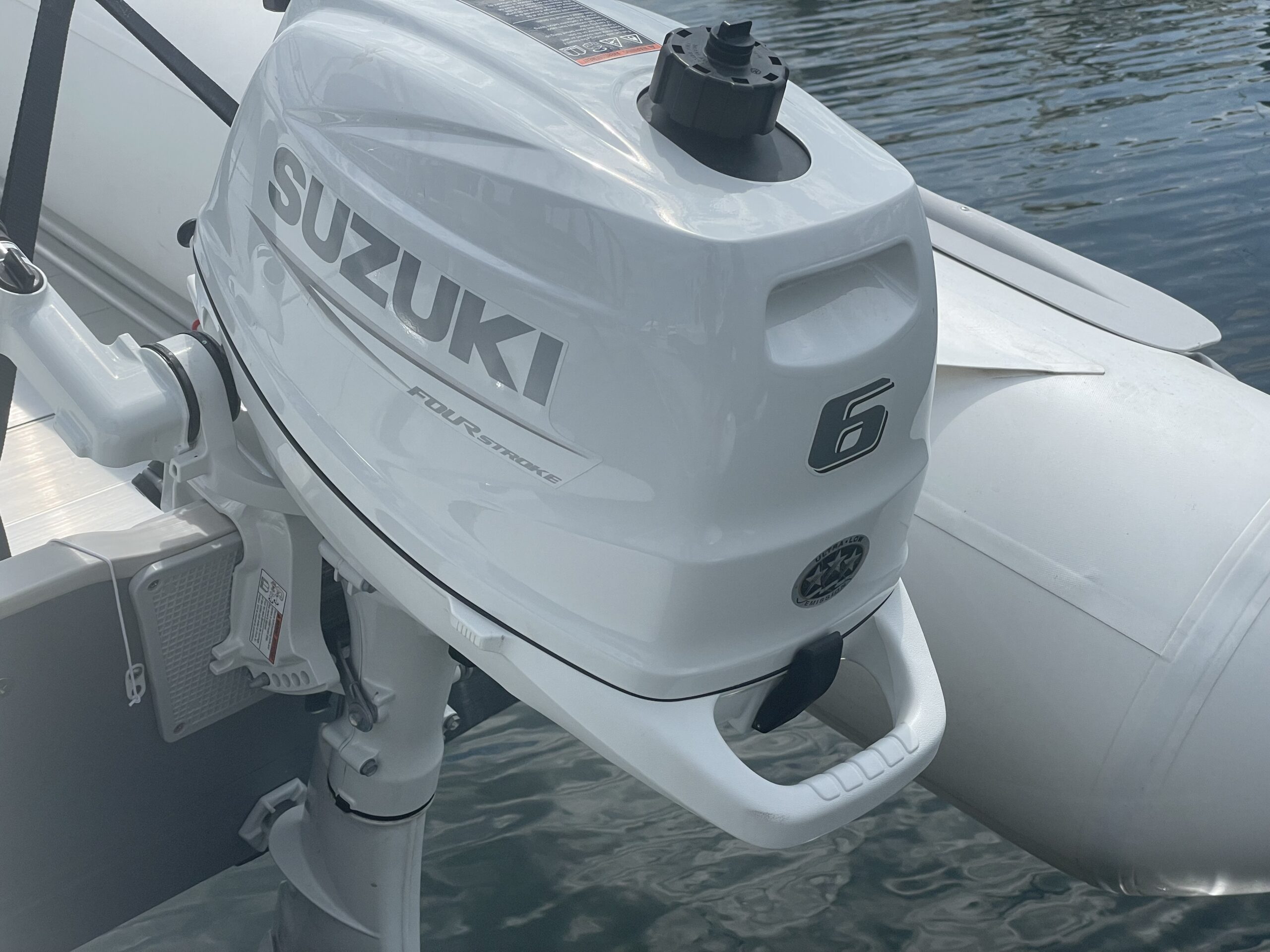

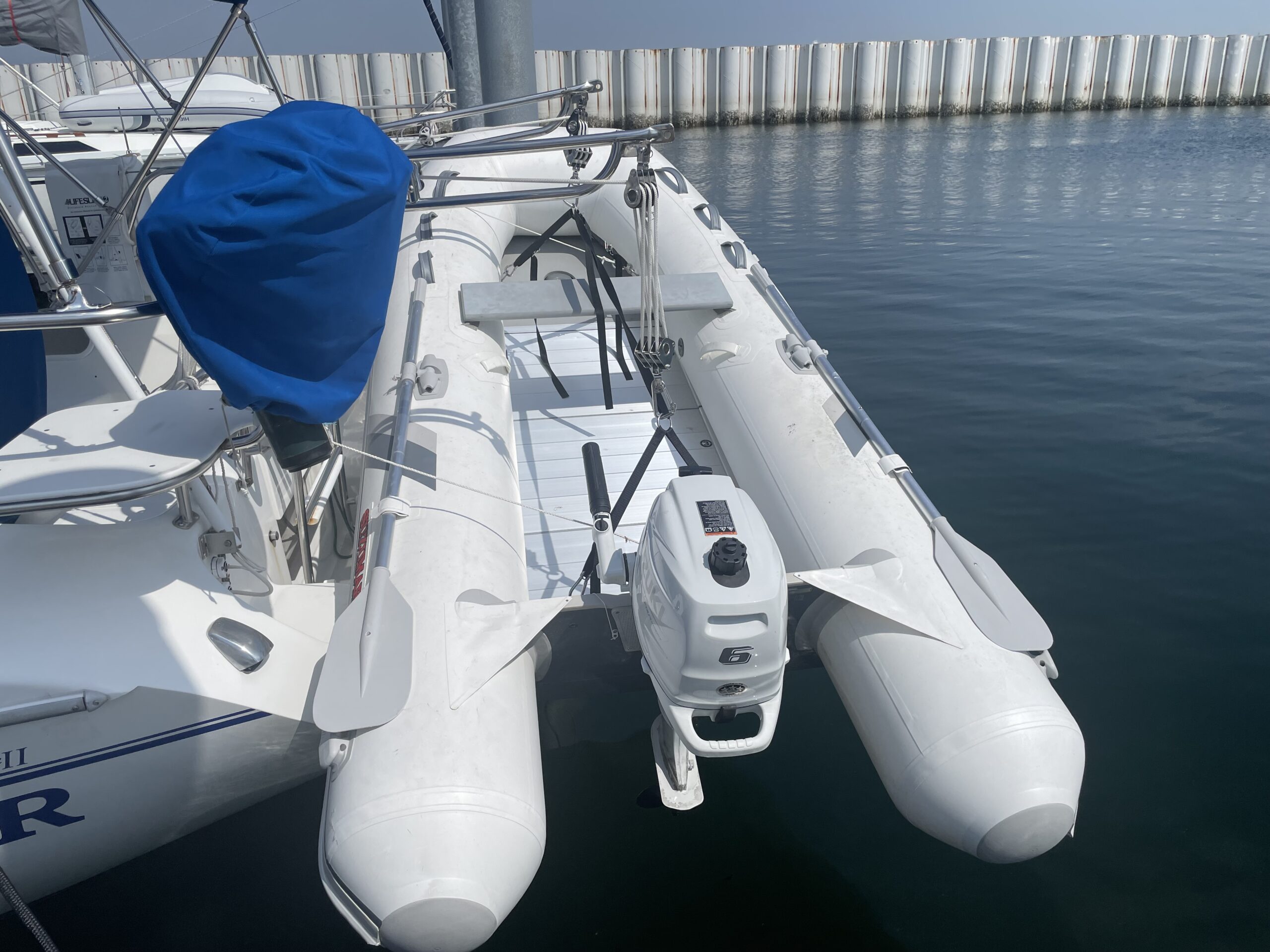

• Tender Outboard – 6hp Suzuki 4-Stroke

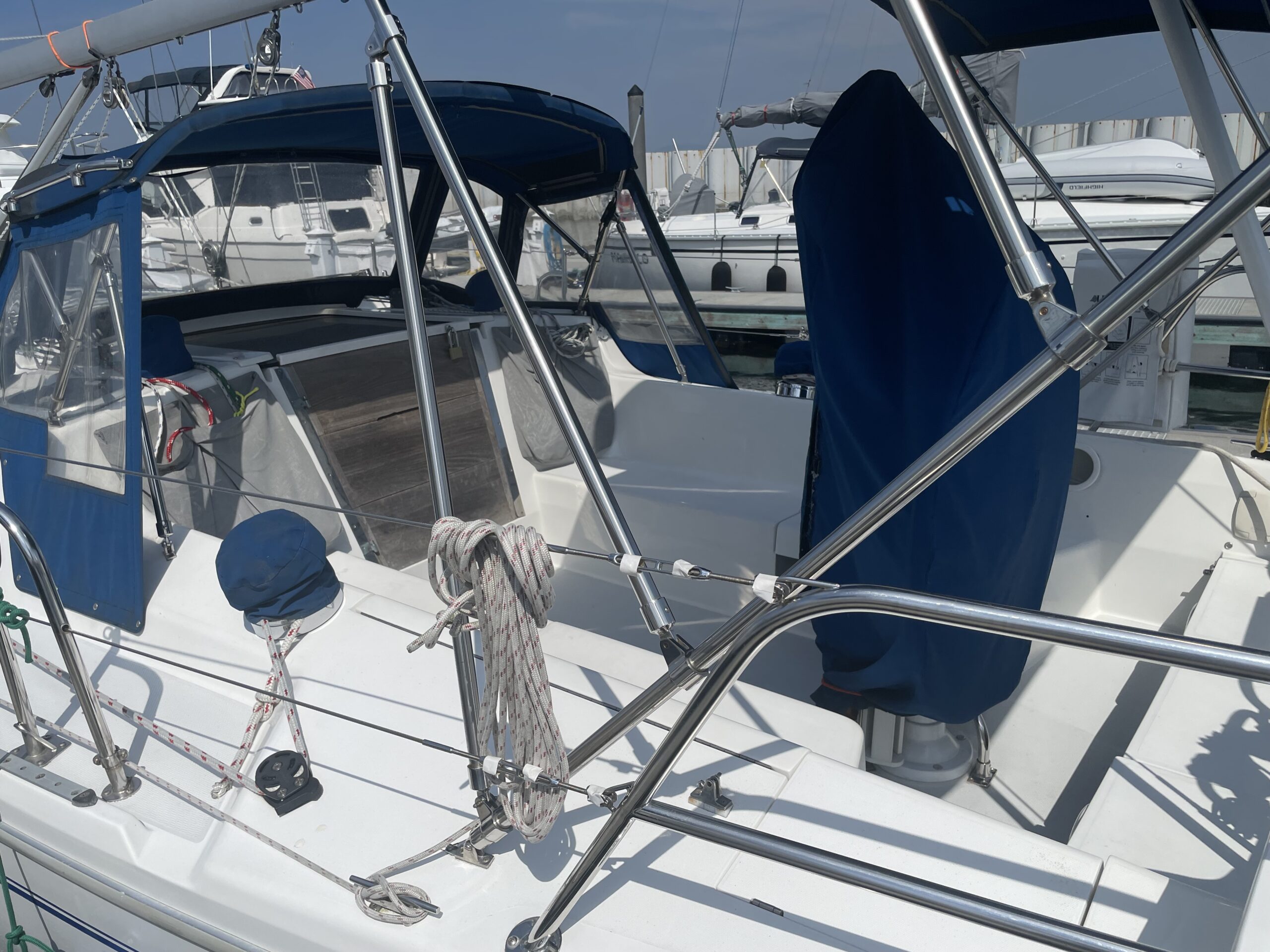

• Canvas – Cockpit Dodger
• Helm Bimini
• Main Sail Cover
• Foresail UV Cover
• Aft Cockpit Pulpit Seats
• Cockpit Shower – Hanheld Hot & Cold Water Wand
• Maintenance Log
• Staging & Personal Items Removed at Time of Sale
