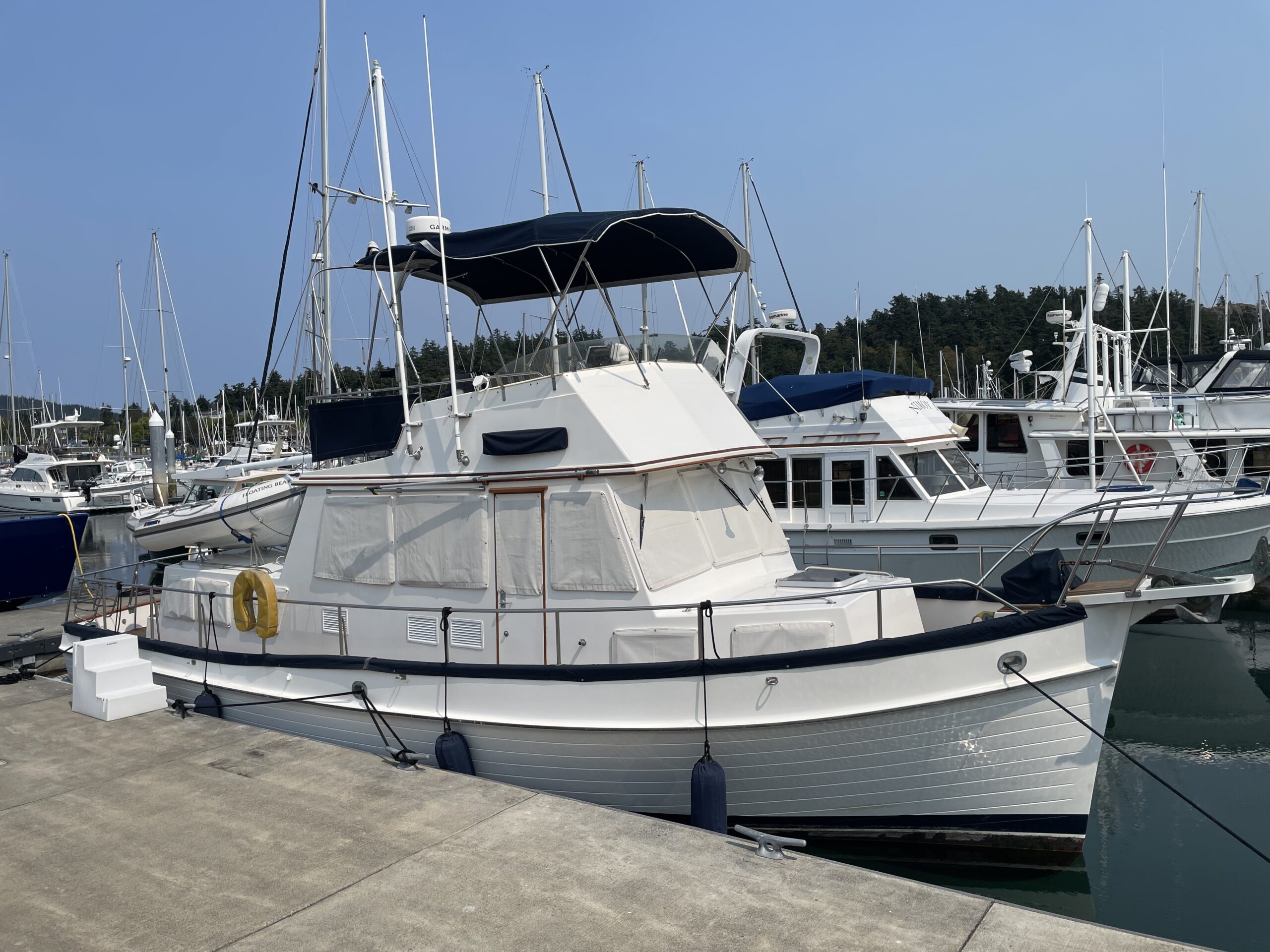

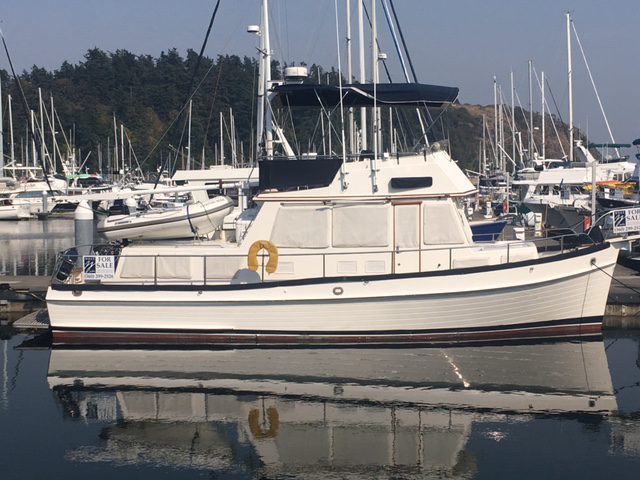

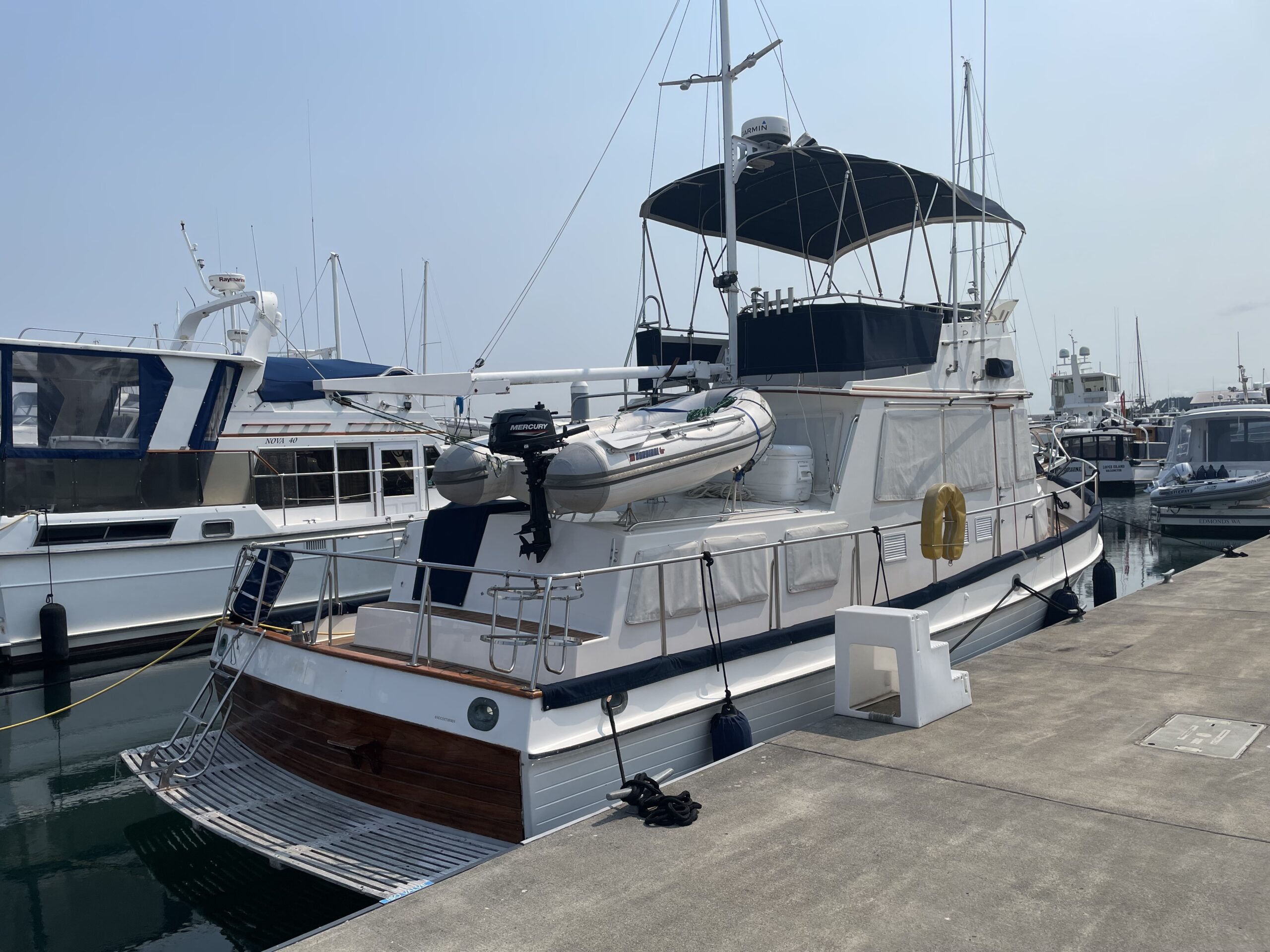

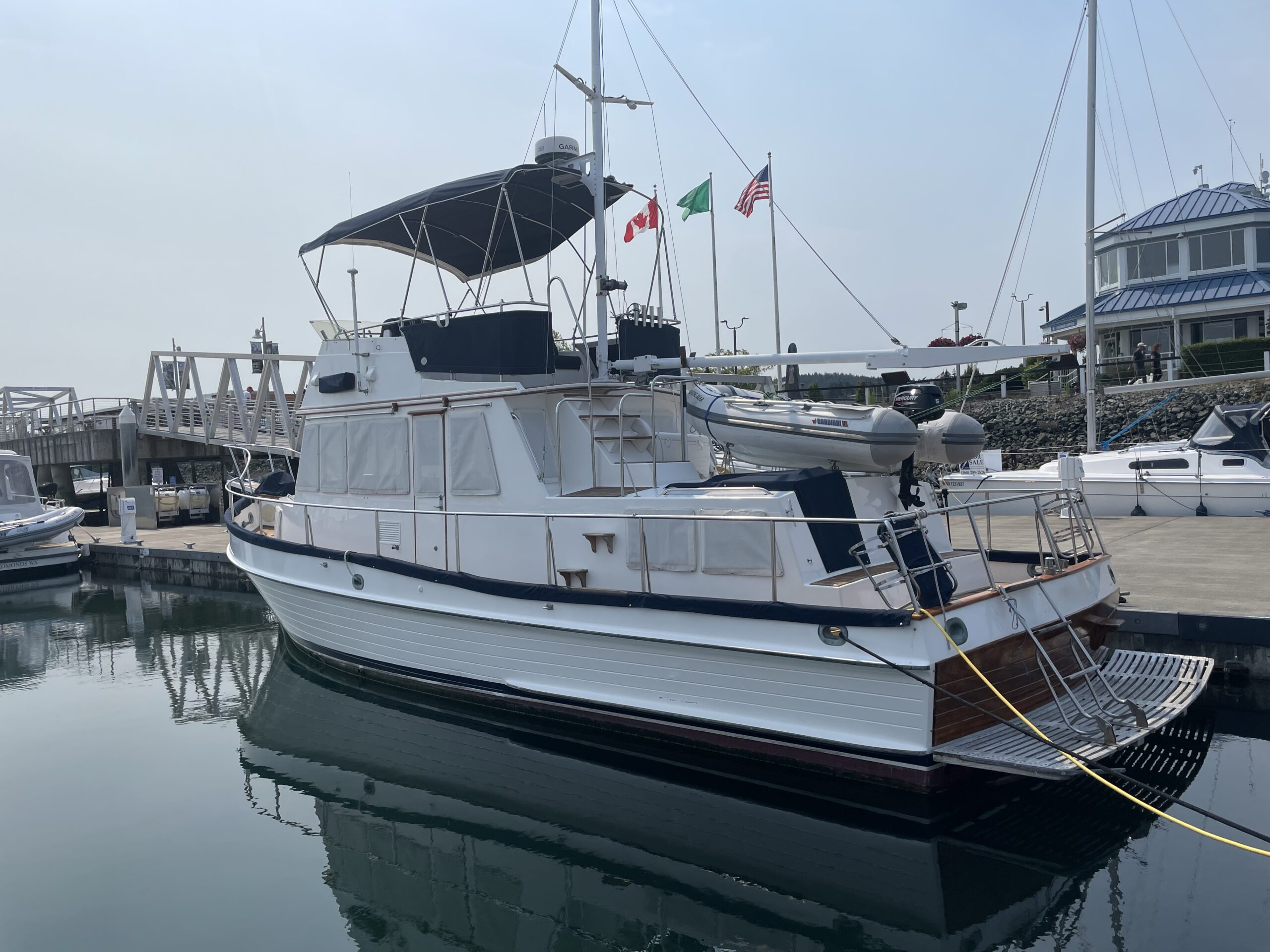

1989 36′ Gand Banks 36 Classic Flybridge Trawler 1989
Anacortes, WA.
US $139,000
Description

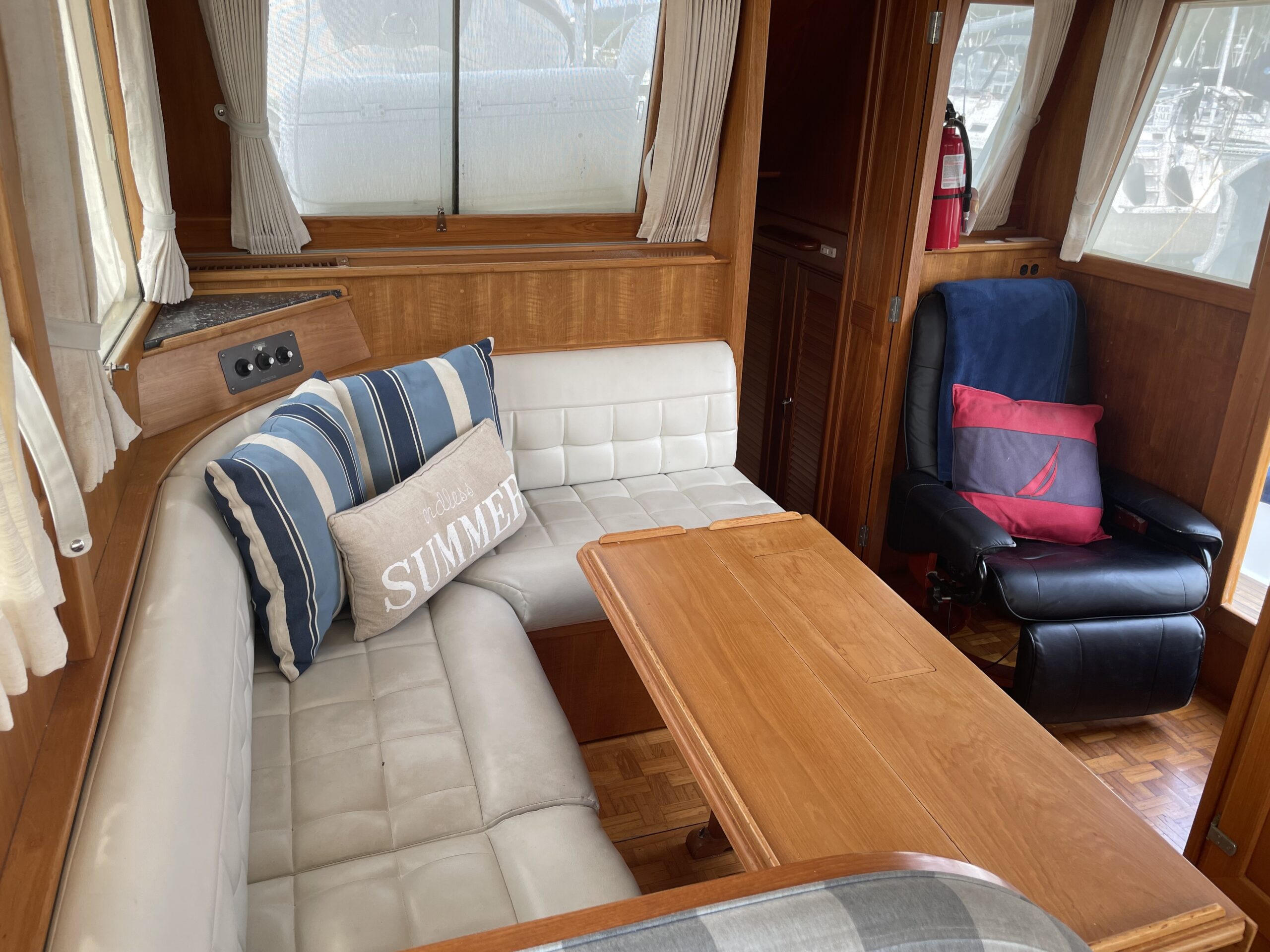

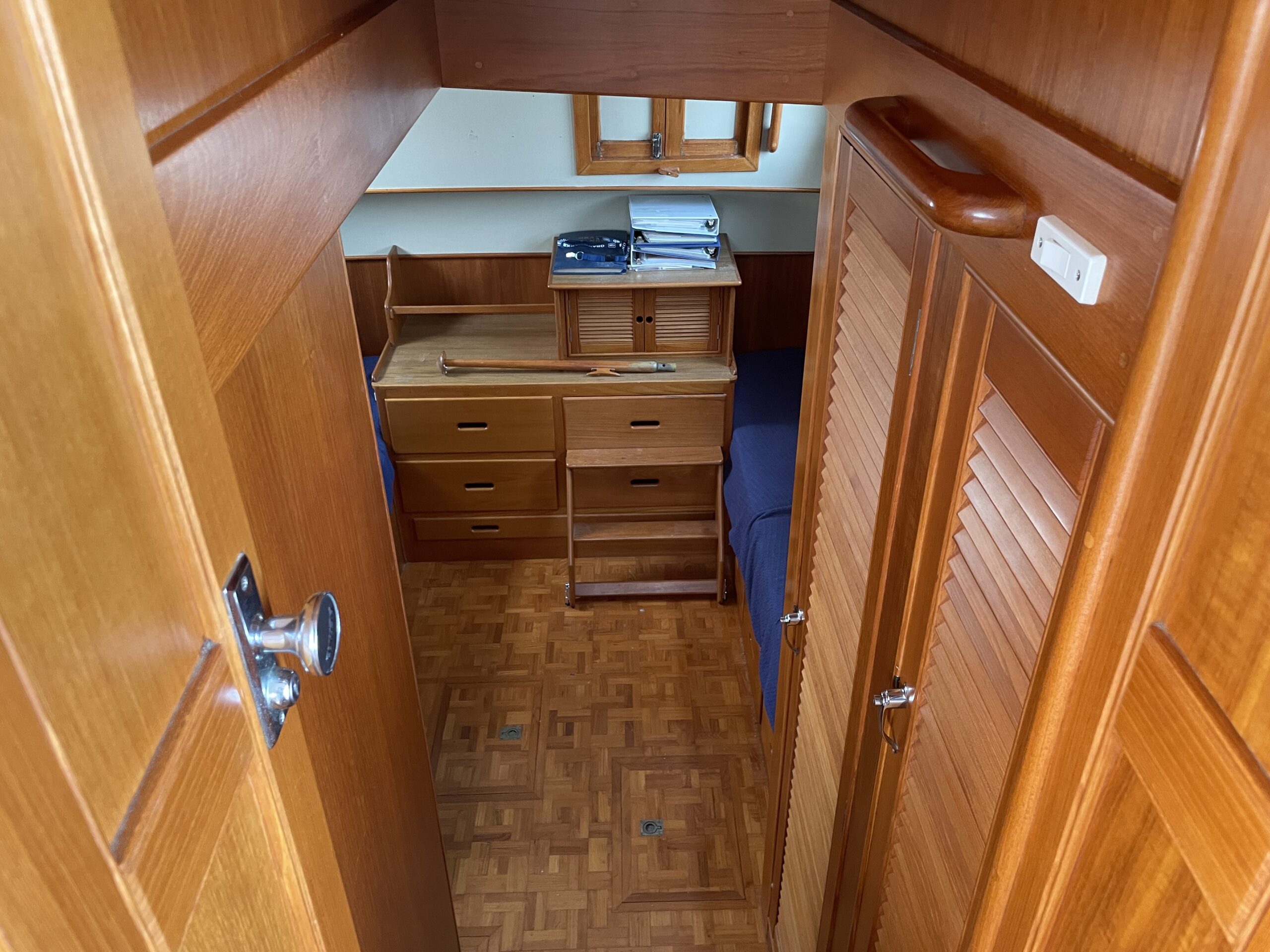

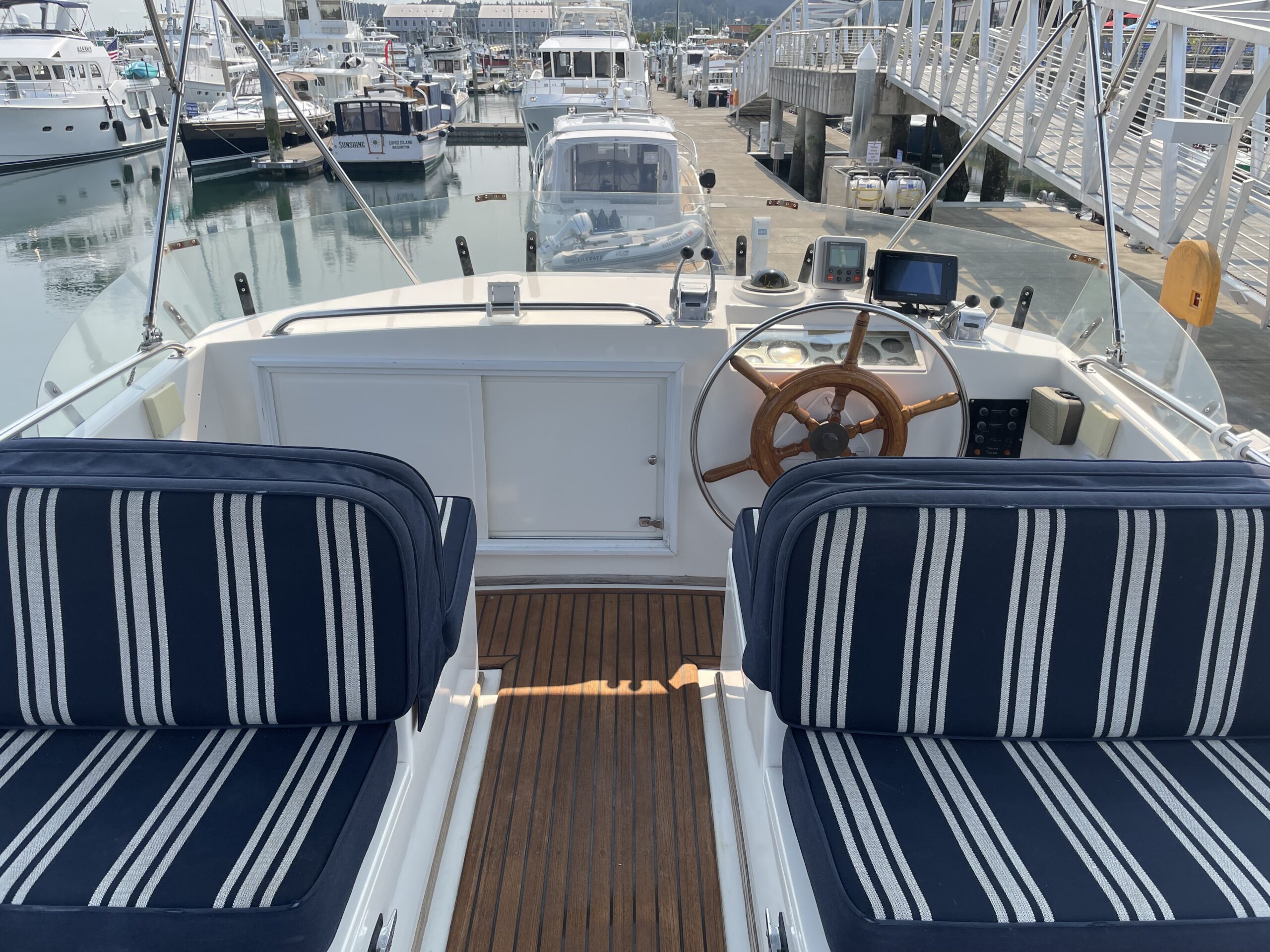

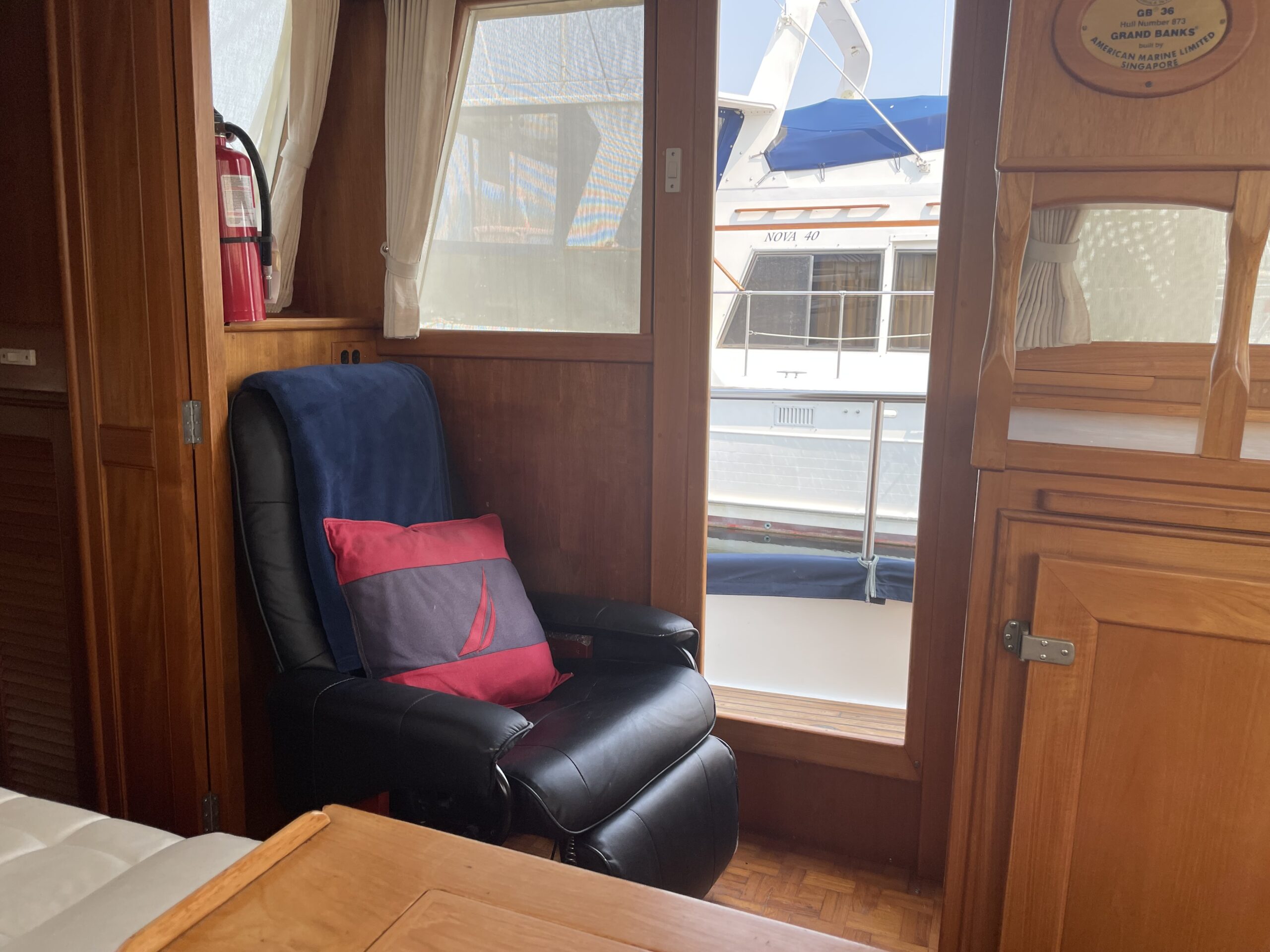

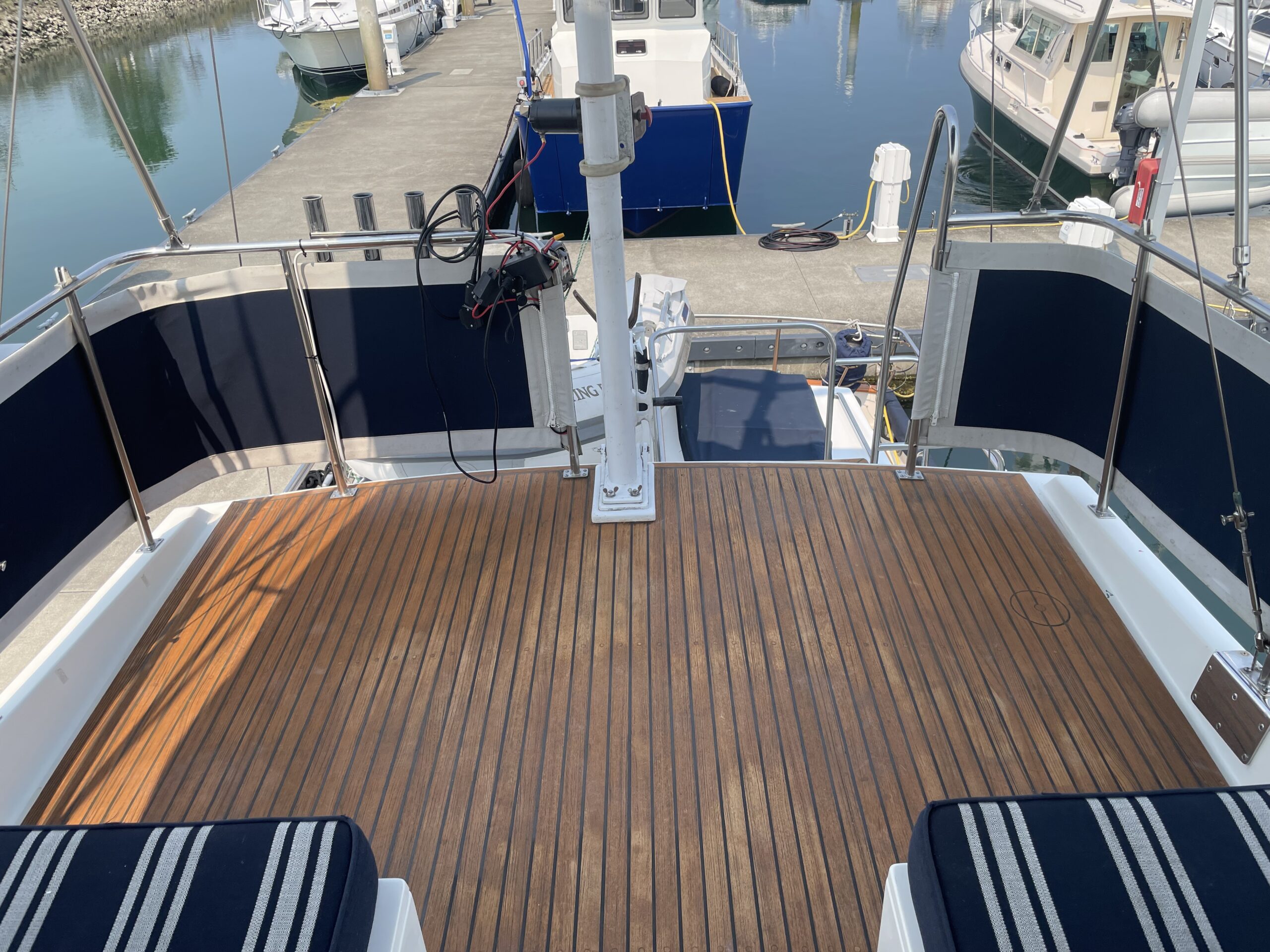

There are boats that have been with us for so long, and so popular, that they have attained Classic Status. The Grand Banks is such a boat. Over 1200 have been built during her production years. A semi-displacement hull with a long keel, hard chines and a deep forefoot provide the stability that won the 36 a reputation for seaworthiness seldom matched by other boats in her class. Two staterooms, a salon and galley all finished with handcrafted teak woodwork and all incorporating the very best workmanship, hardware and materials. Topside, a raised bulwarks provide security to the walkaround decks, and there’s room for a dinghy on the aft cabin top. Other notable features include teak decks, functional mast & boom and a spacious flybridge. In 1987, the 36 Classic was slightly enlarged – six inches was added to the length and 4 inches to the beam.
Full Specifications
- LOA – 40’
- LOD – 36’ 10”
- LWL – 35’ 2”
- Beam – 12’ 8”
- Draft – 4’
- Weight (Dry) – 26,000lbs.
- Vintage – 1989
- Mast Clearance -22’ 4”
- Hull Type – Semi-Displacement
- Hull Construction – Solid Fiberglass
- Manufacturer – American Marine, LTD. In Singapore
TANKAGE:
- FUEL – 404 Gallons in (2) 3mm Mild Steel Tanks Located Amidship in Engine Room
- Fuel Gauges – Line of Sight in Engine Room
- WATER – 154 Gallons in (2) Stainless Steel Tanks Located in the Aft Lazzerete
- HOT WATER – 10.5 Gallons – Attwood 120Volt AC – Dip Stick Tank Gauge
- WASTE – 40 Gallons in (1) Fiberglass Tank Located Amidship
- 2Volt DC Tank Full LED Gauge – Jabsco 12Volt DC Macerator – NEW OCT 2025
- PROPANE –
INTERIOR:

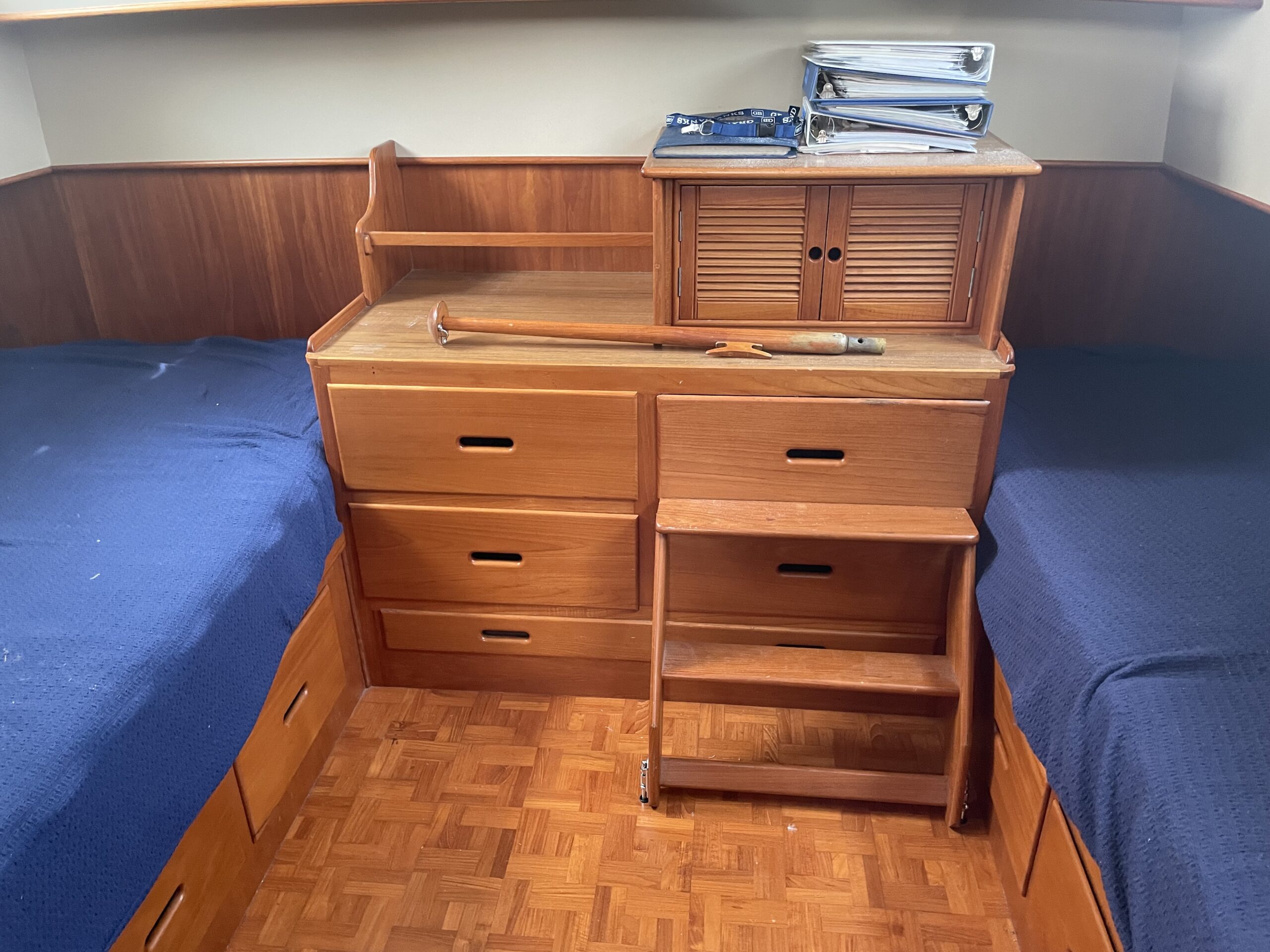

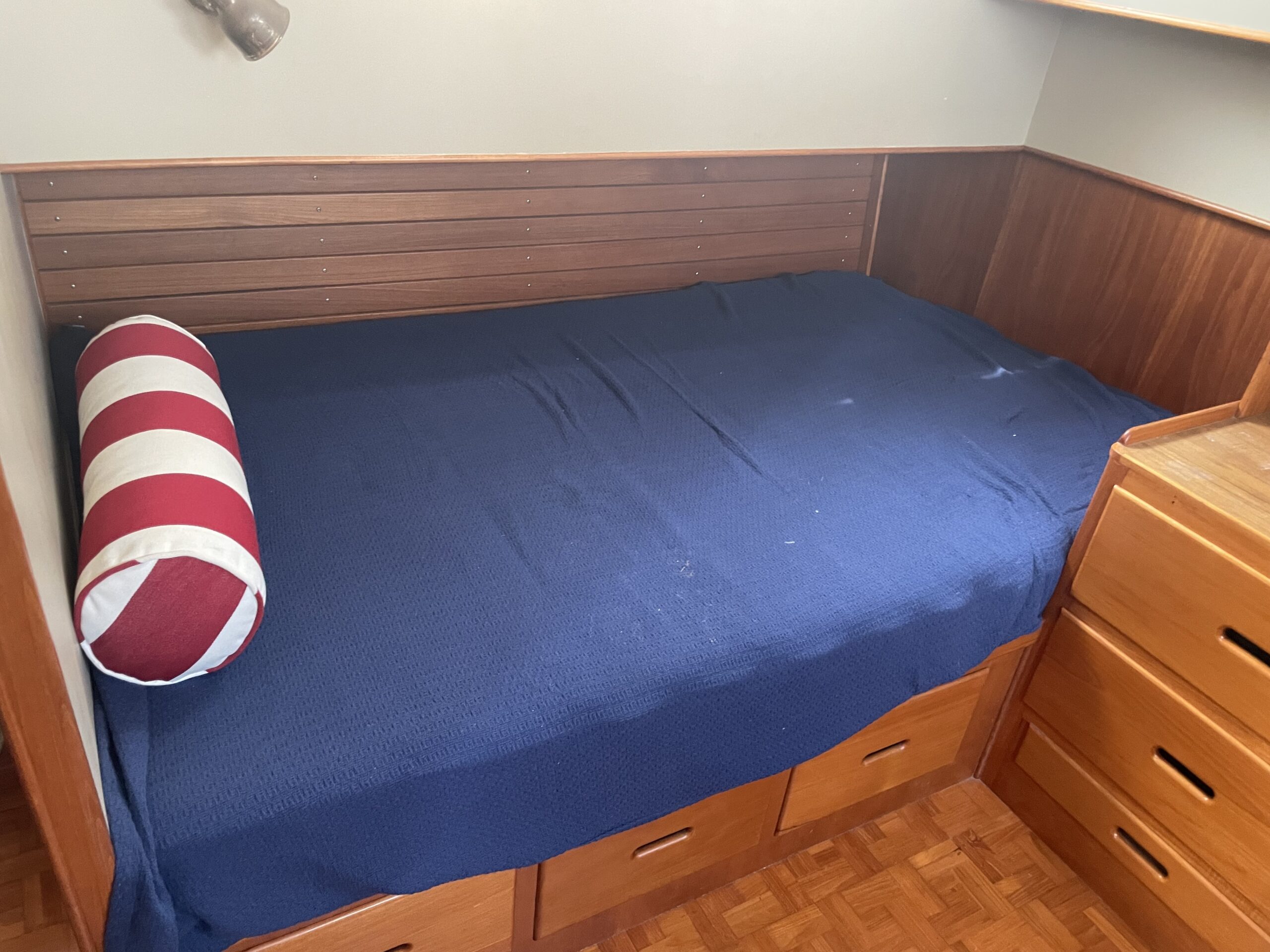

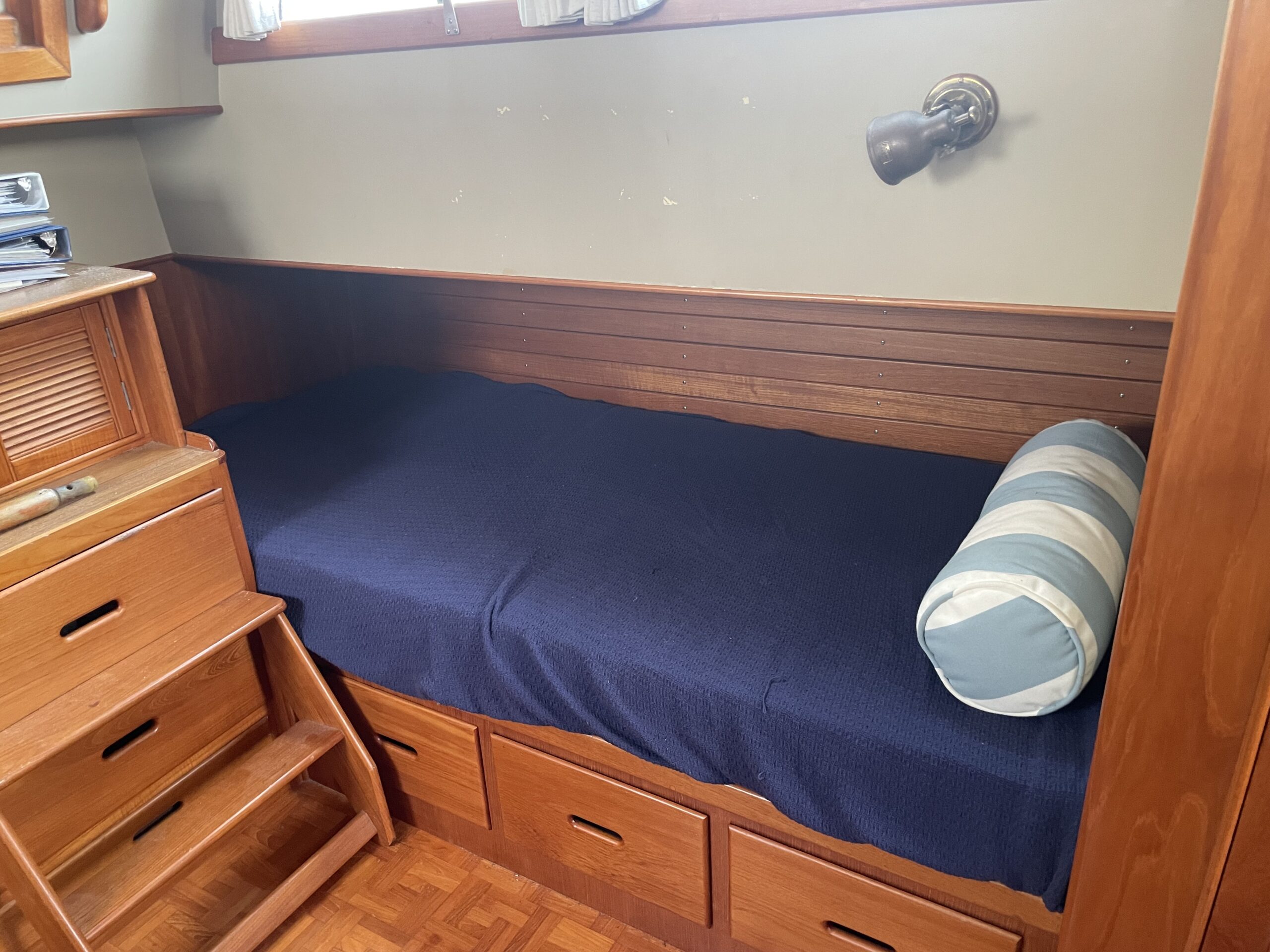

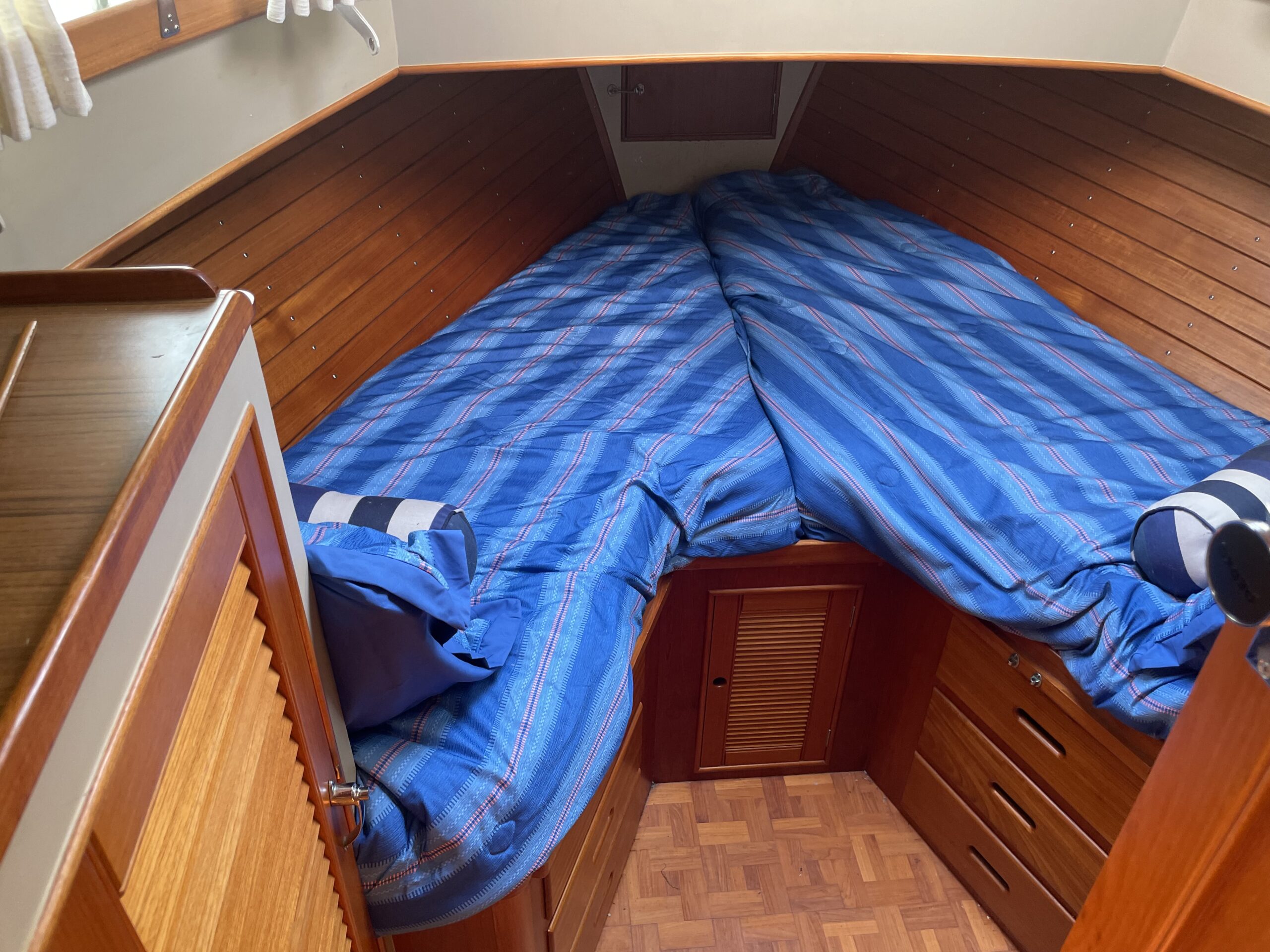

- Sleeps 6

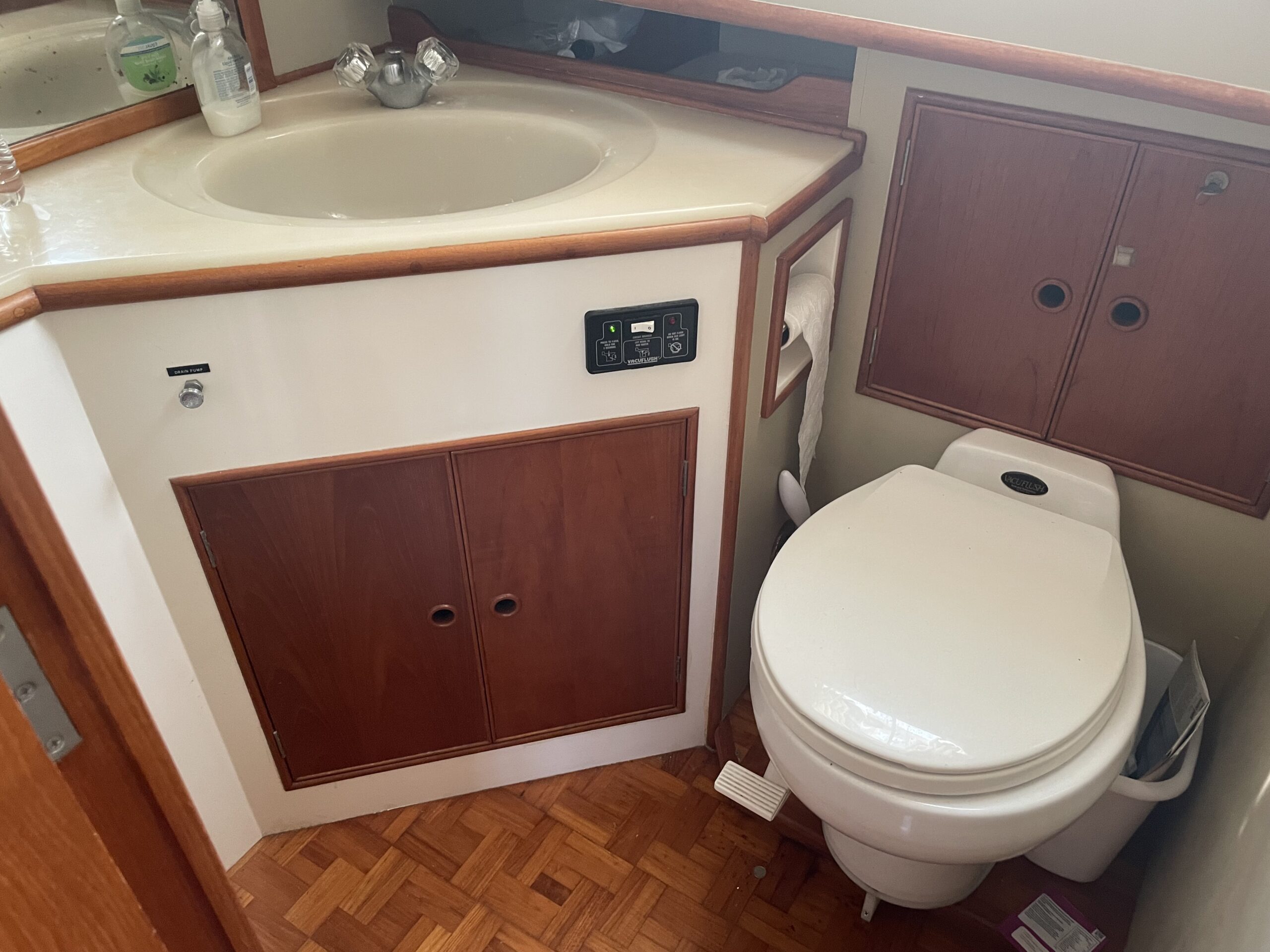

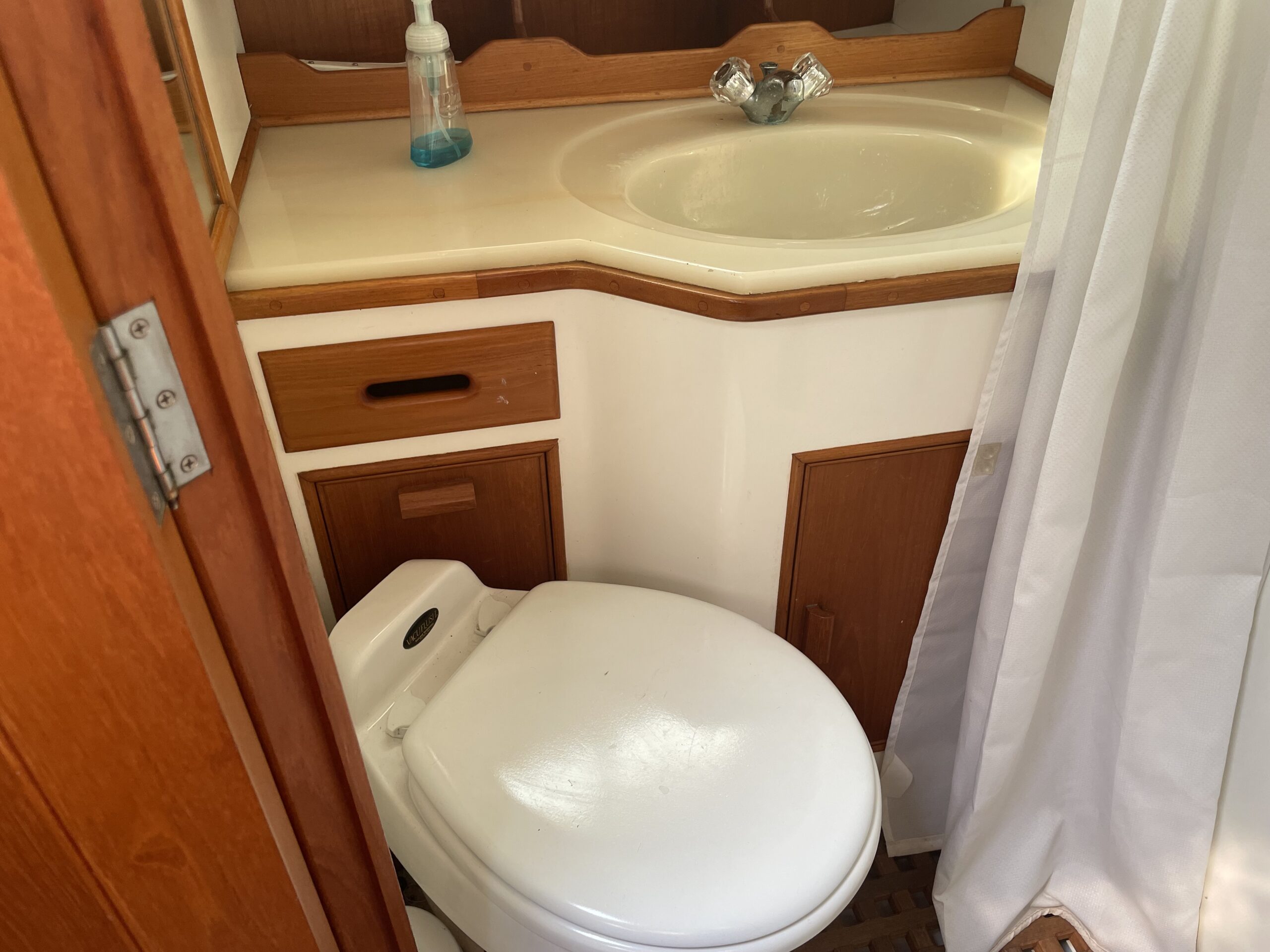

- Private Enclosed Heads – (2) Vacuflush Freshwater Toilets 12Volt DC

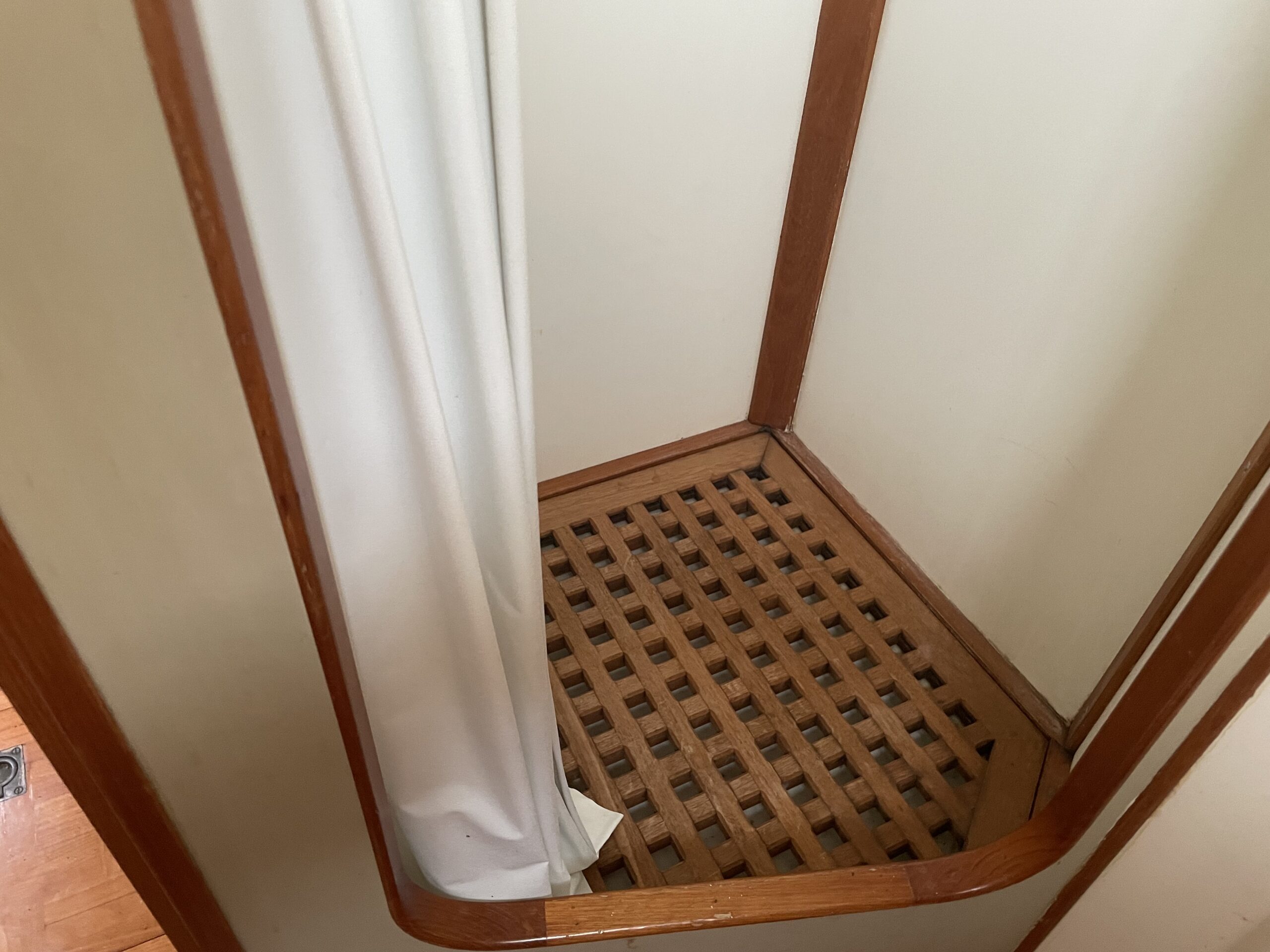

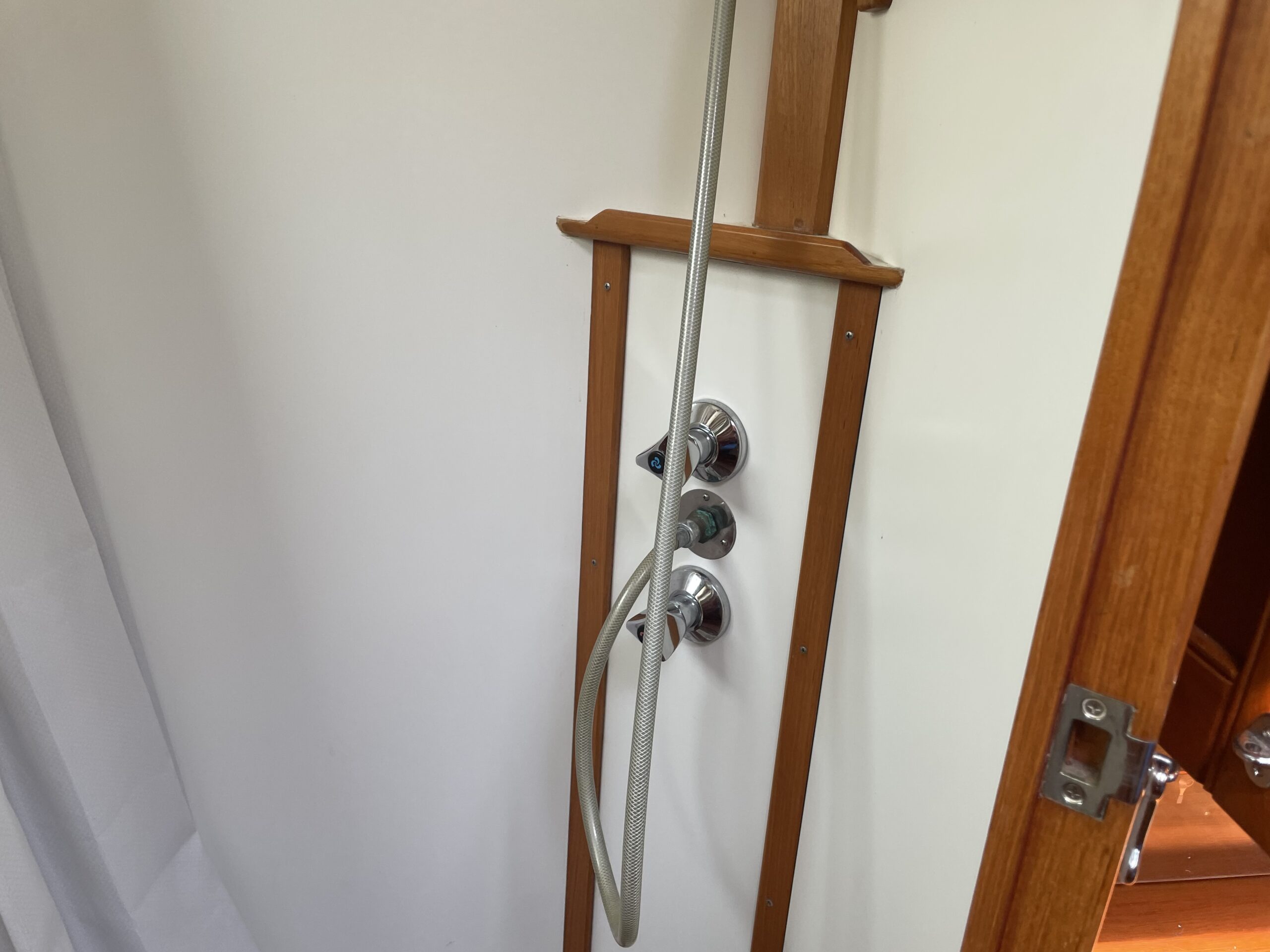

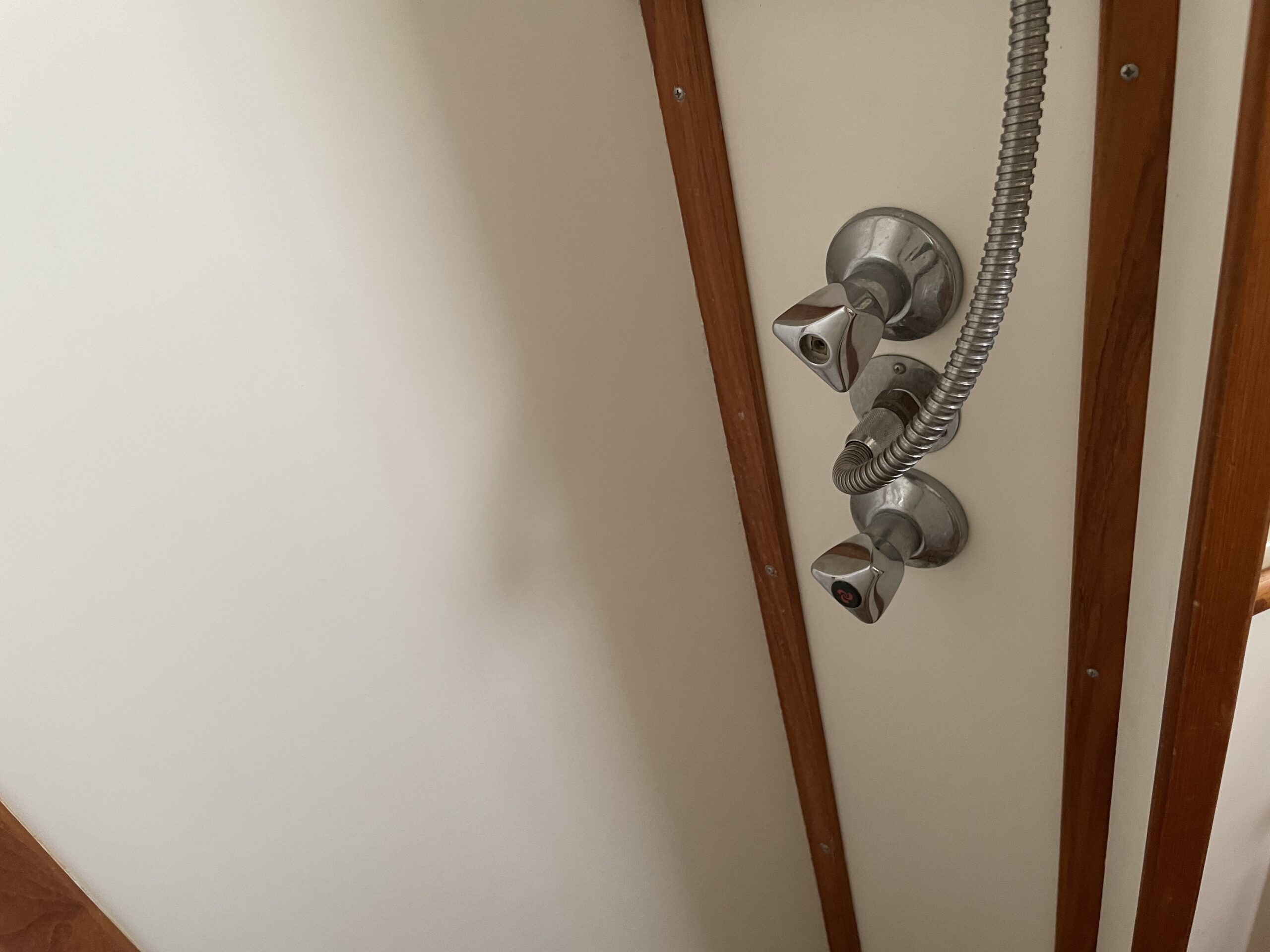

- (2) Showers – (1) Dry & (1) Wet – (2) Rule 500gph Sump Pumps
- Hot & Cold Pressure Water System – Shurflo Freshwater Pump 12Volt DC
- Refrigerator / Freezer – Sea Freeze 12Volt DC Make N/A Sweater Pump

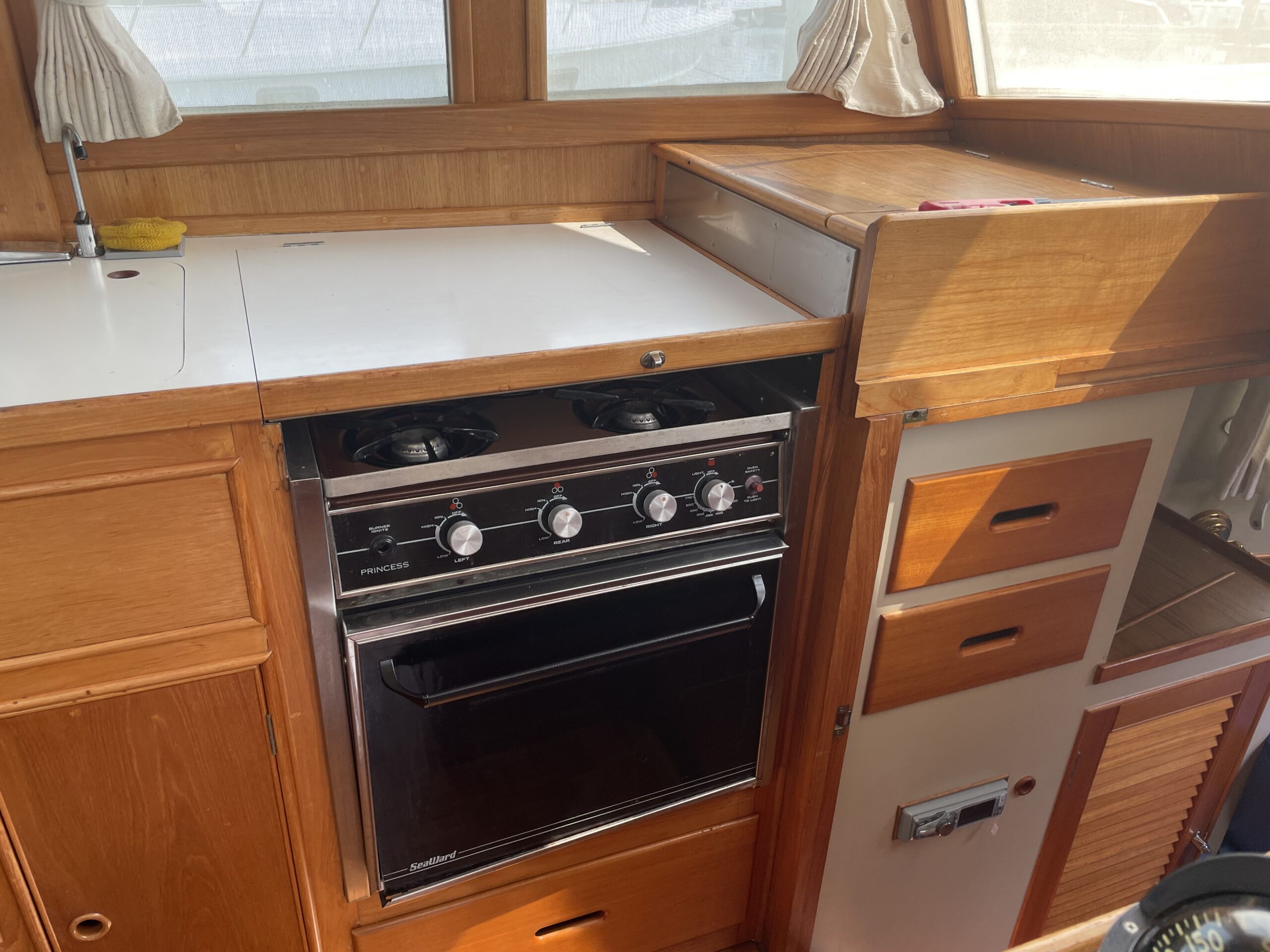

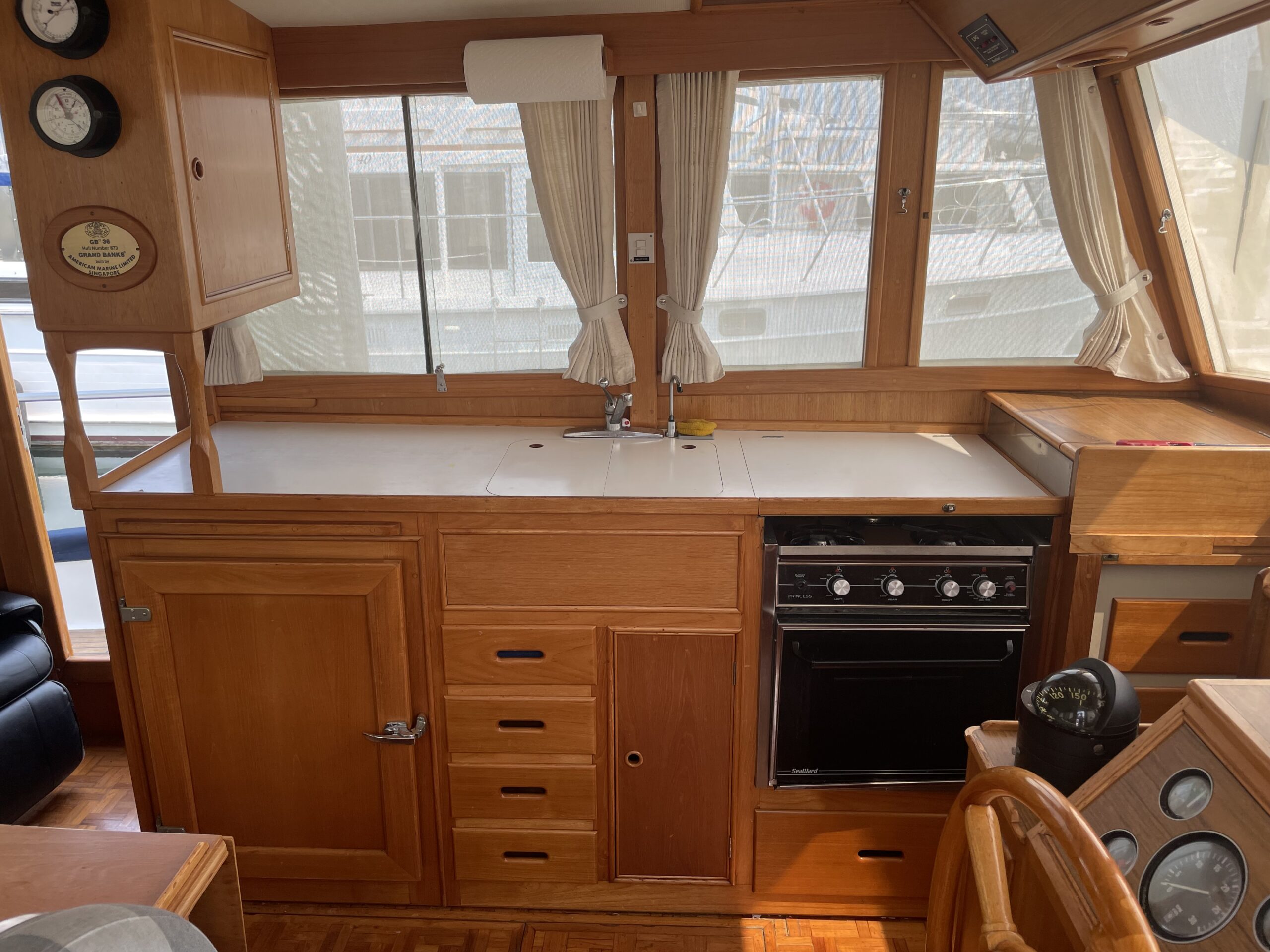

- Stove / Oven – Princess 3-Burner Propane
- Heating Ventilation Air Conditioning – Marine Air (3) Zone 12,000 BTU HVAC System
- Stereo – West Marine Dual MDX 1368BT with Clear Sound Speakers
MECHANICAL / ELECTRICAL:
- Twin Ford Lemans Super 135hp at 2600rpm, Freshwater-Cooled, Direct-Drive, Inboard Diesel Engines
- Hours – Port – 4120
- Starboard – 3938
- Engine Control System – (2) Morse Marine Twin Lever Throttle-Shift Push-Pull Cable
- Engine Exhaust – Wet
- Engine Cruising Numbers – Both Engines 1200 to 1300rpms – 7Kots @ 2.3GPH
- One Engine 1600rpms – 7Knots@ 1.7GPH
- Engine Fuel Filters – Primary – Racor 500FG (Mains)
- Secondary – On each Diesel Engine
- Engine Oil Change Pump – (2) Manual Hand Pumps
- Transmissions – Borg Warner Velvet Drive CR2
- Down Angle Reduction Gear
- Ratio – 2.50:1
- Propeller Shaft – Stainless Steel 1.50” Shaft Supported by (1) I-Strut & (1) V-Strut
- Propeller Shaft Seal – Tides Marine Lip-Type Seal
- Propellers – 23” X 22” 4-Blade Bronze – Counter-Rotating
- Rudders – Inboard-Mounted Fiberglass Spade-Type
- Rudder Shaft Seal – Teflon Above Waterline Seal
- Steering System – (2) American Marine LTD Cable Over Pulleys with Tiller Quadrant
- Bilge Thru-Hulls – (9) Bronze Seacock Type – (2) Capped – Not Being Used
- Bilge Pump Zone – (1) Rule 12Volt DC 2000GPH Pump with Automatic Float Switch
- Bilge Blower – (2) 12Volt DC
ELECTRICAL:
- AC System Voltage – 120Volts AC
- AC Circuit Protection – Circuit Breakers
- DC System Voltage – 12Volt DC
- DC Circuit Protection – Circuit Breakers & Fuses

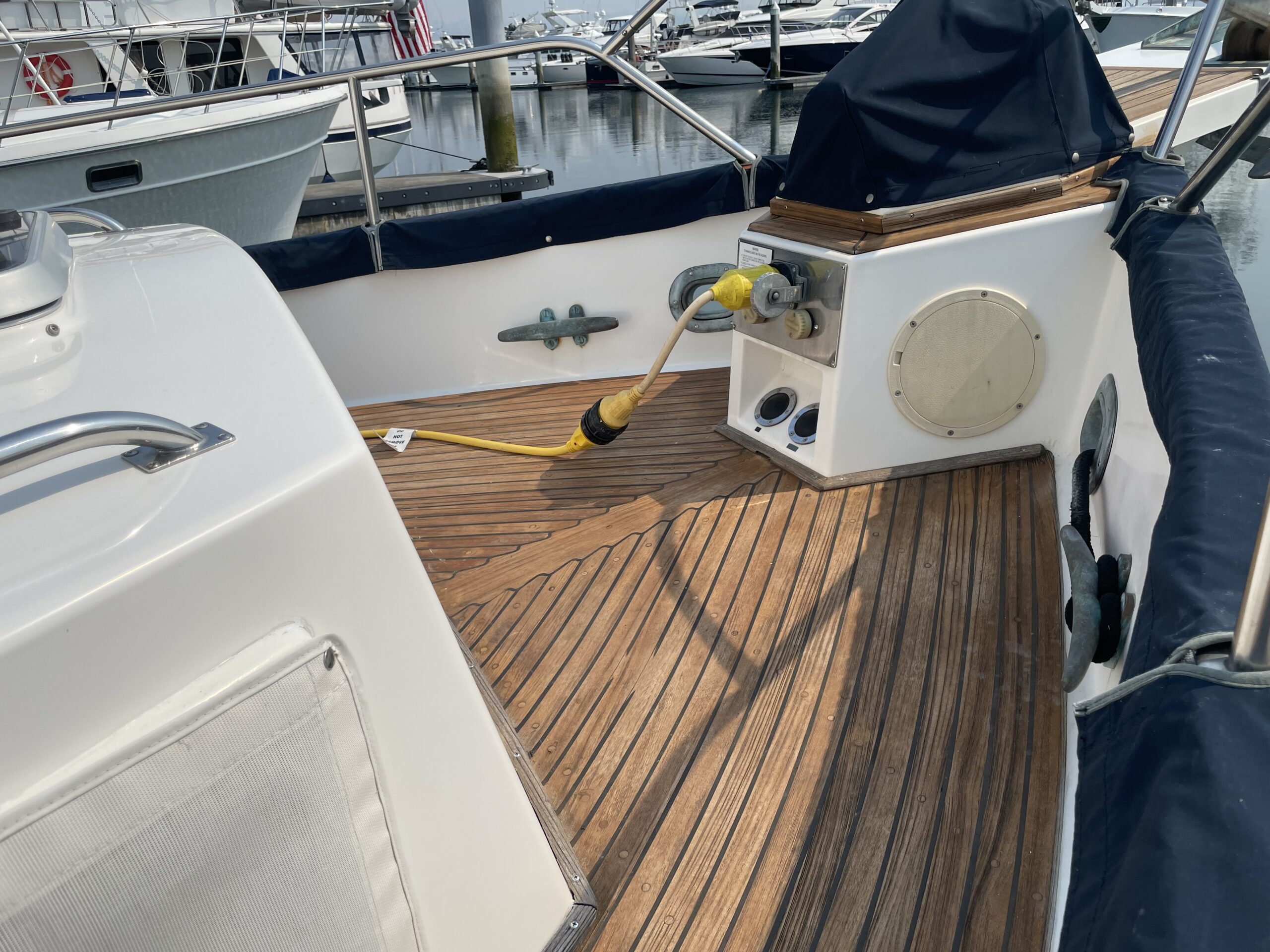

- Shore Power Inlet – (2) 125Volt 50Amp
- Batteries – Start & House – (2) West Marine Group 8D AGM – NEW Sept 2023
- Genset Start – (1) West Marine Group 4D AGM
- Battery Charger – Newmar PT-40U 40Amp Charger – 12Volt DC / 120Volt AC
- Generator – Northern Lights M643 – 5KW, Freshwater-Cooled, Wet Exhaust, Diesel
- Generator Fuel Filters – Primary – Racor 2000
- Secondary – On Genset Diesel Engine
- Hours – ???
- Generator Exhaust – Wet

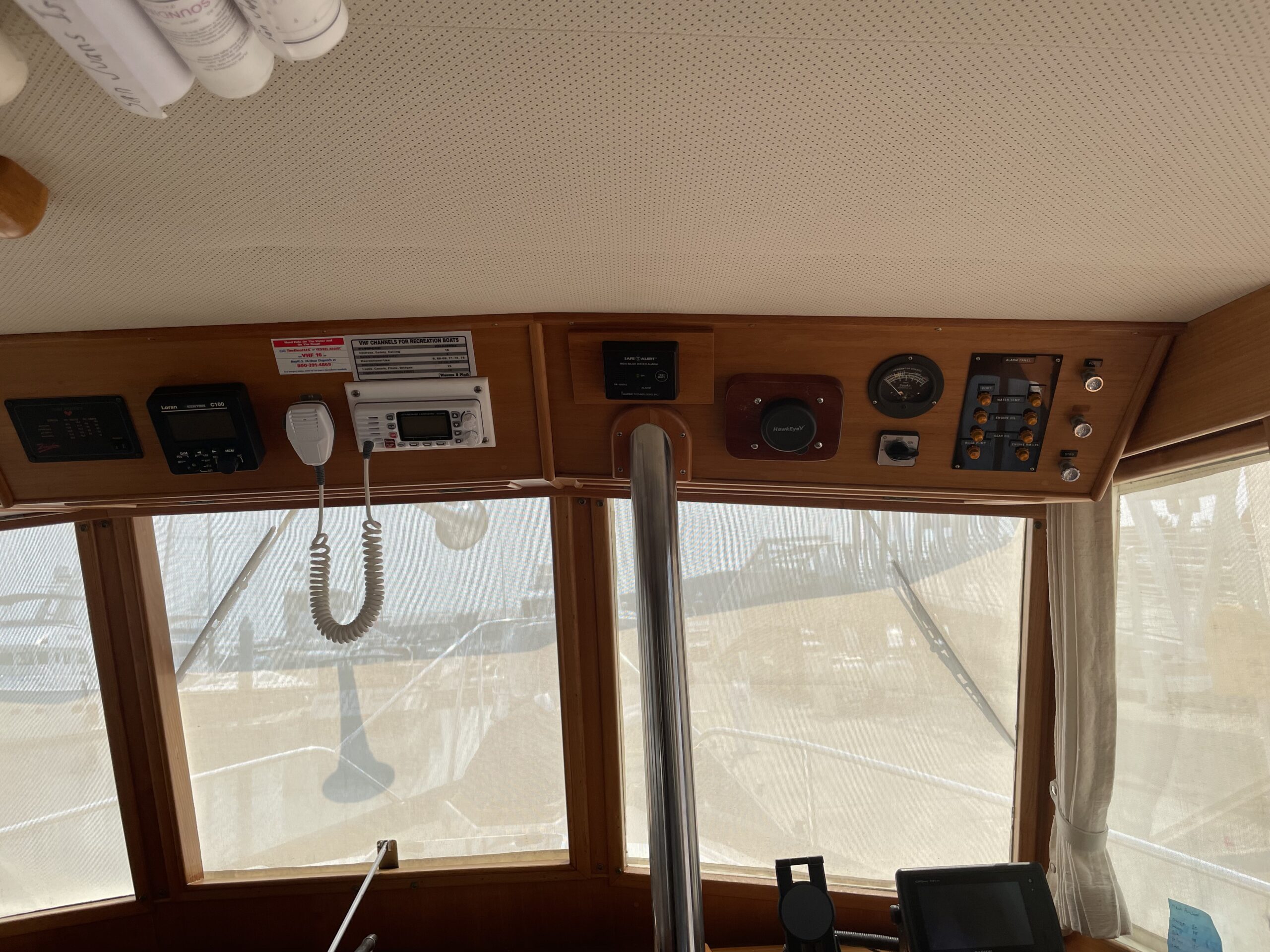

NAVIGATION / COMMUNICATION:

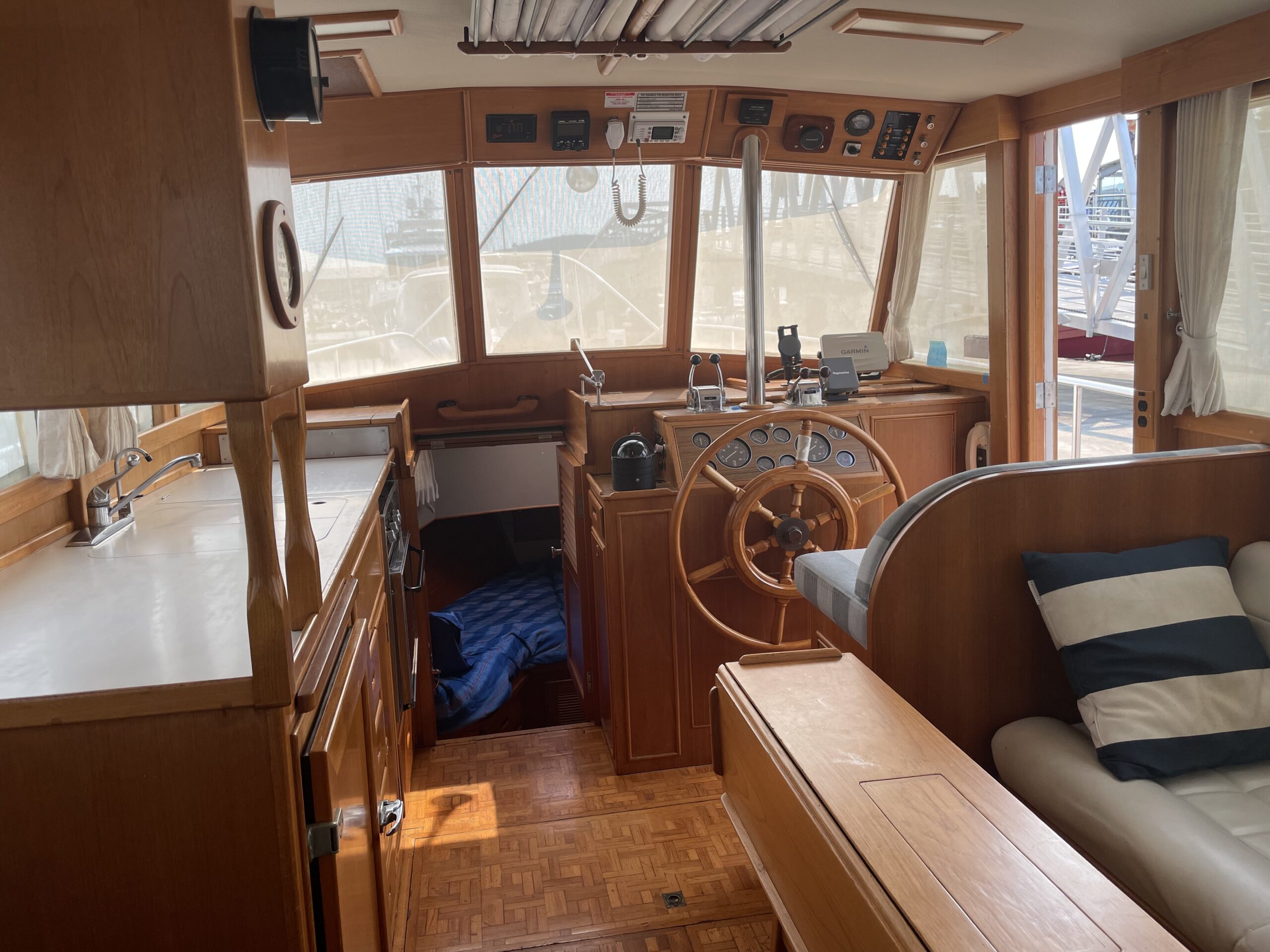

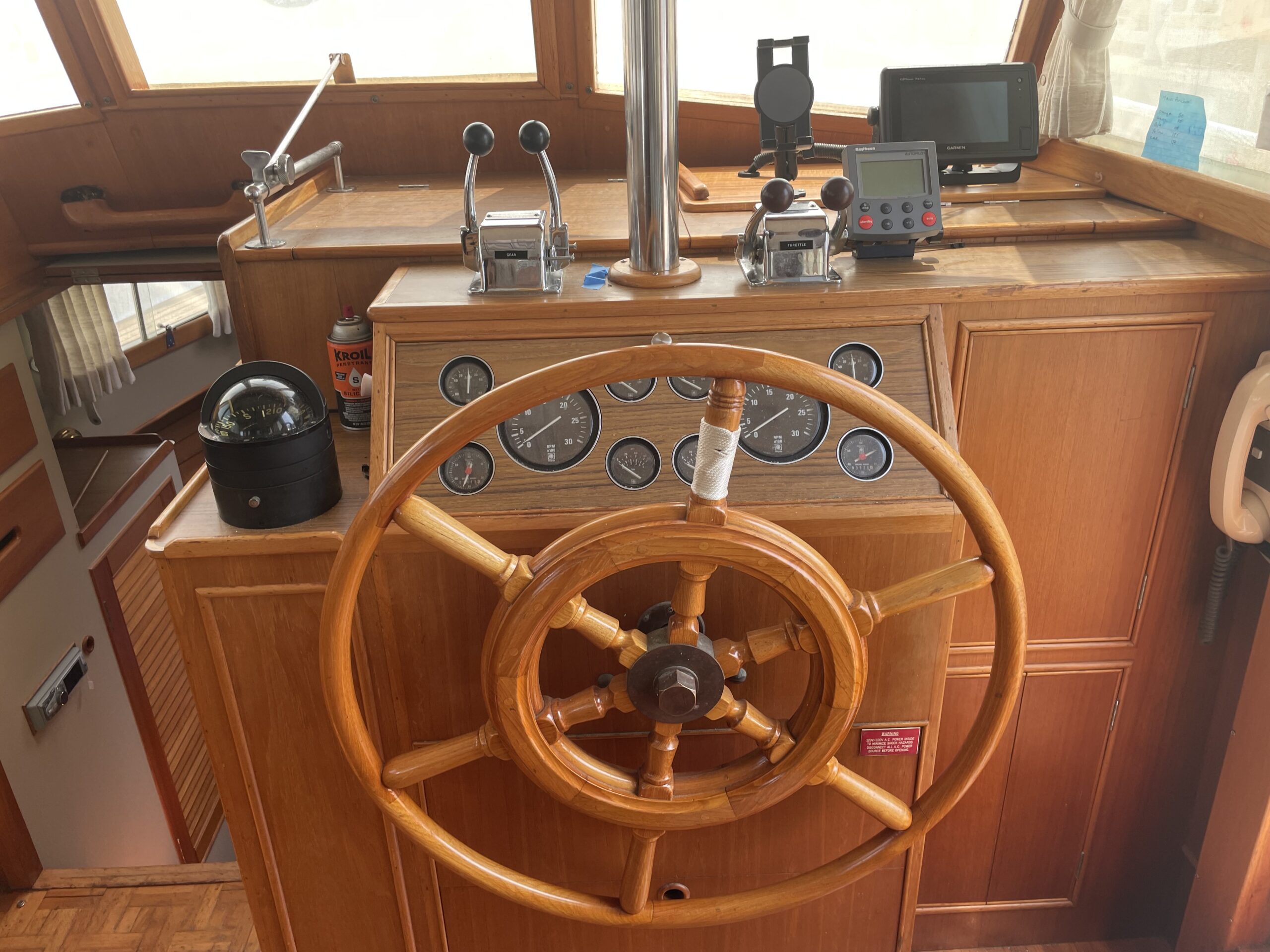

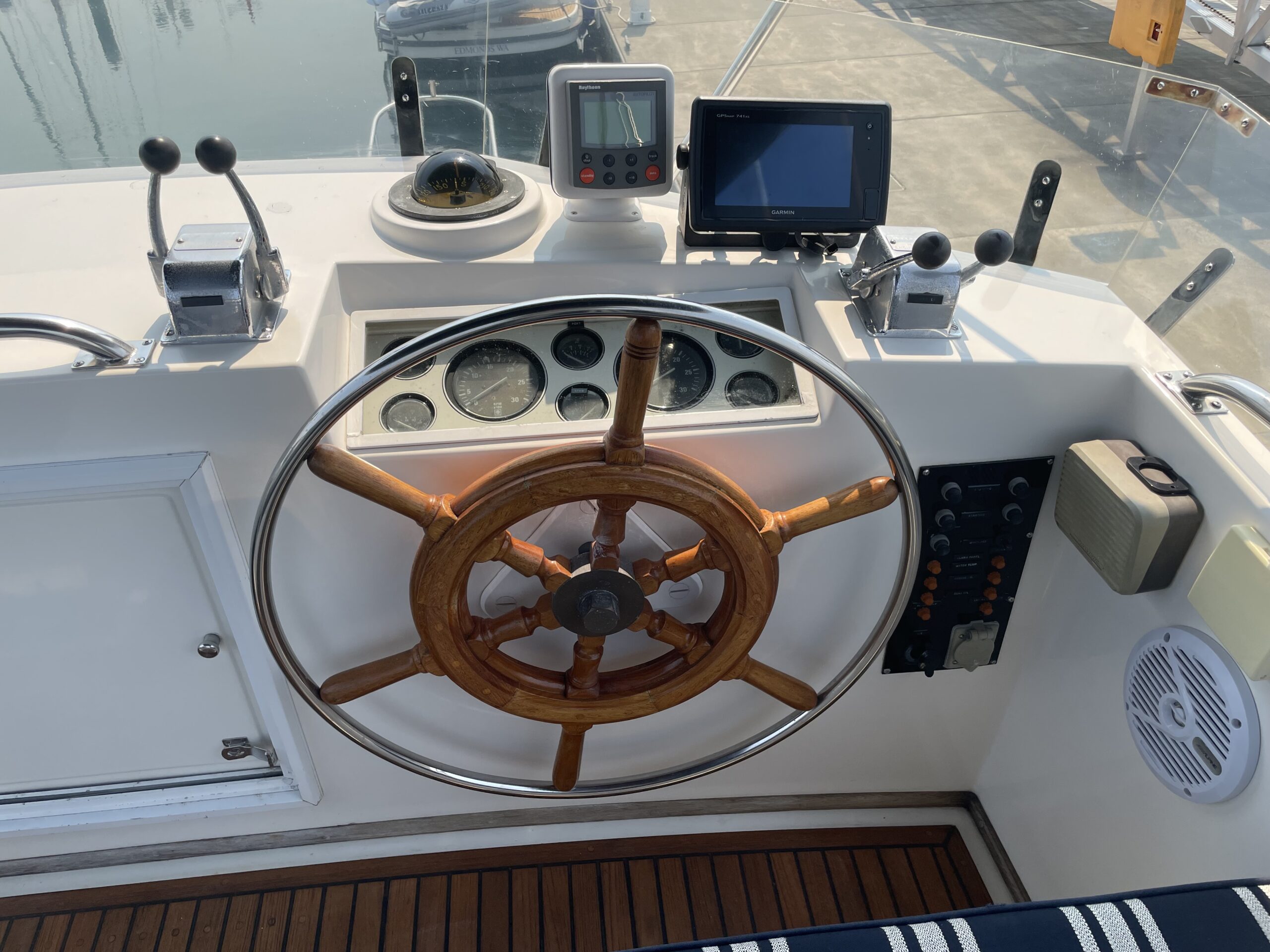

- GPS Chart Plotter / Radar – (2) Garmin GPSmap 741xs – (1) at each Helm
- Compass – (2) Danforth Magnetic – (1) at each Helm
- Depth – Navsounder
- VHF – (1) Standard Horizon Eclipse – Lower Helm
- (1) Standard Horizon – Upper Helm
- Auto Pilot – Raytheon ST6000 12Volt DC
GROUND TACKLE:
- Windlass – Lofrans Tigres 1500 Watt – Up & Down Power
- Anchor – Claw Type 44Kg Galvanized Steel
- Anchor Rode – Galvanized Chain
- Wash Down Pump – Shurflo 12Volt DC Seawater – NEW Oct 2025
SAFETY:
- Navigation Lights
- Anchor Lights
- Windshield Wipers – (3) 12Volt DC Wipers with Washers
- Railings – Stainless Steel with Teak Railing Caps
- Spreader Lights – (2) 12 Volt DC
- Deck Cleats – Bronze
- Life Jackets – (4 ) Type l Adult Offshore PDF
- (1) Type lV USCG approved Throwable Ring Buoy
- Visual Distress signals / Flares – (1) Day Use Orange Flag
- (1) Night Strobe Light – Battery Operated
- Fire Extinguishers – (3) 5-B Handheld
- Escape Hatches – (1) Forward & (1 ) Aft
- USCG Placards – (1) Oil Discharge
- (1 ) Garbage Plan
MISCELLANEOUS:
- Bottom Paint – Diver Scrubbed bottom – Due for Paint – 8/13/2026
- Zincs – Good – 8/1/2026

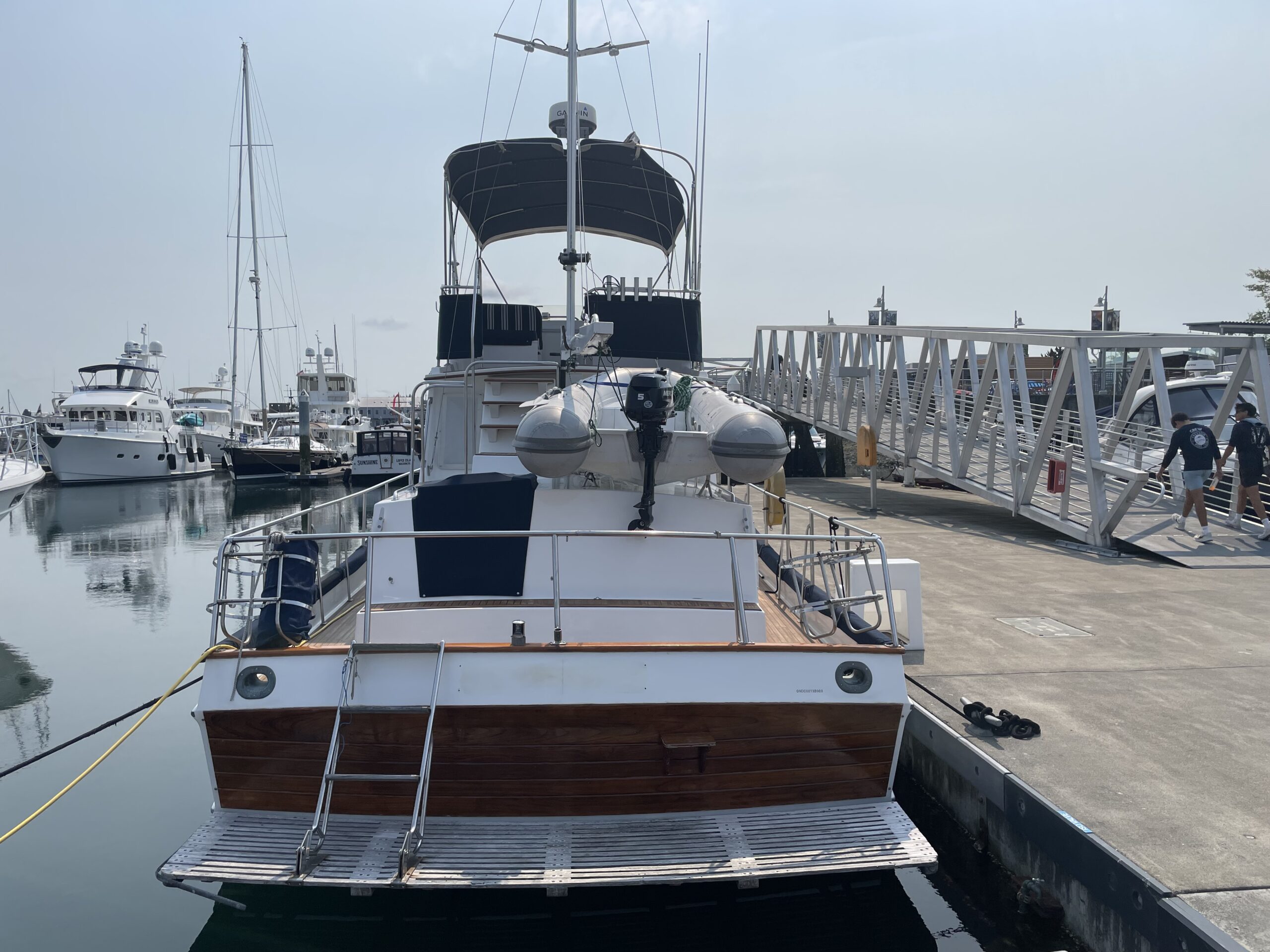

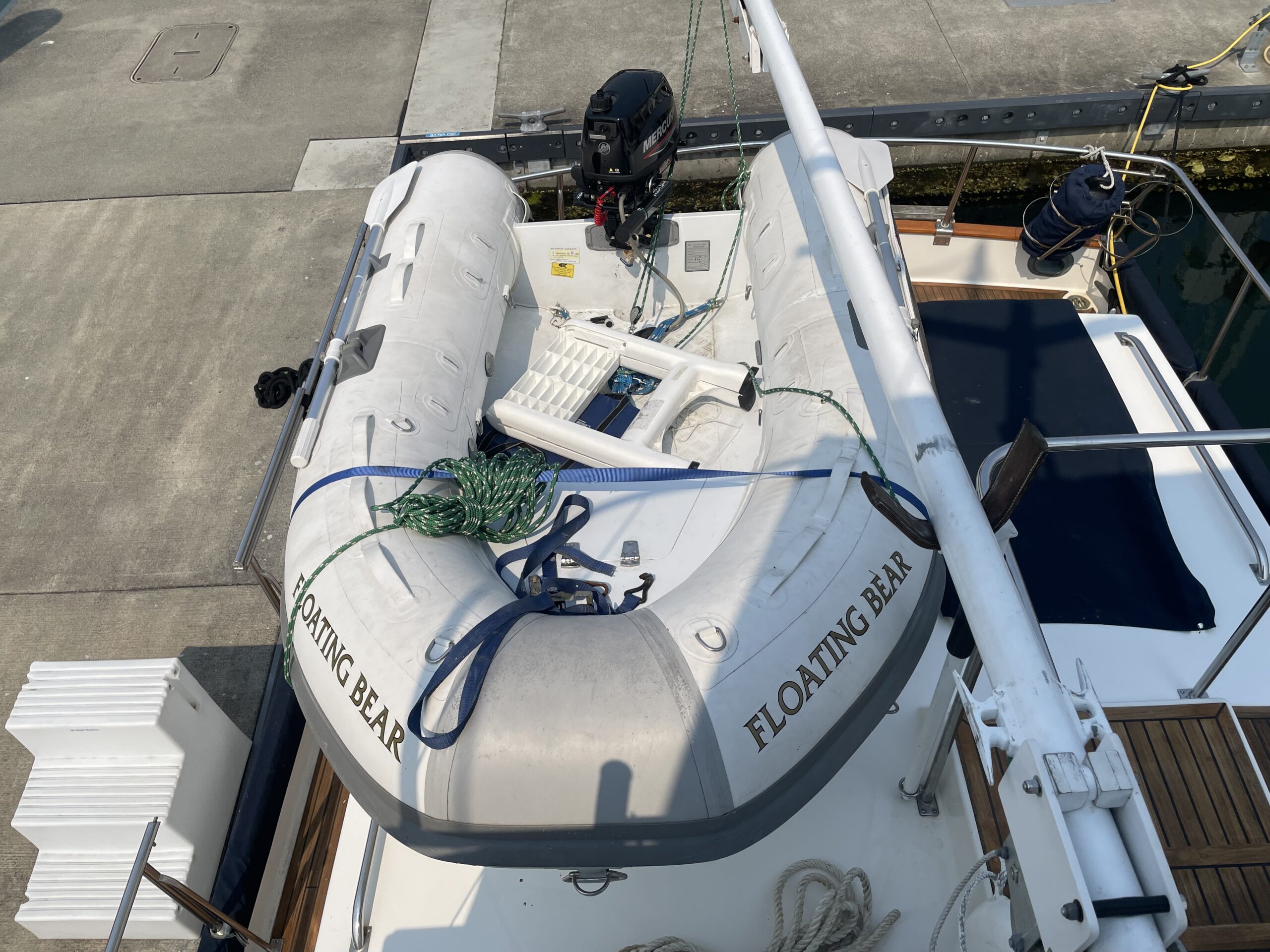

- Tender – 8′ Cardinal RIB – 260 Inflatable with Aluminum Bottom 2016

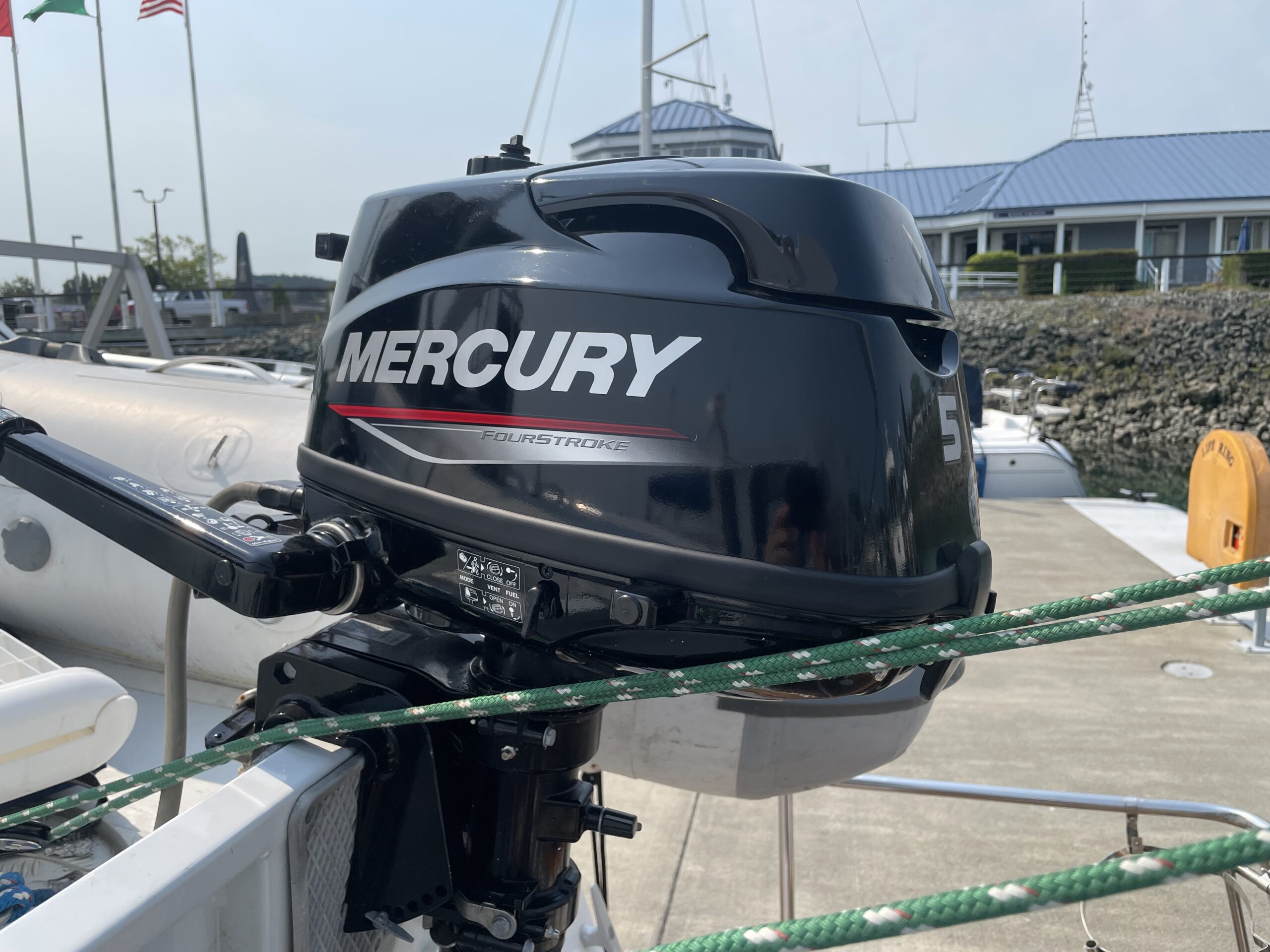

- Outboard – Mercury Marine – 6hp 4-stroke

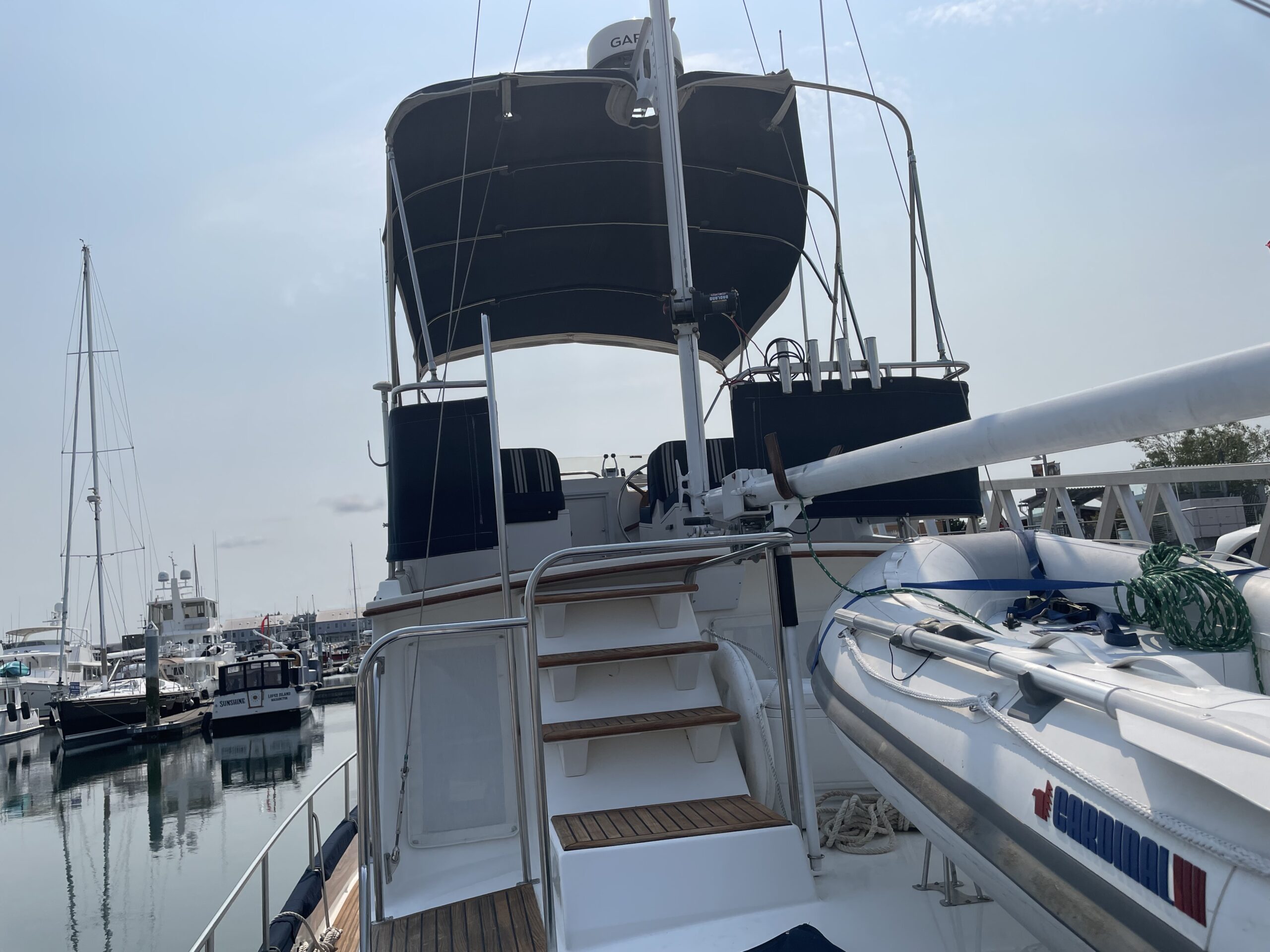

- Tender Davit – 12 Volt DV – Davit /Boom with Electric Winch Motor
