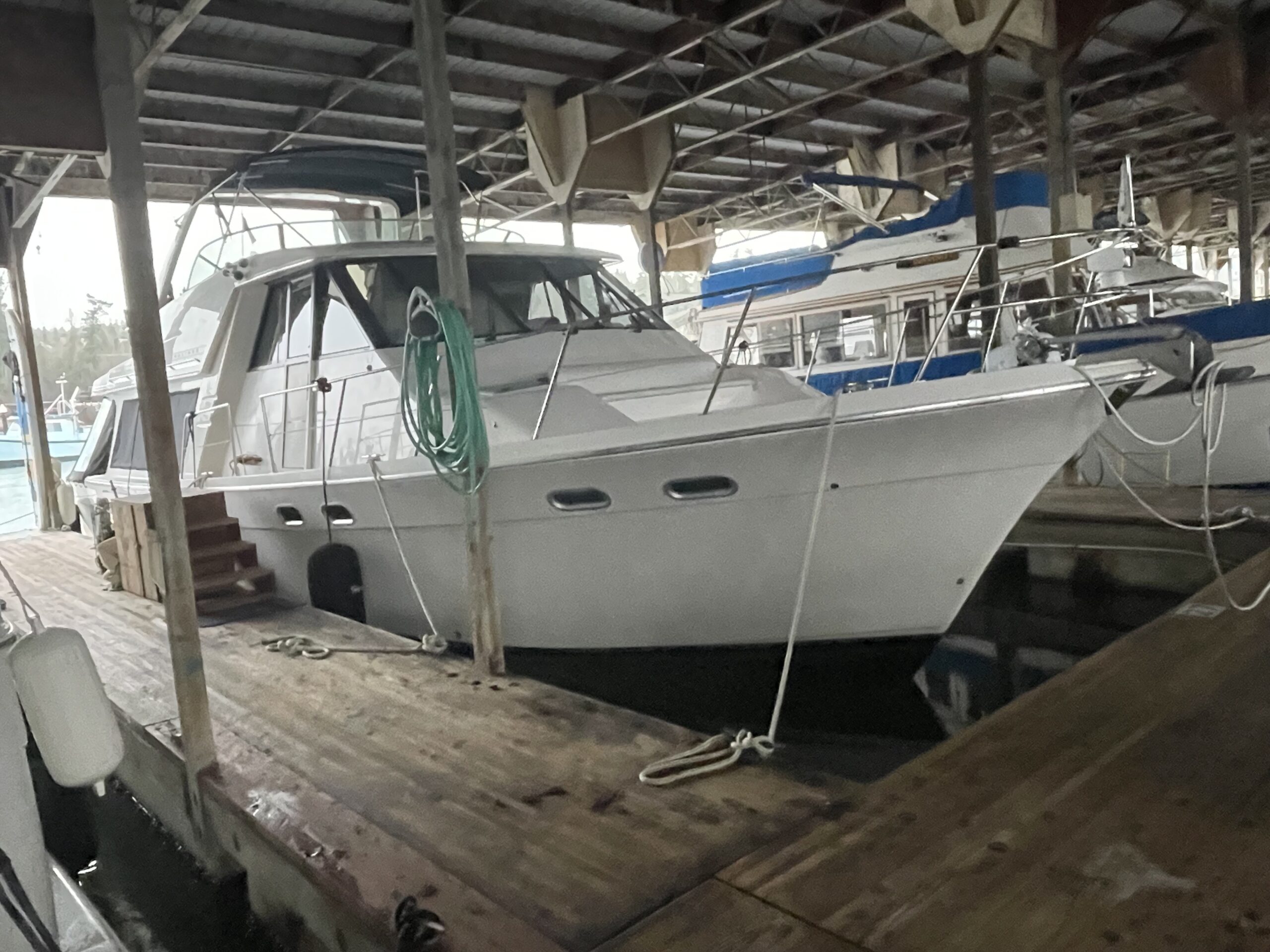

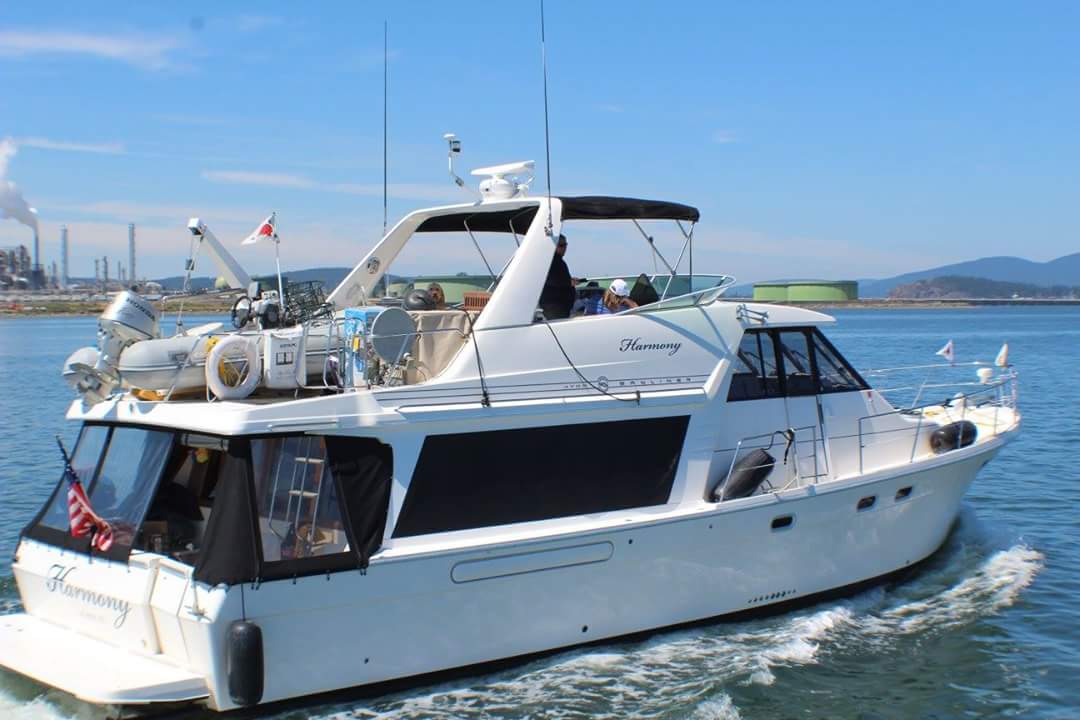

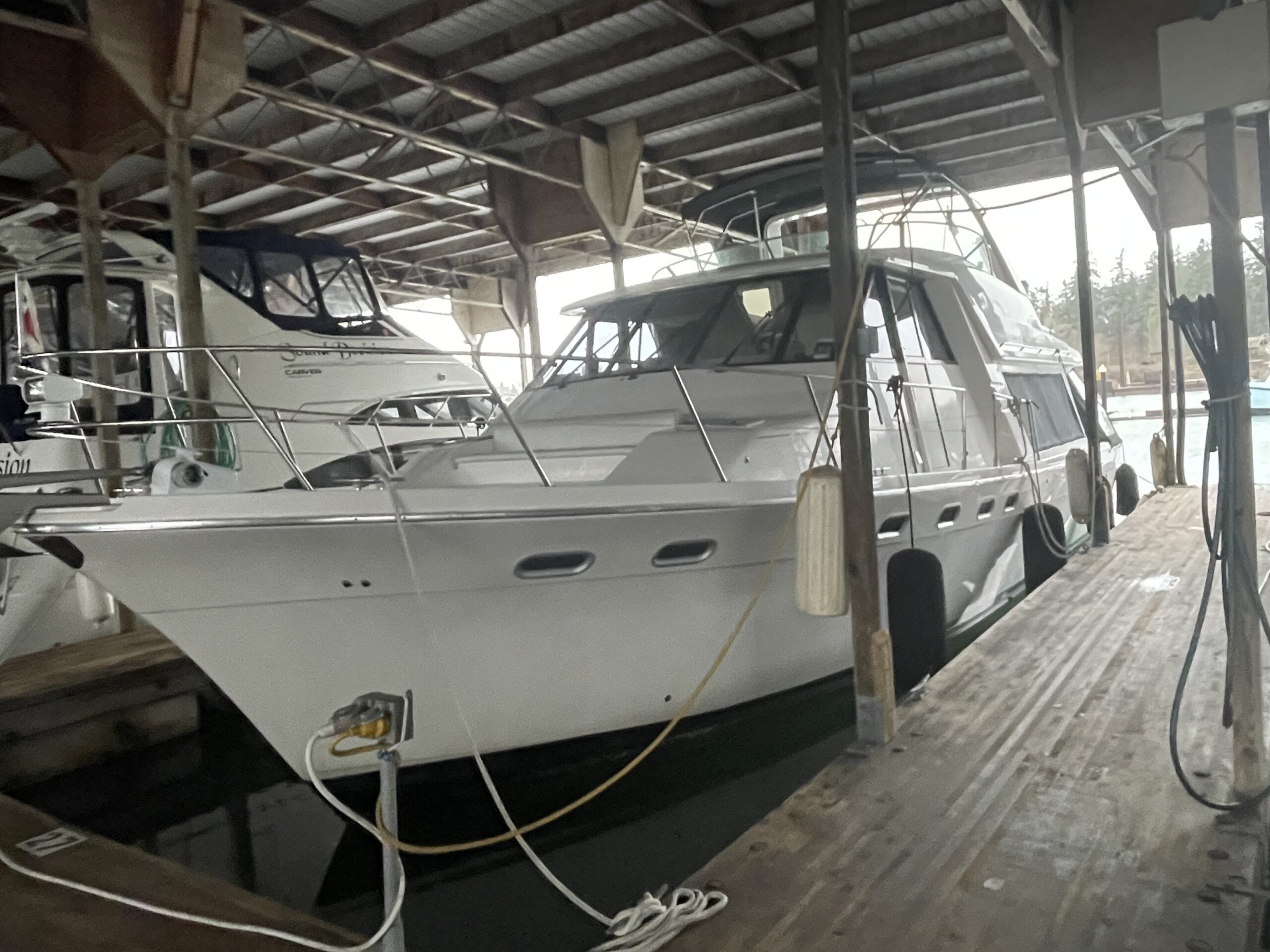

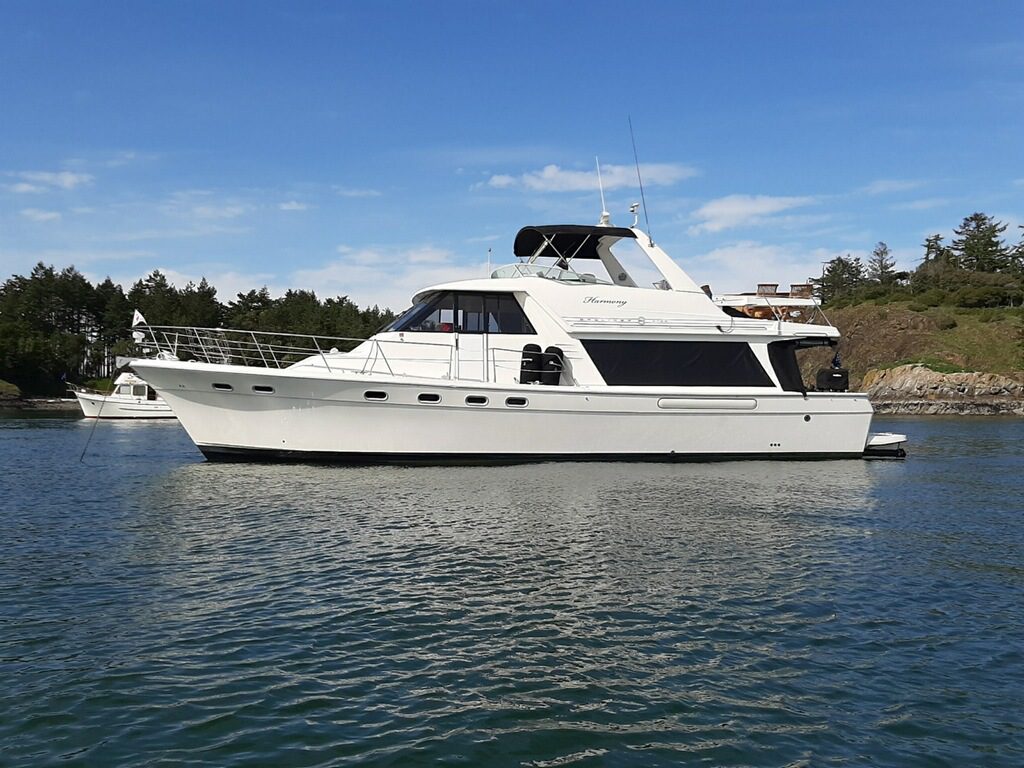

47′ Bayliner 4788 Pilothouse 1995

Specifications

• LOA: 50′ (Bow pulpit removed; bow railing modified/modernized to fit a 50′ slip)
• LOD: 47′
• Beam: 15′ 1″
• Draft: 3′ 4″
• Keel: Skeg
• Displacement: 30,000 lbs
• Weight: 29,990 lbs
• Construction: Fiberglass
• Hull Bottom: Modified-V Power Hull
• Deadrise (Aft): 6°
• Deck: Cored Fiberglass
• Hull-to-Deck Joint: Vertical overlap, bonded, covered by rub rail
• Ceiling/Molded Liner: Molded fiberglass with carpet & hardwood joinery
• Fastenings: Stainless steel
• Sheer Line: Straight
• Designer: Bayliner
• Builder: Bayliner

Tankage

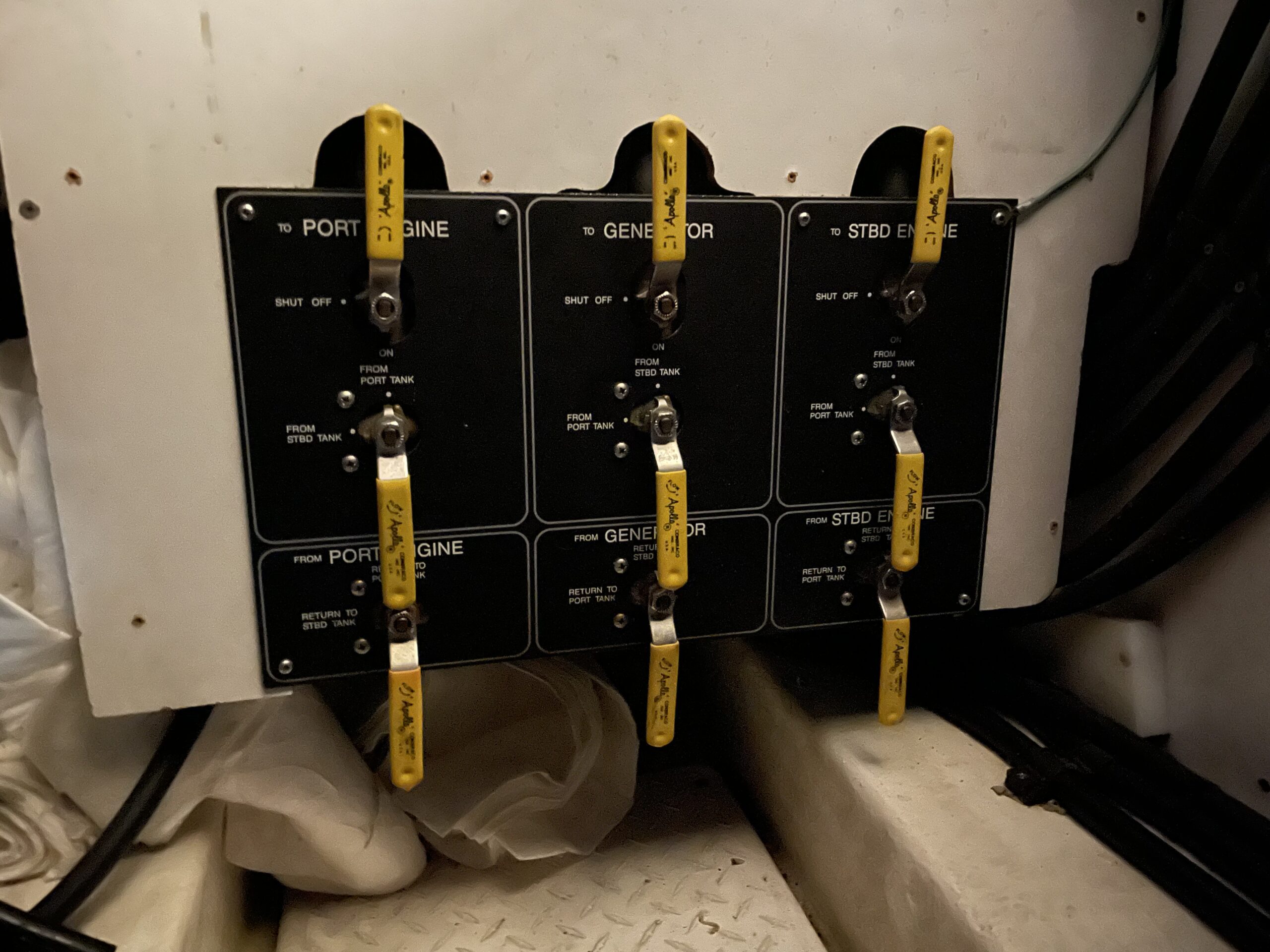

• Fuel: 444 Gallons in (2) Aluminum Tanks
  Located Port & Starboard, forward of engines
• Water: 200 Gallons in (2) Plastic Tanks
  Located beneath forward berth
• Hot Water: Seaward – 11 Gallons

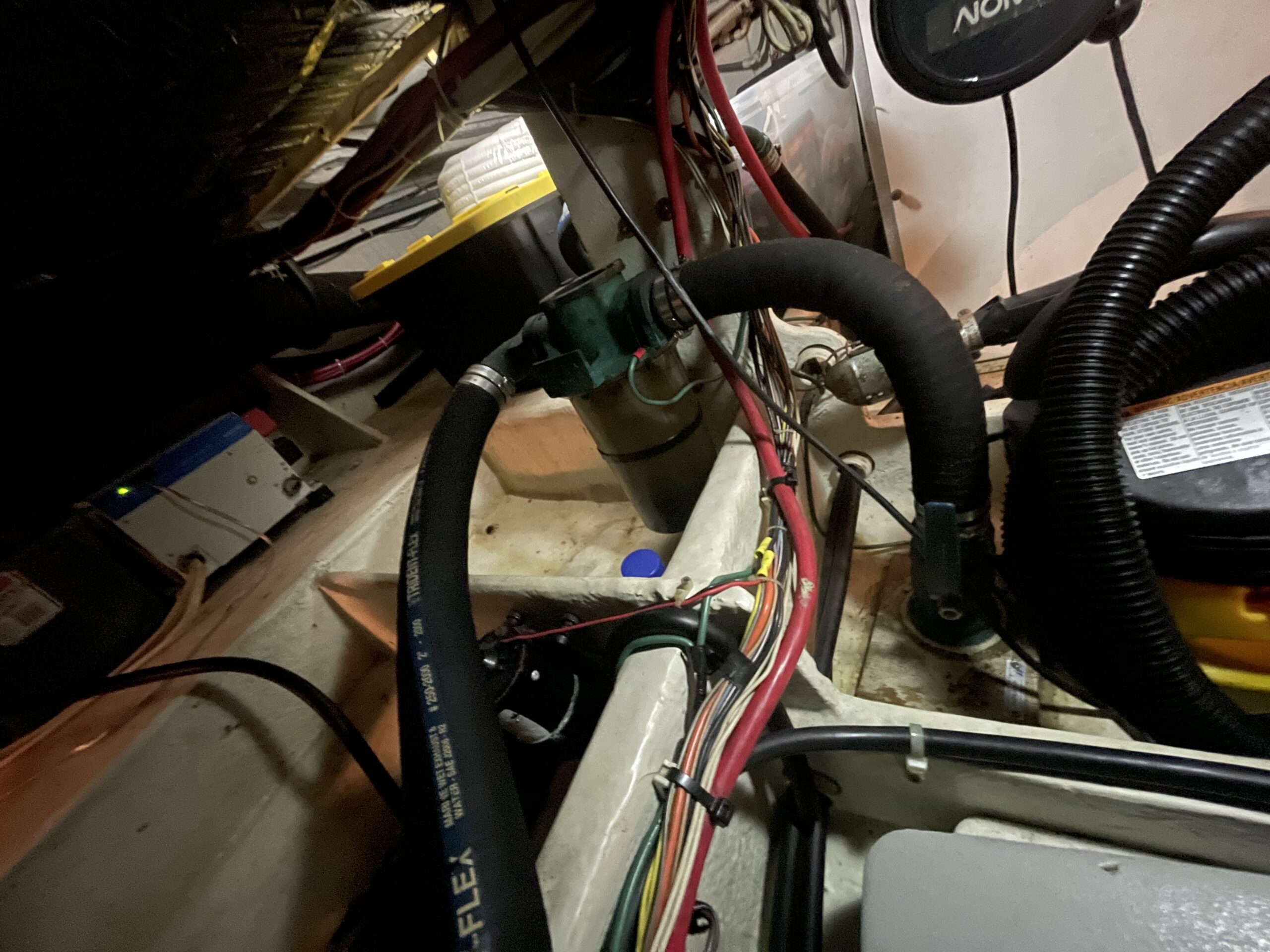

• Waste: 48 Gallons in (1) Plastic Tank
  • “Y” valve with deck pump-out & overboard discharge
  • Waste hoses designed for easy replacement (brass ball fittings to isolate hose ends)

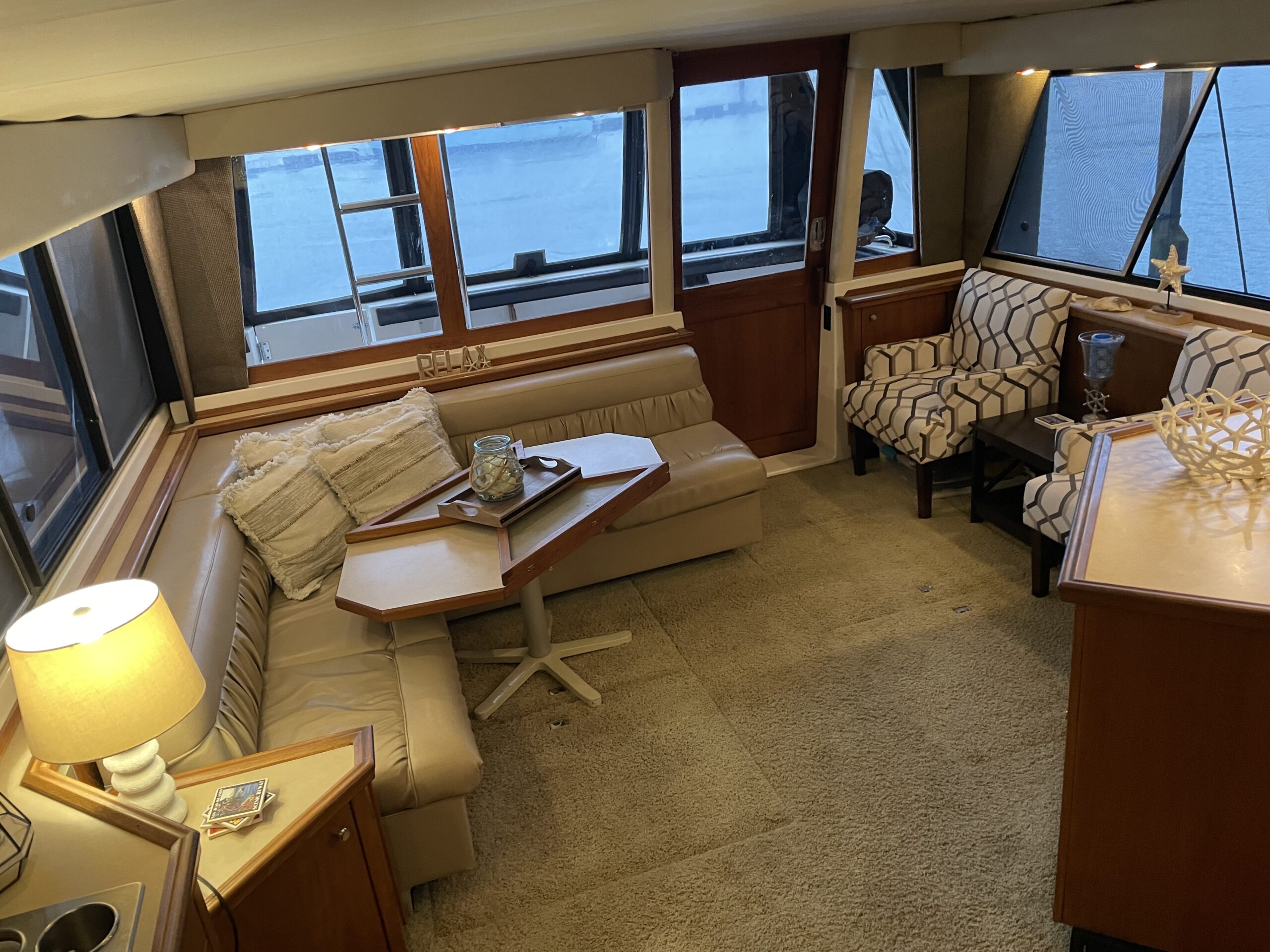

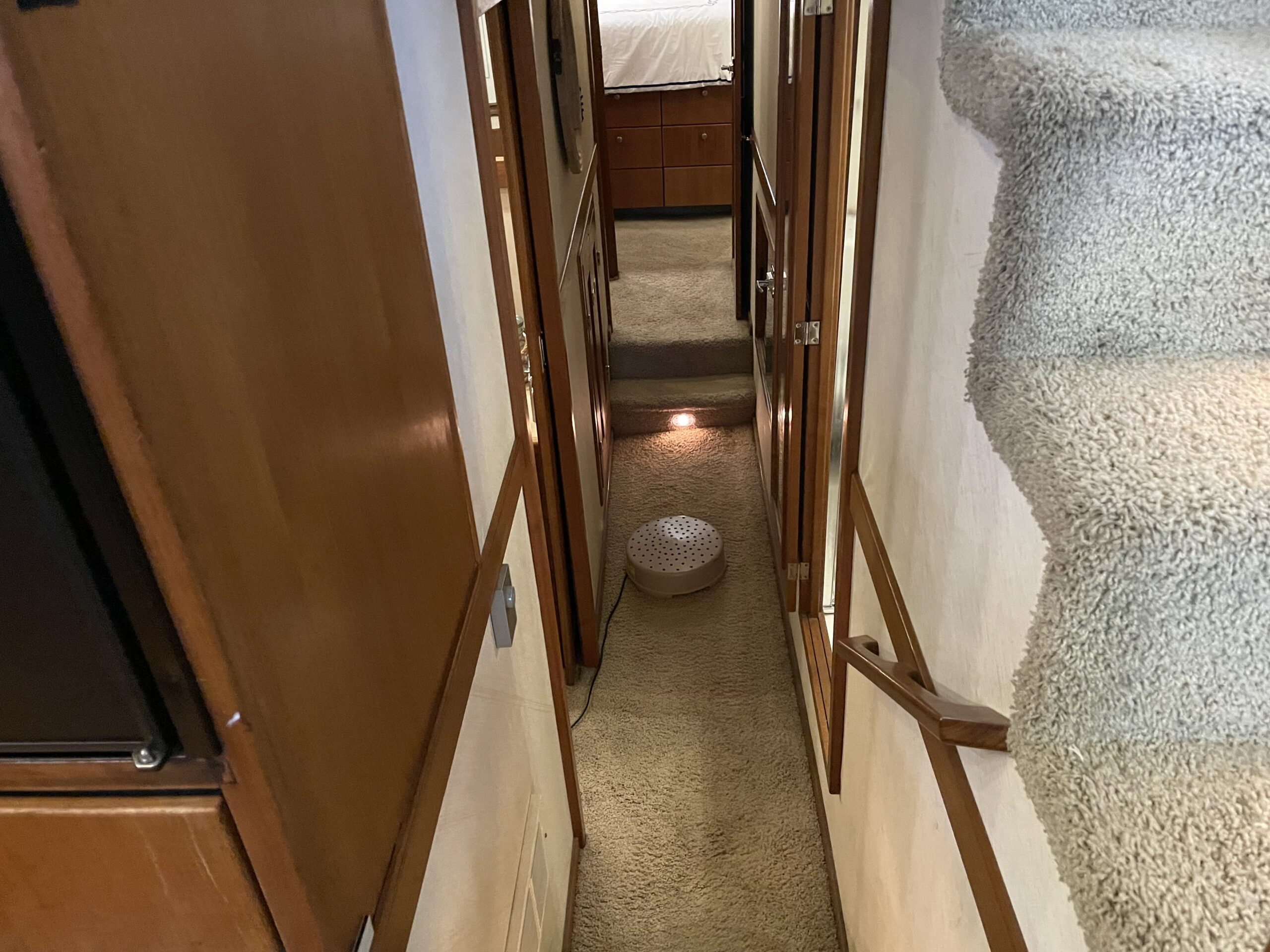

Interior

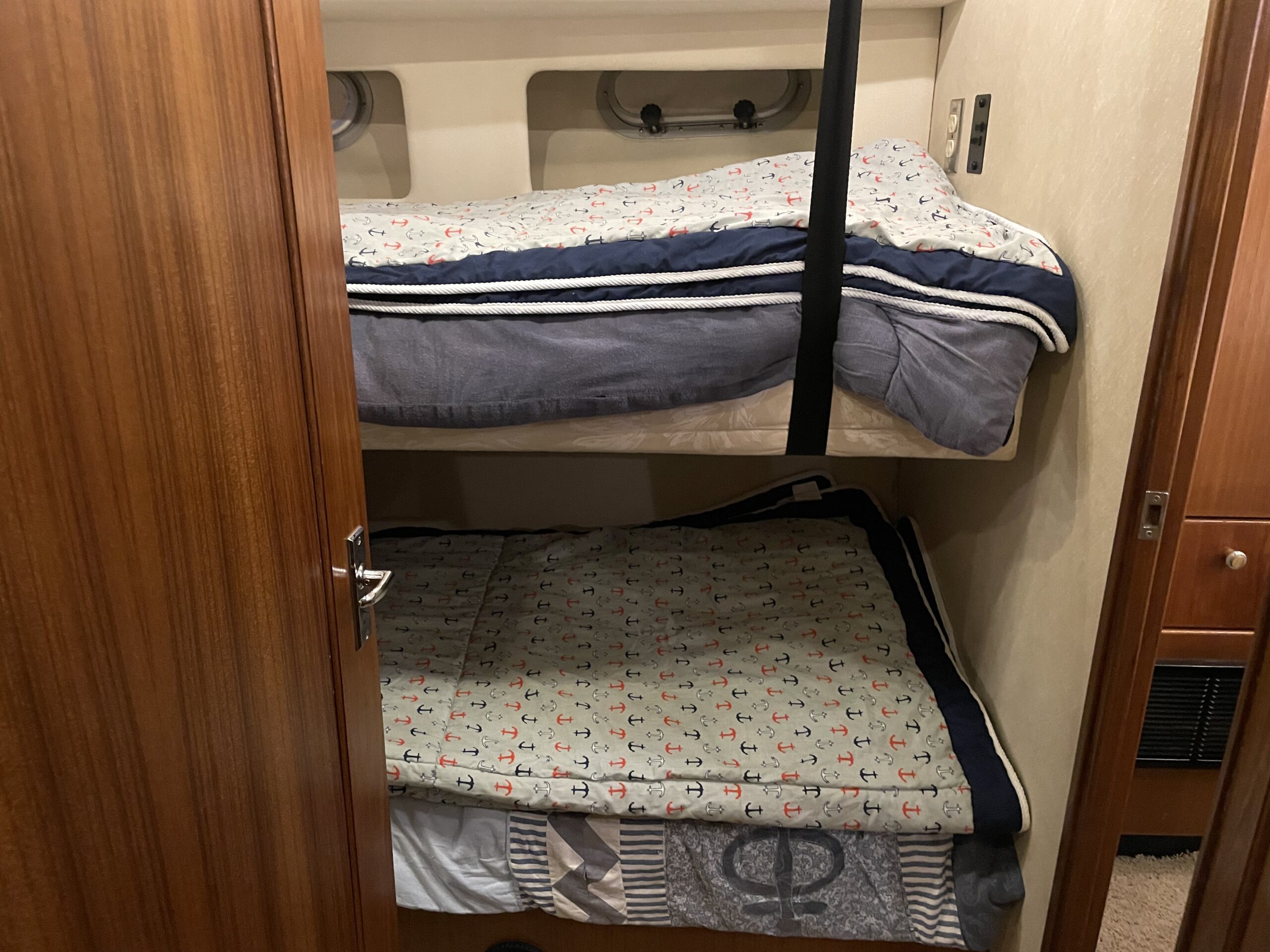

• Sleeps 6:

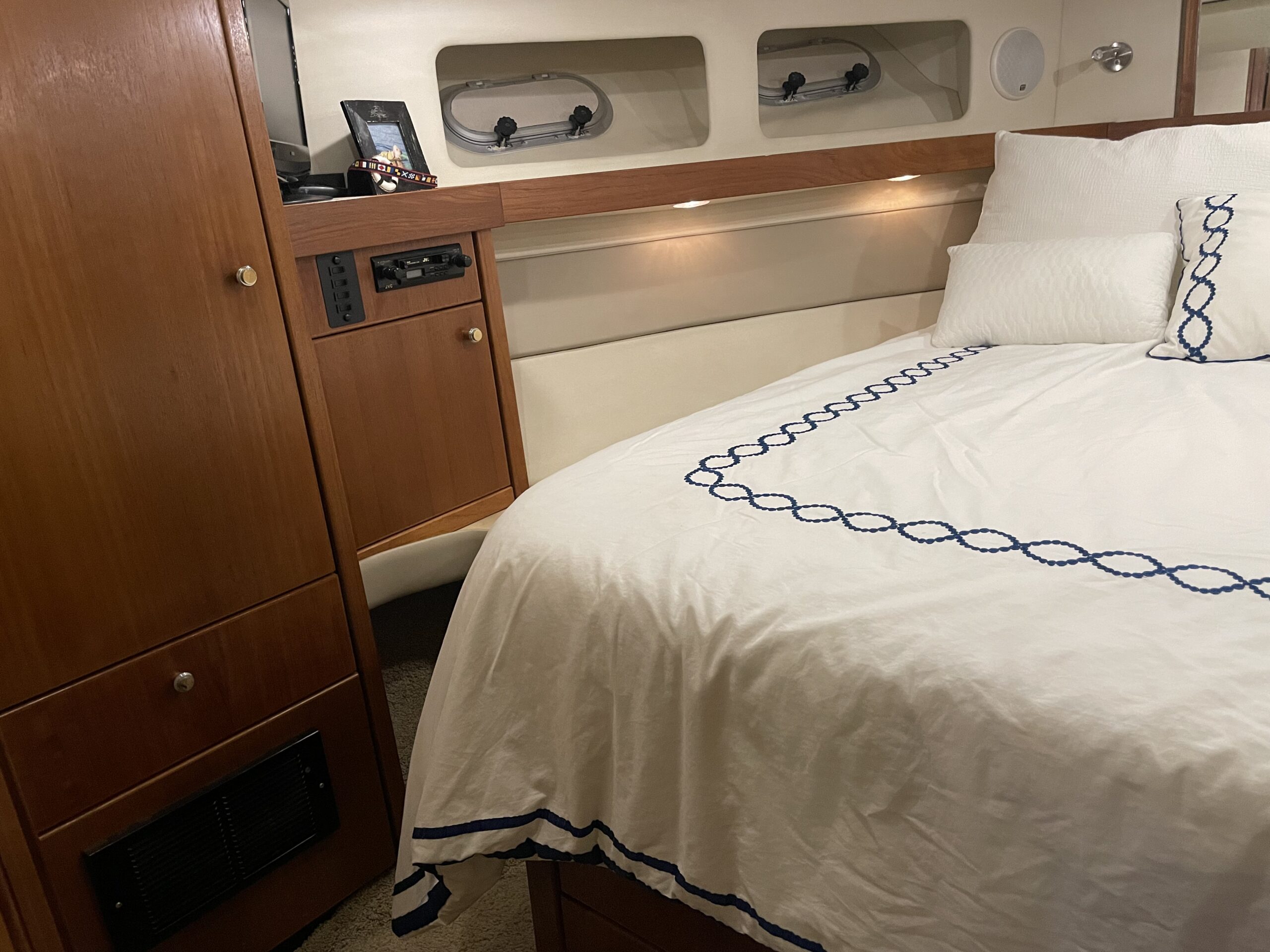

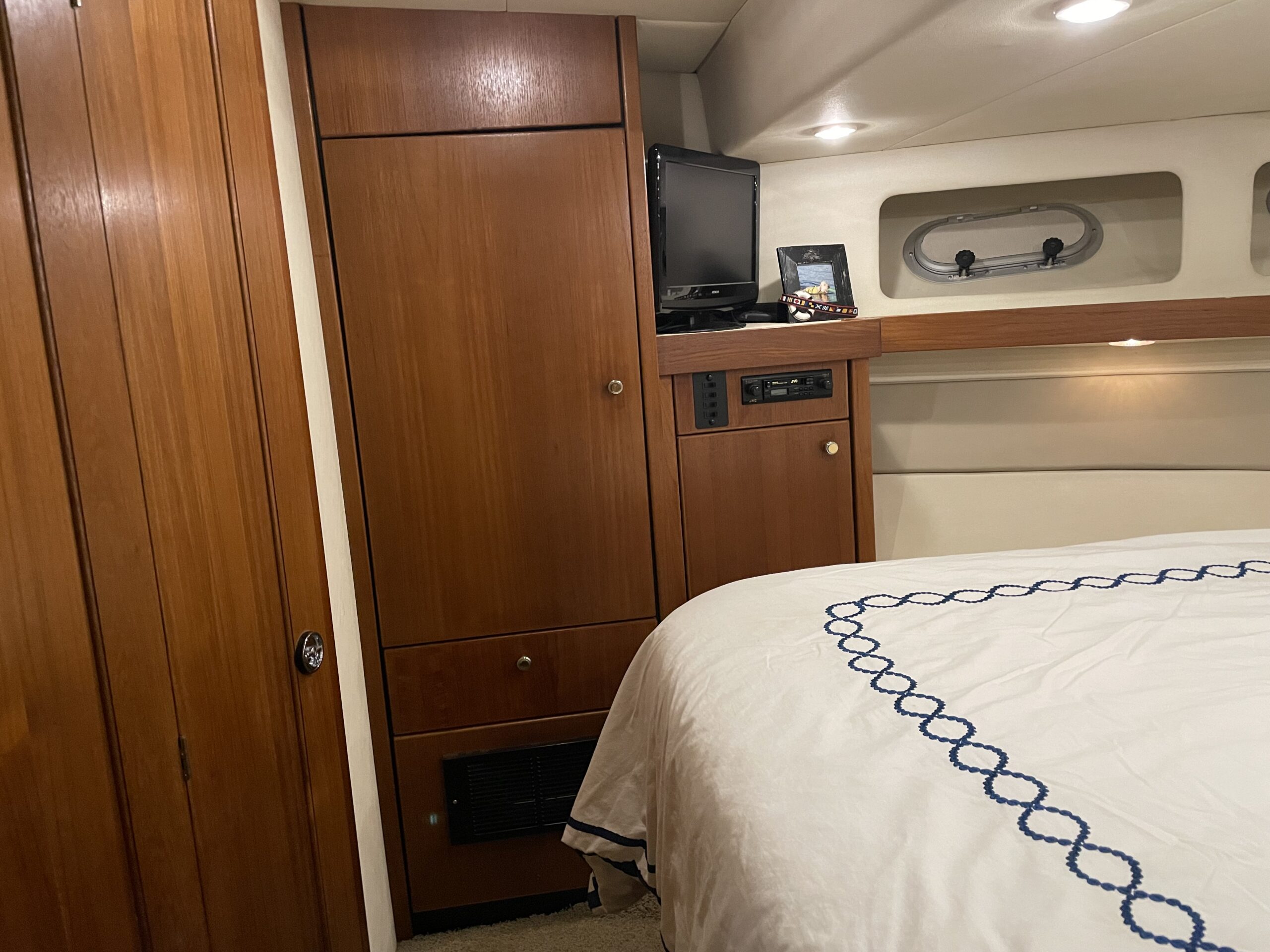

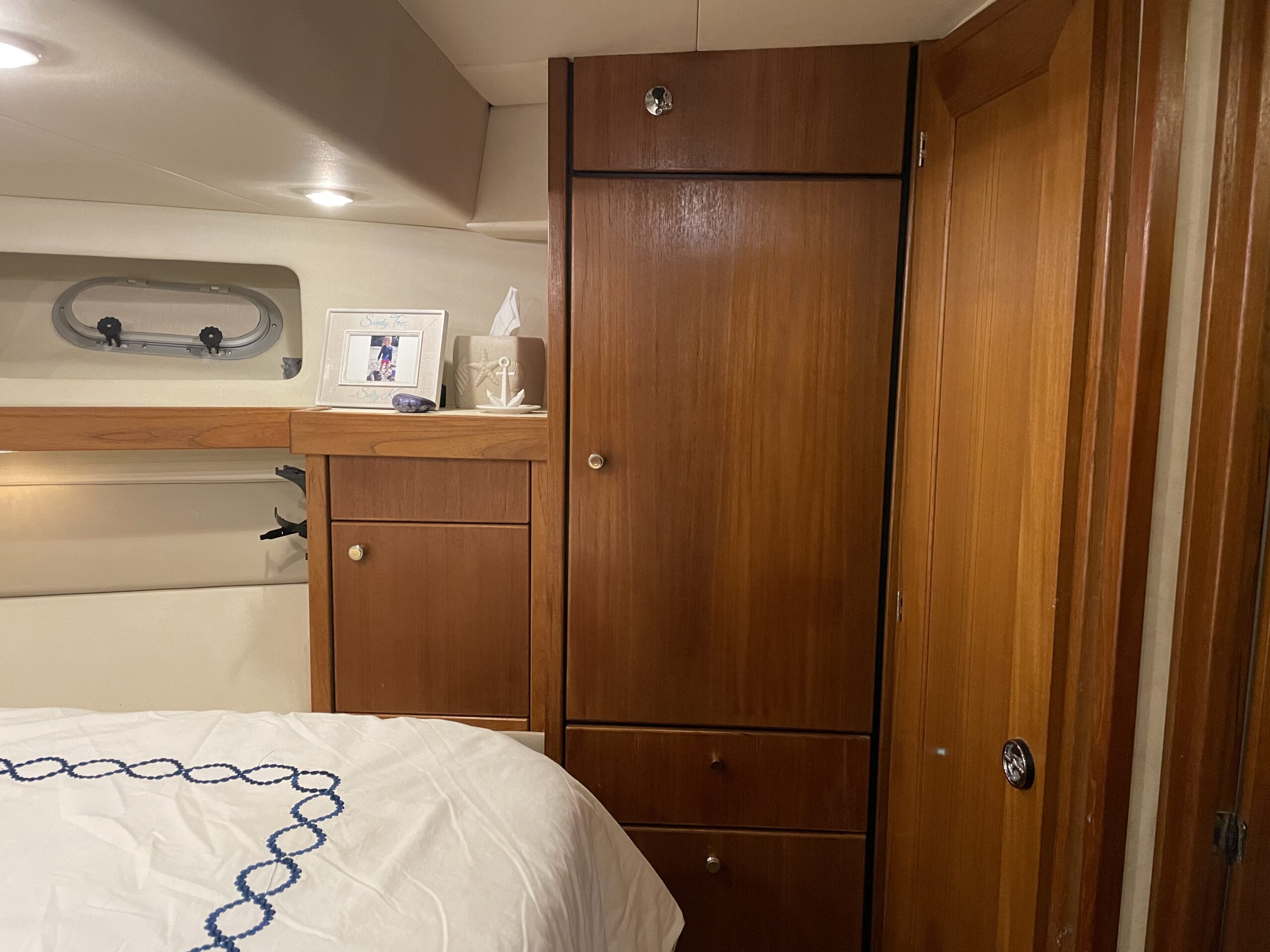

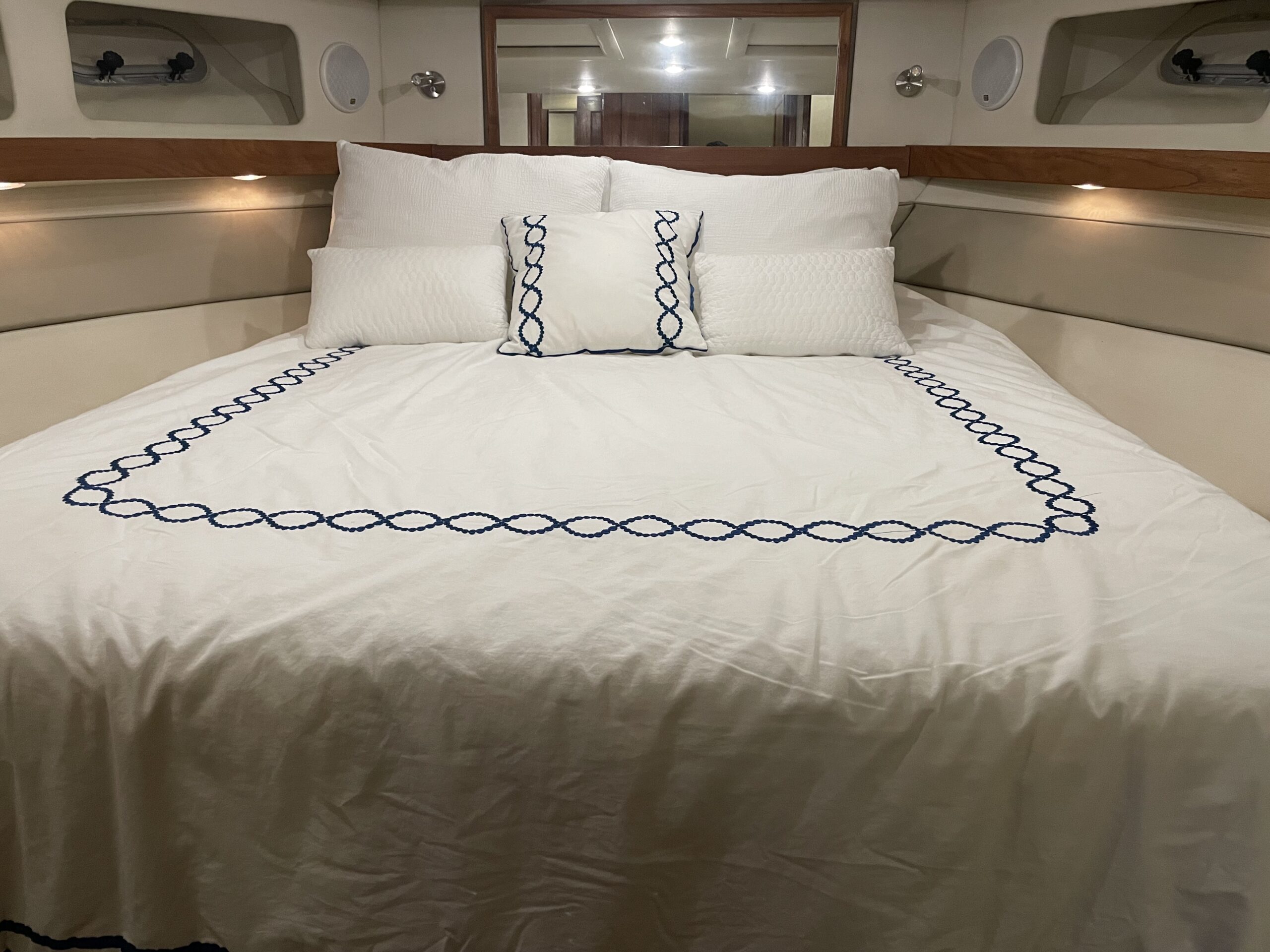

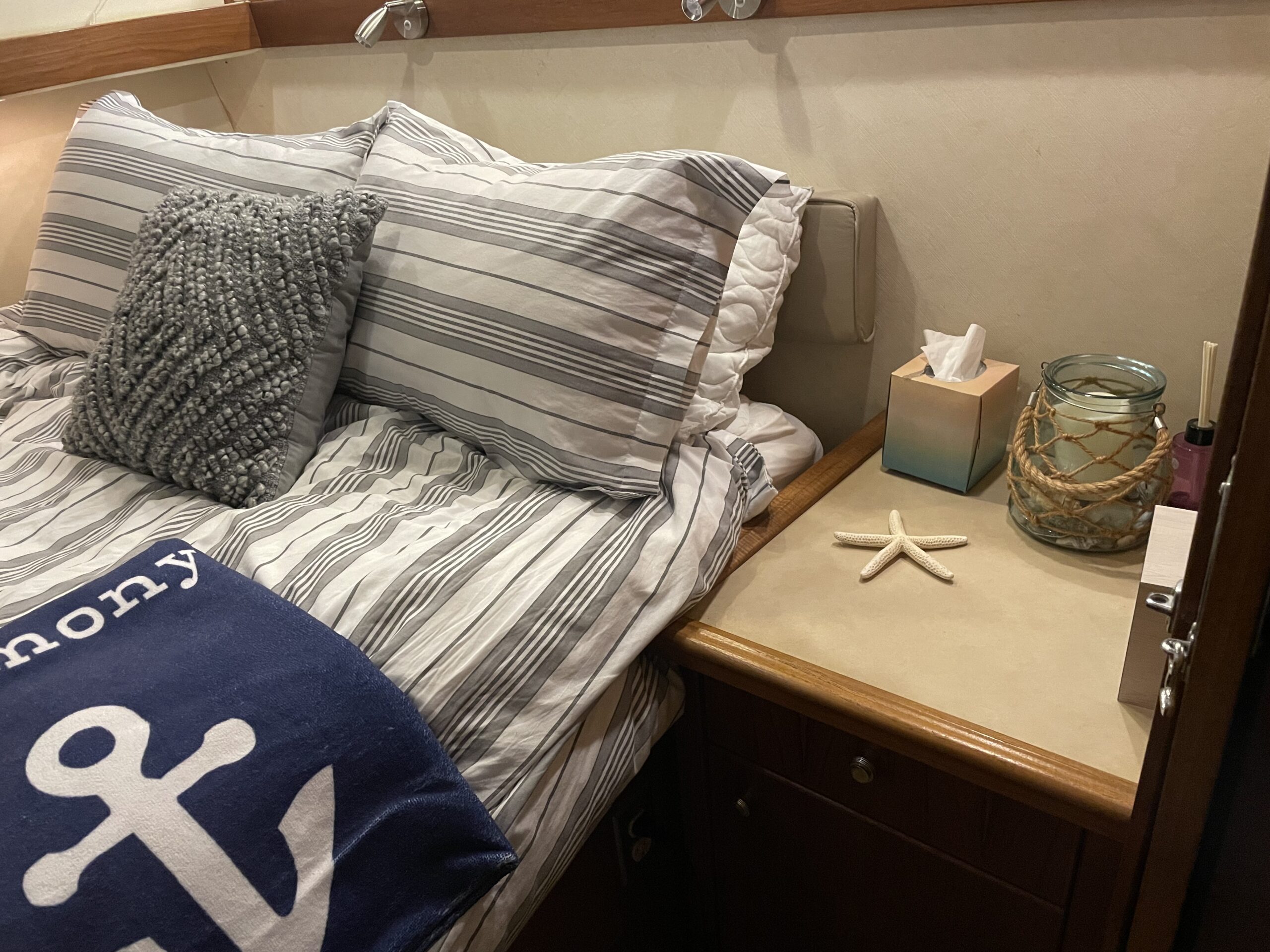

  • (2) Master Stateroom with ensuite head & tub/shower
  • (2) Forward portside stateroom (adjacent/aft of master)
  • (2) Portside guest stateroom

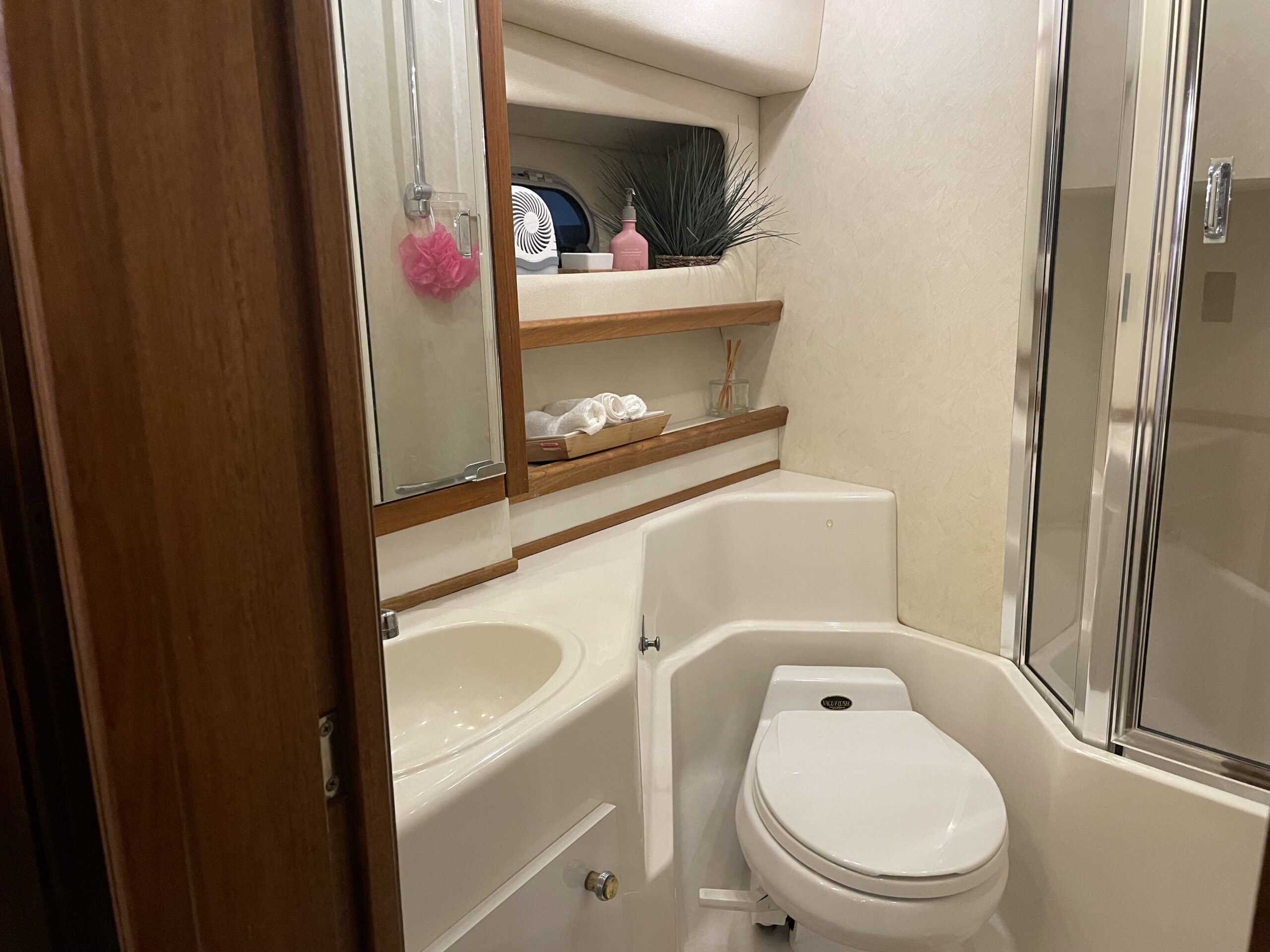

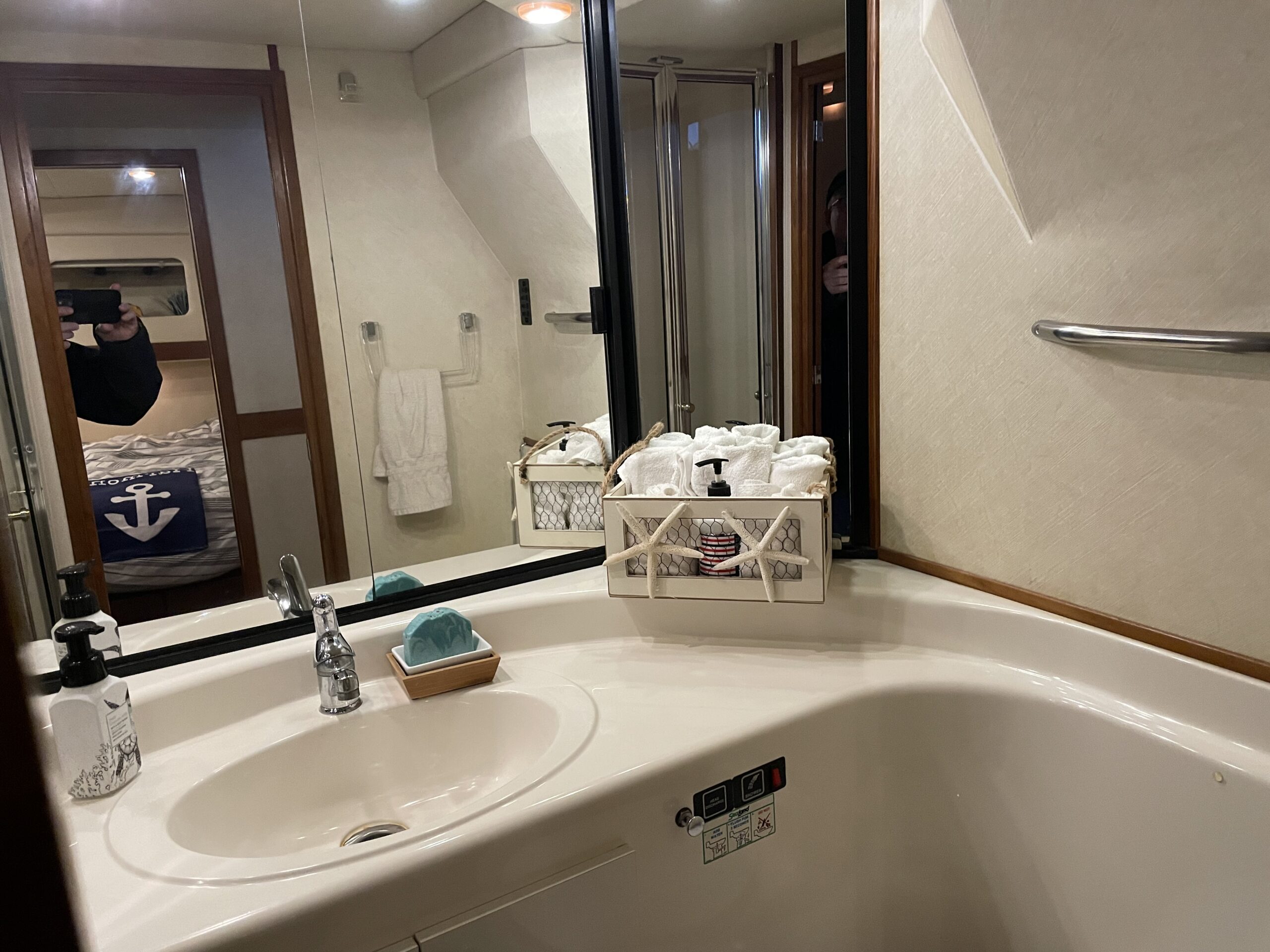

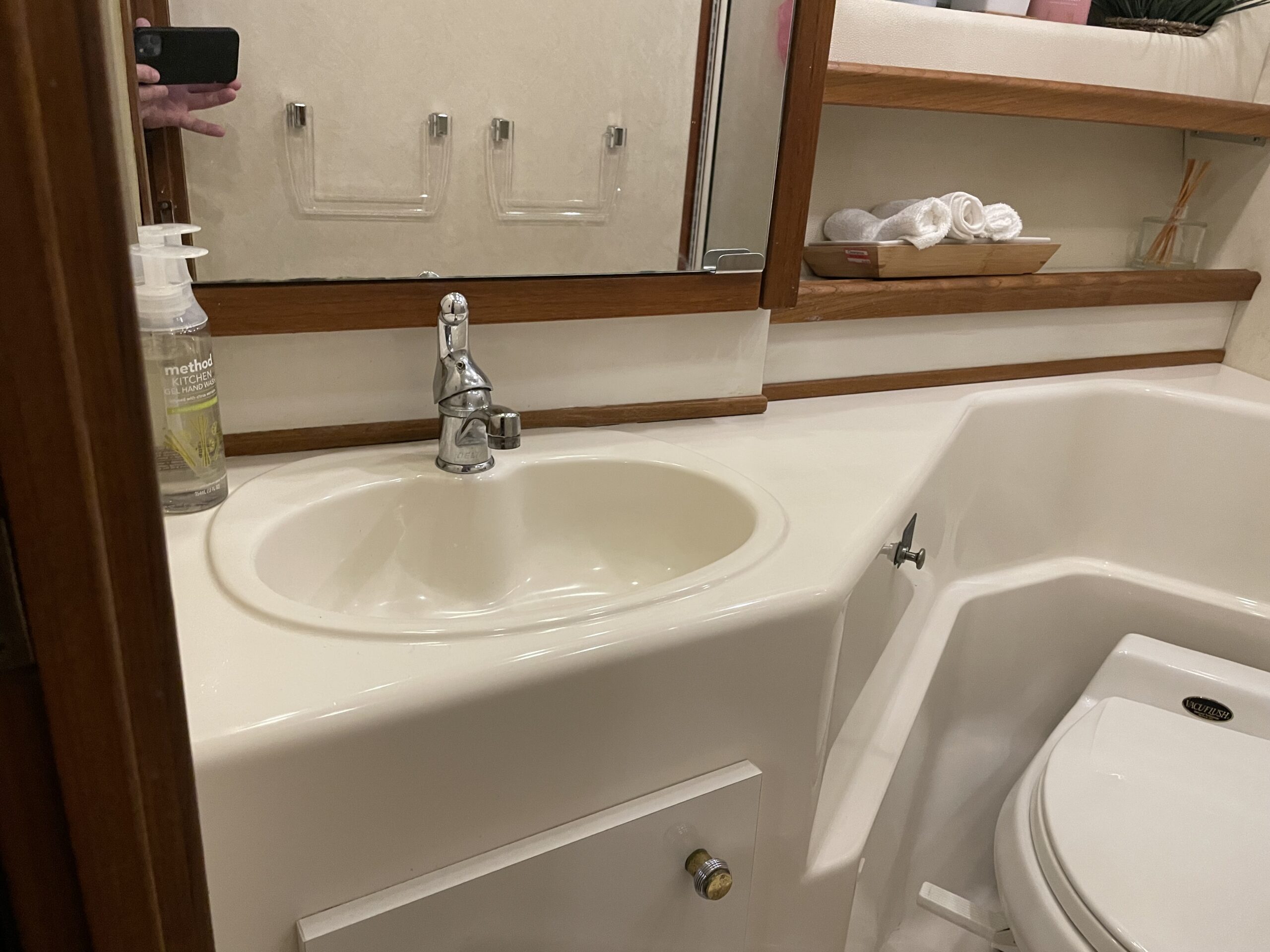

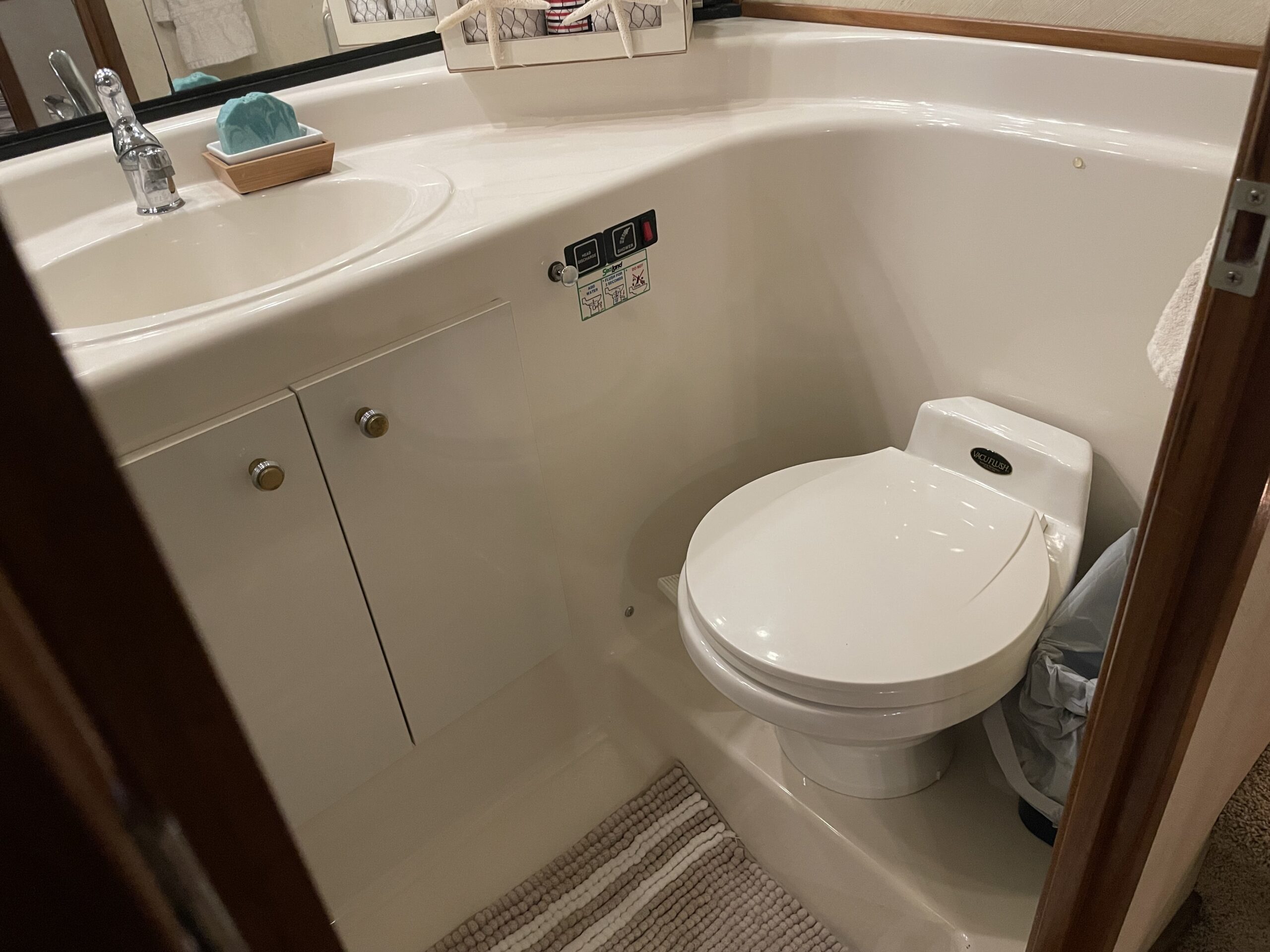

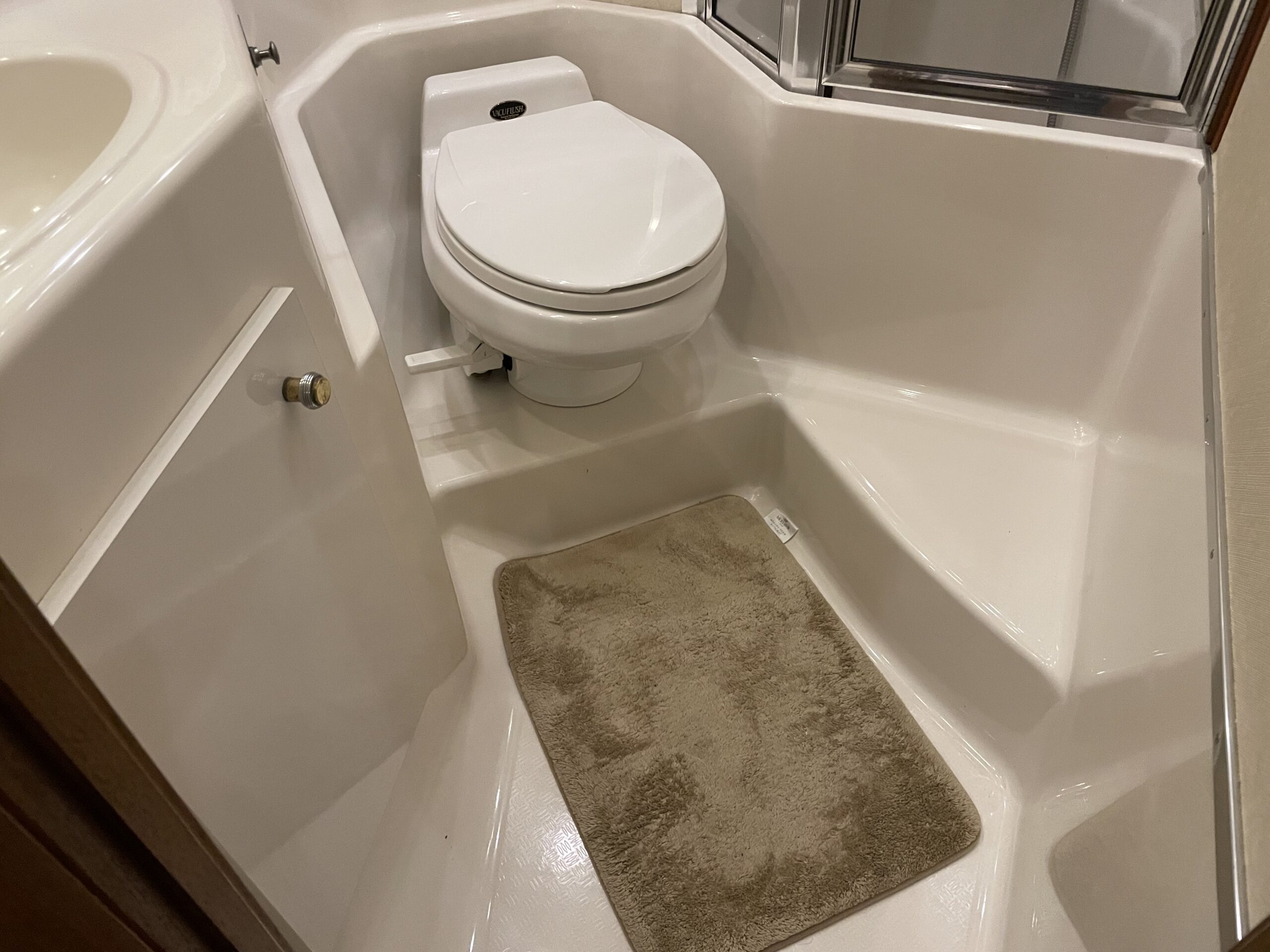

• Heads: (2) Private enclosed heads with freshwater VacuFlush marine toilets

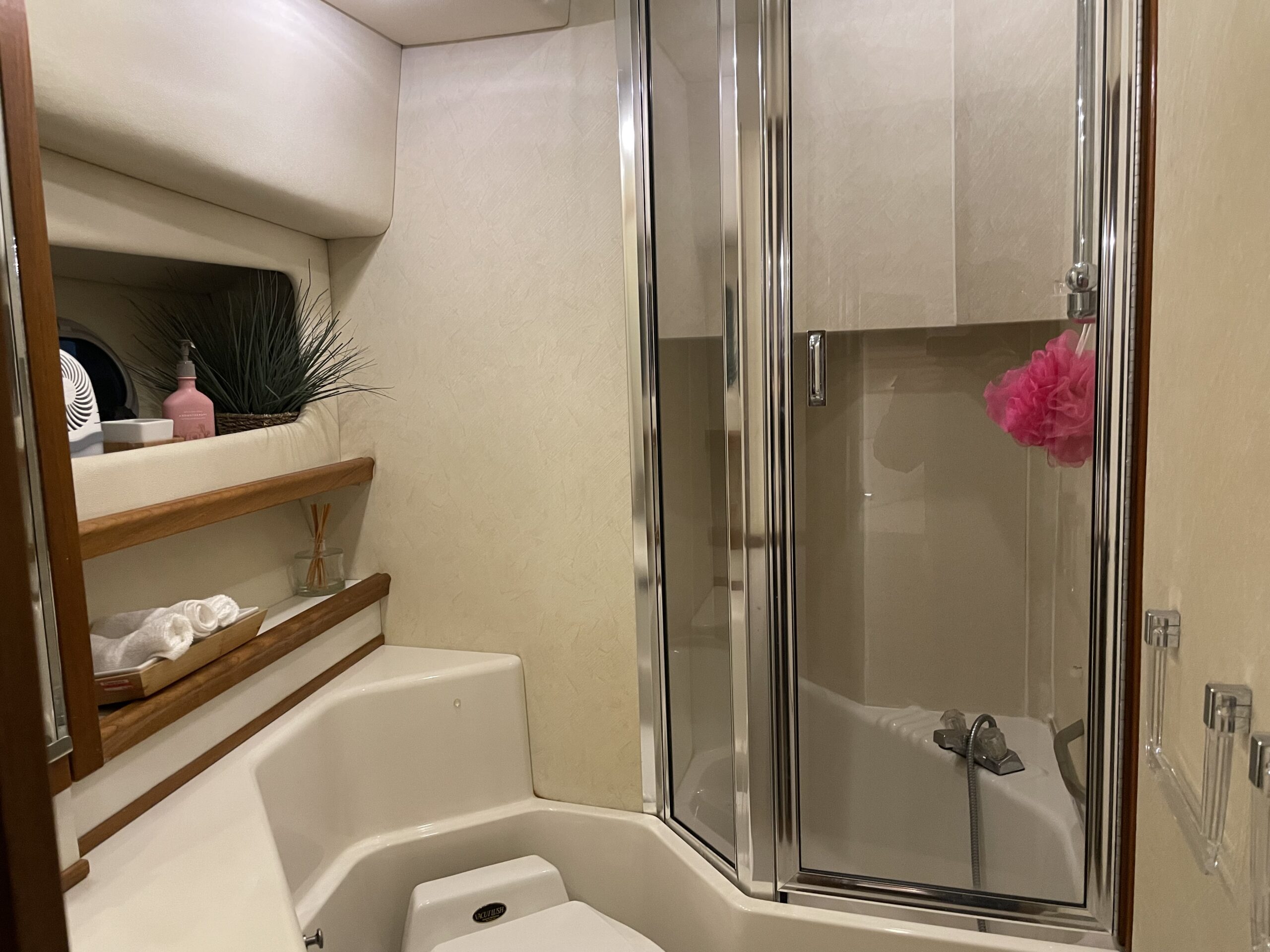

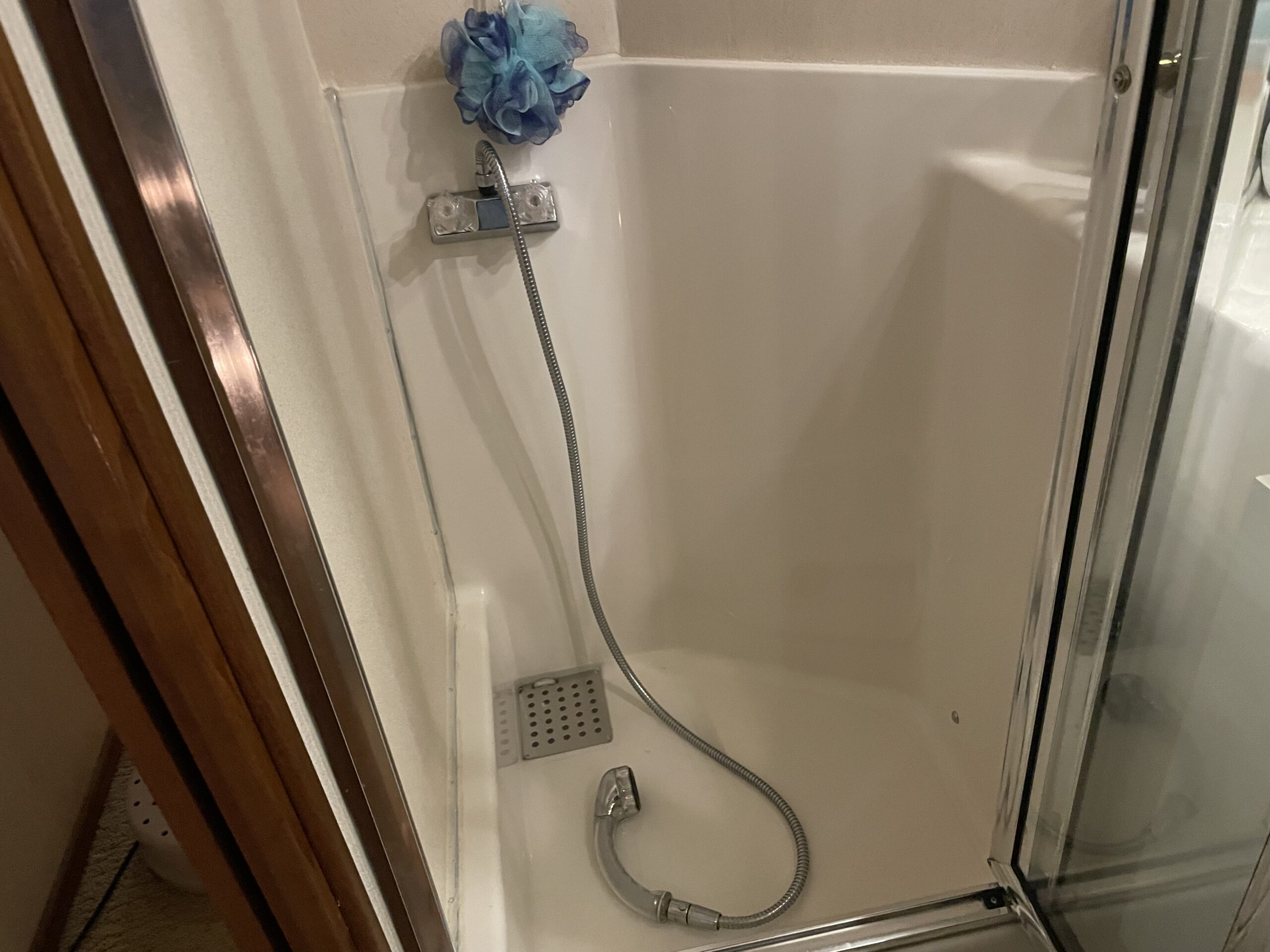

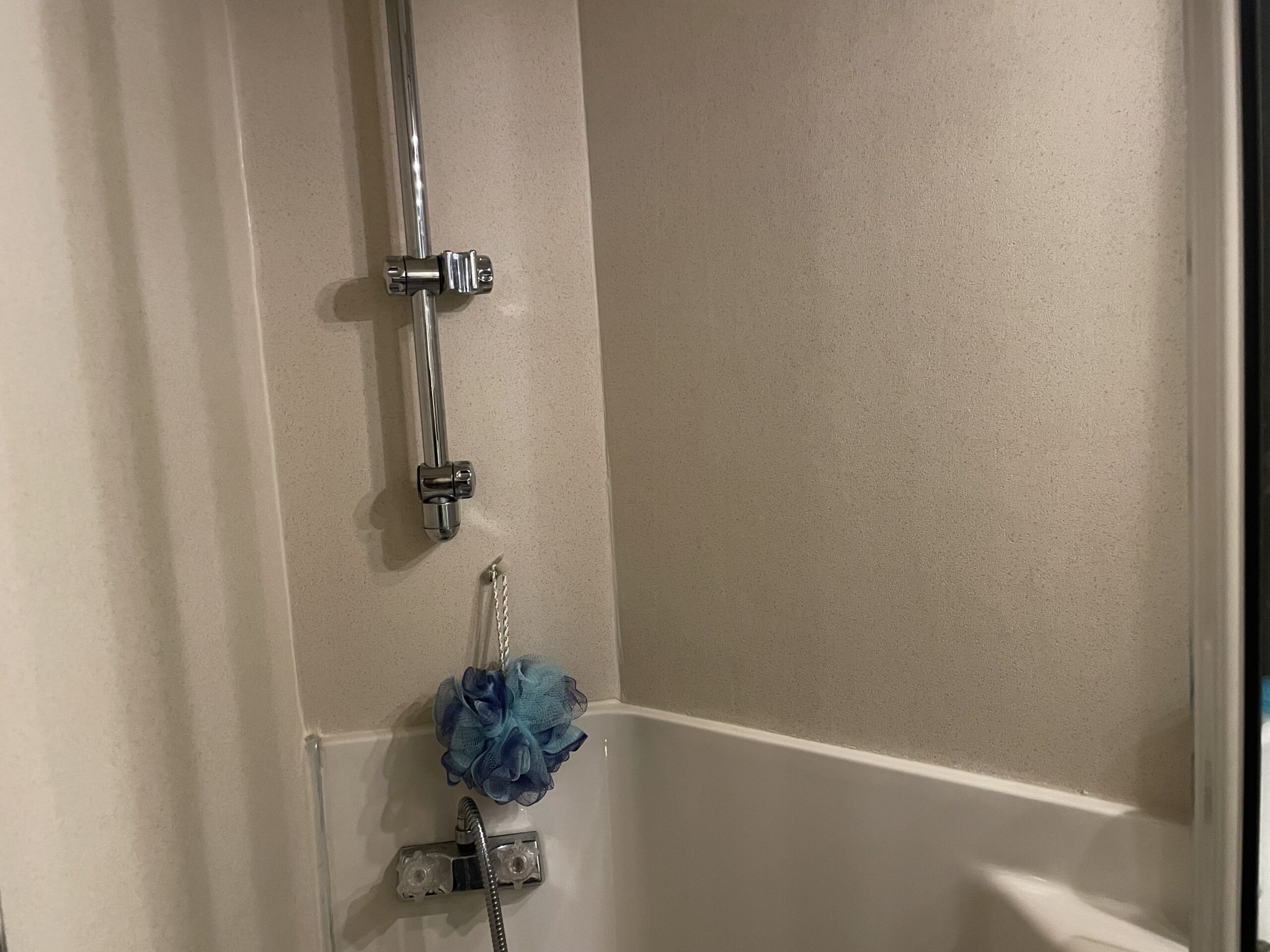

• Showers: (1) Tub/Shower + (1) Separate Shower Stall (both with sump pumps)

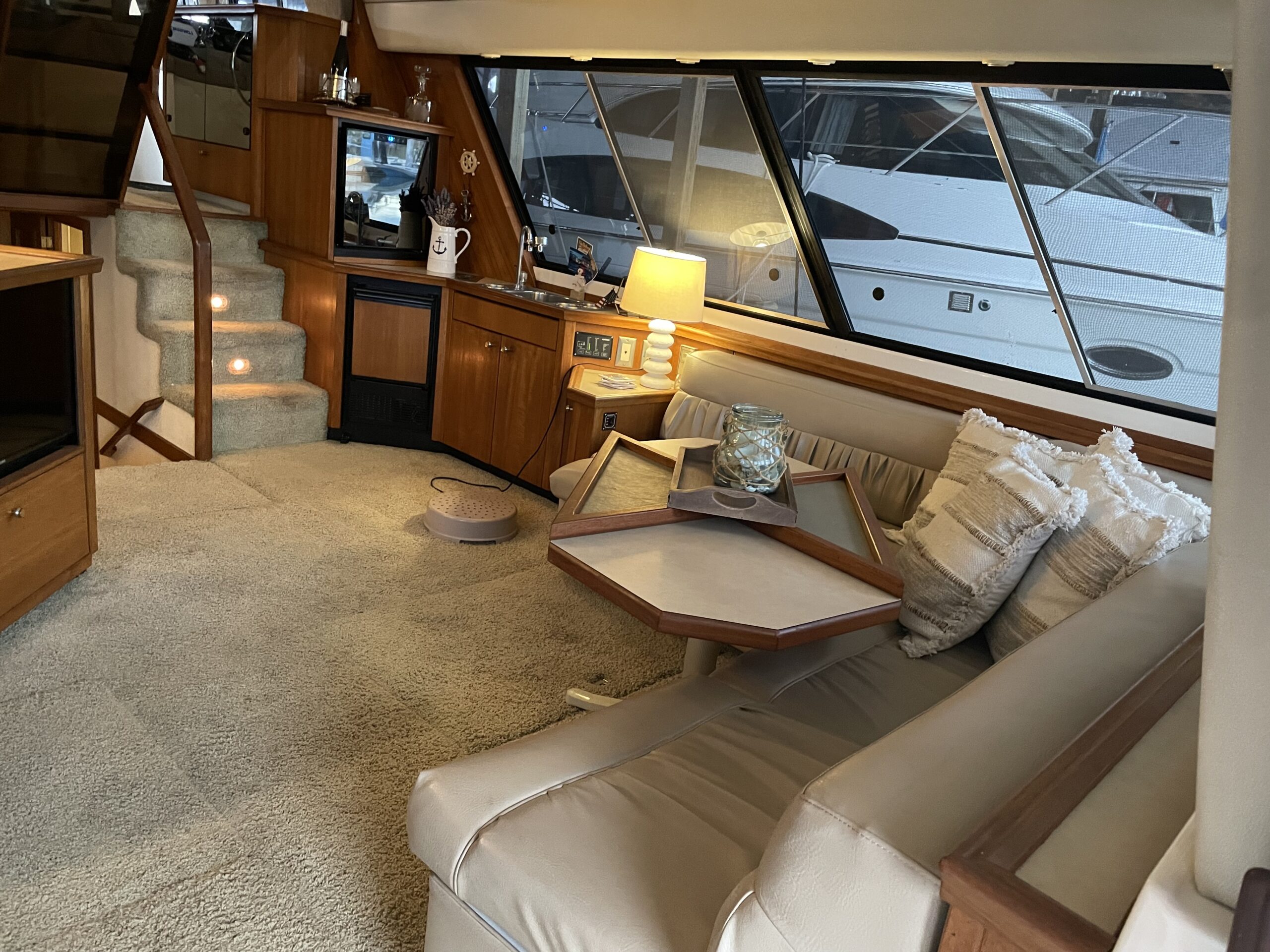

• Warm teak interior throughout
• Hot & cold pressure water system (Flojet freshwater pump)

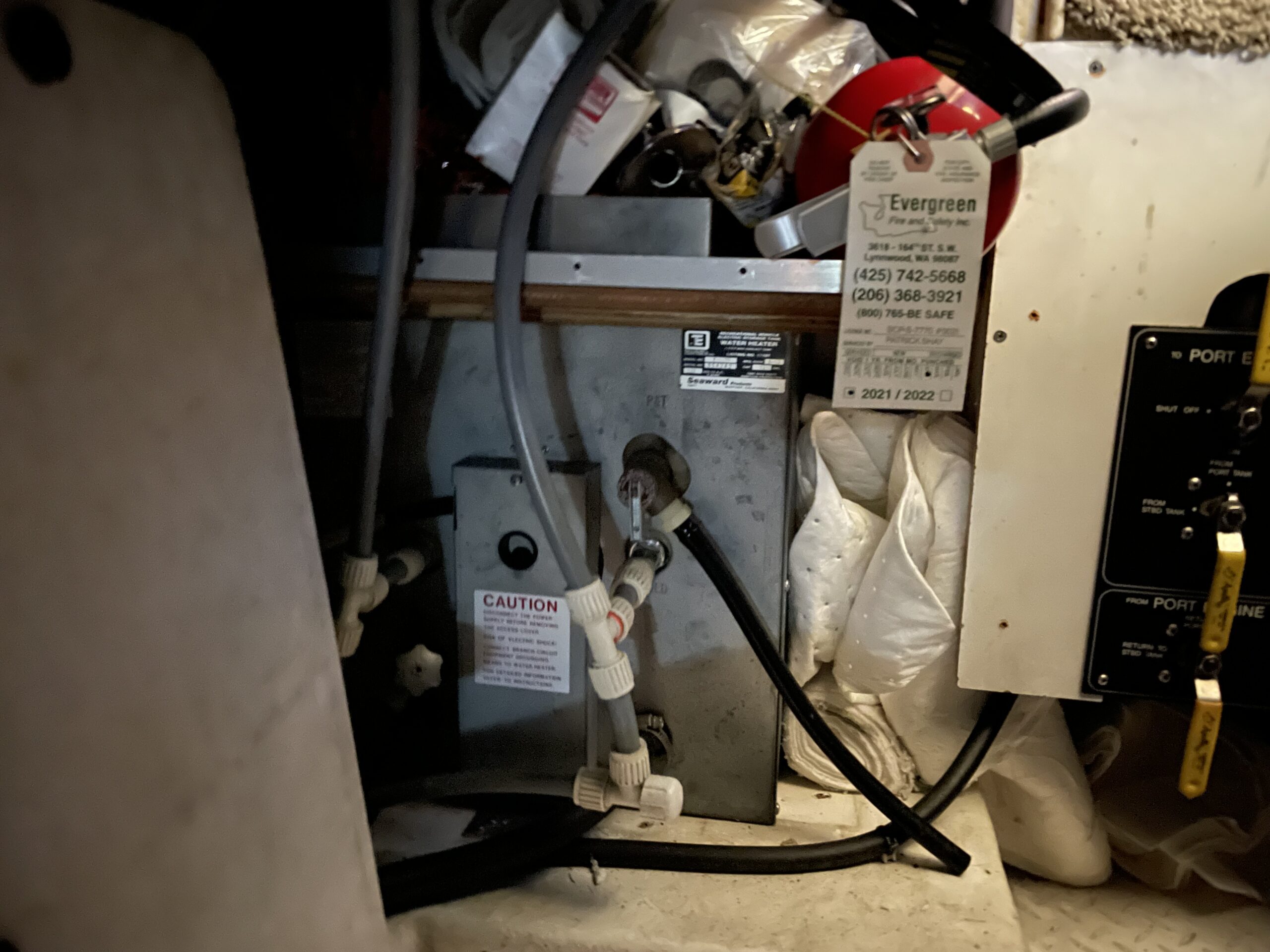

• Seaward hot water system

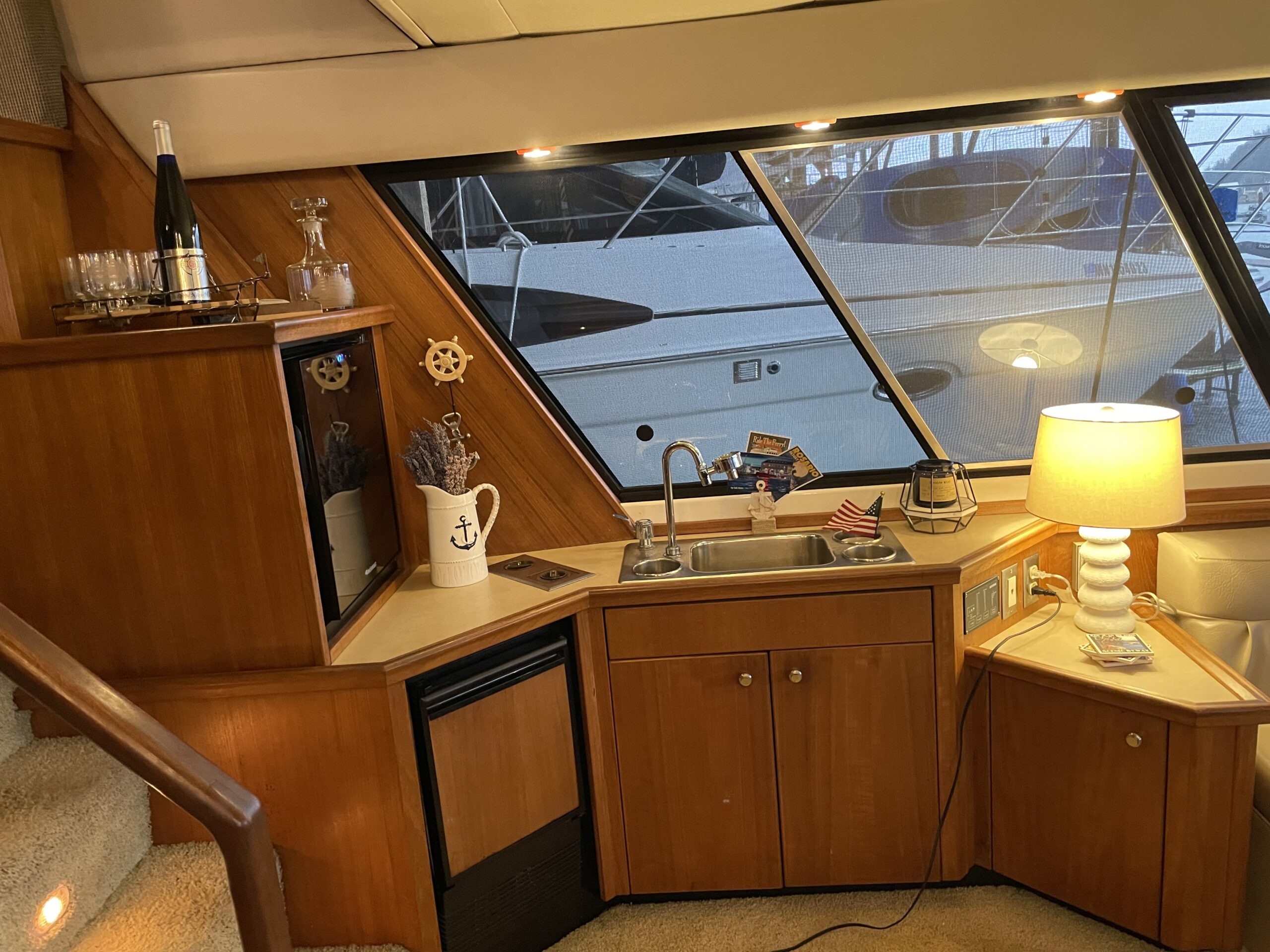

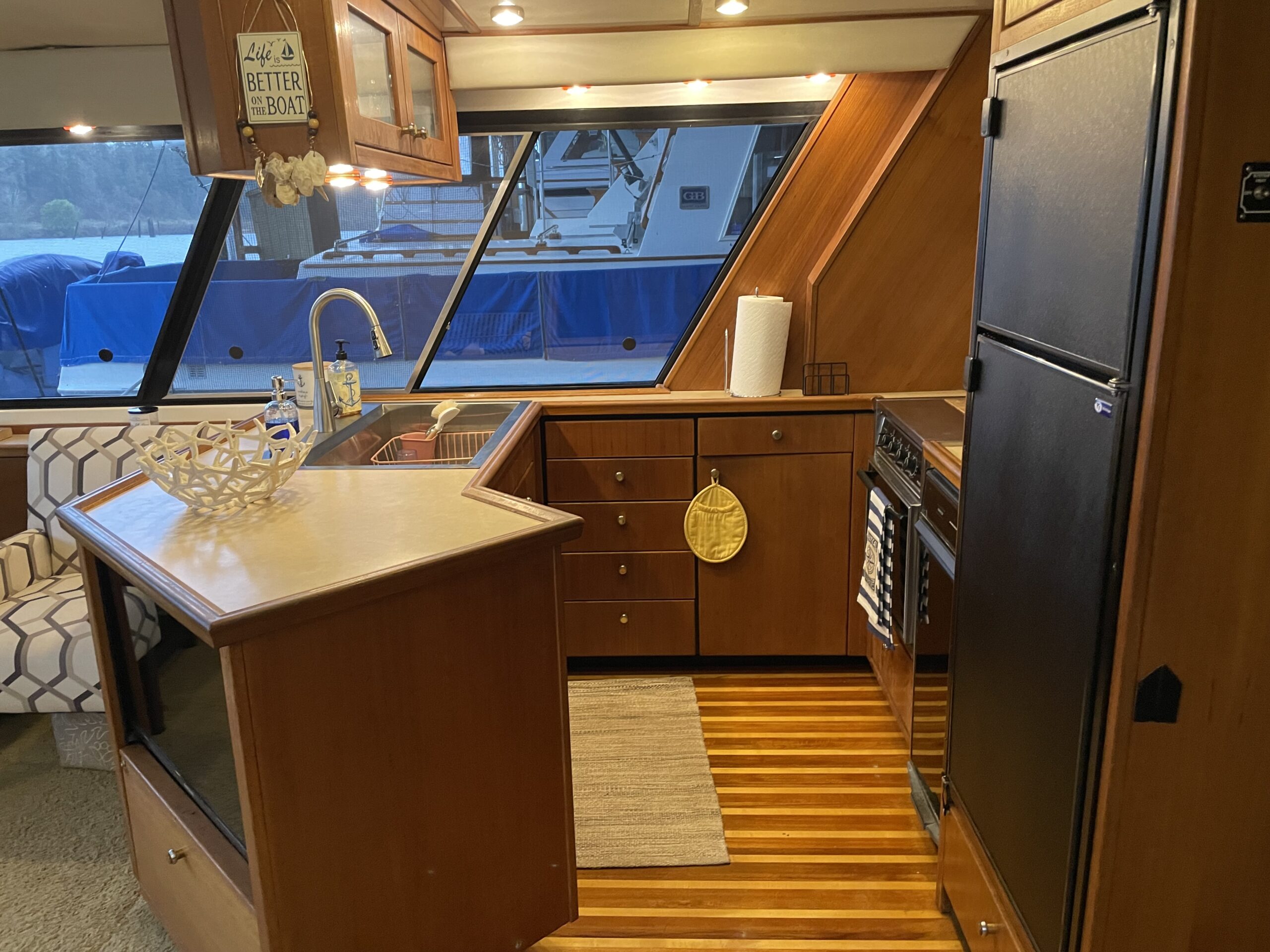

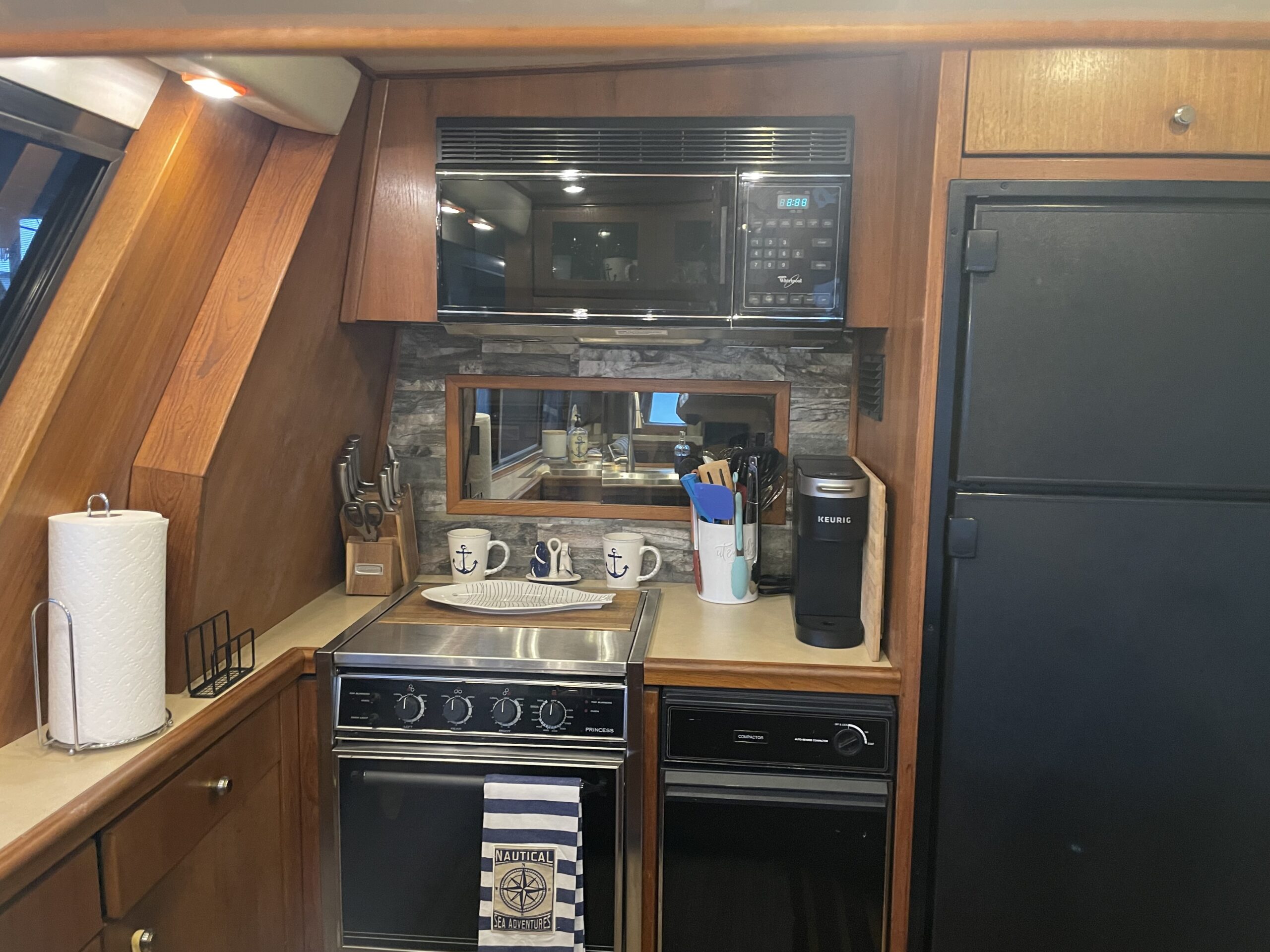

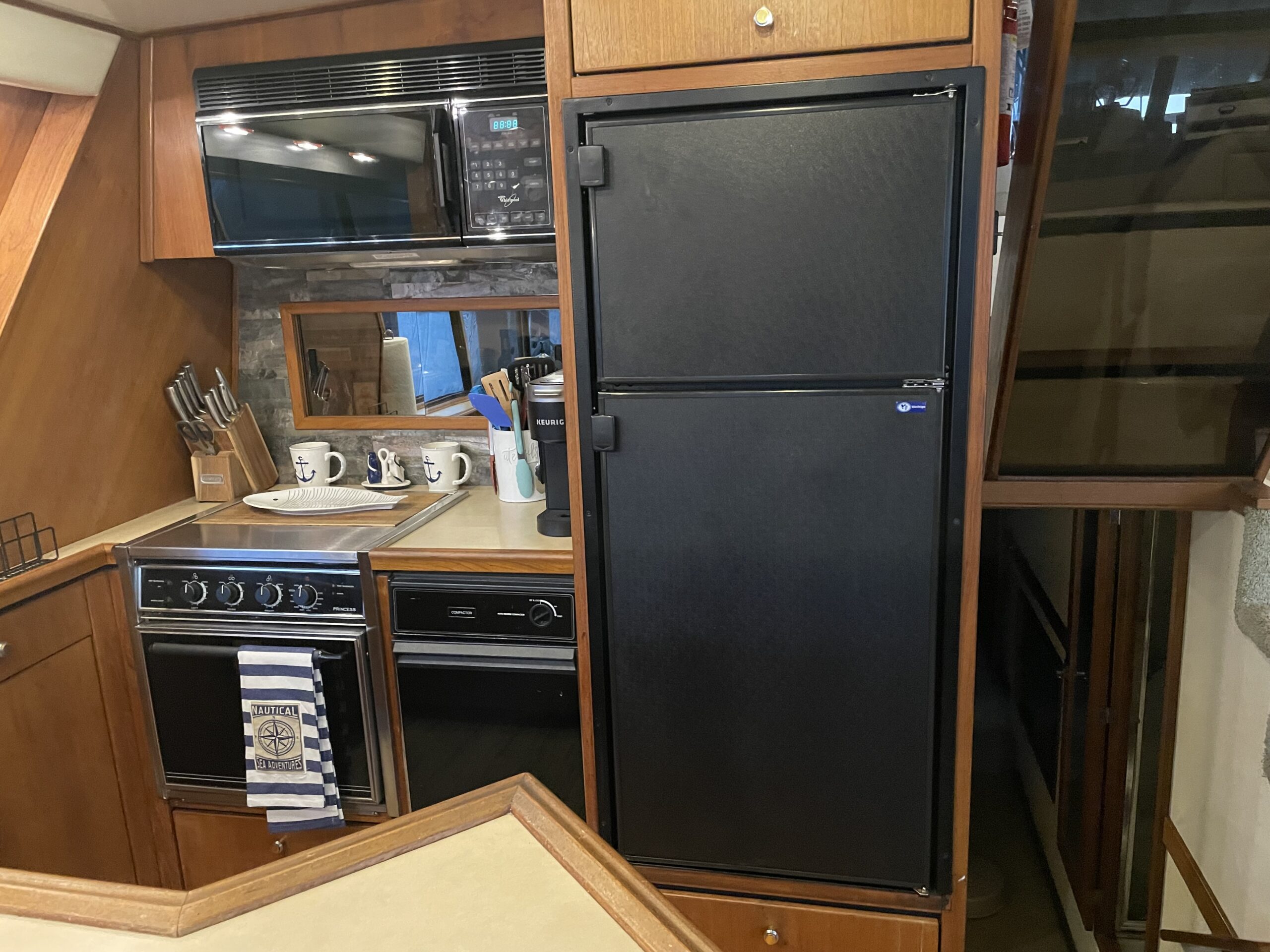

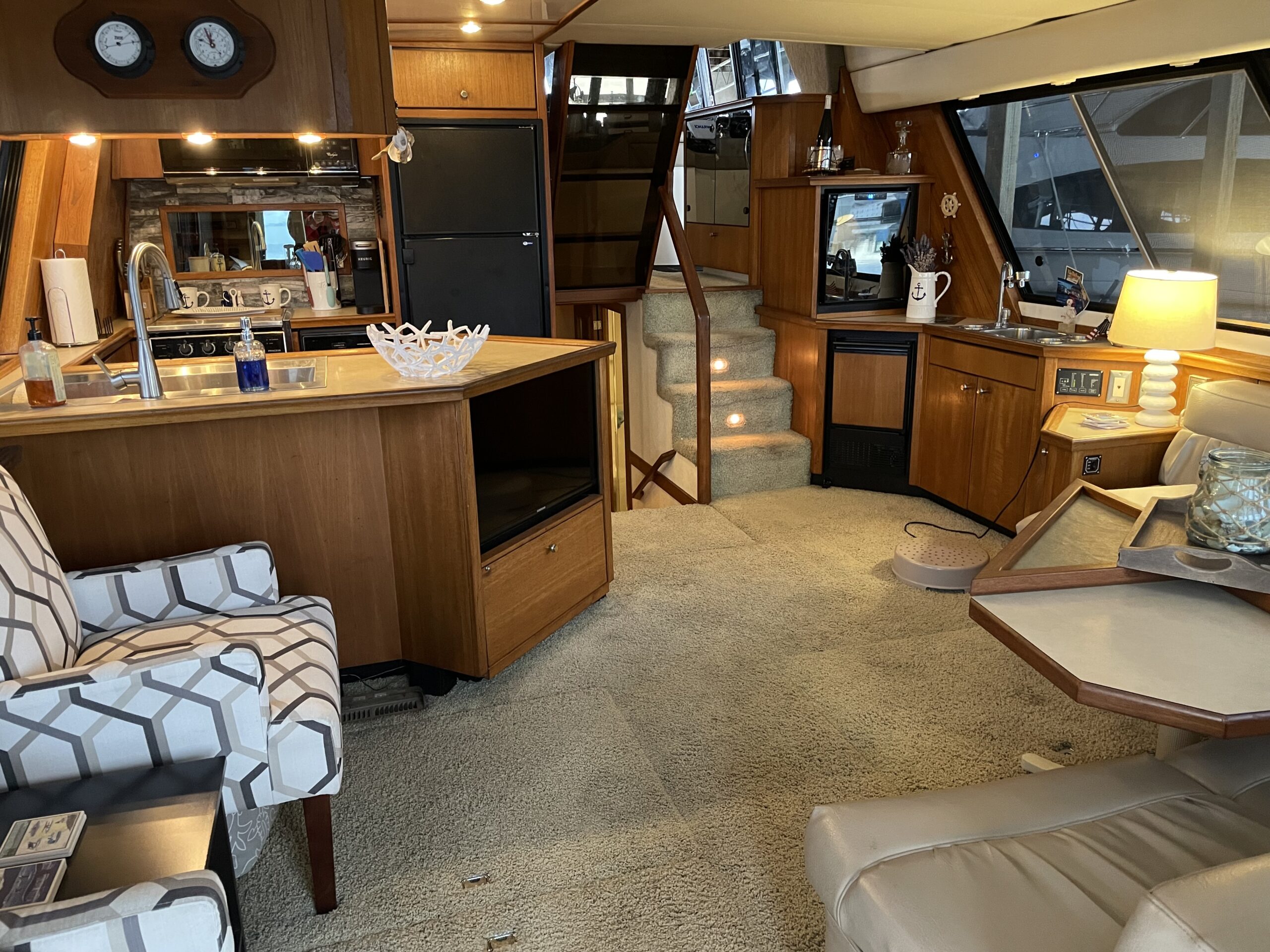

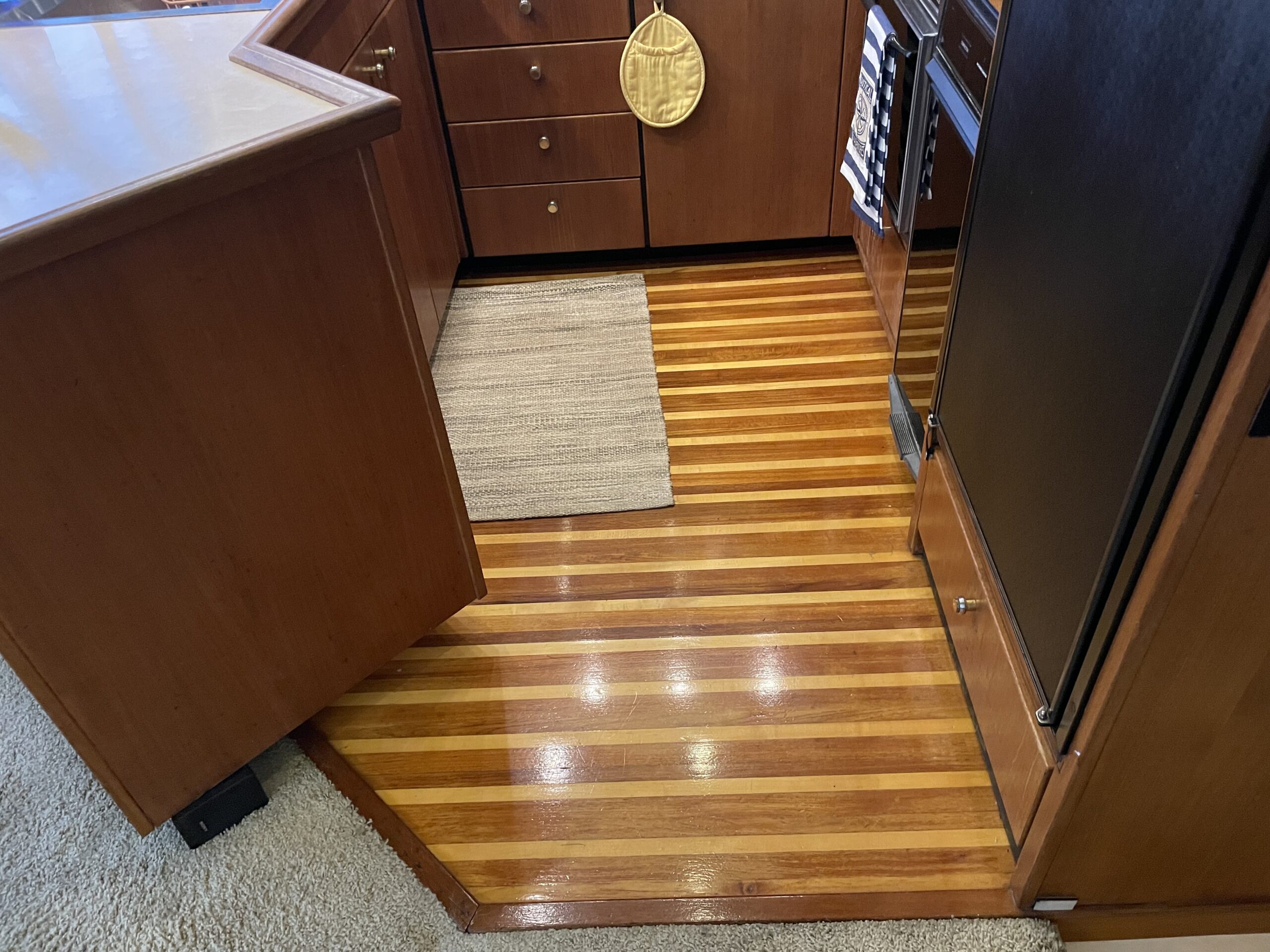

• Galley:

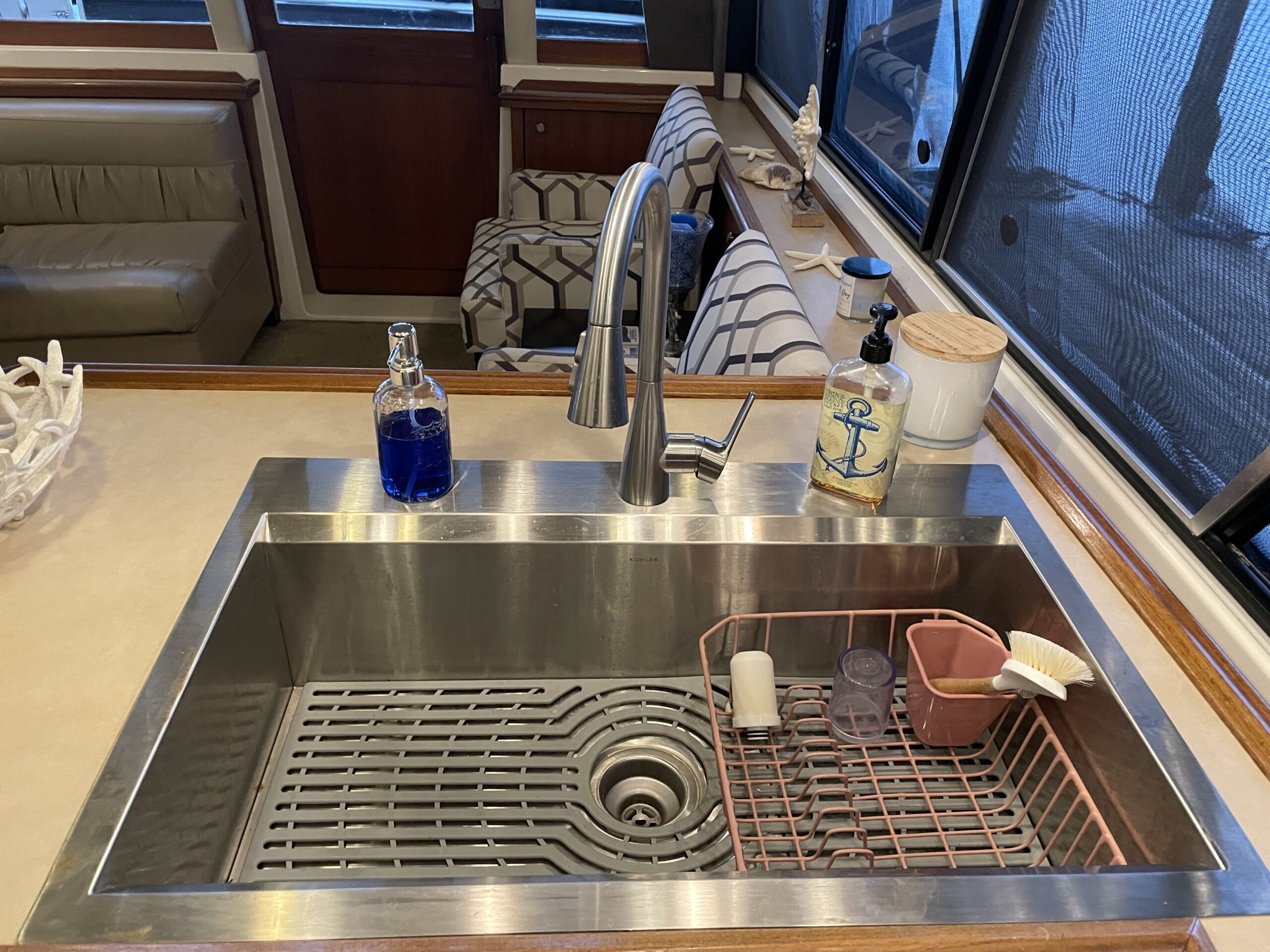

  • Extra-large sink with teak cover/cutting board
  • Real slate backsplash

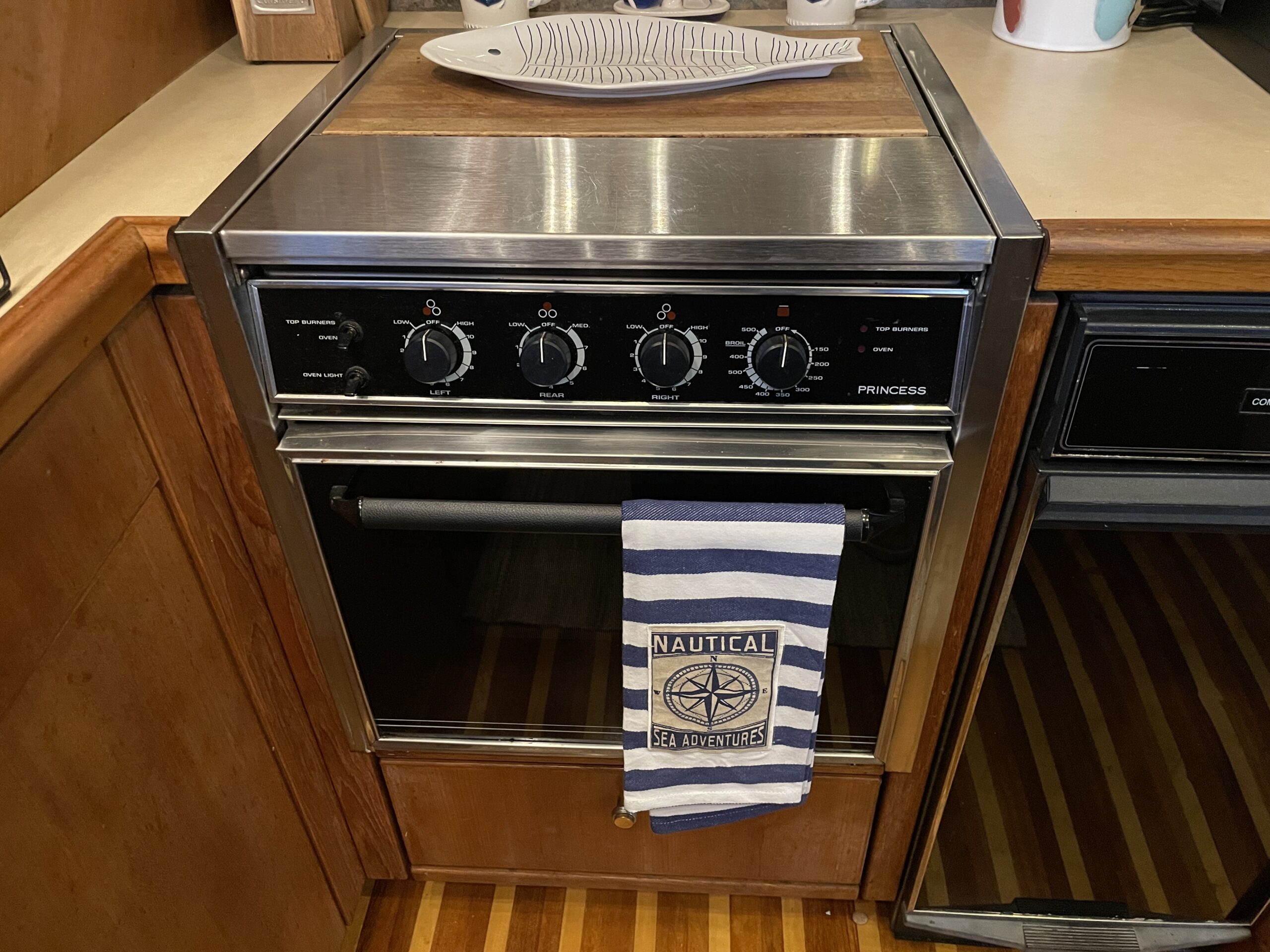

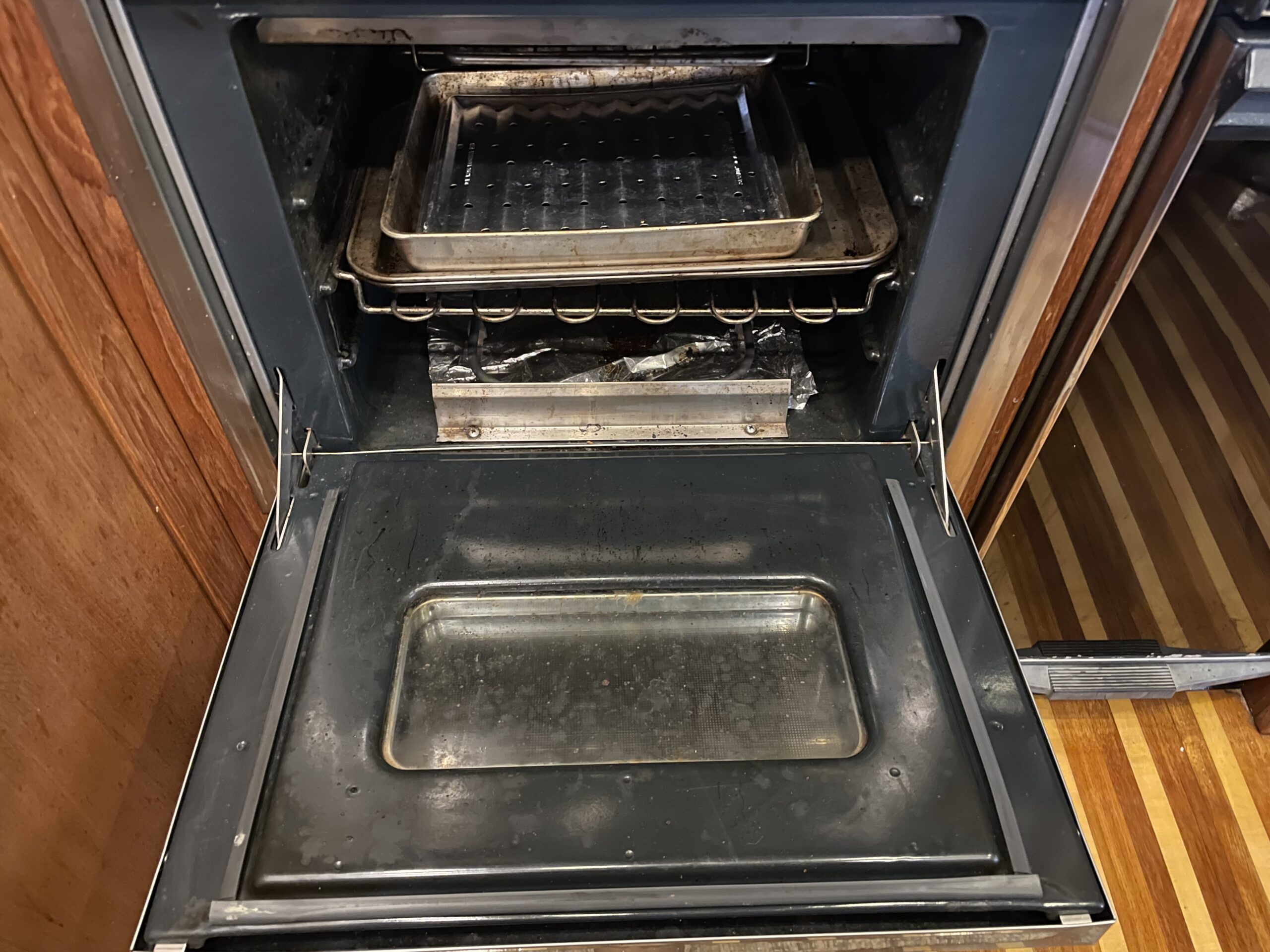

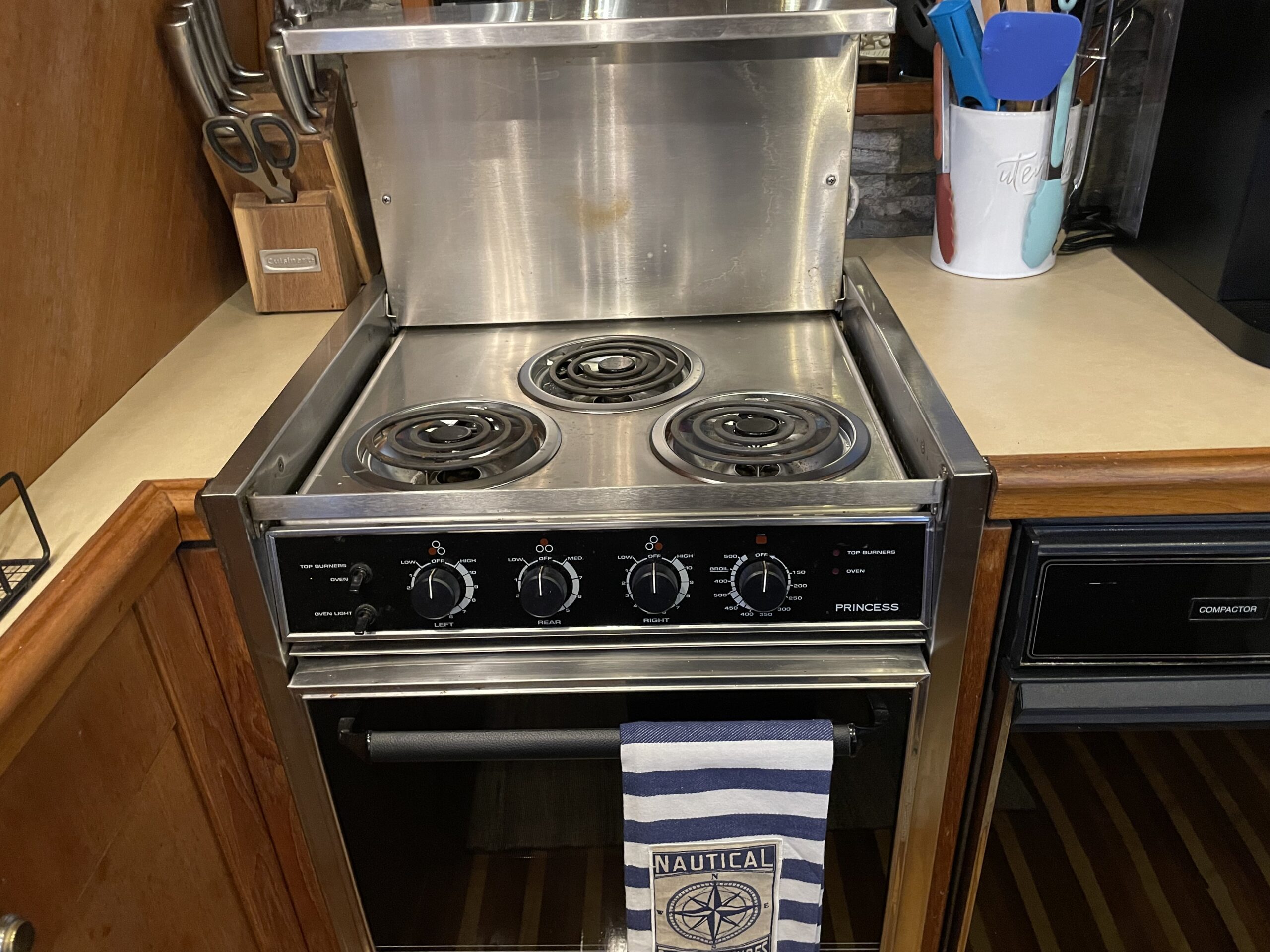

  • Princess 3-burner electric stove/oven (upgraded)
  • Whirlpool microwave

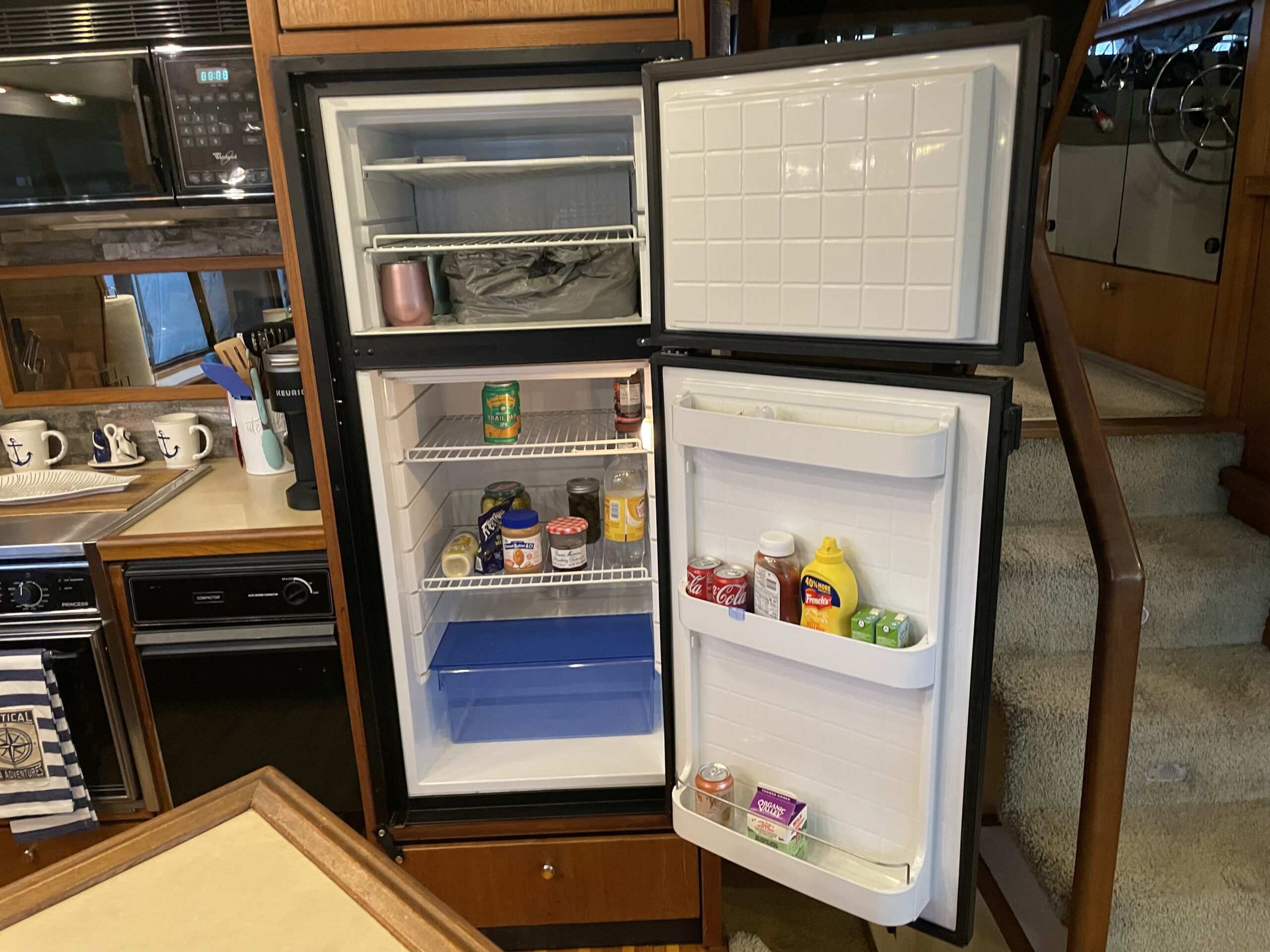

  • Vitrifrigo refrigerator/freezer (newer)

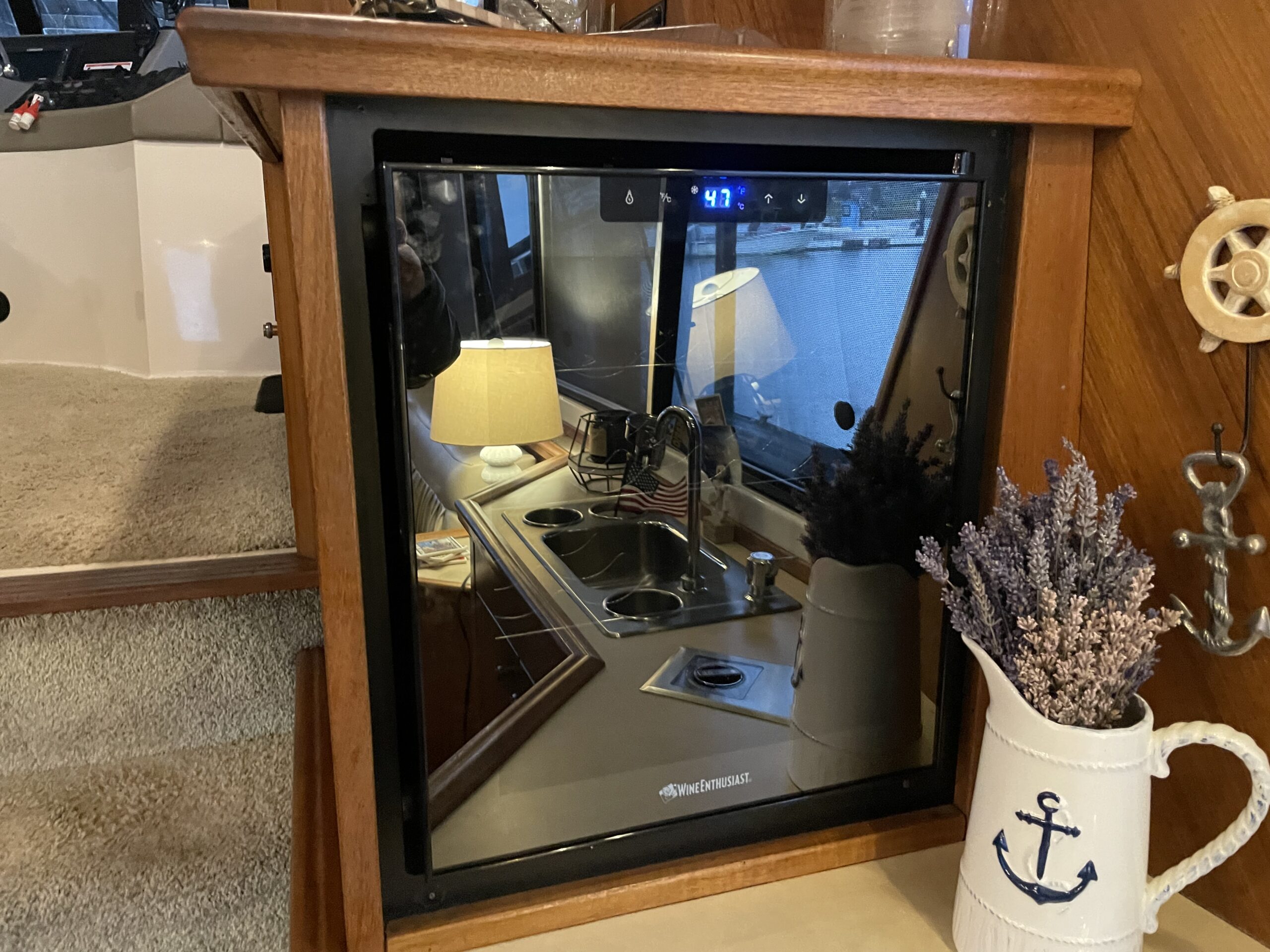

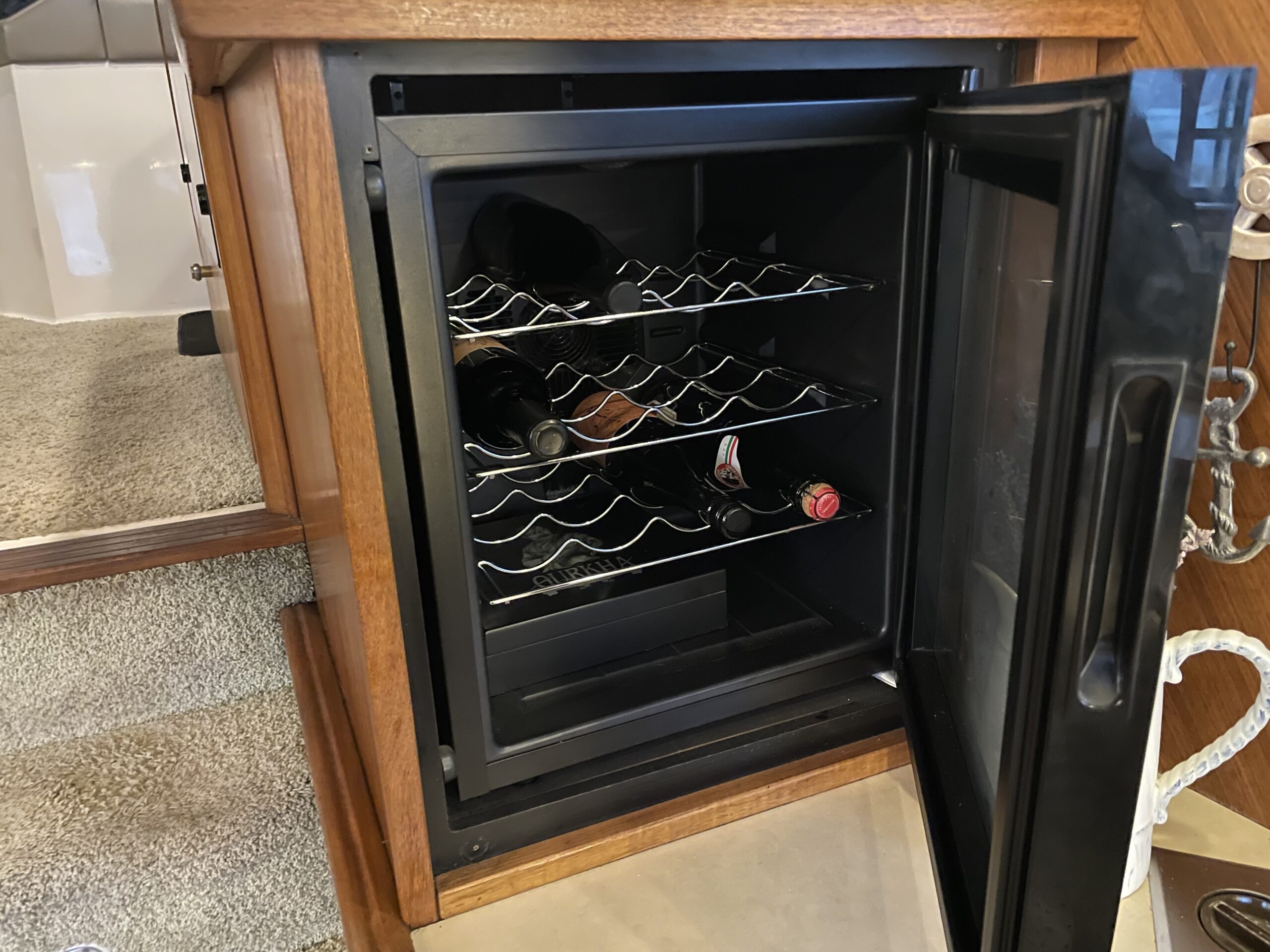

  • Wine Enthusiast wine cooler

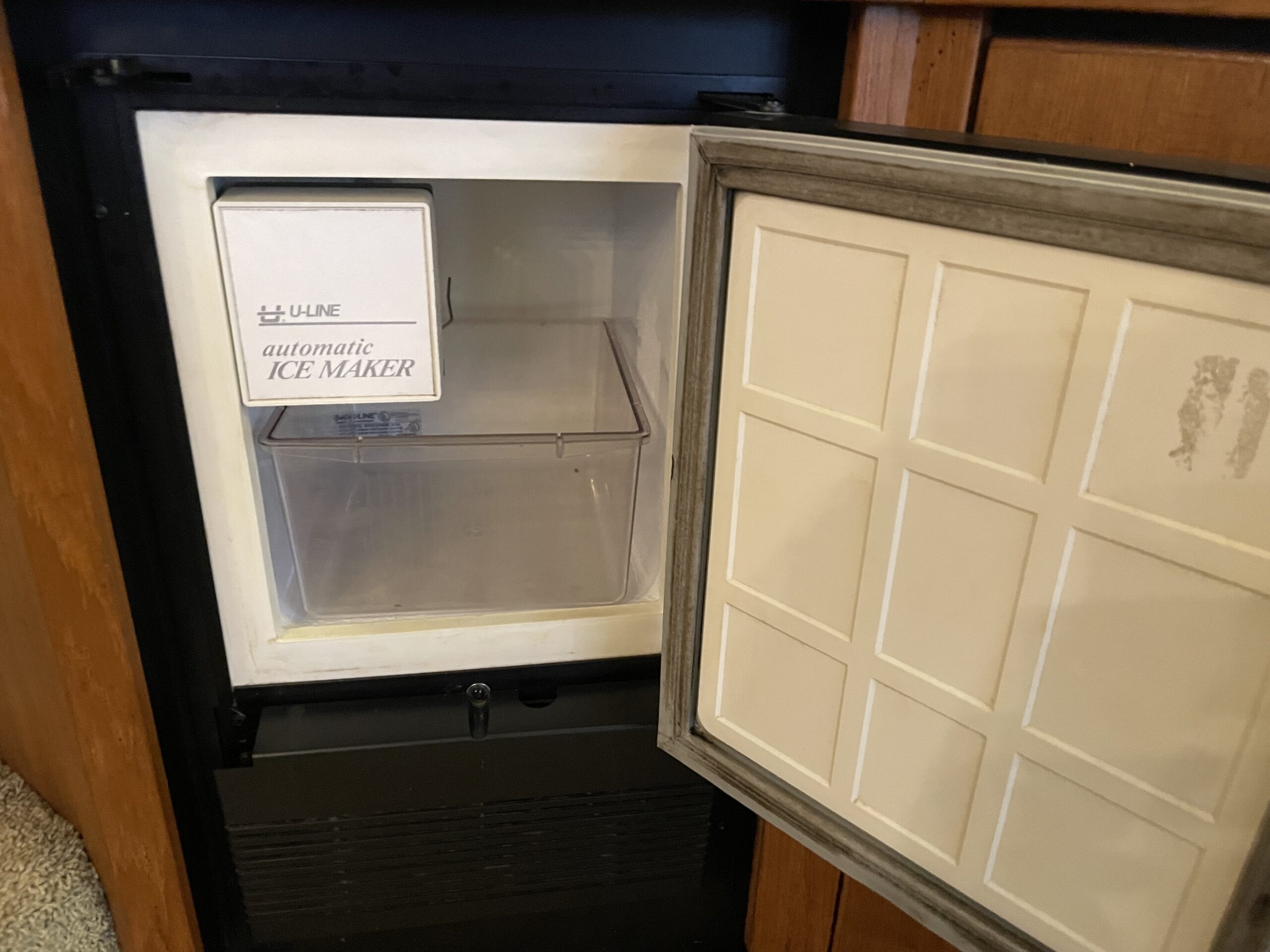

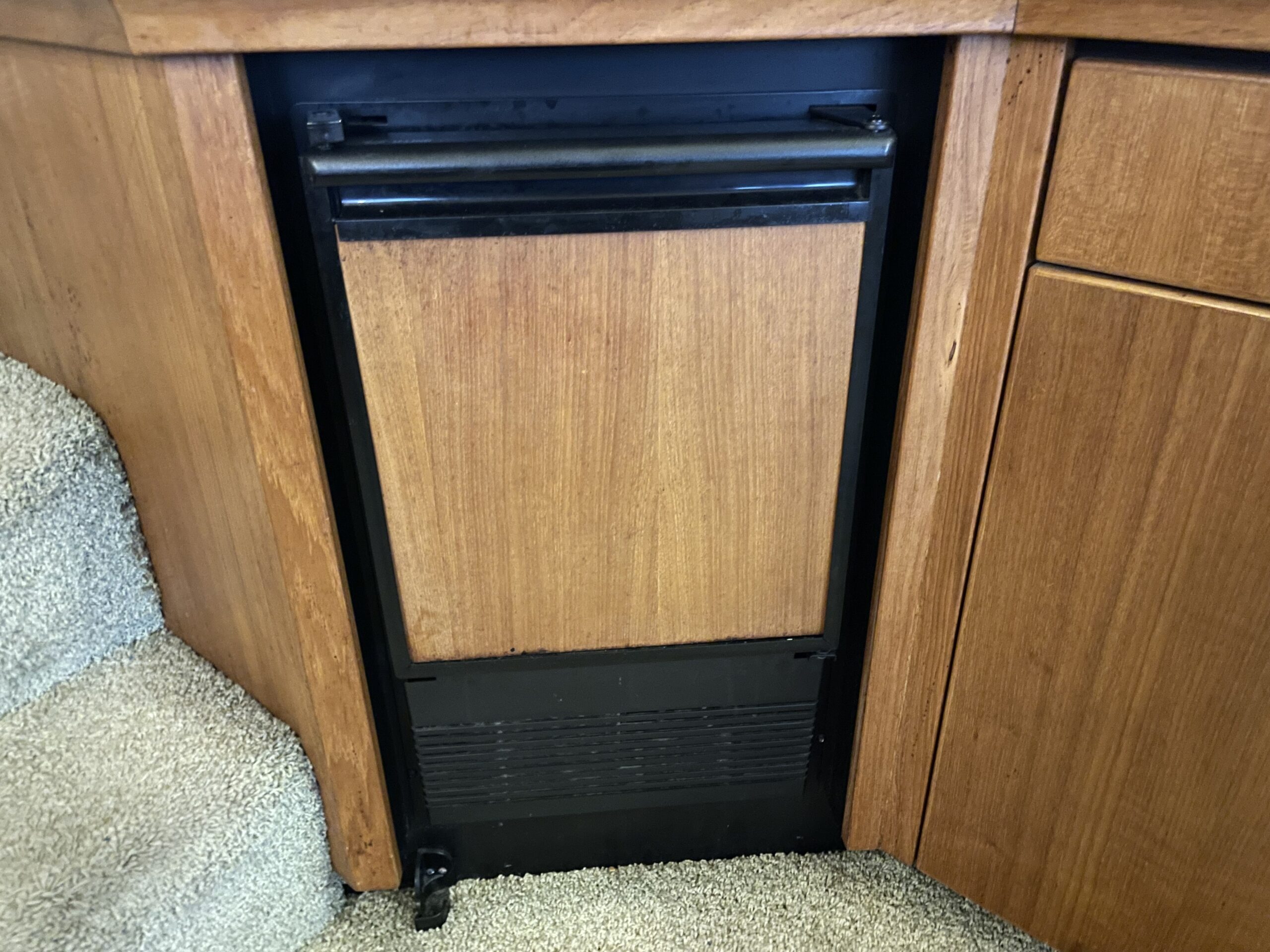

  • U-Line ice maker

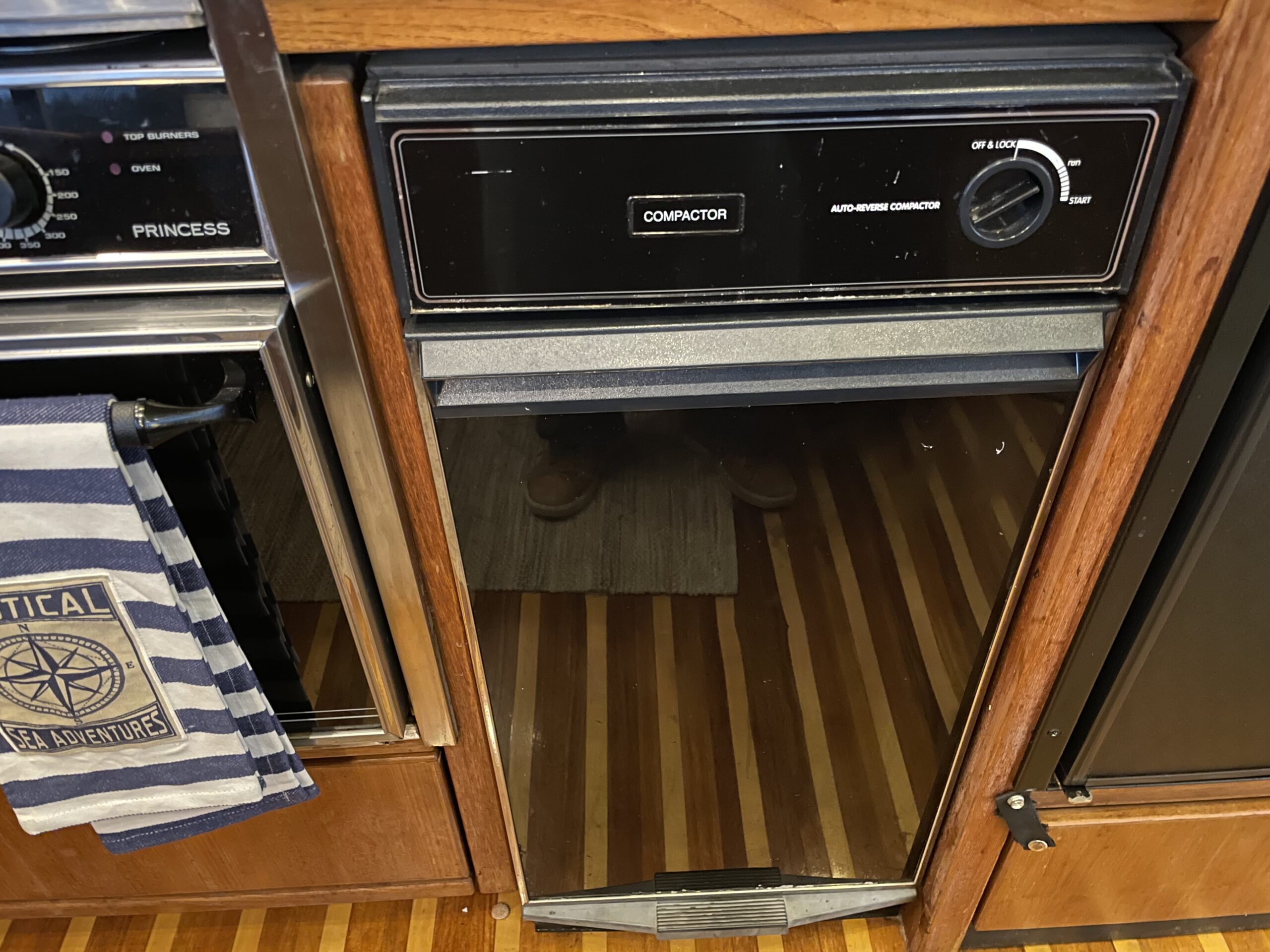

  • Trash compactor (auto-reverse)
  • Mixer/blender
• Heating:
  • Webasto diesel-fired heat
  • 110V AC built-in forced air heat
  • Red Dot heat off engine
• LED interior lighting
• Kenwood KMR-M315BT stereo (Pandora / iHeart / Sirius)

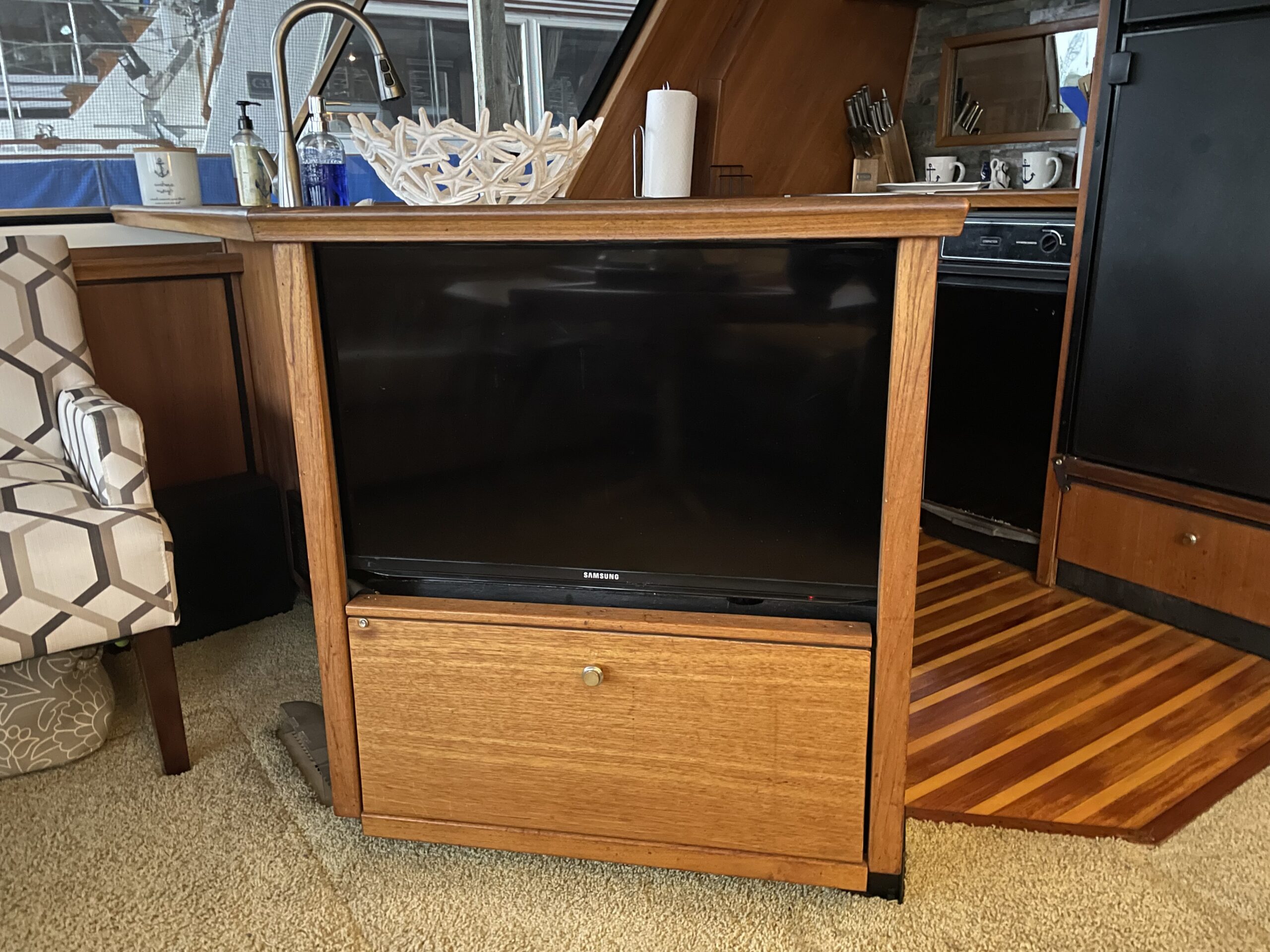

• Samsung large flat screen TV
• Central vacuum

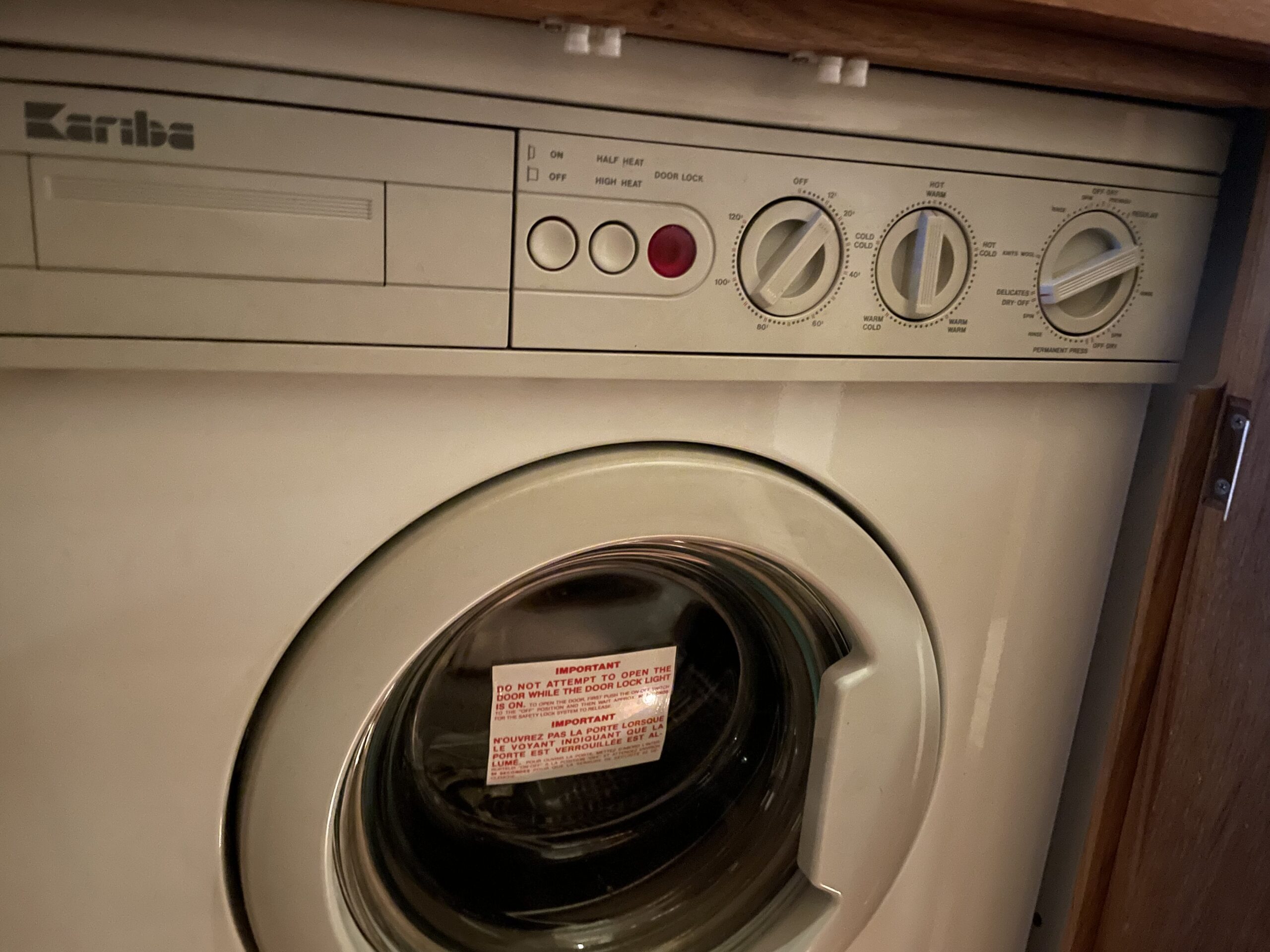

• Kariba washer/dryer

Mechanical

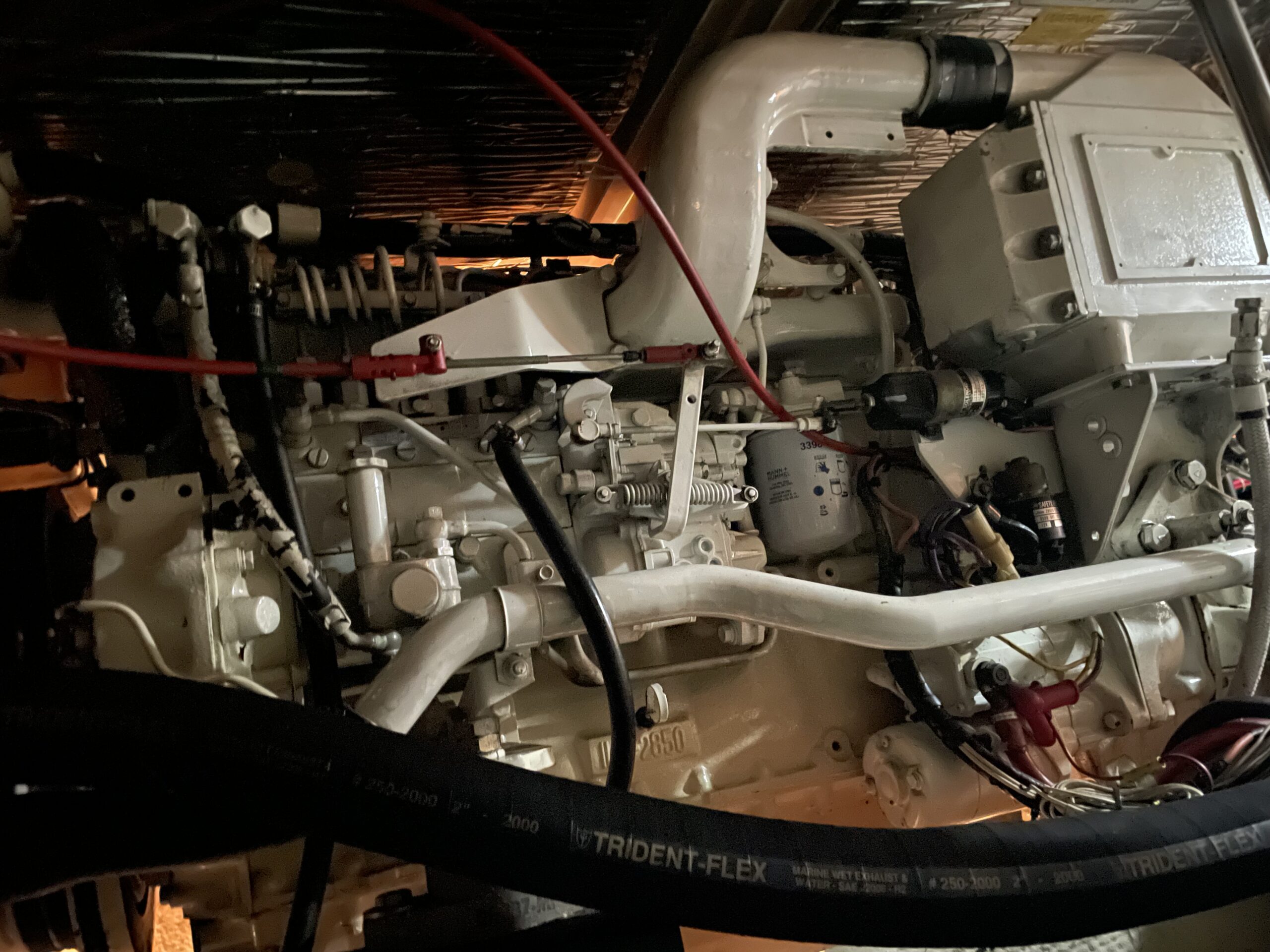

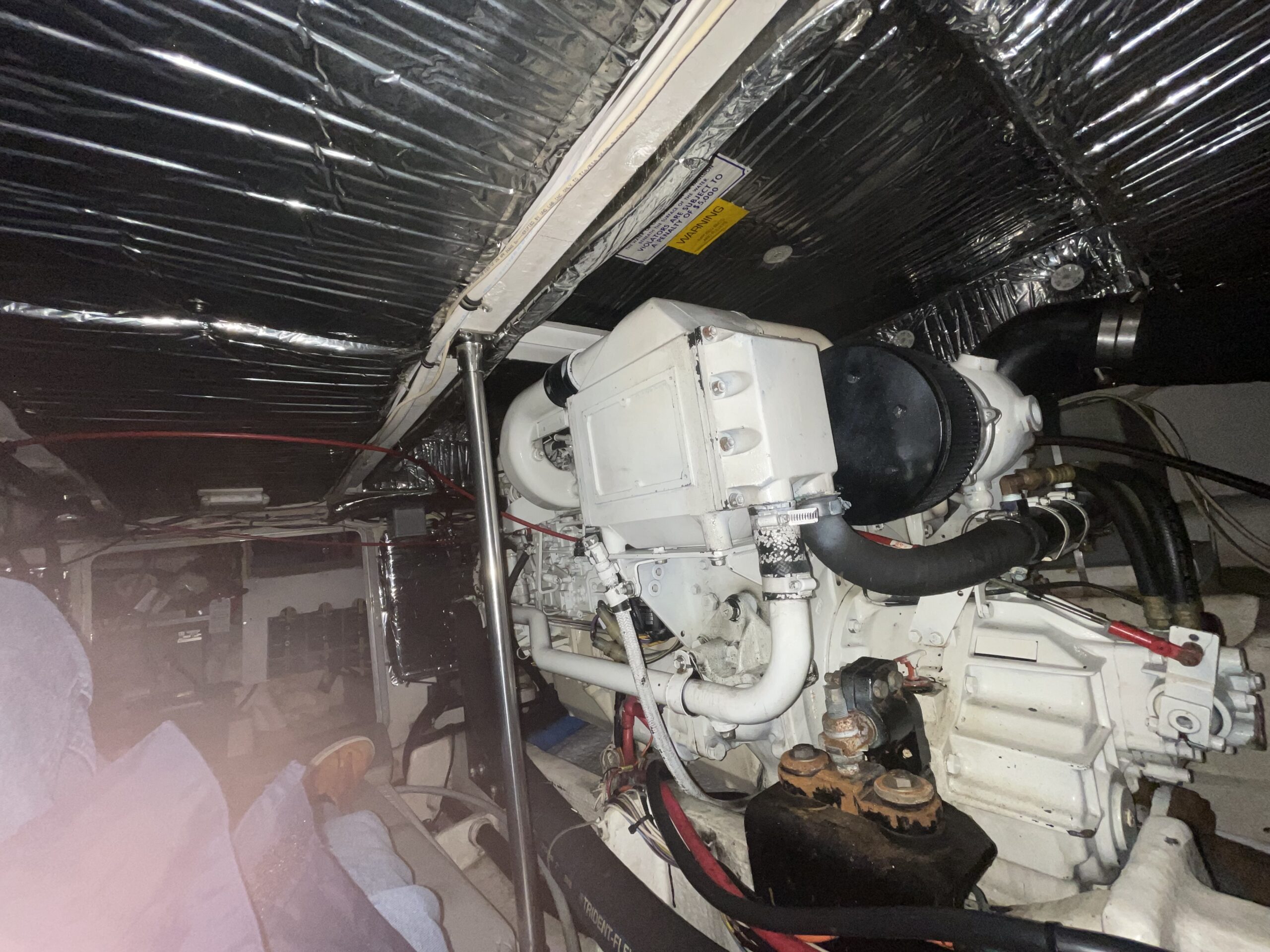

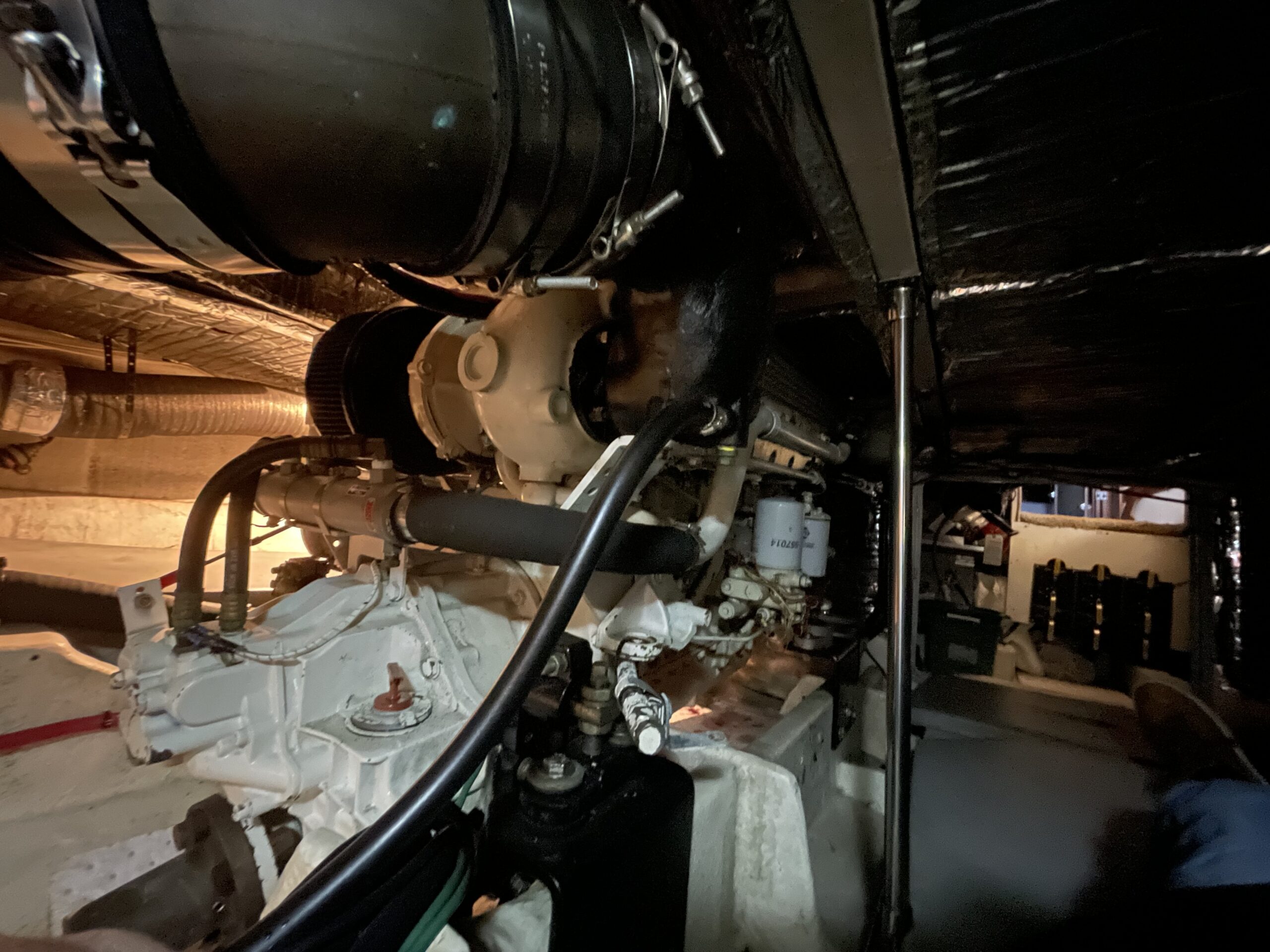

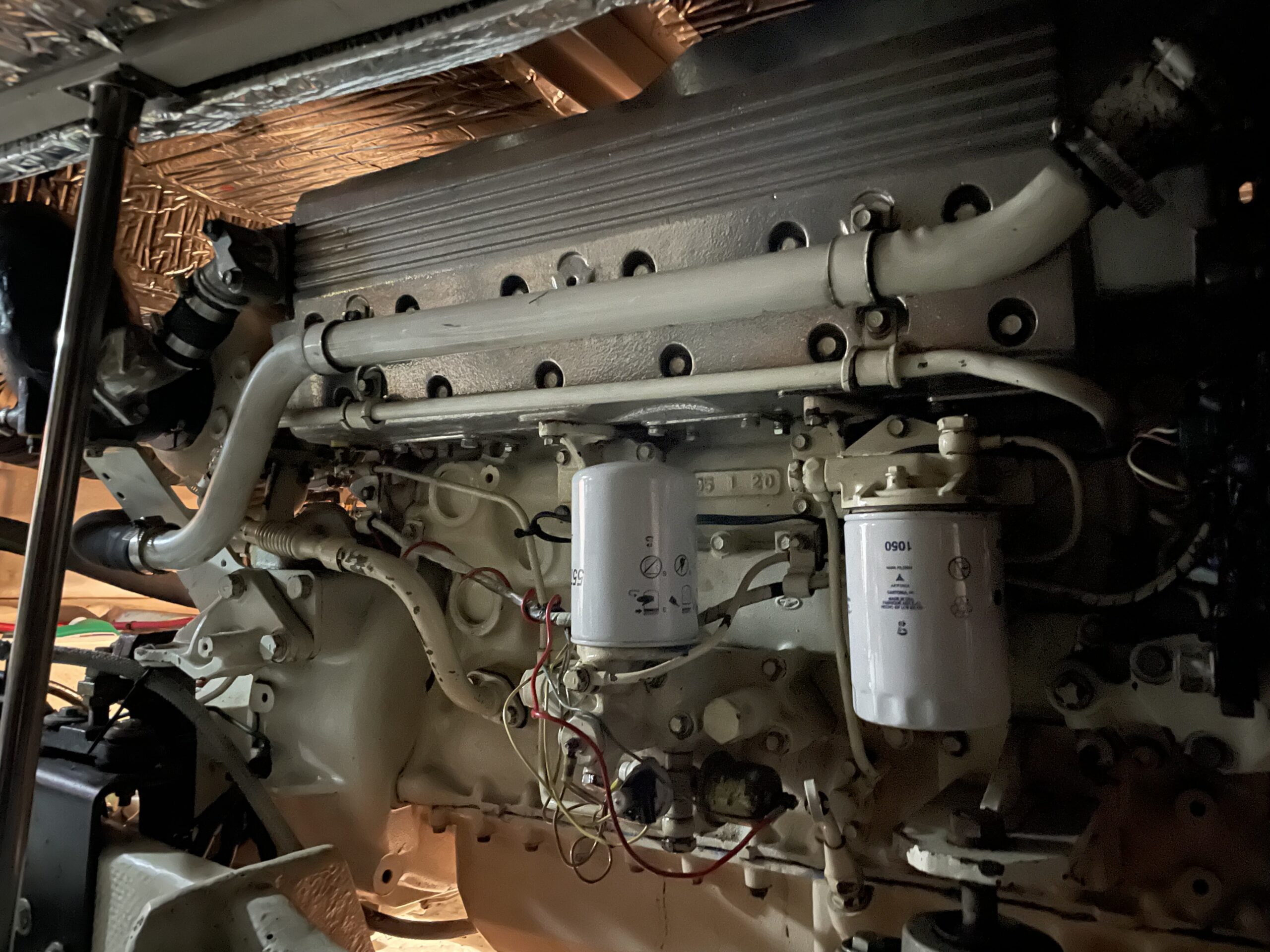

• Engines: Twin Hino W06 CTI (Ceramic Coated) – 310hp each (620hp total)
  Turbocharged, after-cooled, freshwater-cooled, direct-drive diesel
• Engine Hours:
  • Port: 3018 hrs (rebuilt at 2015 hrs)
  • Starboard: 3017 hrs (rebuilt at 2013 hrs)
• Service: Serviced Sept 2024
• Cruise: 1700 RPM @ 8 knots @ 5 GPH total (both engines)
• Economical cruise range: 8–12 knots (higher speeds available)
• Dual lever shift & throttle controls
• Wet exhaust
• Major Service (Dec 2024):
  • Injectors serviced
  • Turbos serviced
  • Raw water pumps rebuilt
  • Impellers new
  • Risers jetted & serviced
• Heat exchangers ceramic coated
• Manicoolers/exhaust manifolds ceramic coated

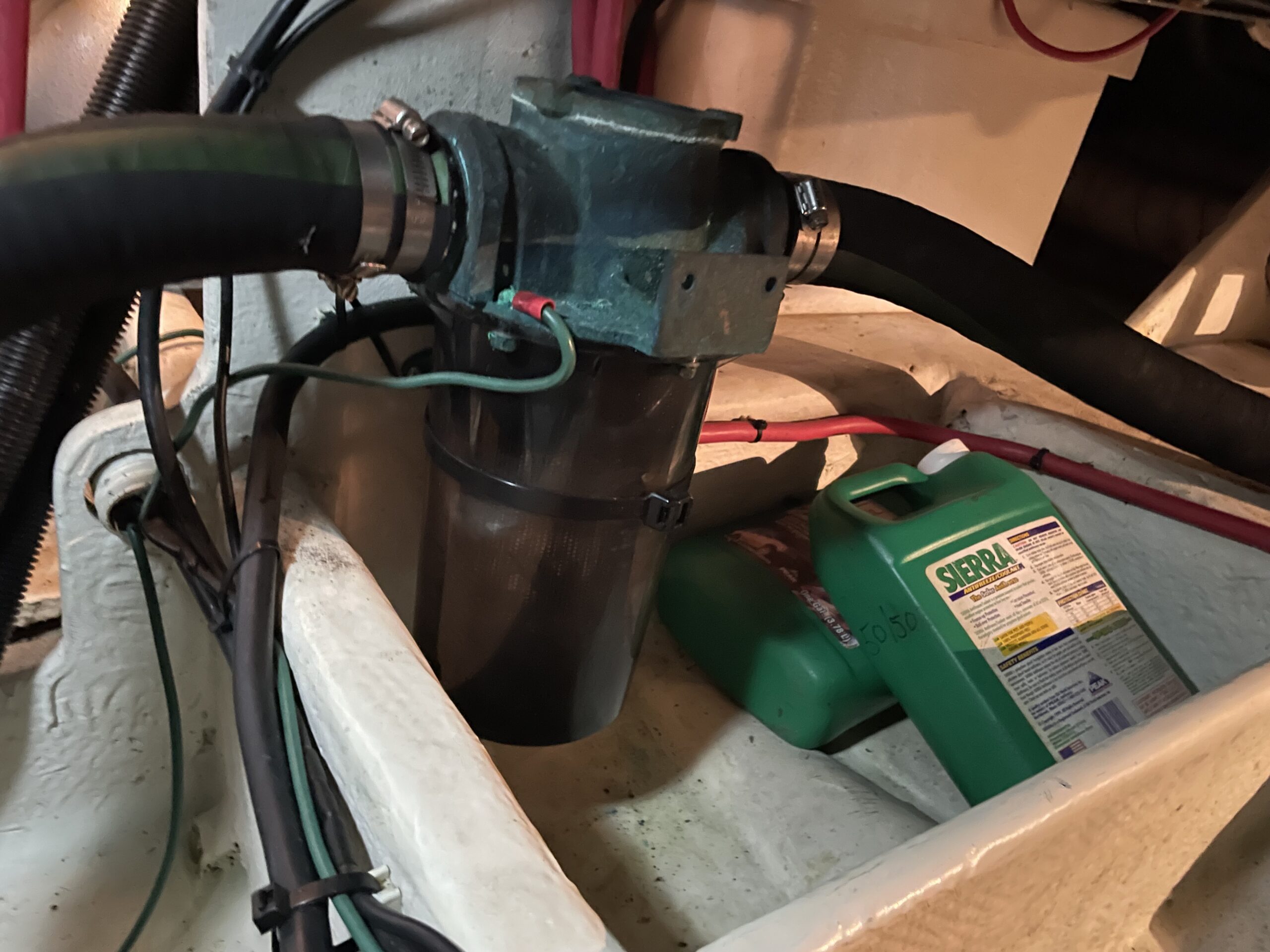

• Bronze raw water intake valves
• Engine mounts: captive rubber block
• Fuel filters: Racor primary / OEM secondary on-engine
• Transmissions: Hurth (serviced 2024)

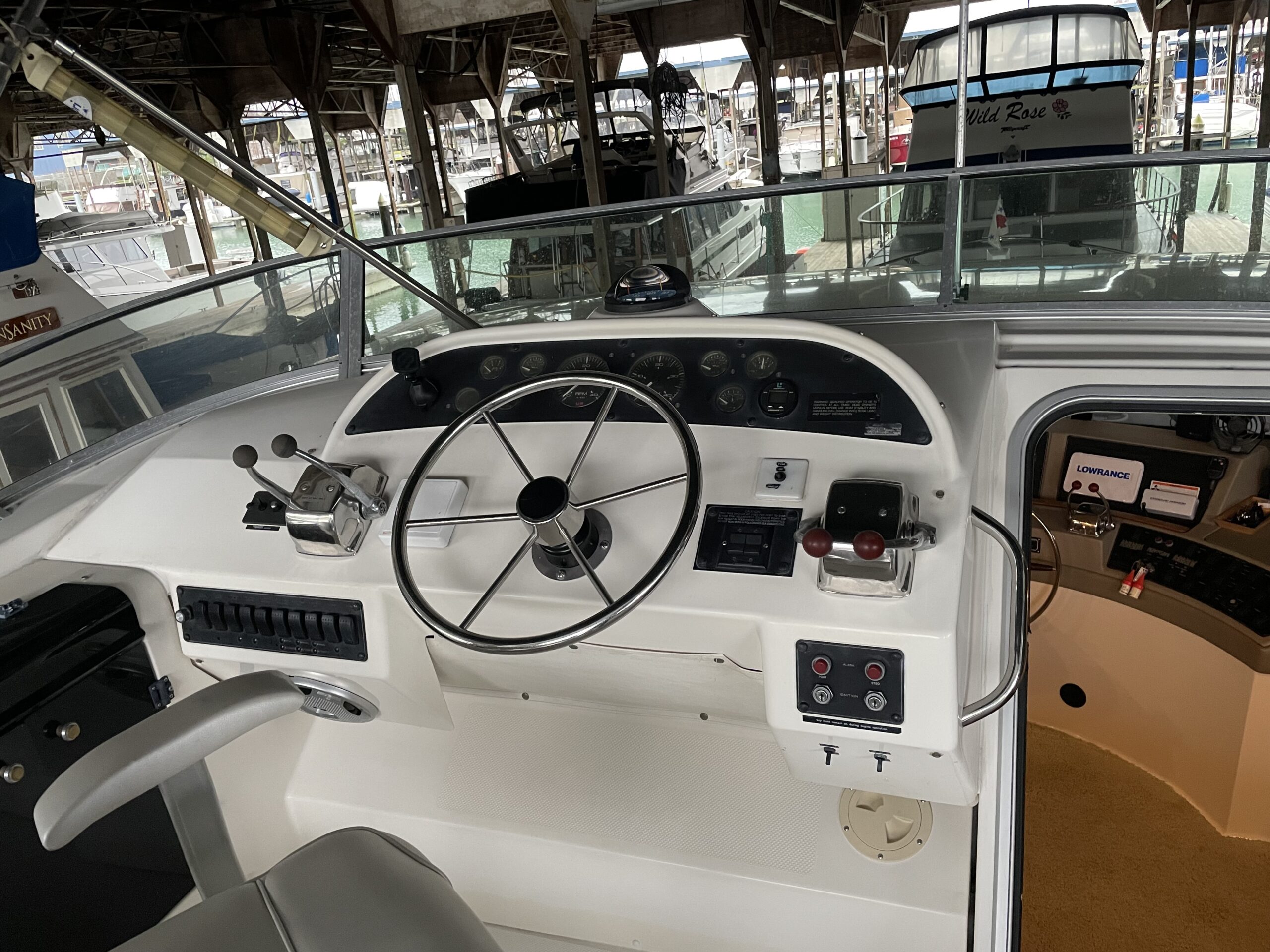

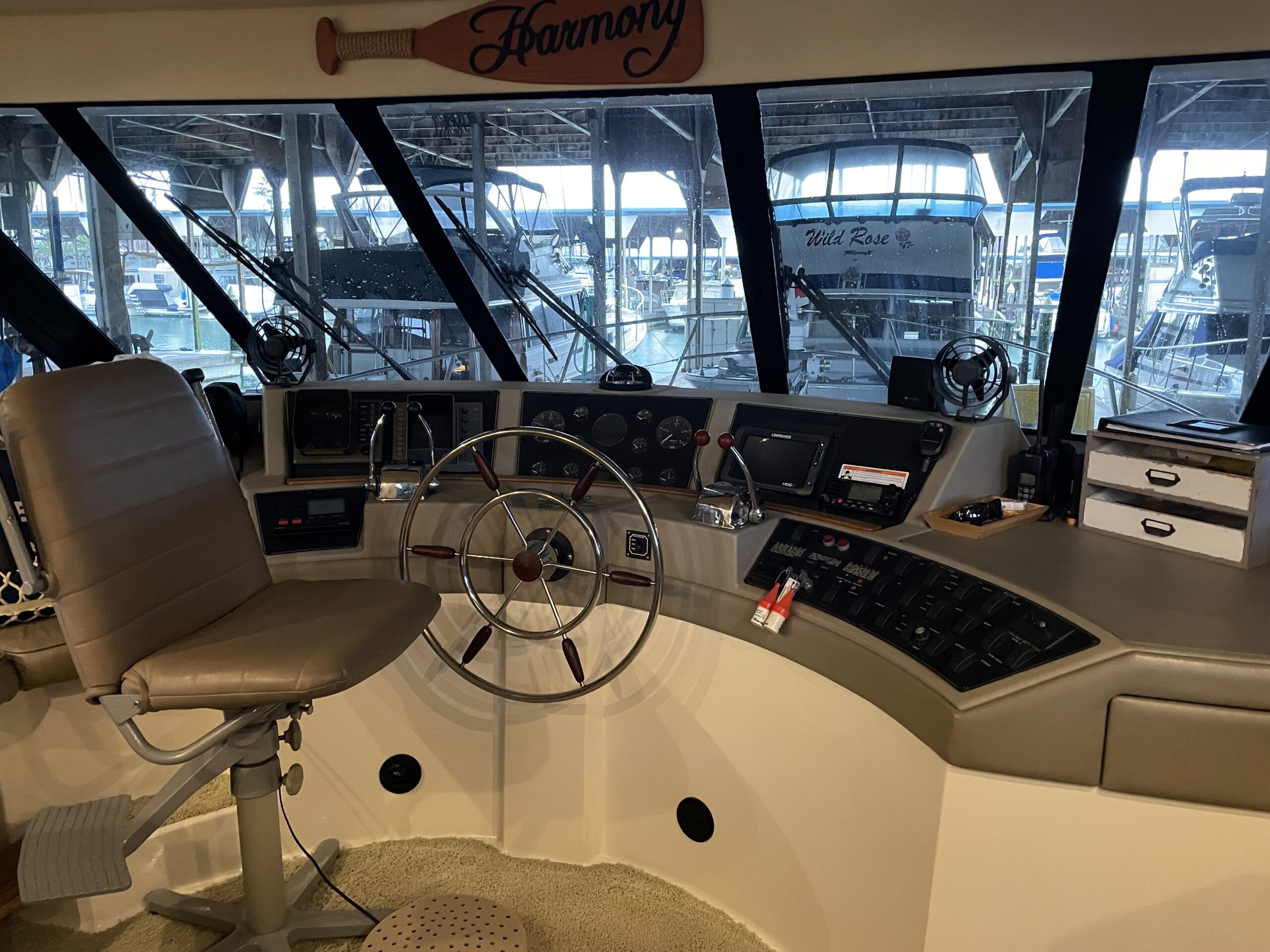

• Steering: Hydraulic (pilothouse & flybridge helms)

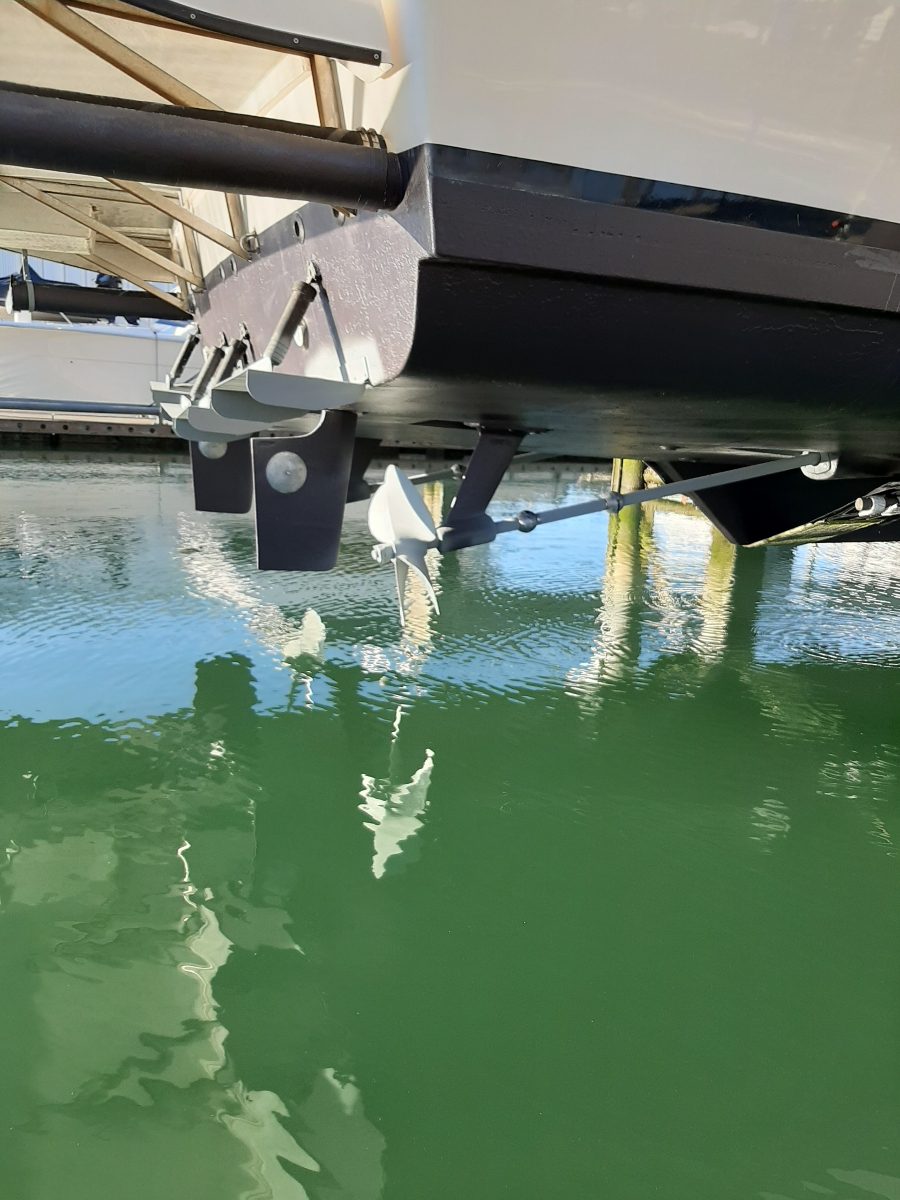

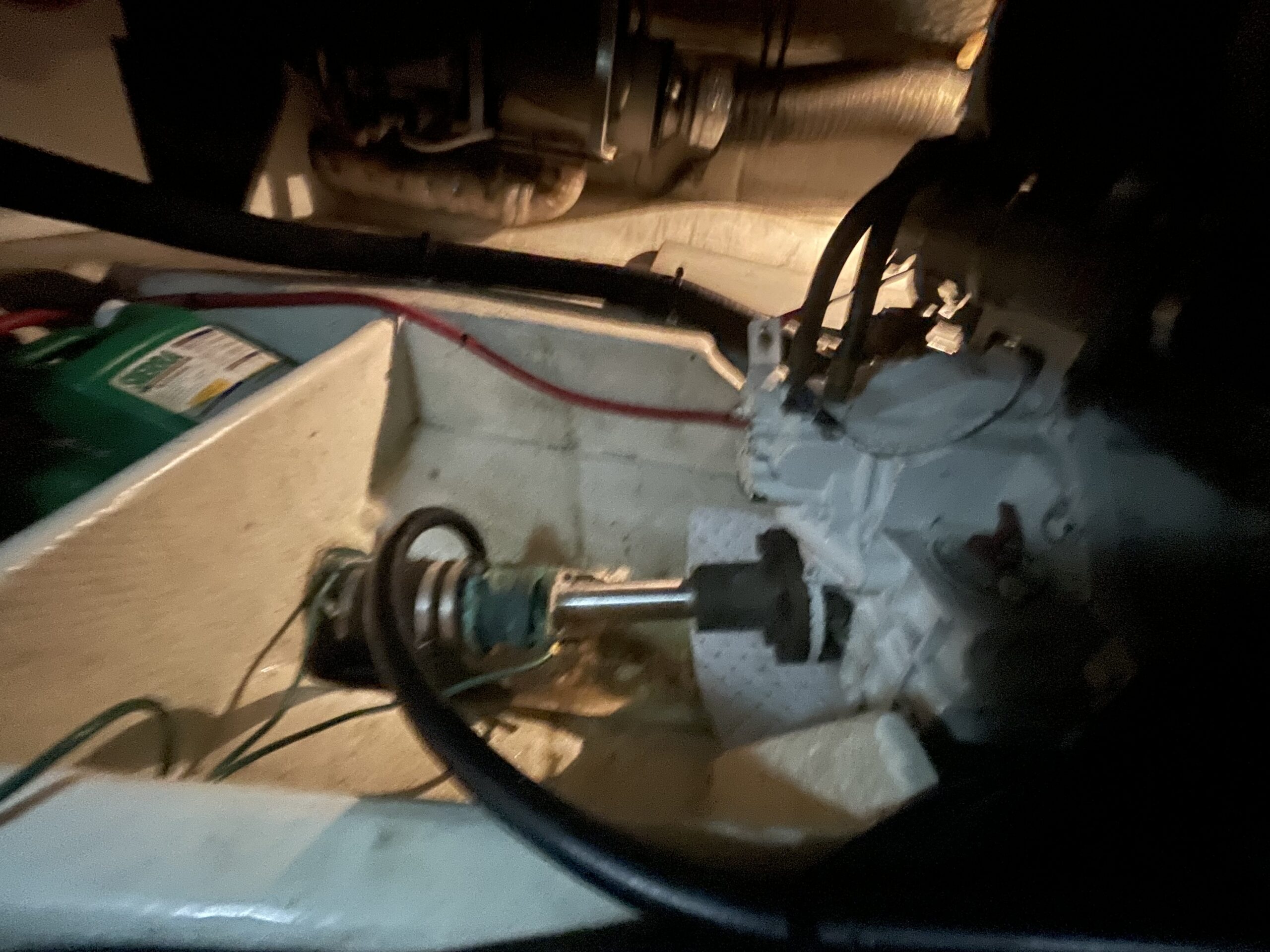

• Running Gear:
  • Rudders: spade type
  • Rudder housing: bronze
  • Rudder stuffing boxes: traditional flax packing glands
  • Props: bronze 4-blade 24″ x 21″
  • Prop shafts: 2″ stainless steel
  • Shaft logs: fiberglass log with compression seals
• Bilge Pump: Rule 1100 (hot-wired to run even with breakers/battery switches off)
• Extra parts included

Electrical

• DC System: 12V DC with breakers & fuses
• Batteries: Located in lazarette
  • (1) Start – Group 24 – NEW May 2026
  • (6) House – Golf Cart – NEW May 2026
  • (3) 8D – NEW May 2026
  • Battery Selector Switch
  • Battery Isolator
  • Battery parallel
• Battery Charger / Converter: Inverter & Constavolt
• AC System: 110V AC with breakers
• Marine-grade insulated stranded copper wiring

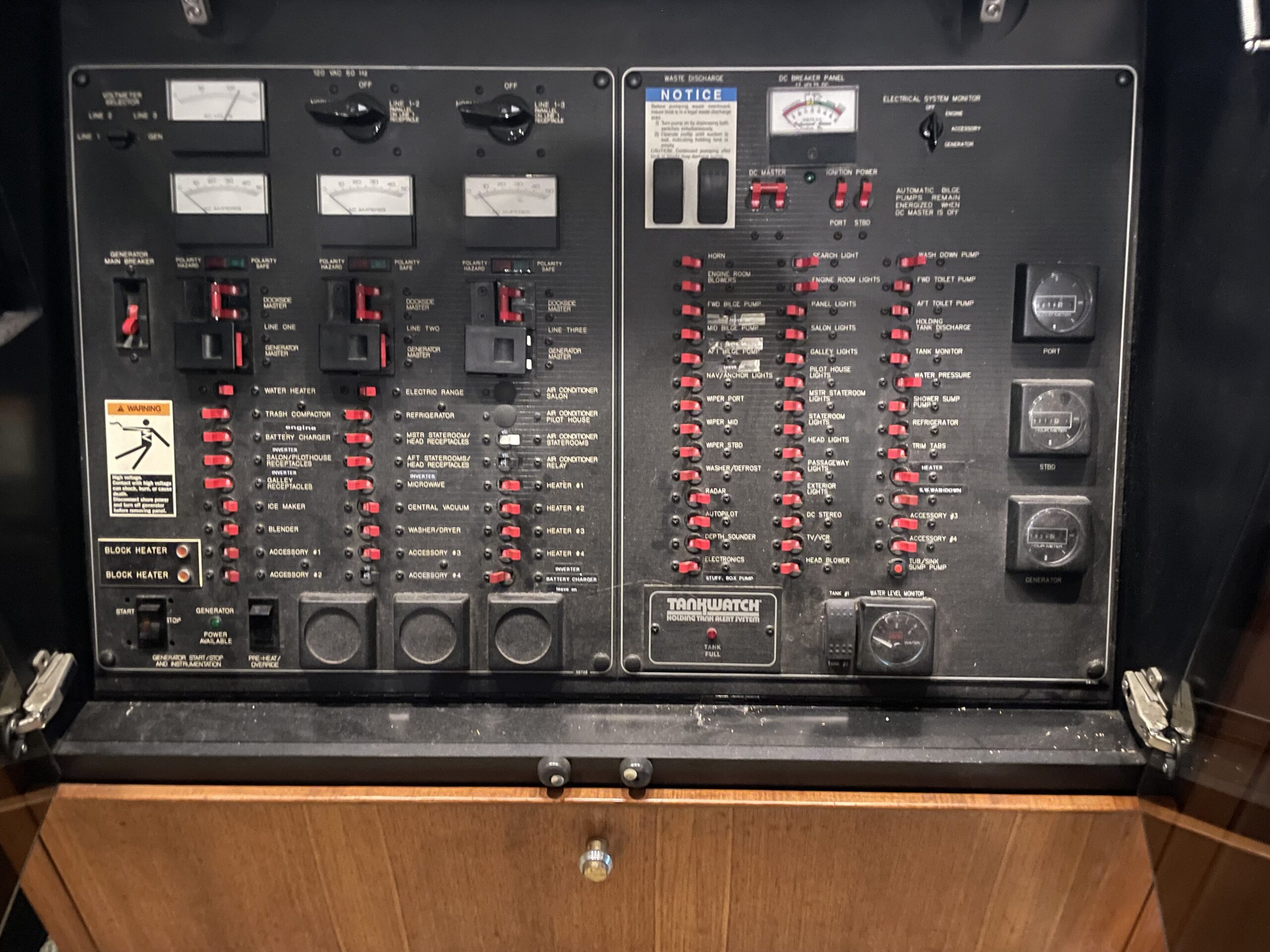

• Power distribution panel
• Household-style receptacles (mostly GFCI protected)
• AC ground to DC ground connection
• Shore Power: 30A with 50′ cord, double-pole main breaker
• Galvanic Isolator
• Inverter: Xantrex Freedom 25
• Generator: Northern Lights 8kW
• Generator Hours: 1,936

Navigation & Communication

• Compasses: (2) Ritchie Powerdamp Plus (both helms)

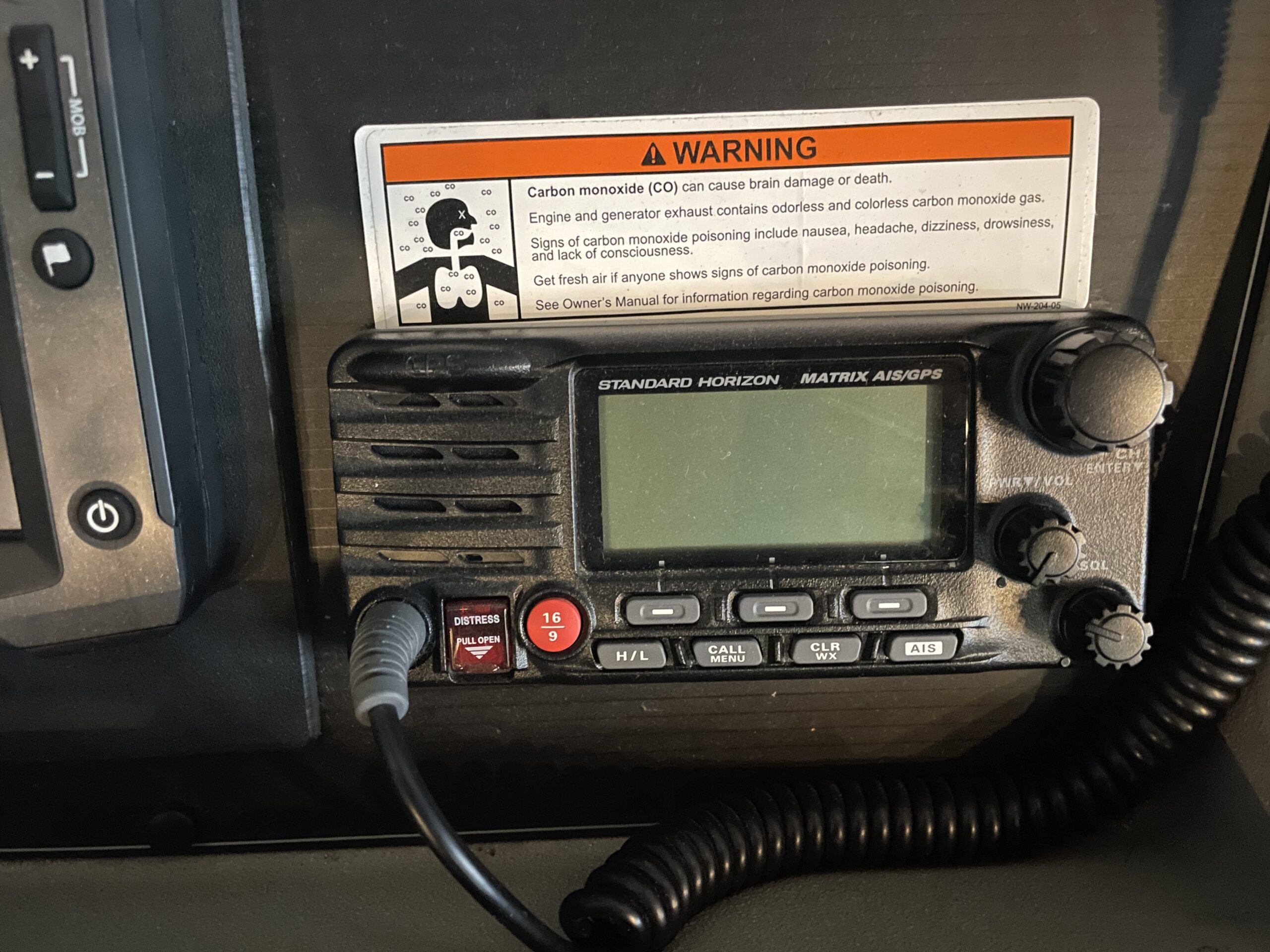

• VHF: Standard Horizon Matrix AIS/GPS (pilothouse)
• VHF: Standard Horizon Eclipse (flybridge)
• GPS/Plotter: Garmin (flybridge)

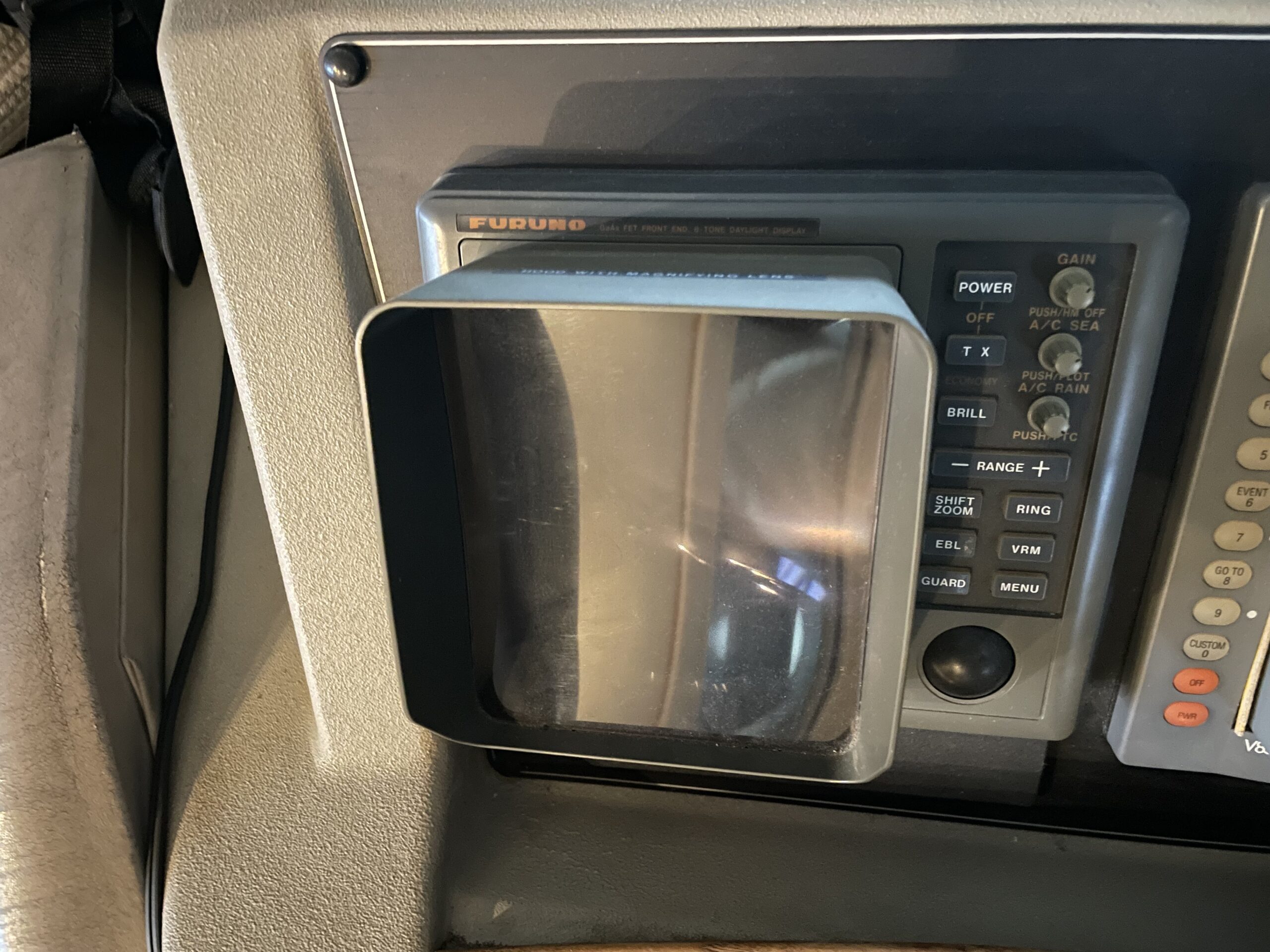

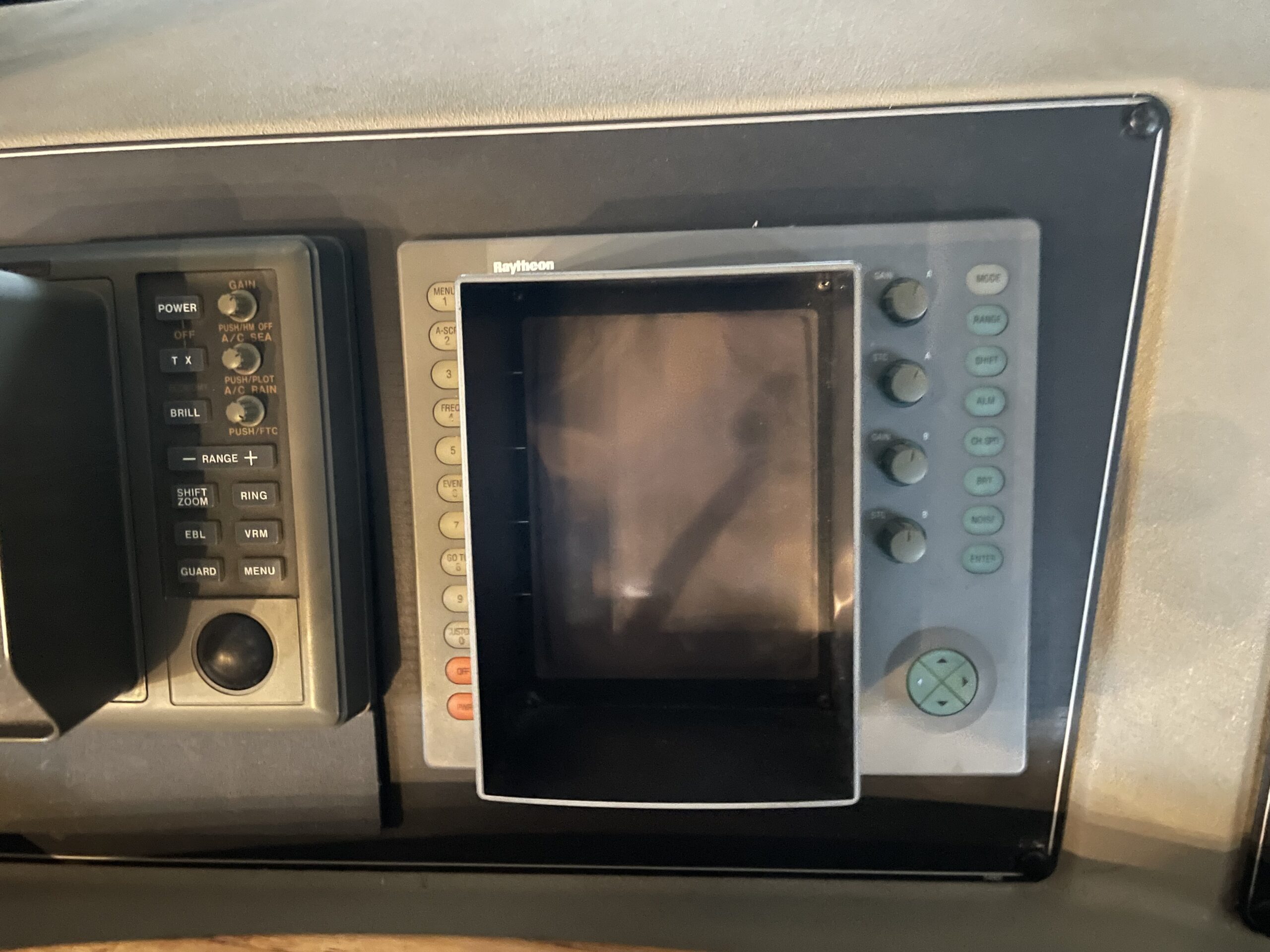

• Radar: Furuno (pilothouse)
• Depth Sounder: Raytheon V850 color echo sounder (pilothouse)

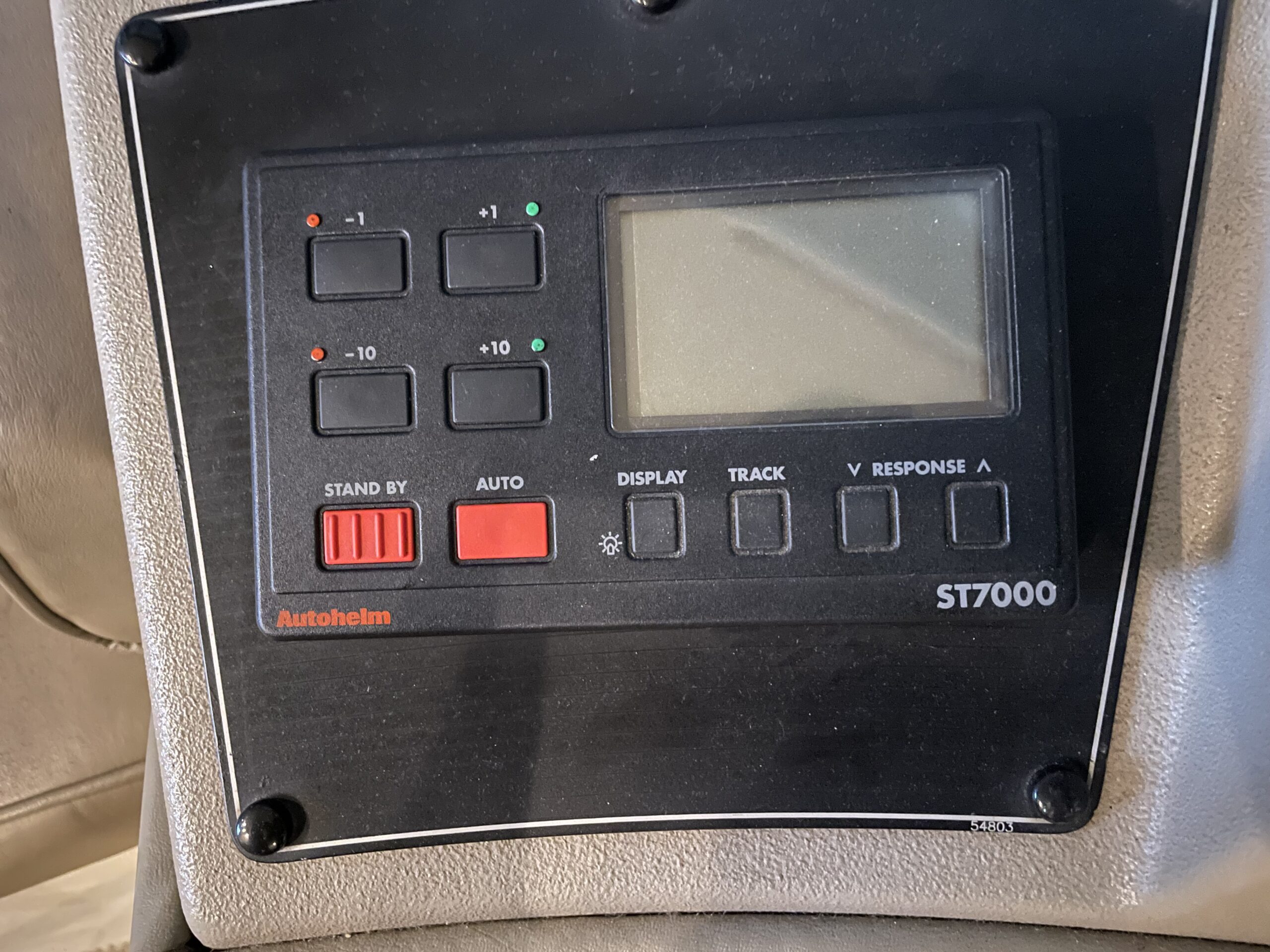

• Autopilot: Autohelm ST7000 (both helms)

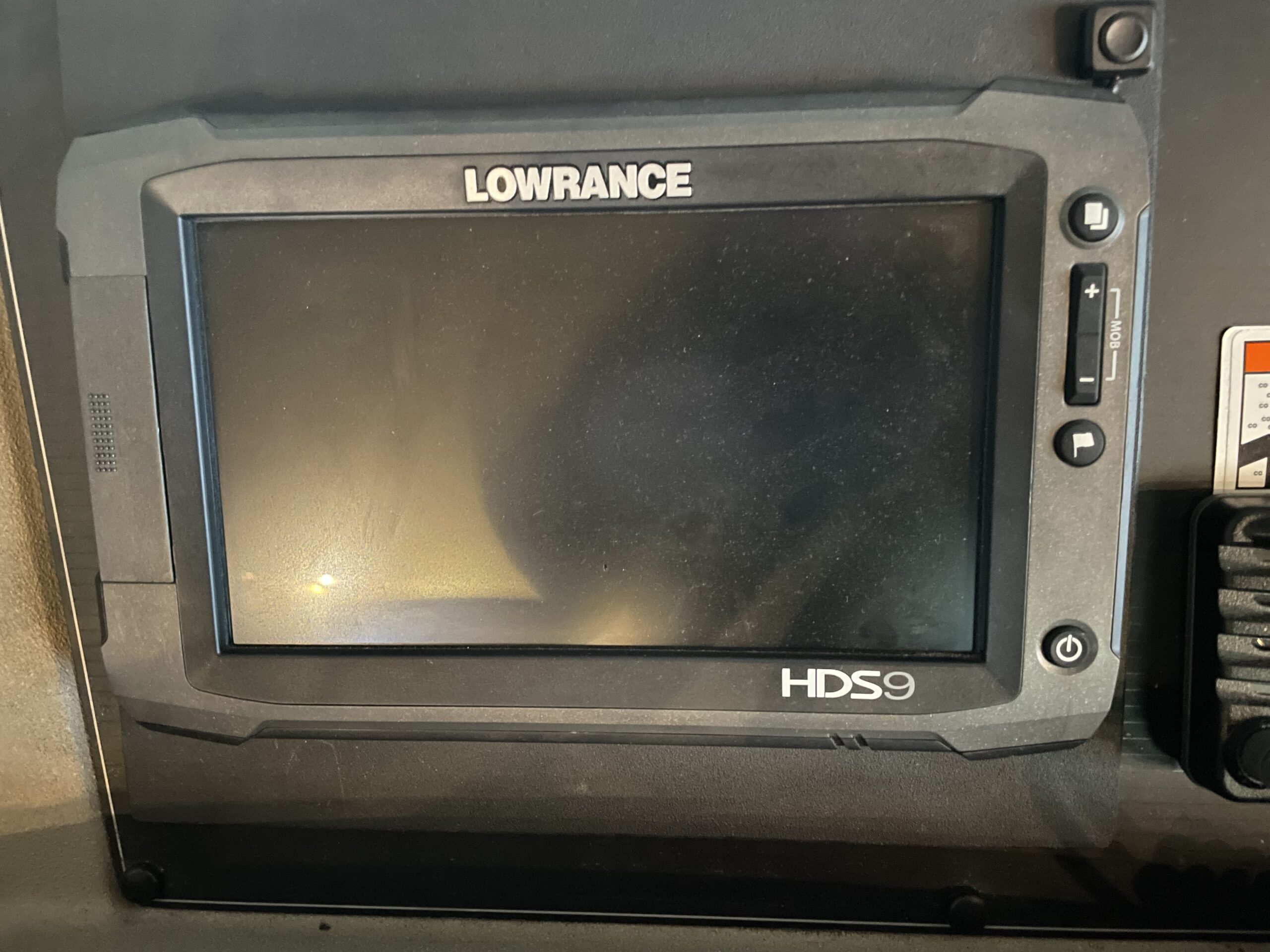

• Lowrance HDS9 (pilothouse) – NEW
• Basic navigation & information charts

Ground Tackle

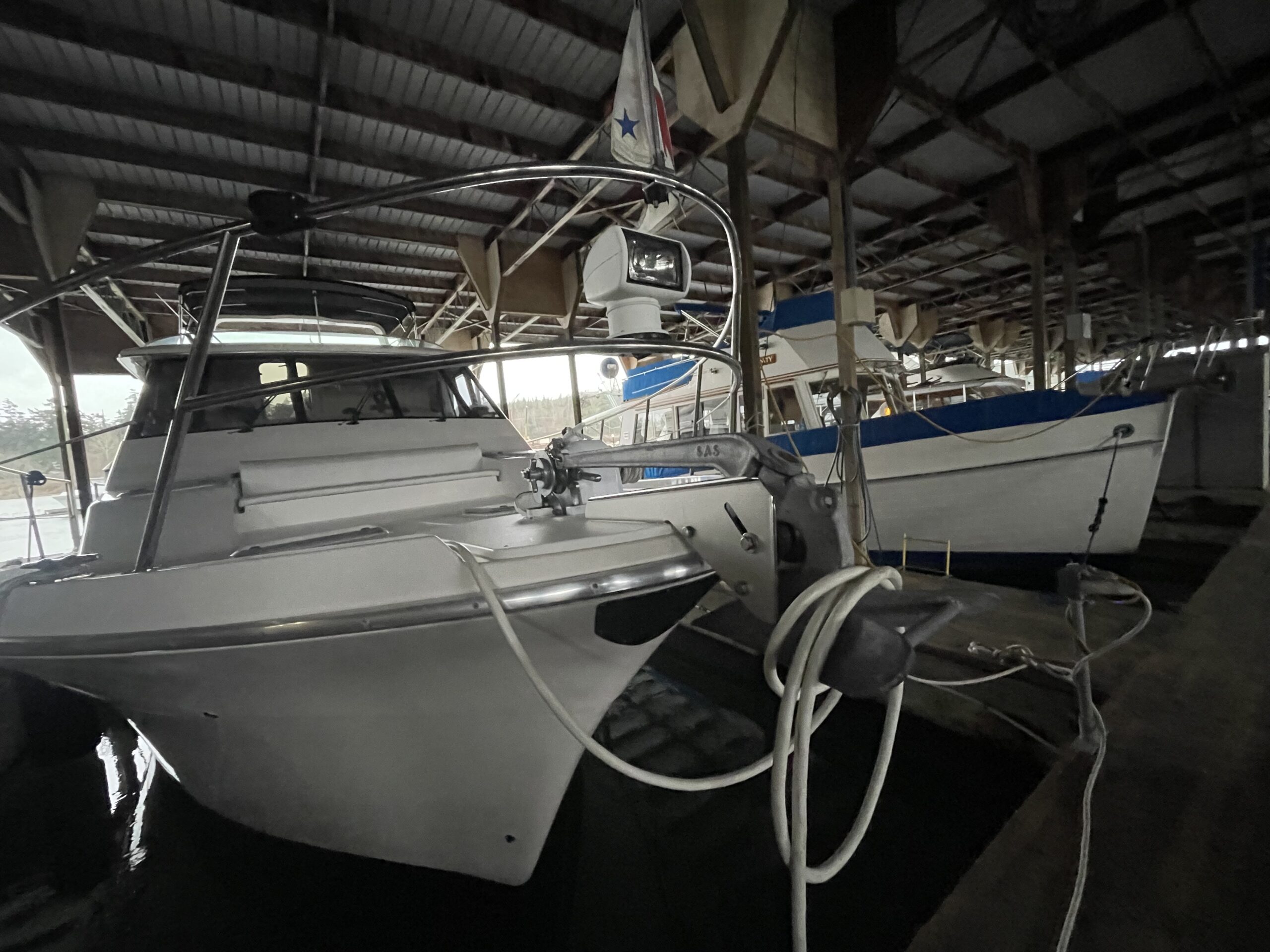

• Bow pulpit removed; stainless bow rail modified/modernized so “Harmony” fits in a 50′ slip
• Windlass: Muir
• Anchors: Bruce 20kg + Danforth type
• Chain & rode: ample

Safety

• LED navigation lights
• LED anchor light
• Search light
• Deck lights
• (16) Type II adult life jackets
• (1) Type IV throwable ring
• (8) B-1 fire extinguishers
• Flares
• Horn
• Stainless stanchions
• Single coated wire lifelines
• Stainless grab rails
• Boat hook
• Emergency egress: Sliding salon door to cockpit + 20″ x 20″ foredeck hatch
• Emergency re-boarding: Swim platform & boarding ladder

Miscellaneous

• Bottom paint – New Dec 2020
• Zincs – diver serviced 3x/year (replaced as needed)

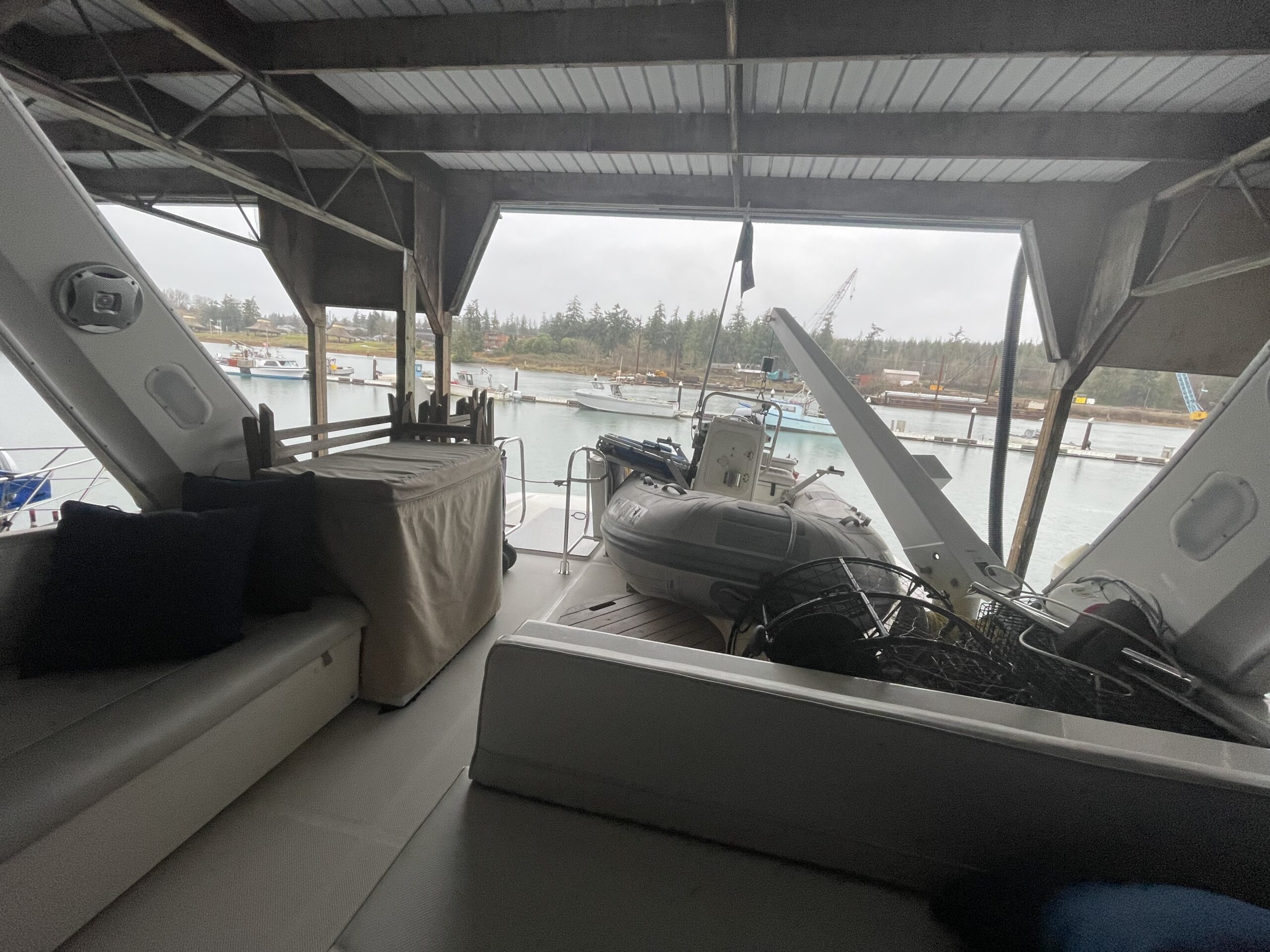

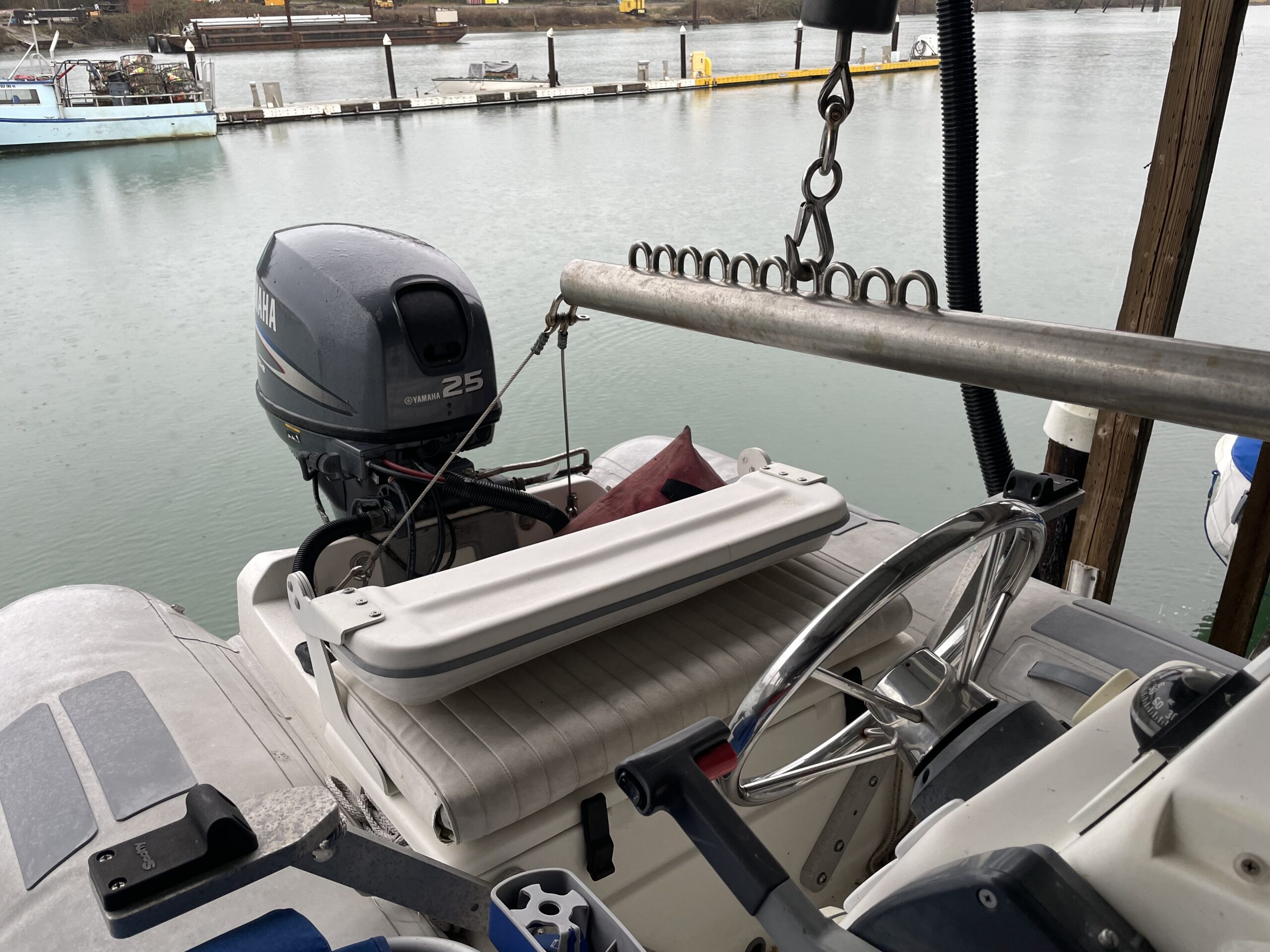

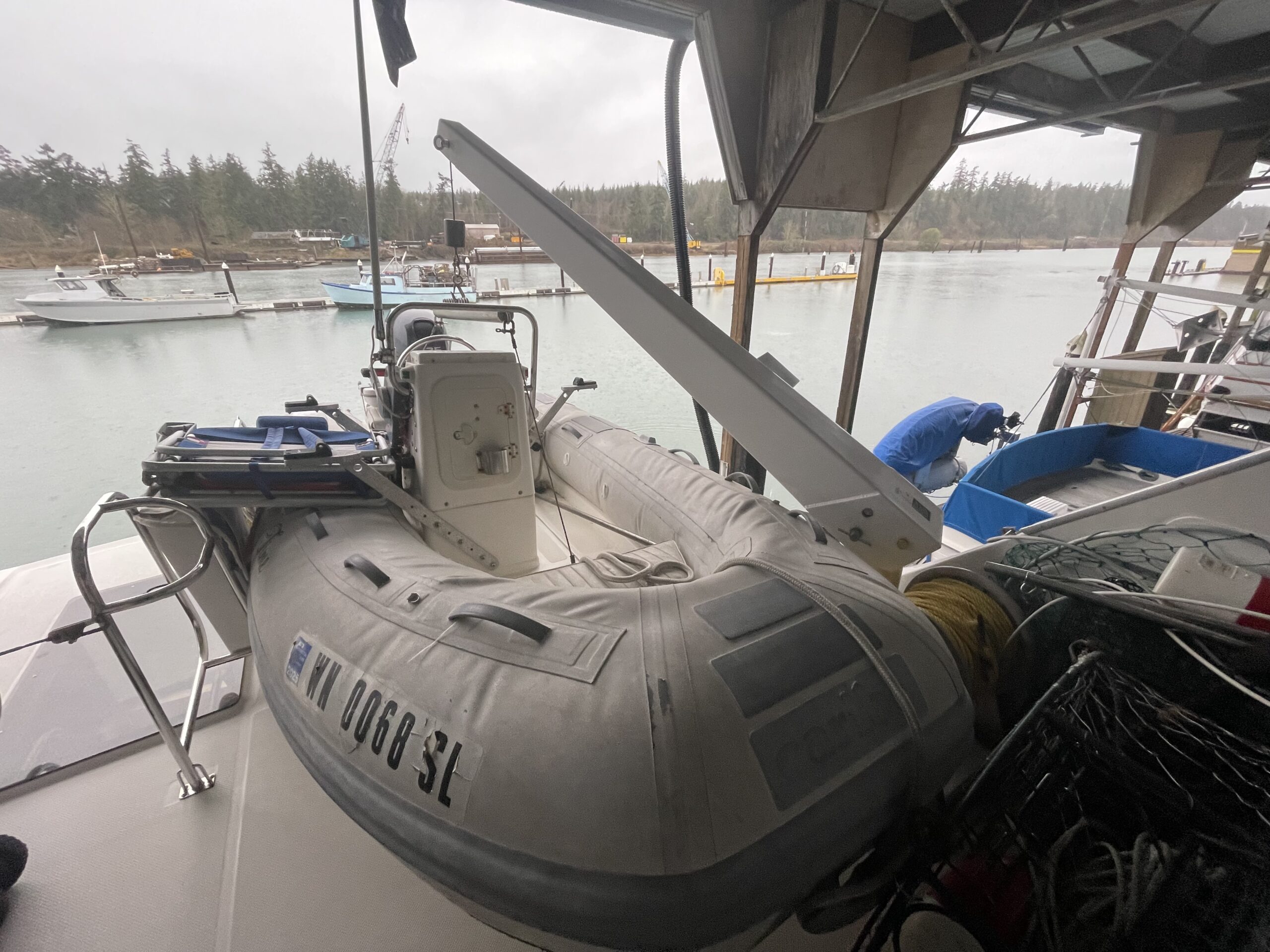

• 2002 EMD 11′ inflatable RIB with cover
• Tender set up with crab/shrimp pot puller (pots stay with boat)
• Stainless steel radar arch with fiberglass whip antennas

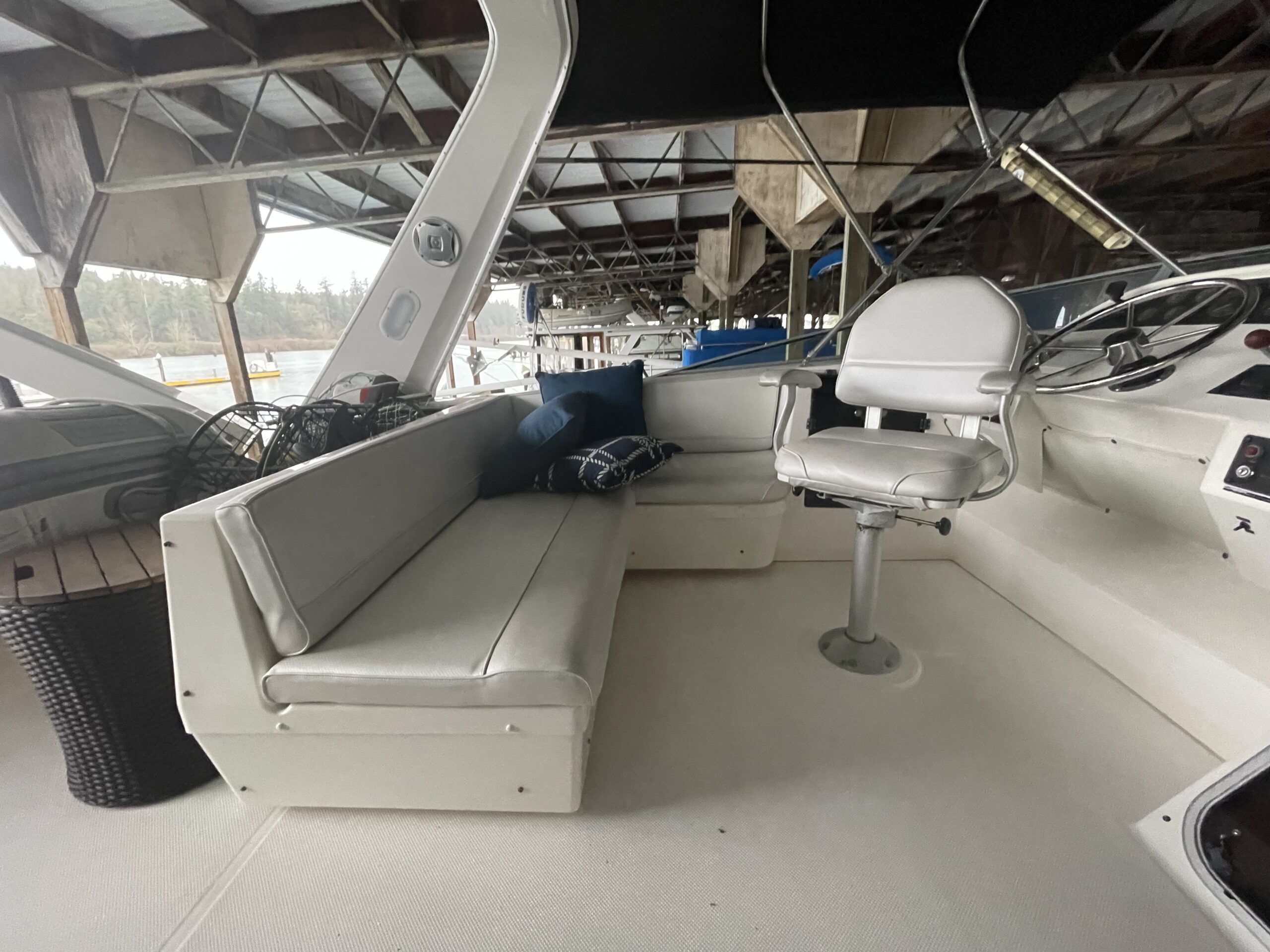

• Flybridge bimini
• Flybridge lights – newer LED

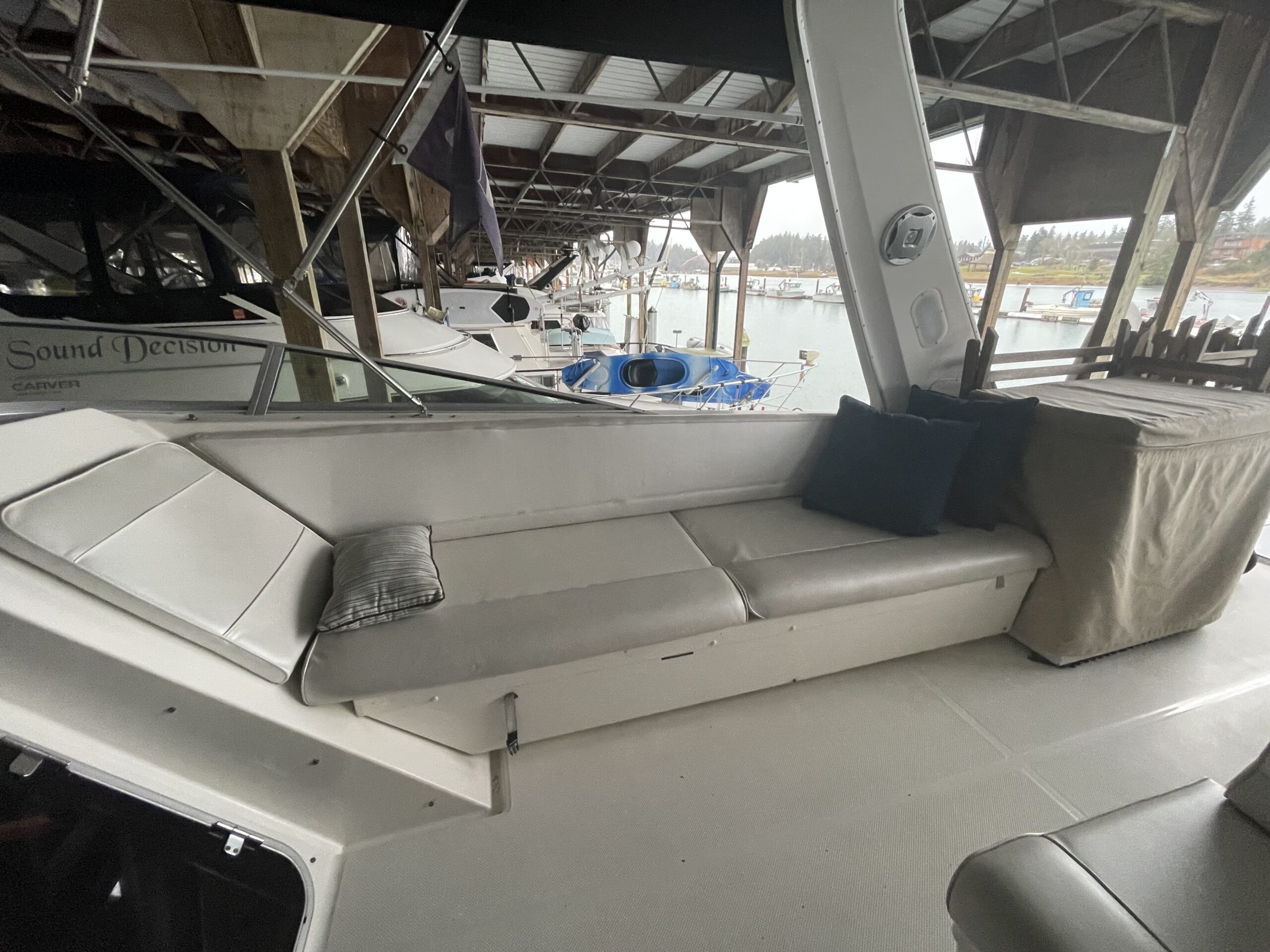

• Flybridge cushions – like new
• Flybridge freezer – Magma

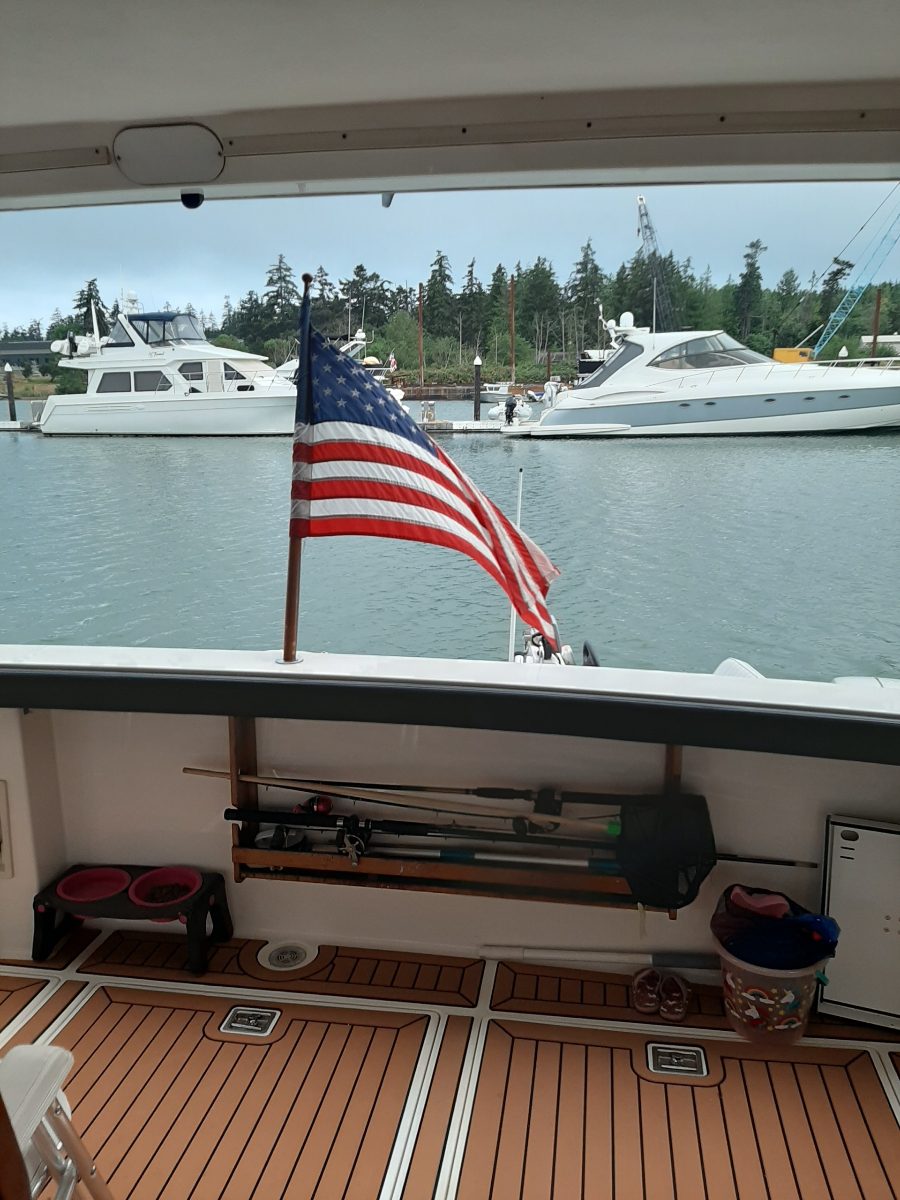

• Cockpit deck – newer

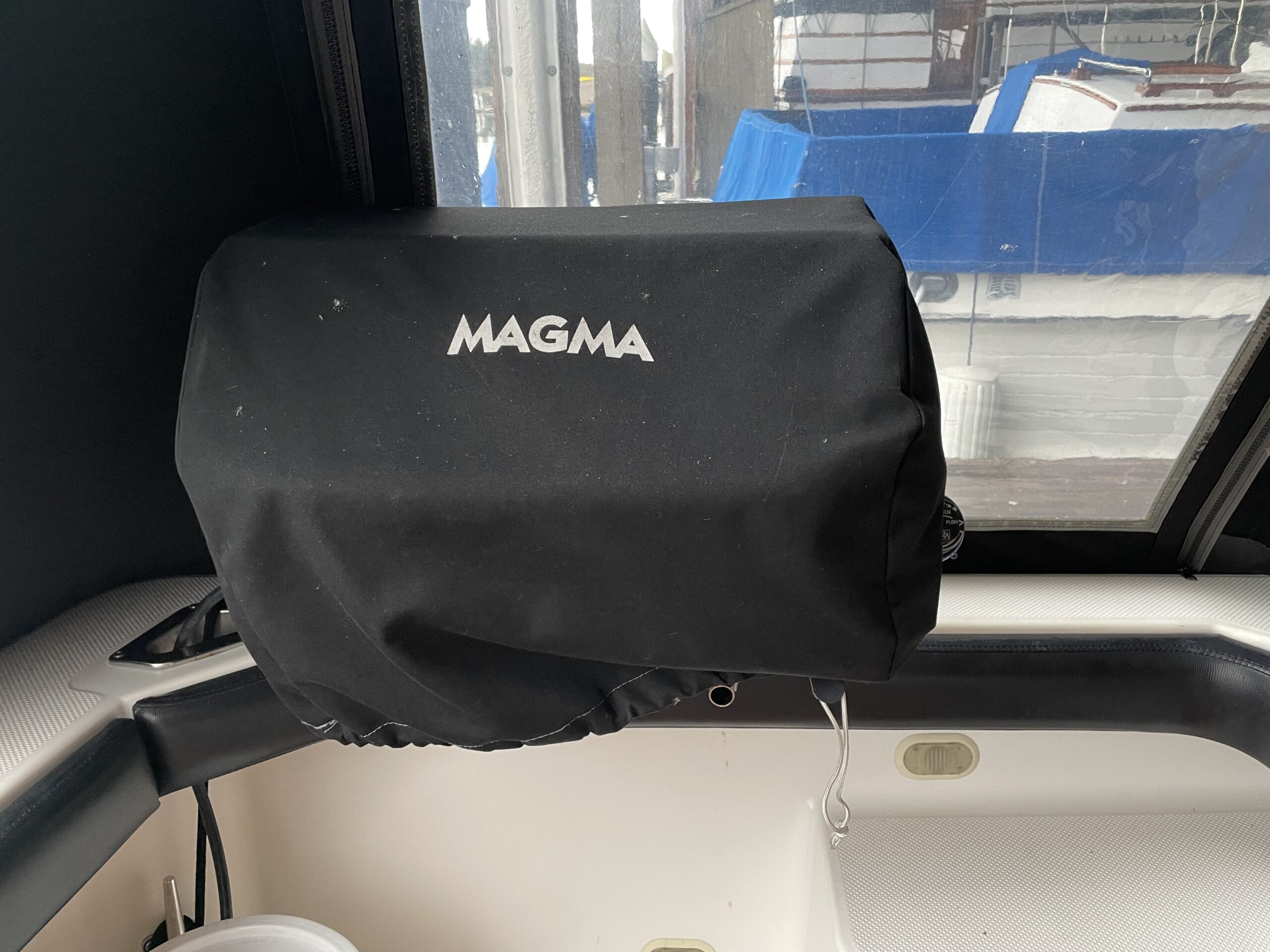

• BBQ
• Underwater lights on main boat & tender
• Exterior canvas & window covers:
  • Extra-heavy privacy panels
  • Lighter-weight privacy panels
  • (2) complete sets (except flybridge bimini top)
• Staging & personal items removed at time of sale
