LOA –

• LOD – 36’ 4”
• LWL – 35’ 2”
• Beam – 12’ 2”
• Draft – 4’
• Weight 26,000lbs.
• Hull –Solid Fiberglass
• Hull Type – Semi-Displacement
• Deck – Fiberglass Sub-Deck with Teak Deck Overlay
• Vintage – 1974
• Mast Clearance – 22’ 4”
• Builder – American Marine Limited
• Built In – Singapore

TANKAGE:

• FUEL – Diesel – 400 Gallons in (2) Steel Tanks Saddled-Up in the Engine Room
• WATER – 154 Gallons in (2) Stainless Steel Tanks in Aft Bilge

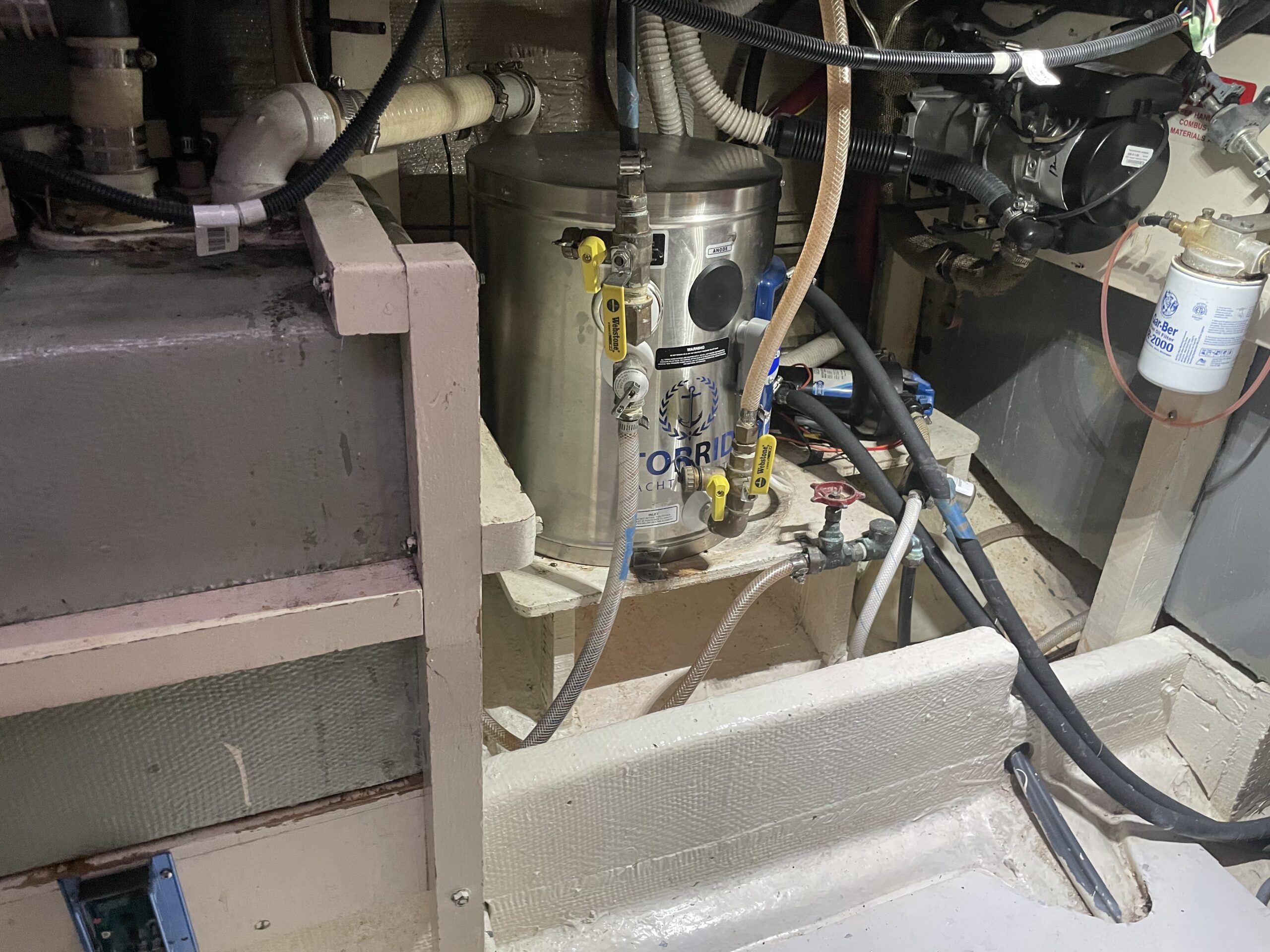

• WATER HEATER – (1) 6 Gallon 120Volt AC or Engine

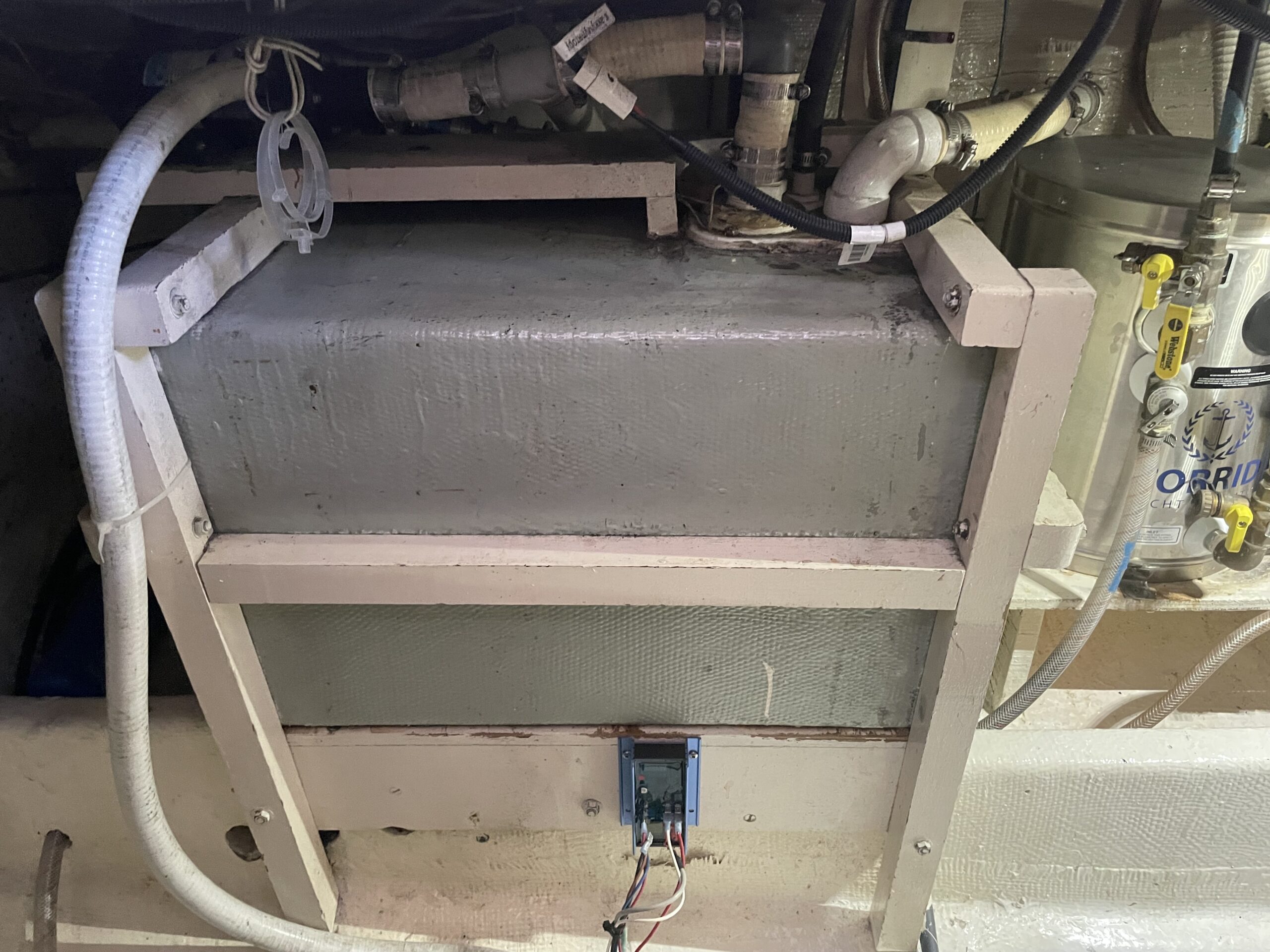

• WASTE HOLDING – 40 Gallons in (1) FRP Tank located in Engine Room Bilge
• Macerator Waste Pump
• PROPANE – (1) Propane Steel Tank

INTERIOR:

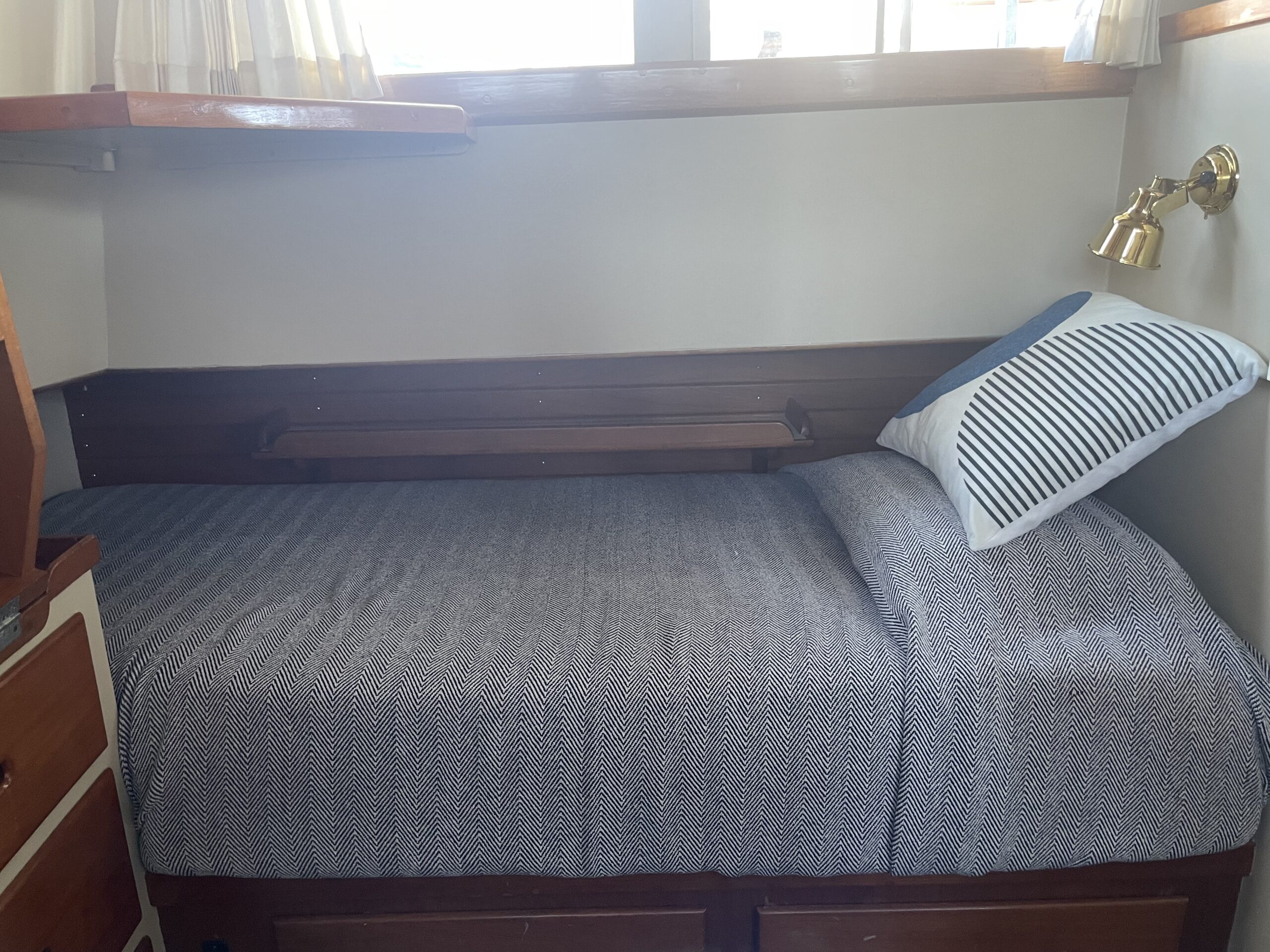

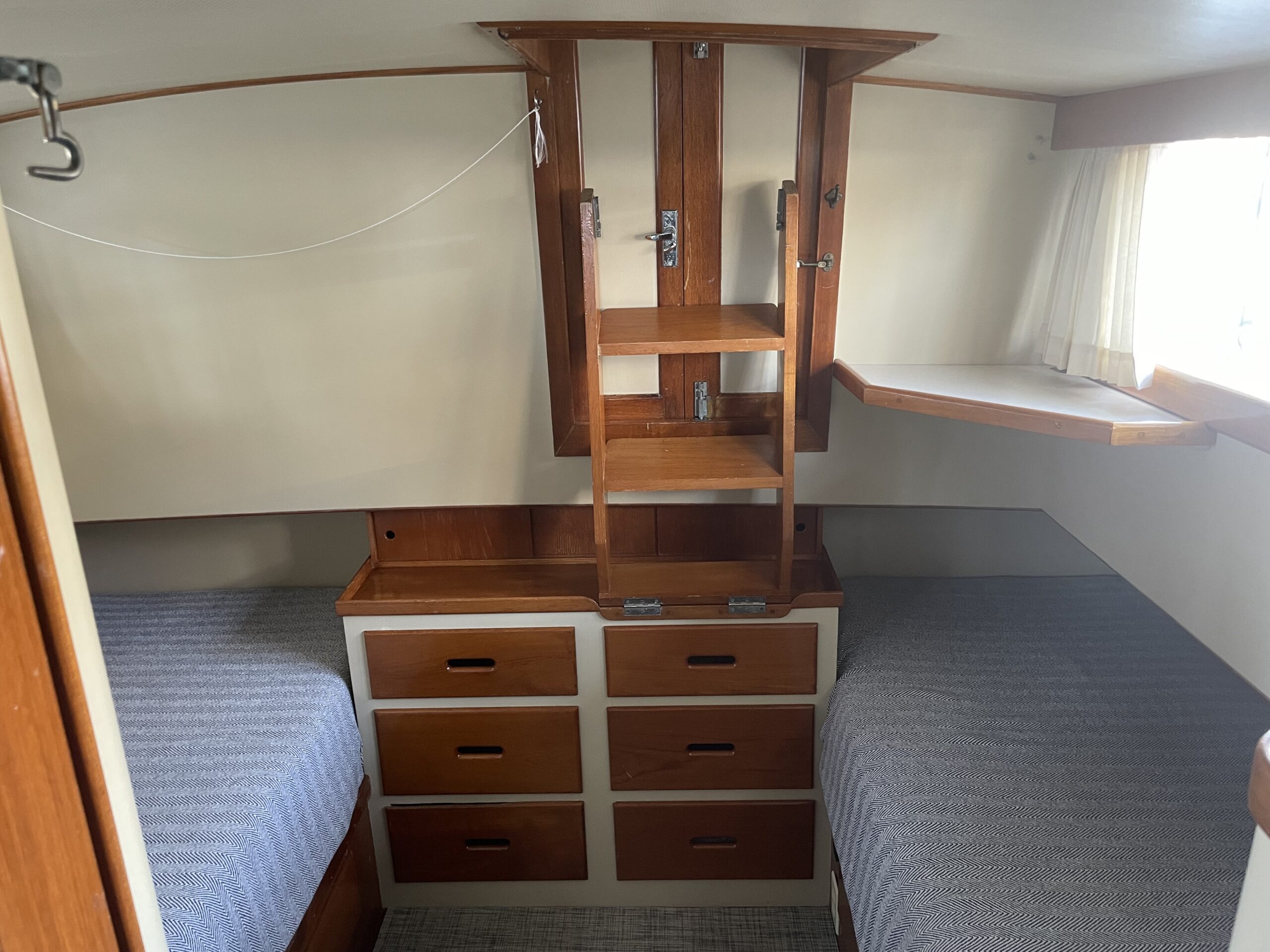

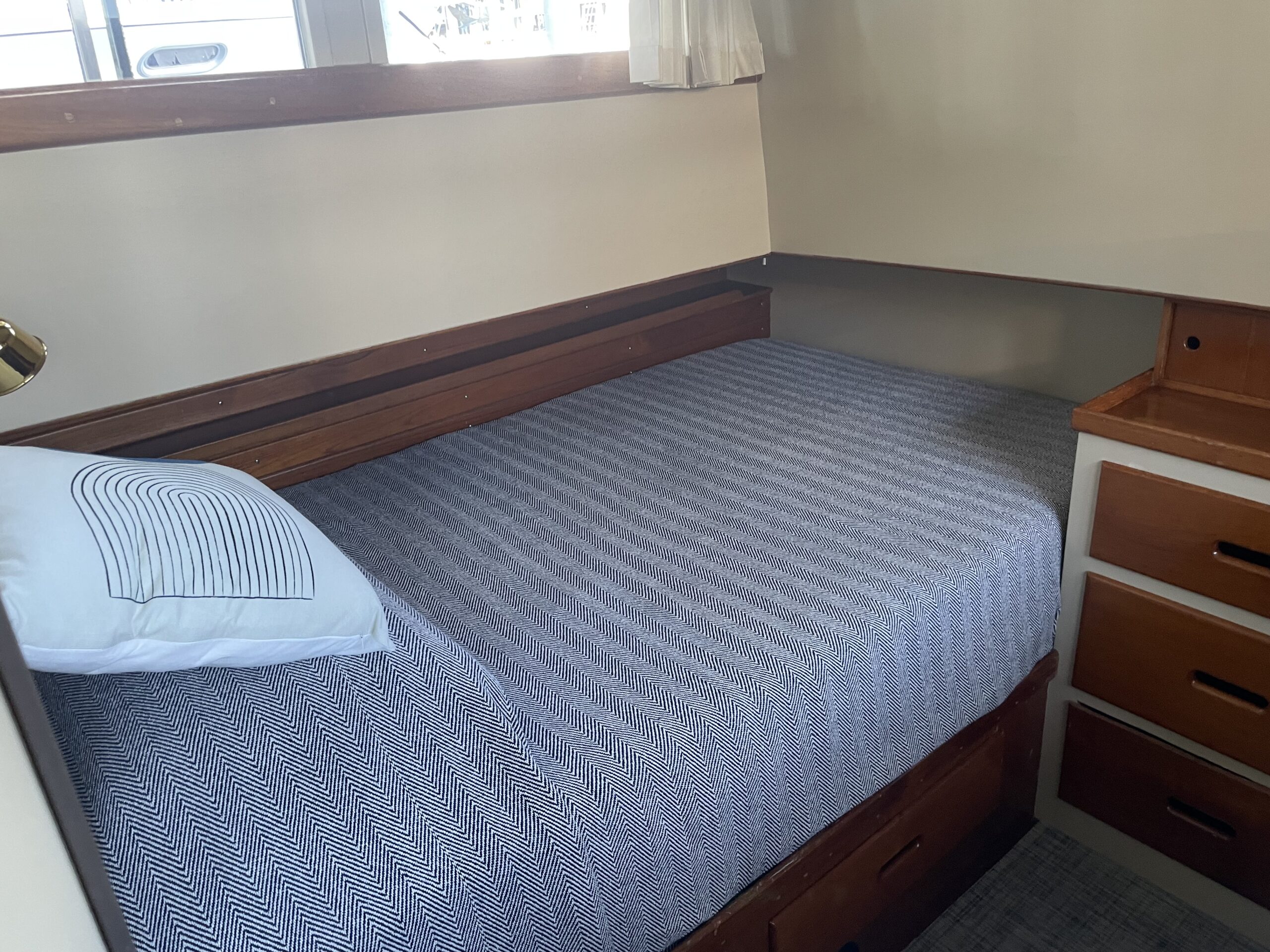

• Sleeps 6 – (2) in Aft Master Stateroom
• (2) in Forward V-Berth Stateroom

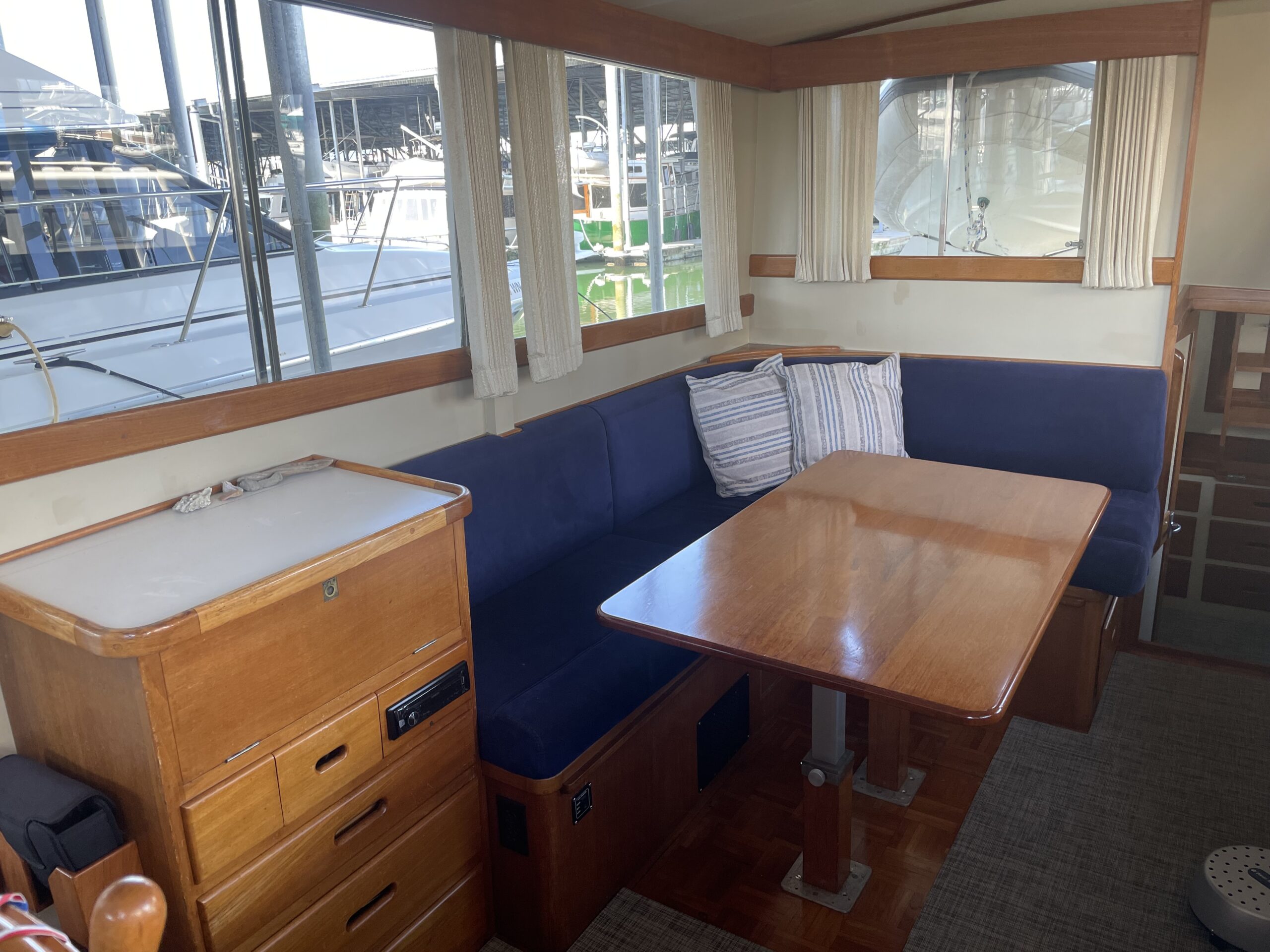

• (2) on Convertible Dinette

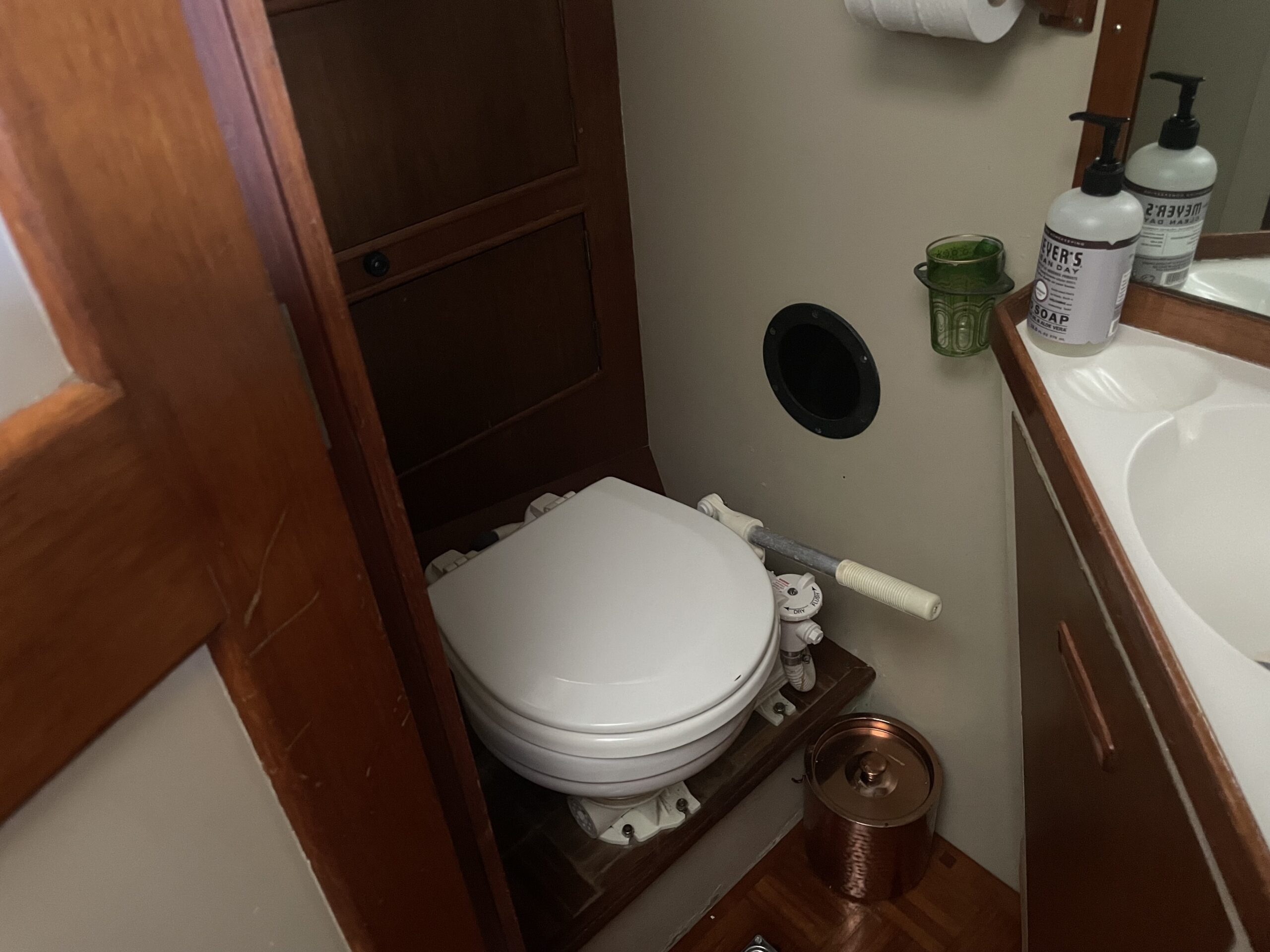

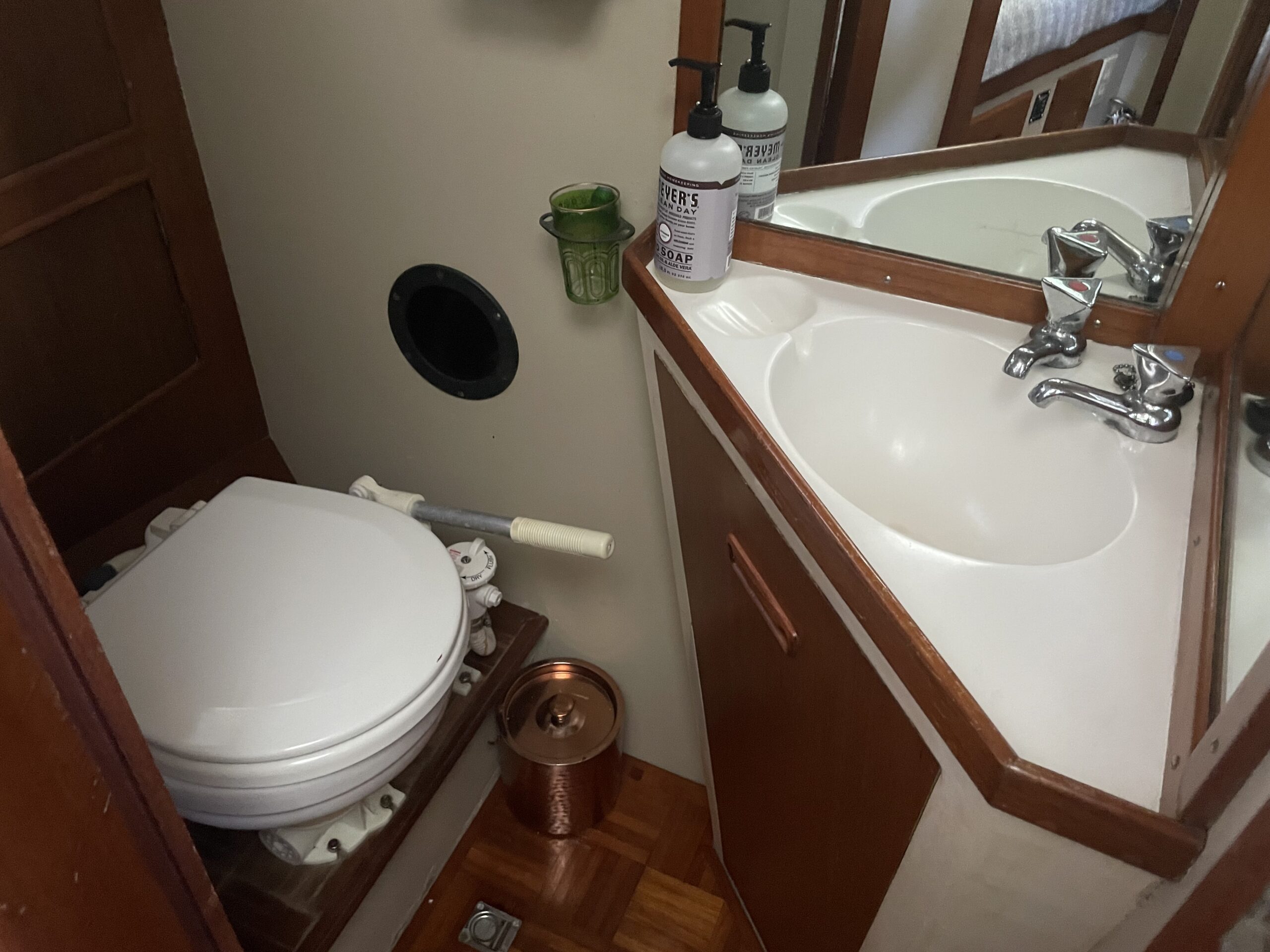

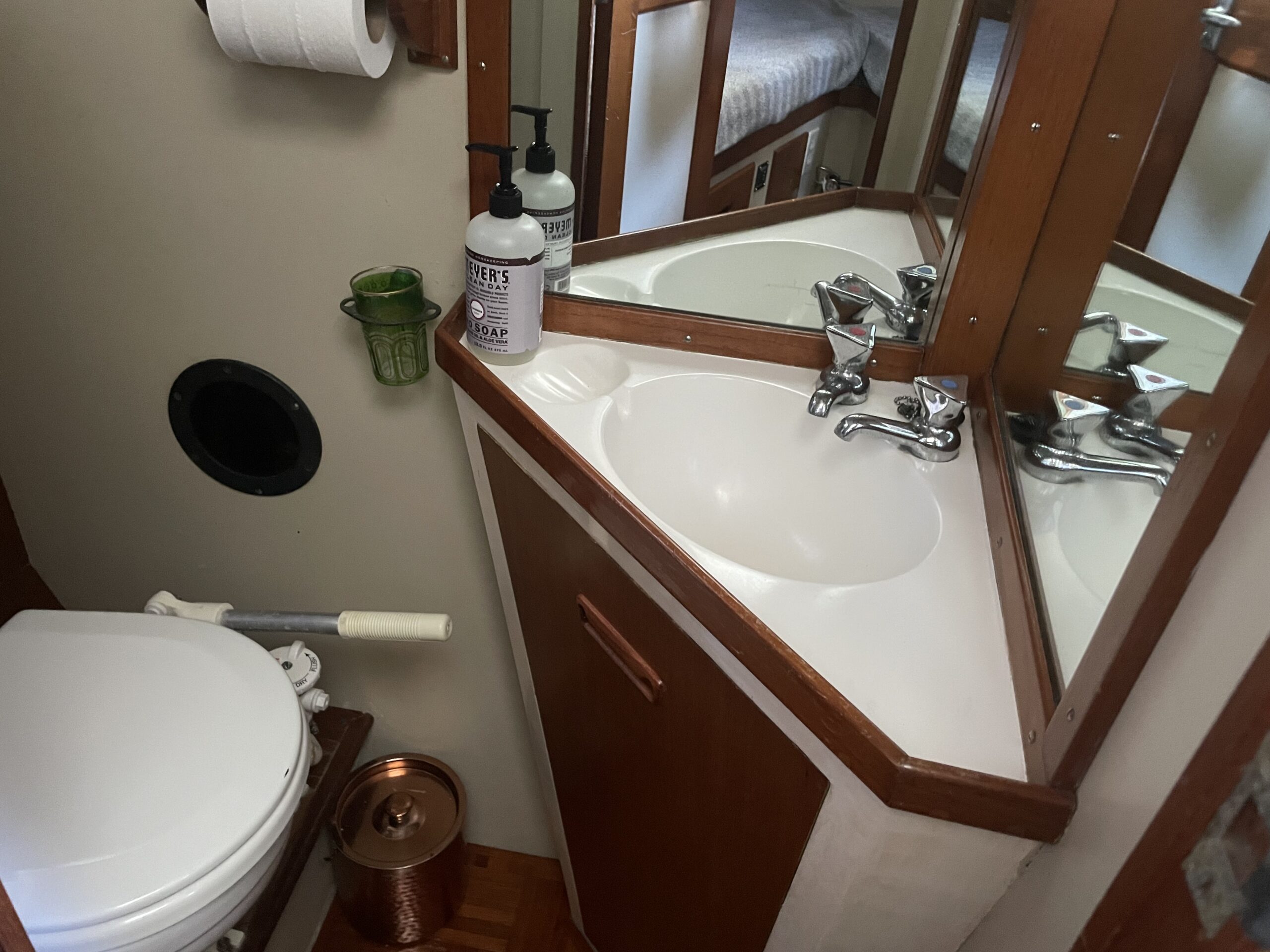

• (2) Private Enclosed Heads – (1) Manual Pump Raw Water Flush Toilet

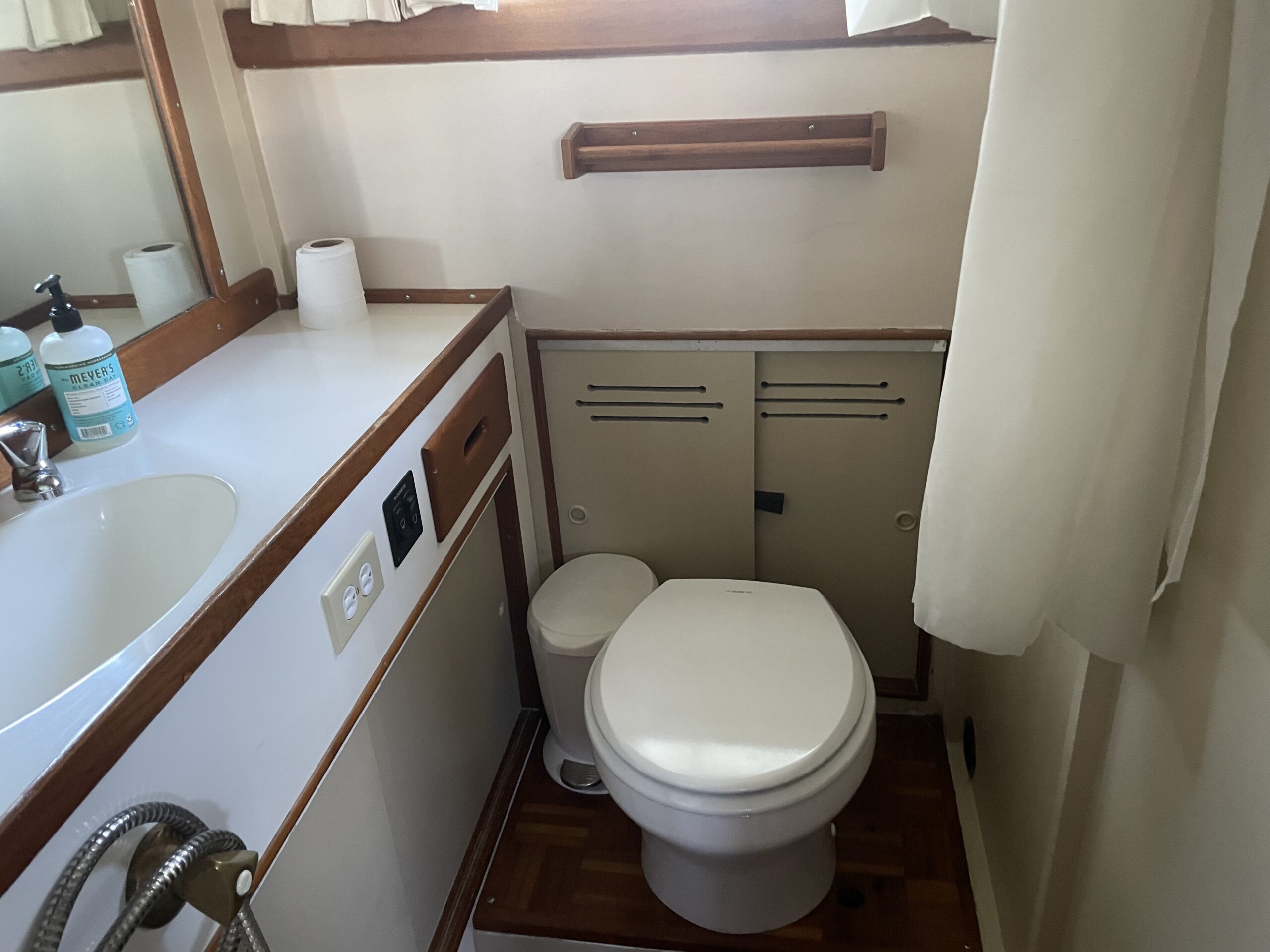

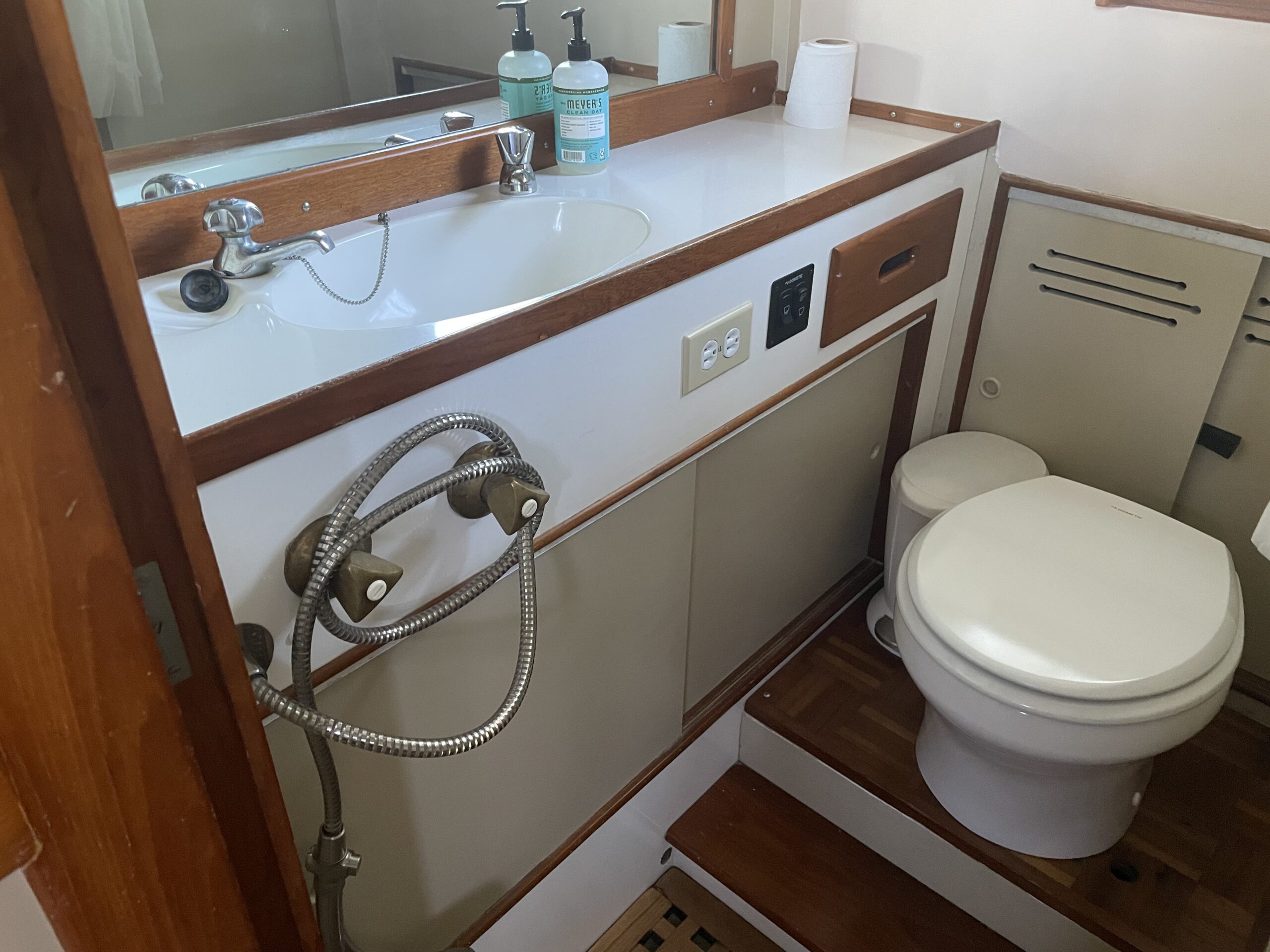

• (1) Dometic Electric Freshwater Flush – NEW 2024
• Hot & Cold Pressure Water System – Jabsco Electric Pressure Water Pump
• Galley Refrigerator – Webasto Compressor & Condenser – NEW 2023

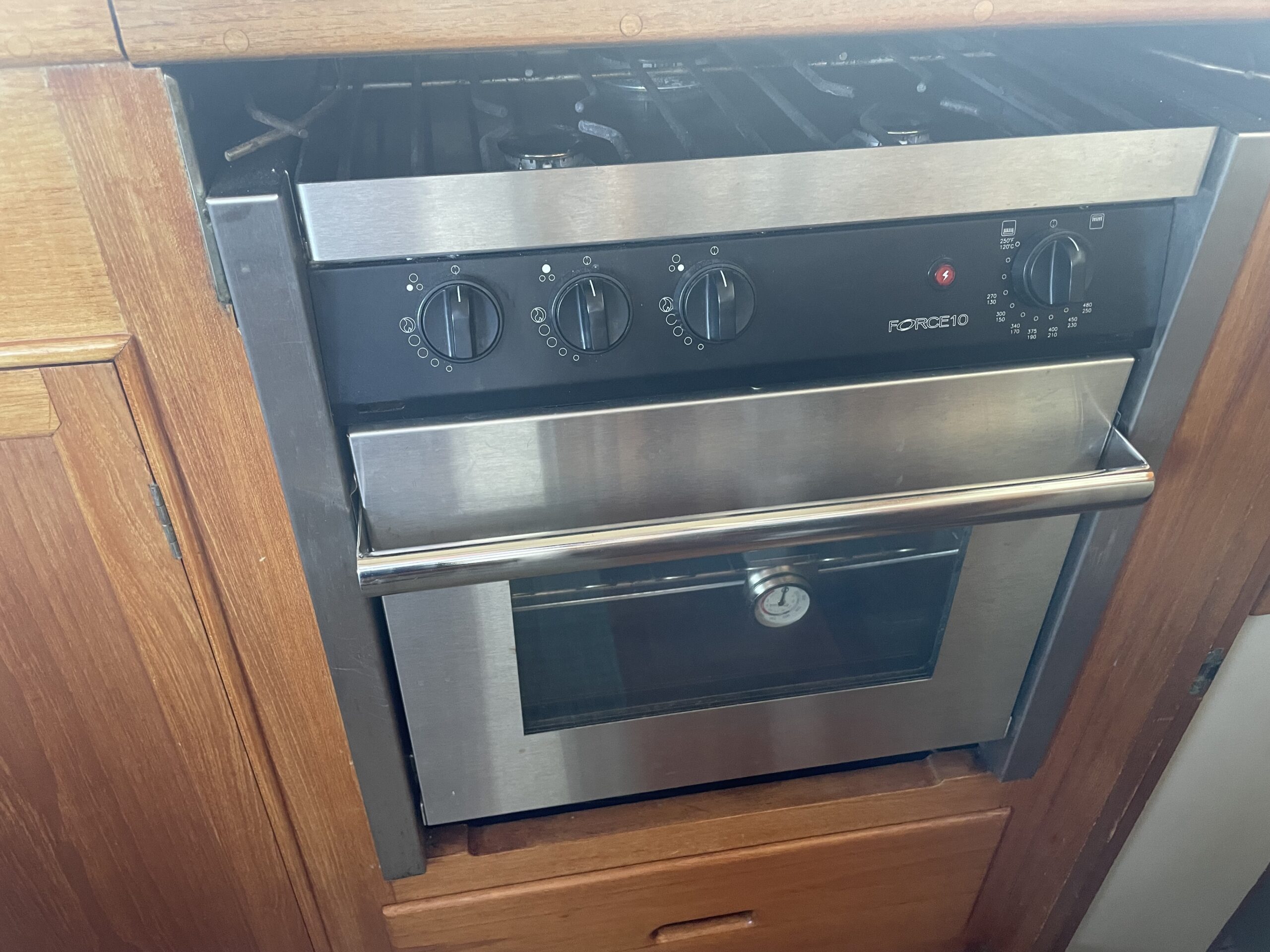

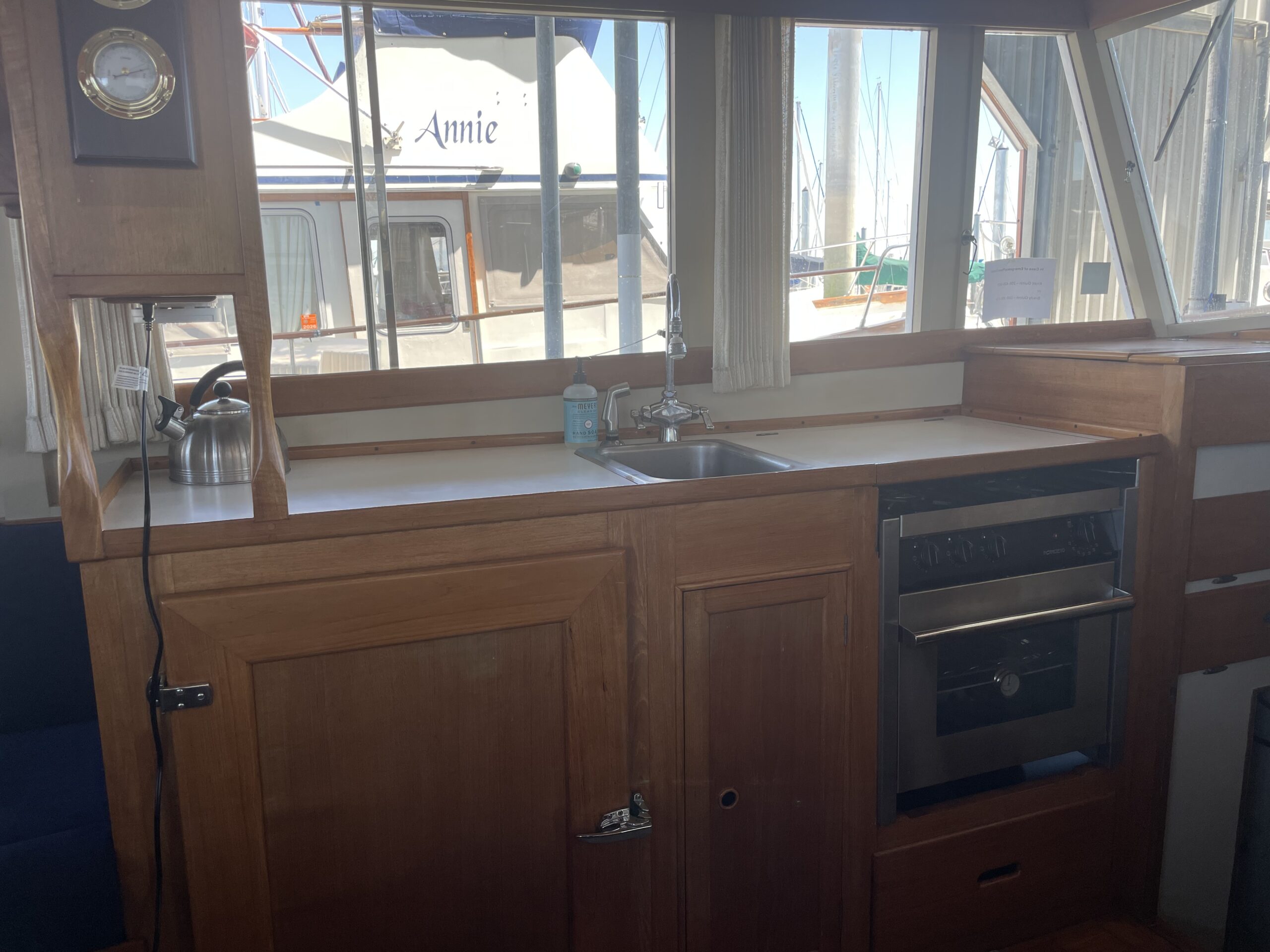

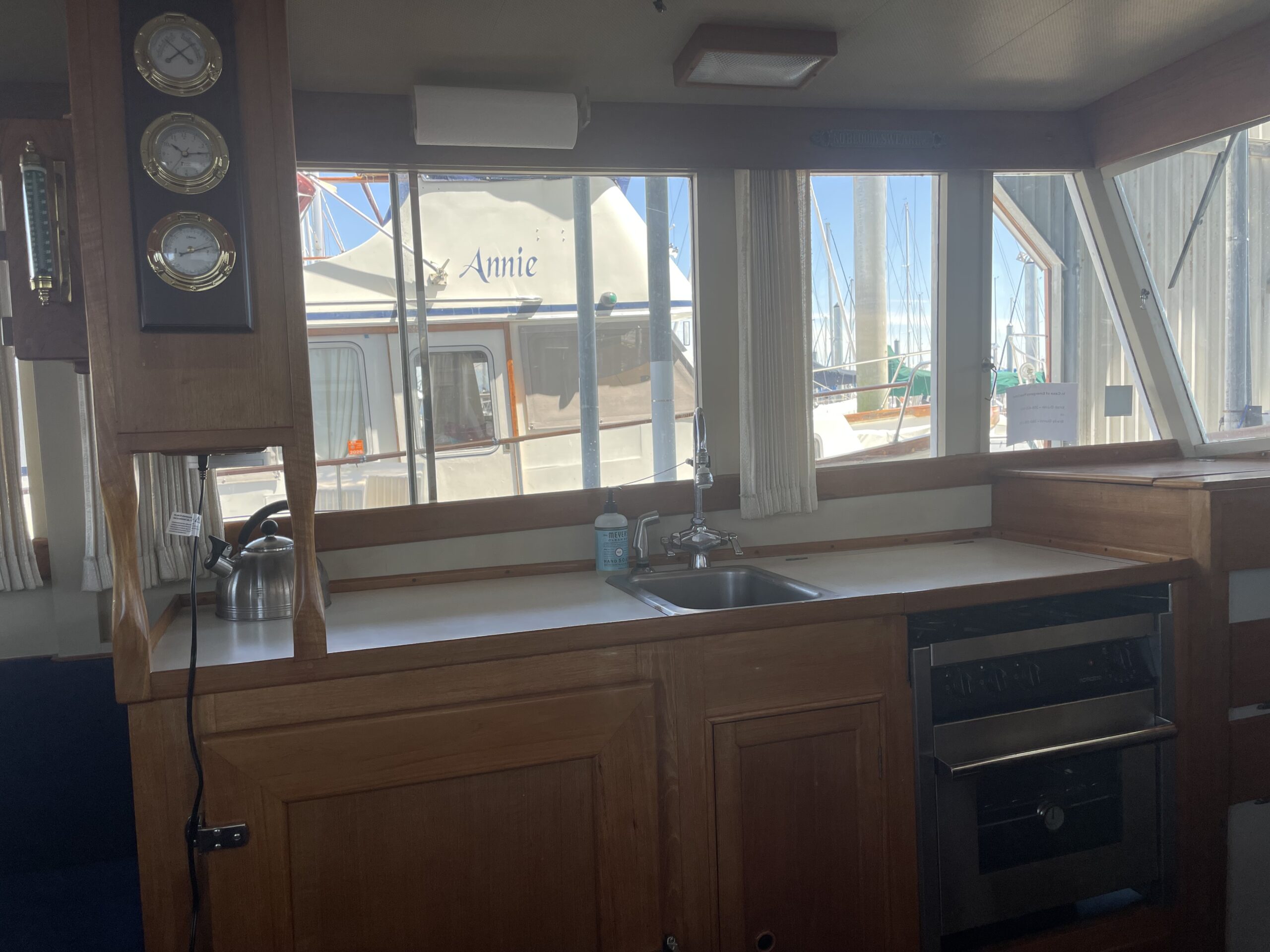

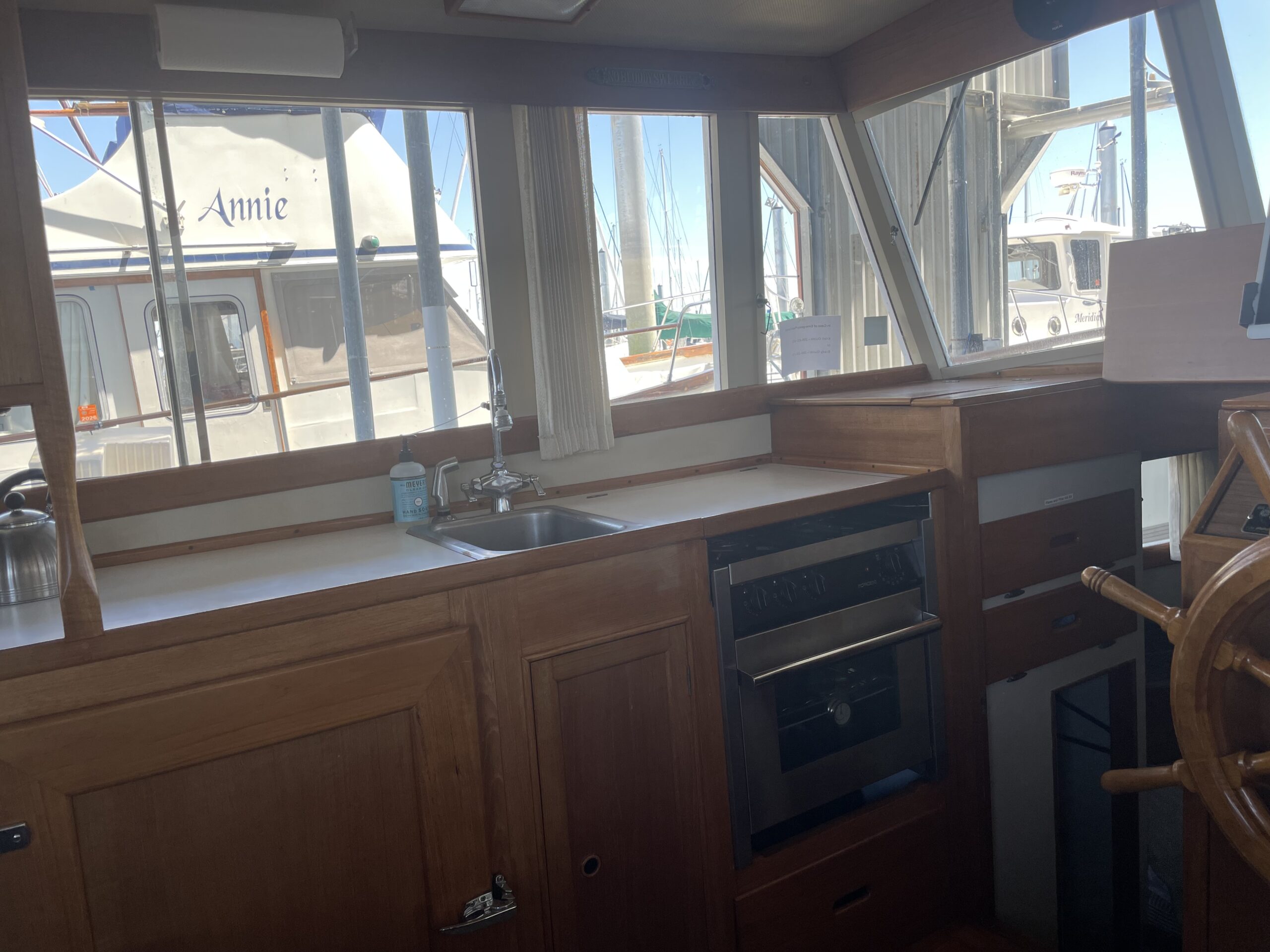

• Galley Stove Top/Oven – Force 10 Propane
• Cabin Heating – Hydronic 14TC-Mini-12-GP – Diesel Fired + 12Volt DC
• Red Dot – 12Volt DC + Engine
• (1) Thermostat Electric Heater in Aft Cabin – 120Volt AC

MECHANICAL:

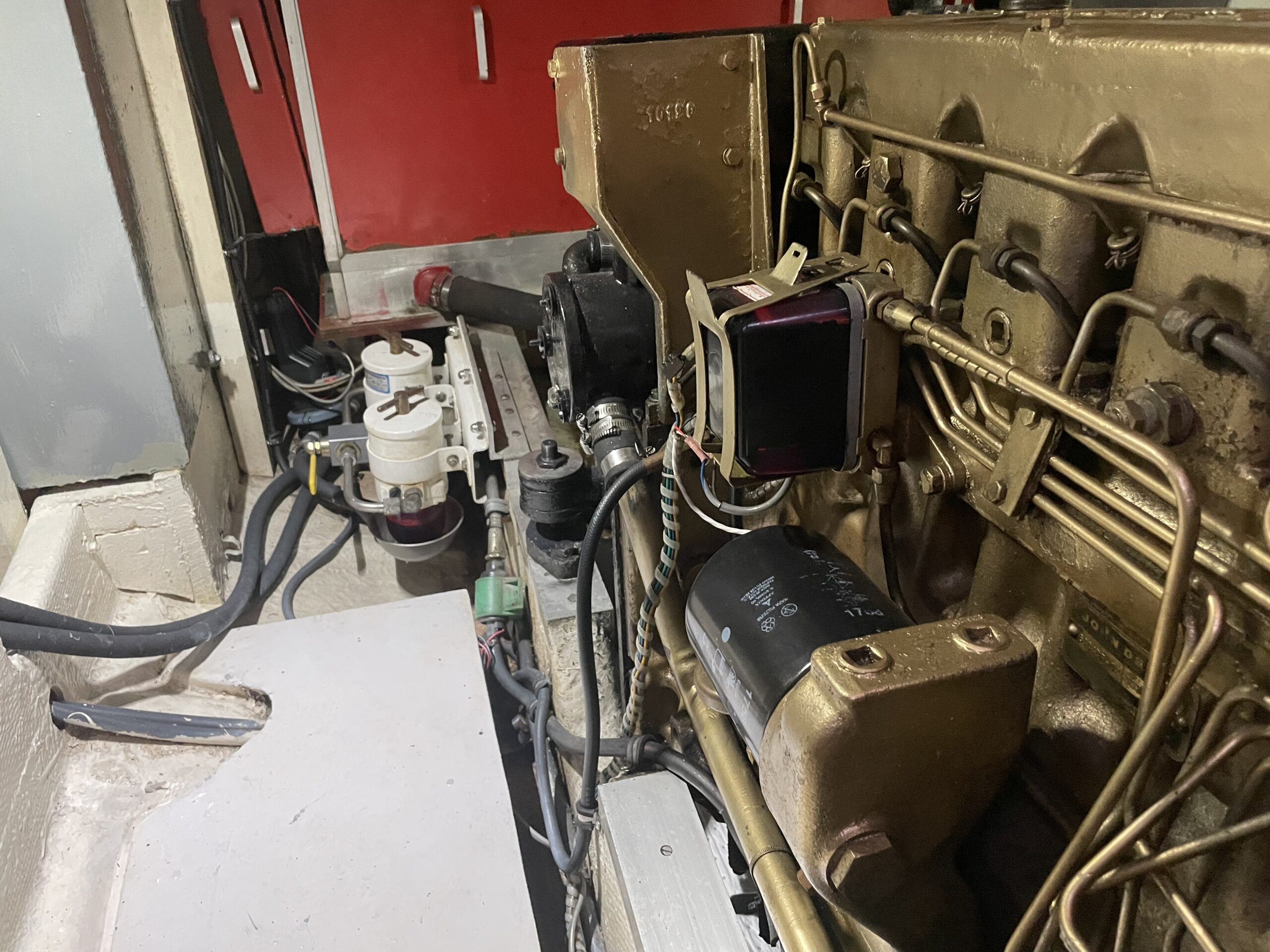

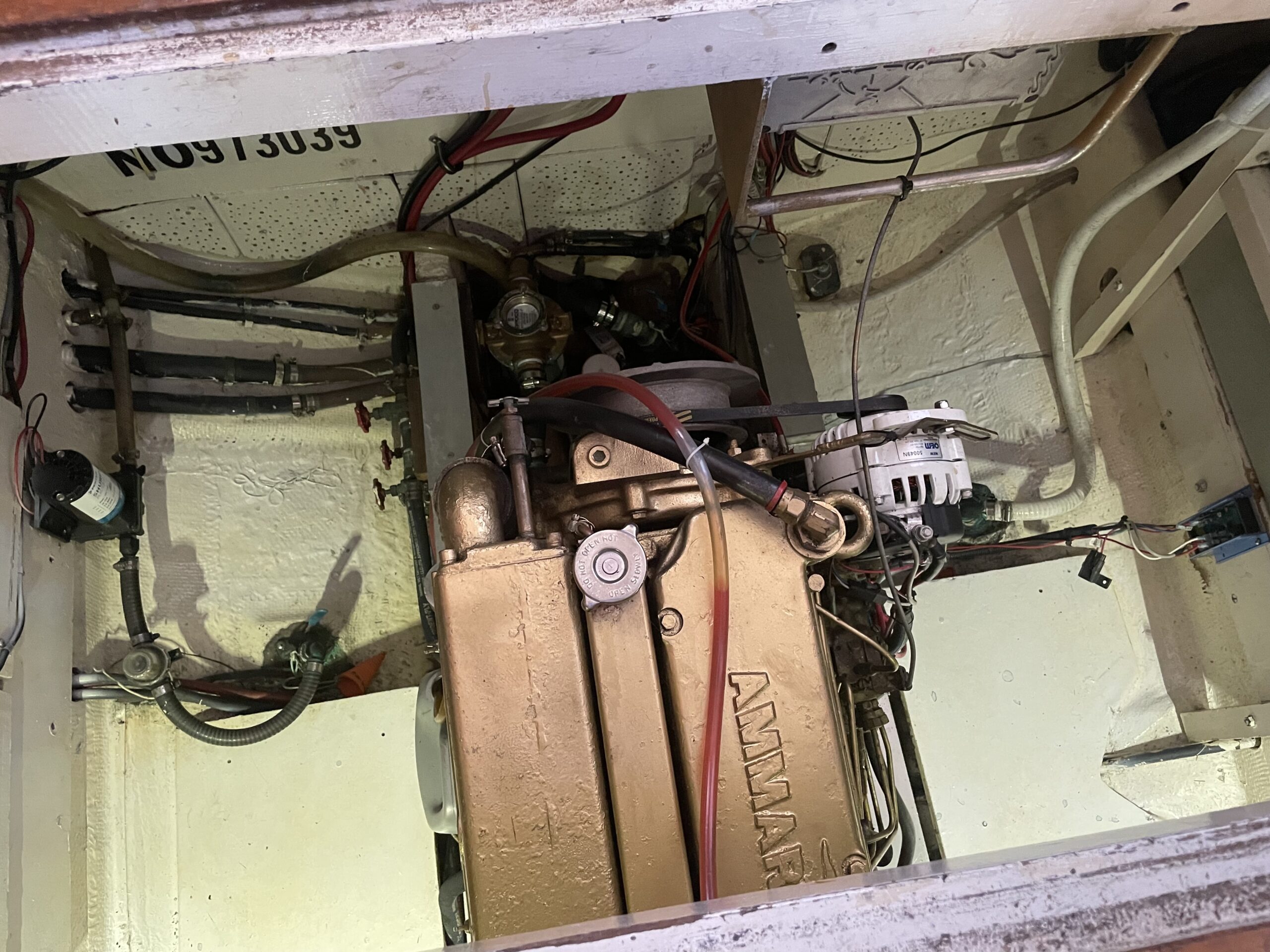

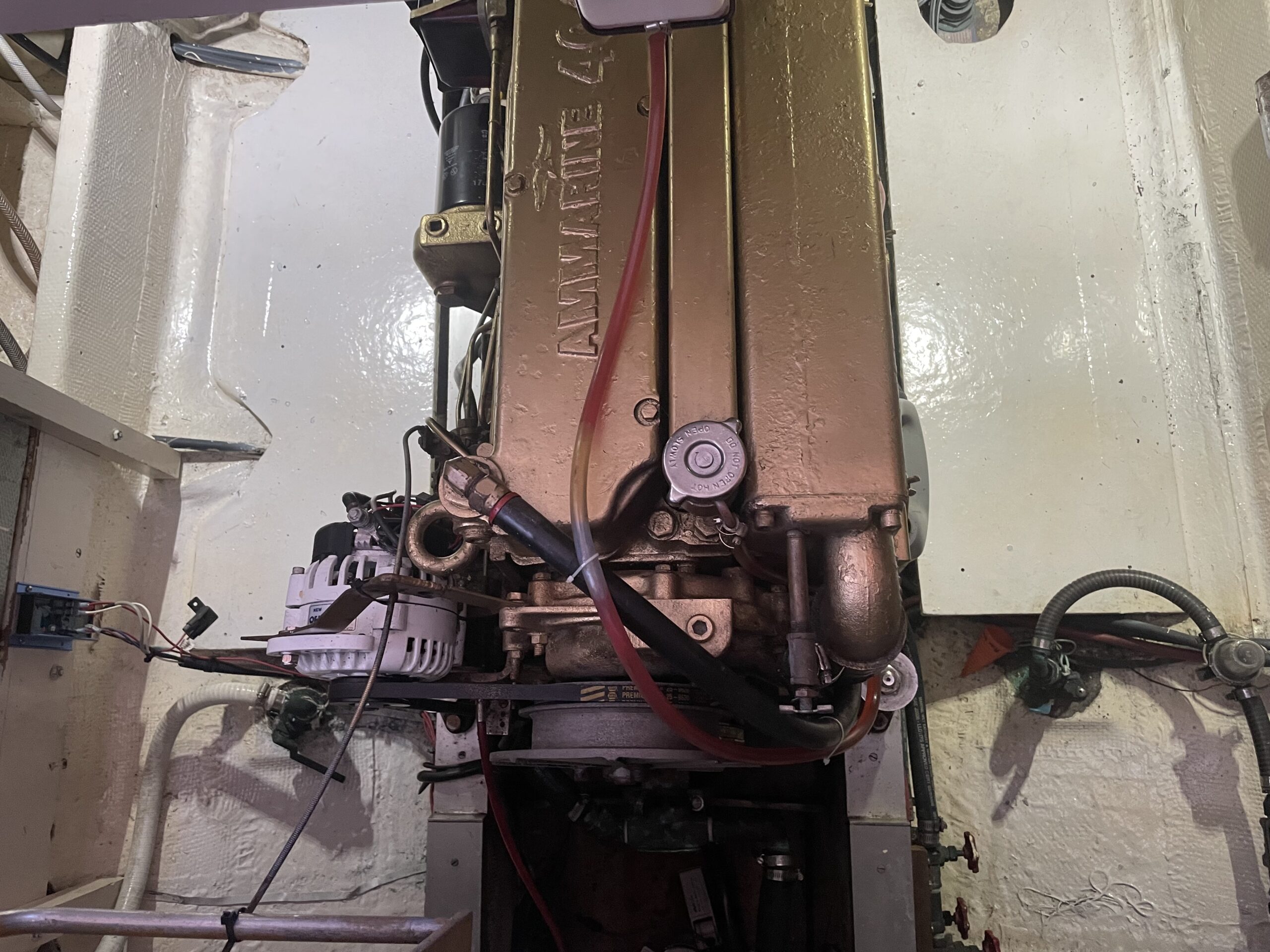

• Single American Marine John Deere 6404DF-02, 120hp, 6-Cylinder, Naturally Aspirated, Freshwater-Cooled, Direct-Drive, Inboard Marine Diesel Engine.

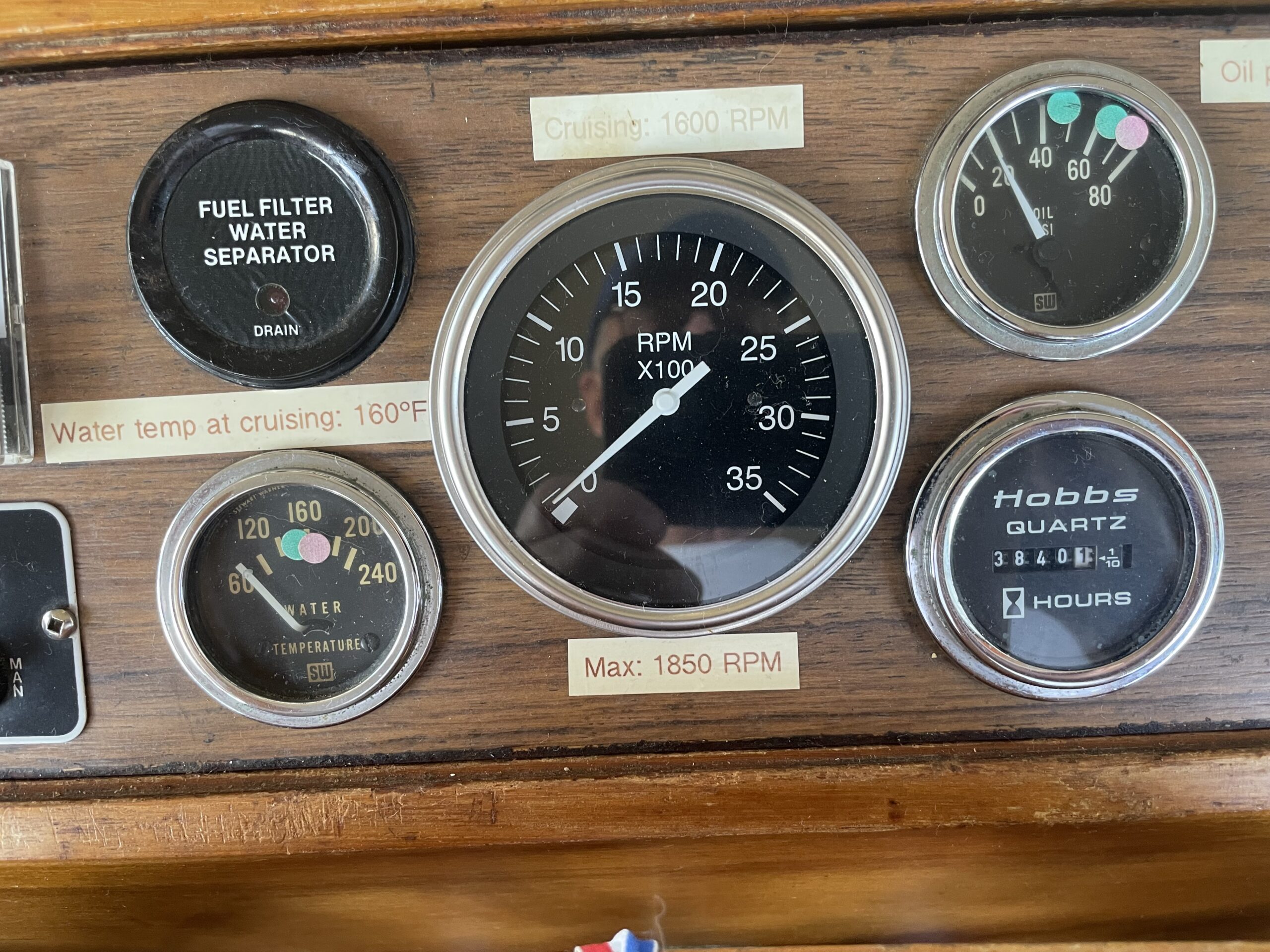

• Hours – 3839
• Engine Cruise – 1600rpms @ 7knots @ 1.7 GPH
• Engine Injectors – NEW Nov 2023

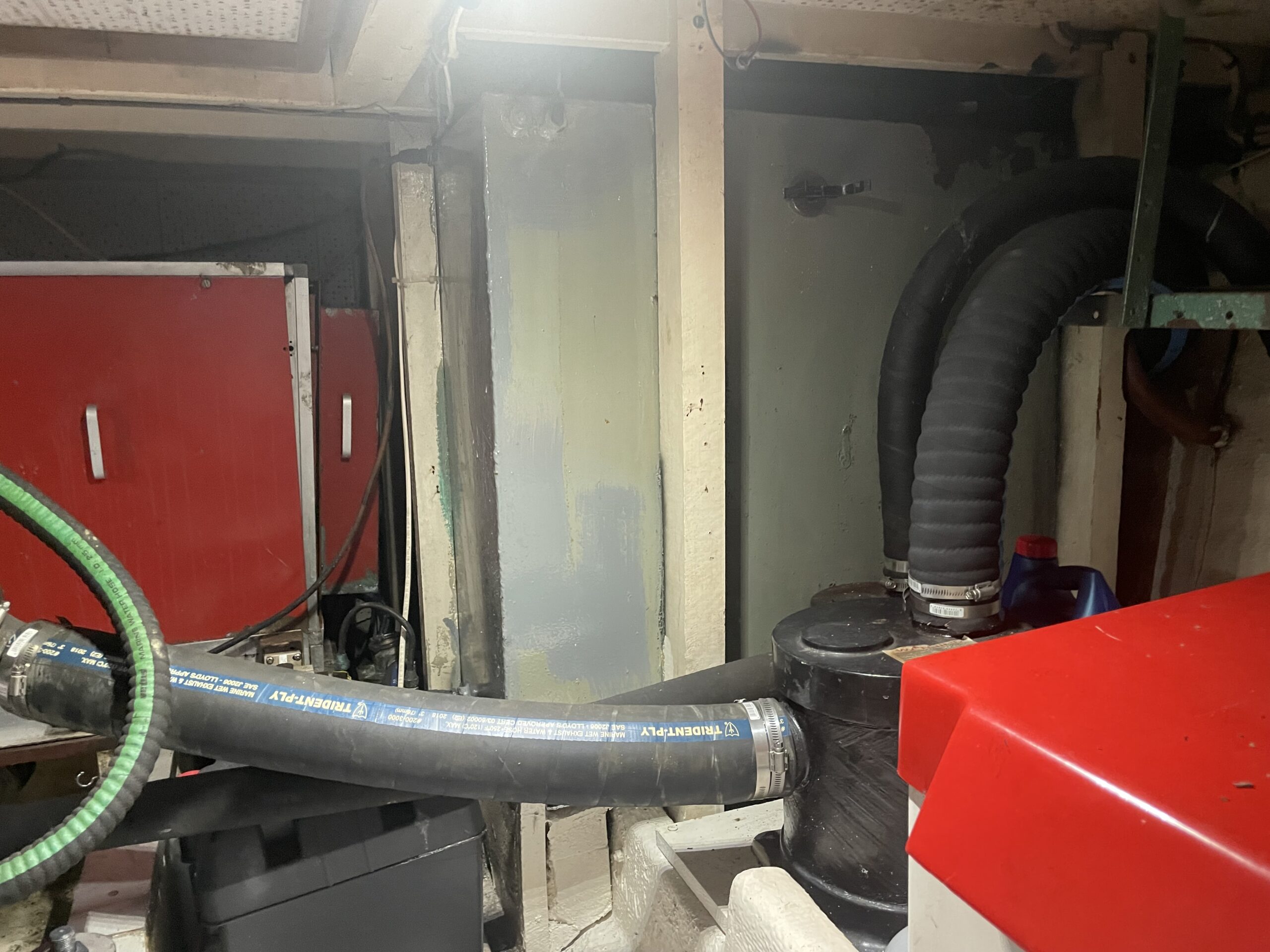

• Engine Exhaust – Wet Exhaust System

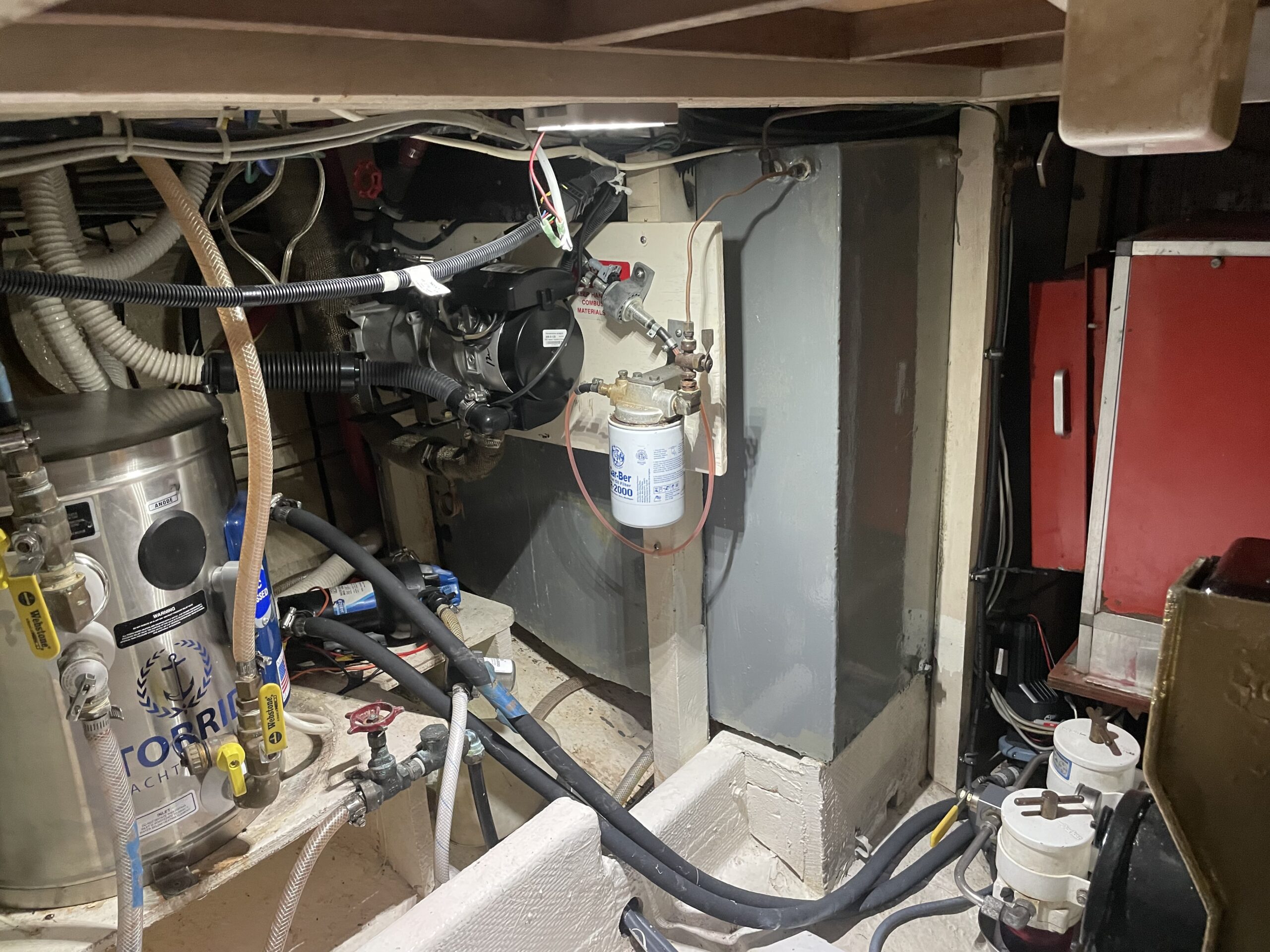

• Engine Fuel Filters – Primary – (2) Parker Racor 75500MAX
• Secondary on Engine
• Transmission – Borg Waner Velvet Drive – Straight-Drive Reduction Gear
• Propulsion Control System – Mechanical / Push-Pull Cables
• Two Lever System – (1) Gear & (1) Throttle
• Steering System – Mechanical Cable & Pulley & Quadrant

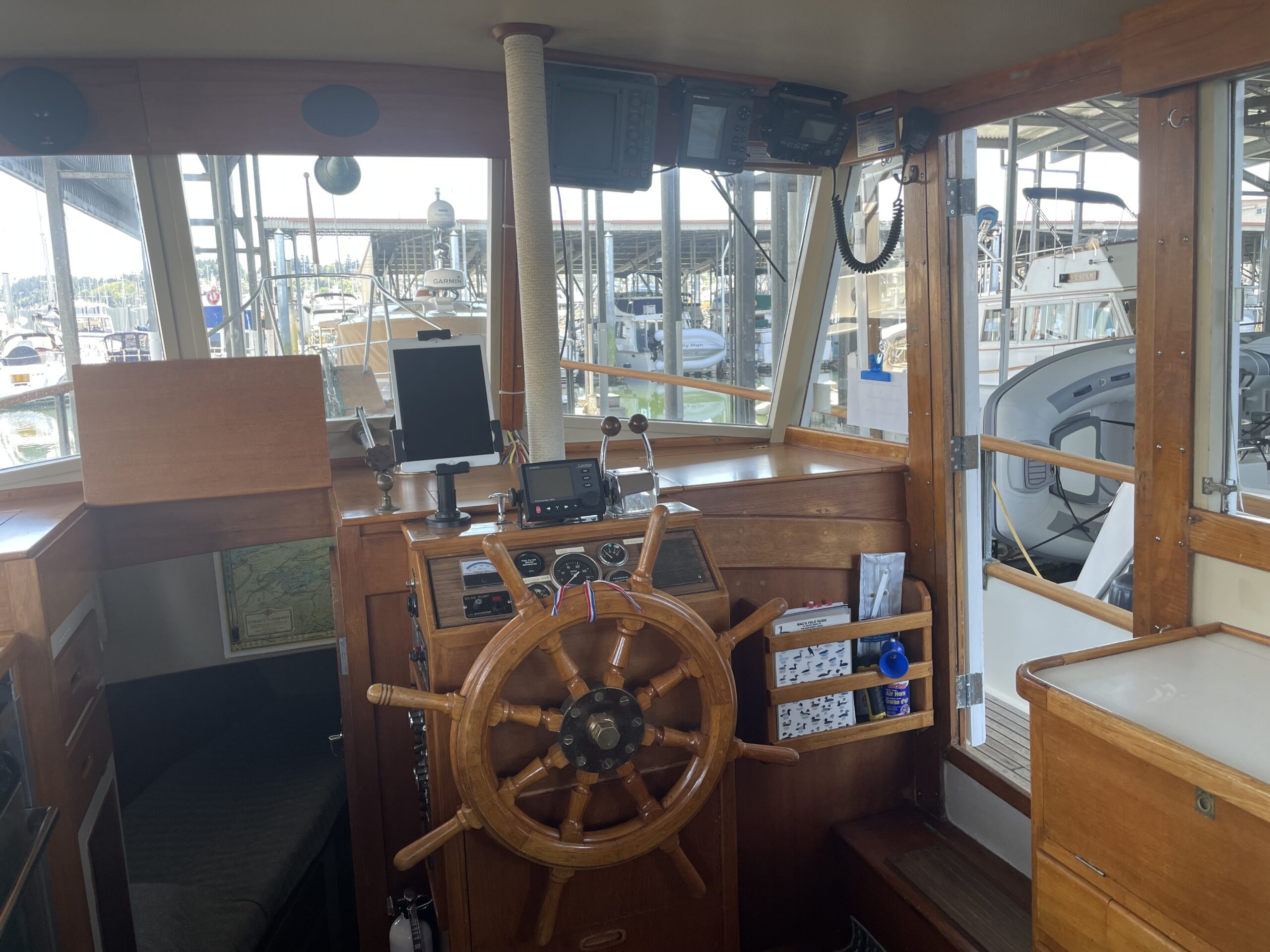

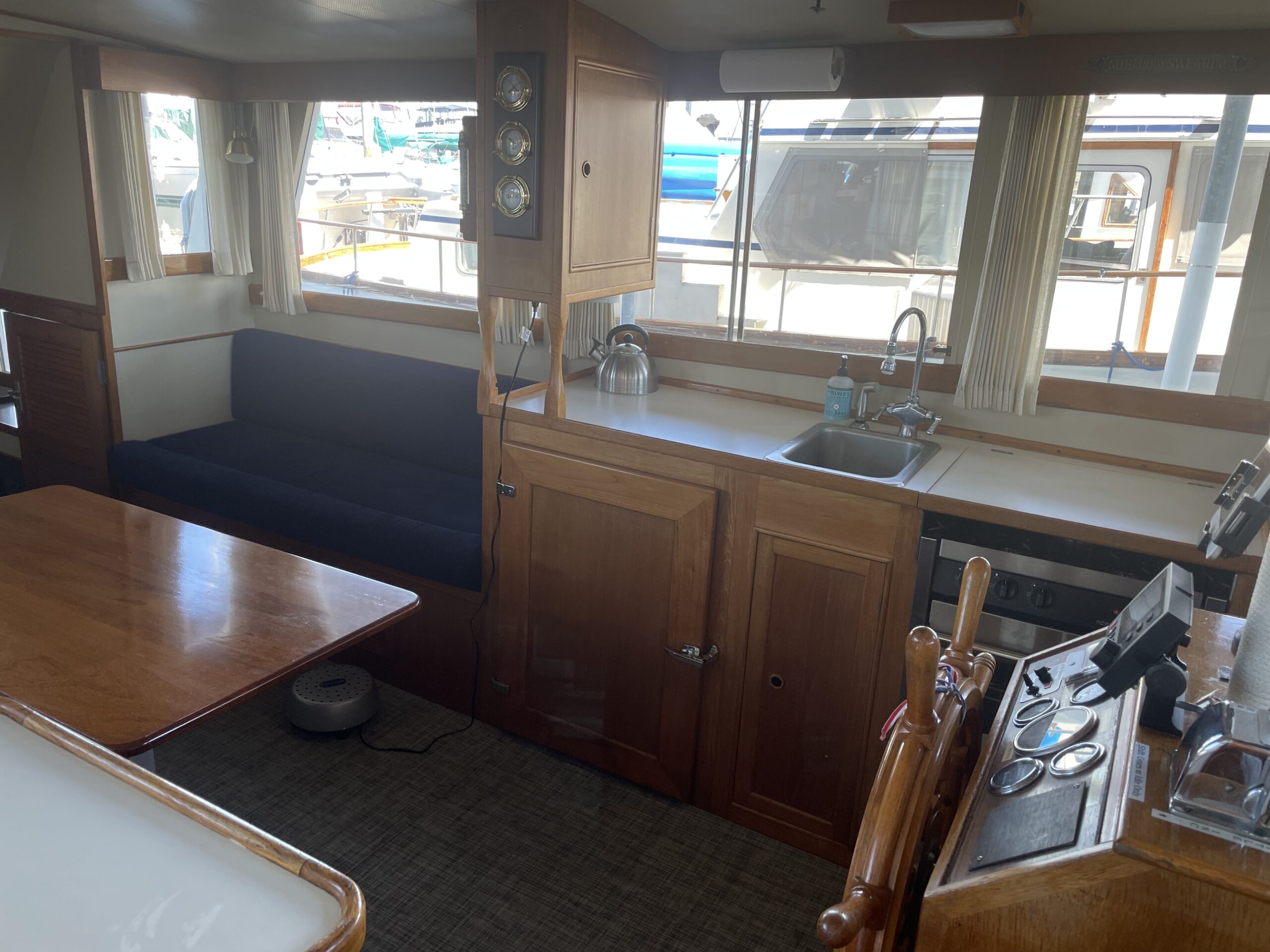

• (2) Stations – Salon Helm & Flybridge Helm
• Running Gear – Shaft Type – 1 ½ Inch Stainless Steel
• Shaft Seal Type – PYI PSS / Dripless Type
• Cutlass Bearing
• Propeller – (1) Broze 3-Blade Bronze Propeller
• Diameter 24” x Pitch 18”
• Left Hand Rotation
• Rudder – Bronze Balanced Type
• Bilge Pumps – (2) Engine Room Pumps 12Volt DC – Electric/Manual
• Forward Bilge Pump – NEW Float Switch – June 2023
• Bilge Sump Pump – (1) Shower Drain Pump – Shurflo 12Volt DC
• Deck Washdown Pump – (1) Raw Water Shurflo 12Volt DC

ELECTRICAL:

• AC Power System – 120Volt AC 60Hz

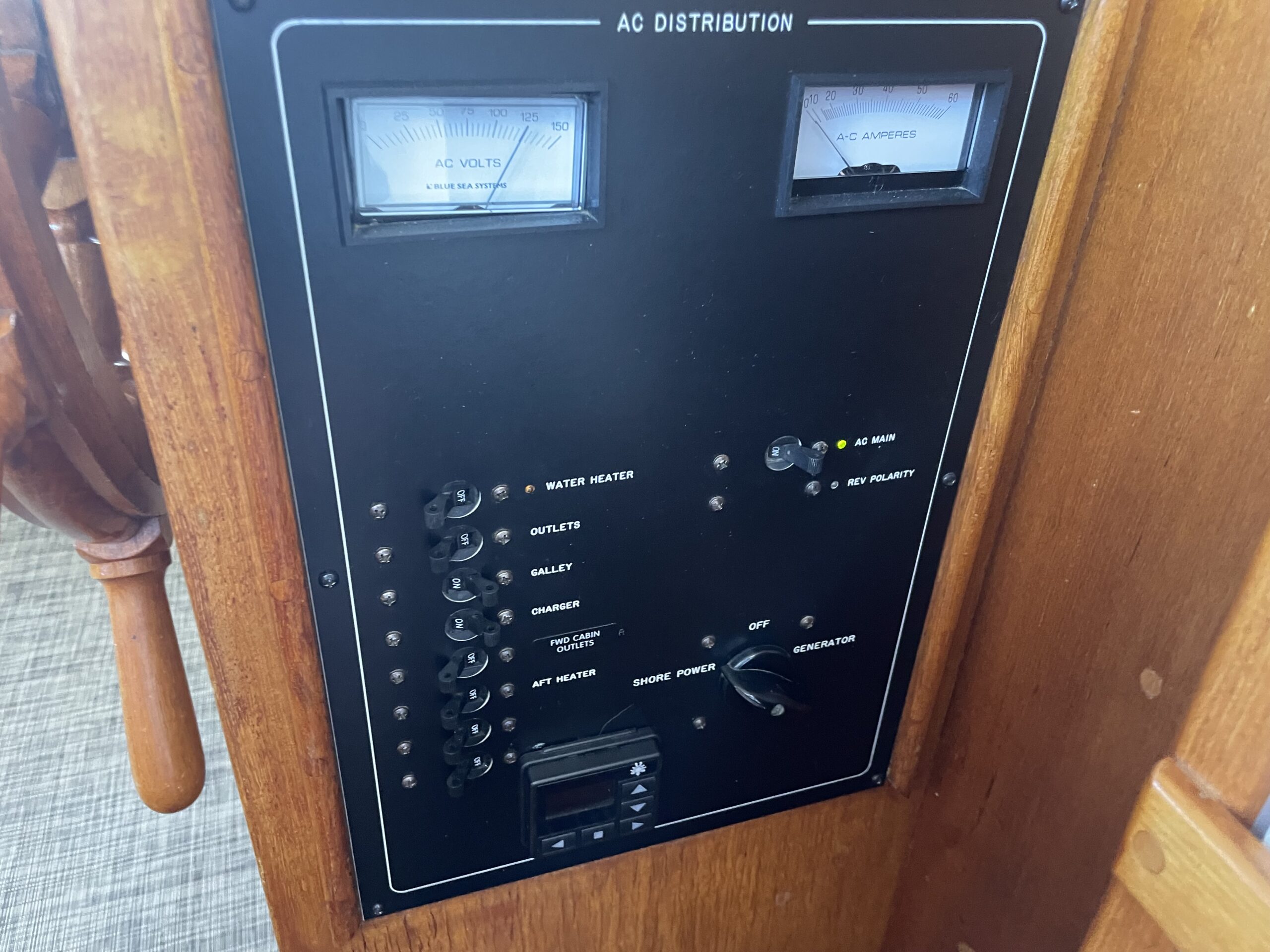

• AC Circuit Breaker Panel
• Shore Power Inlet – Smartplug 30Amp 125 Volt Inlet
• Shore Power – Smartplug 30Amp 125Volt Power Cable
• AC Shore Power Receptacle under Galley Sink – Install Cover – NEW May 2023
• DC Power System – 12Volt DC

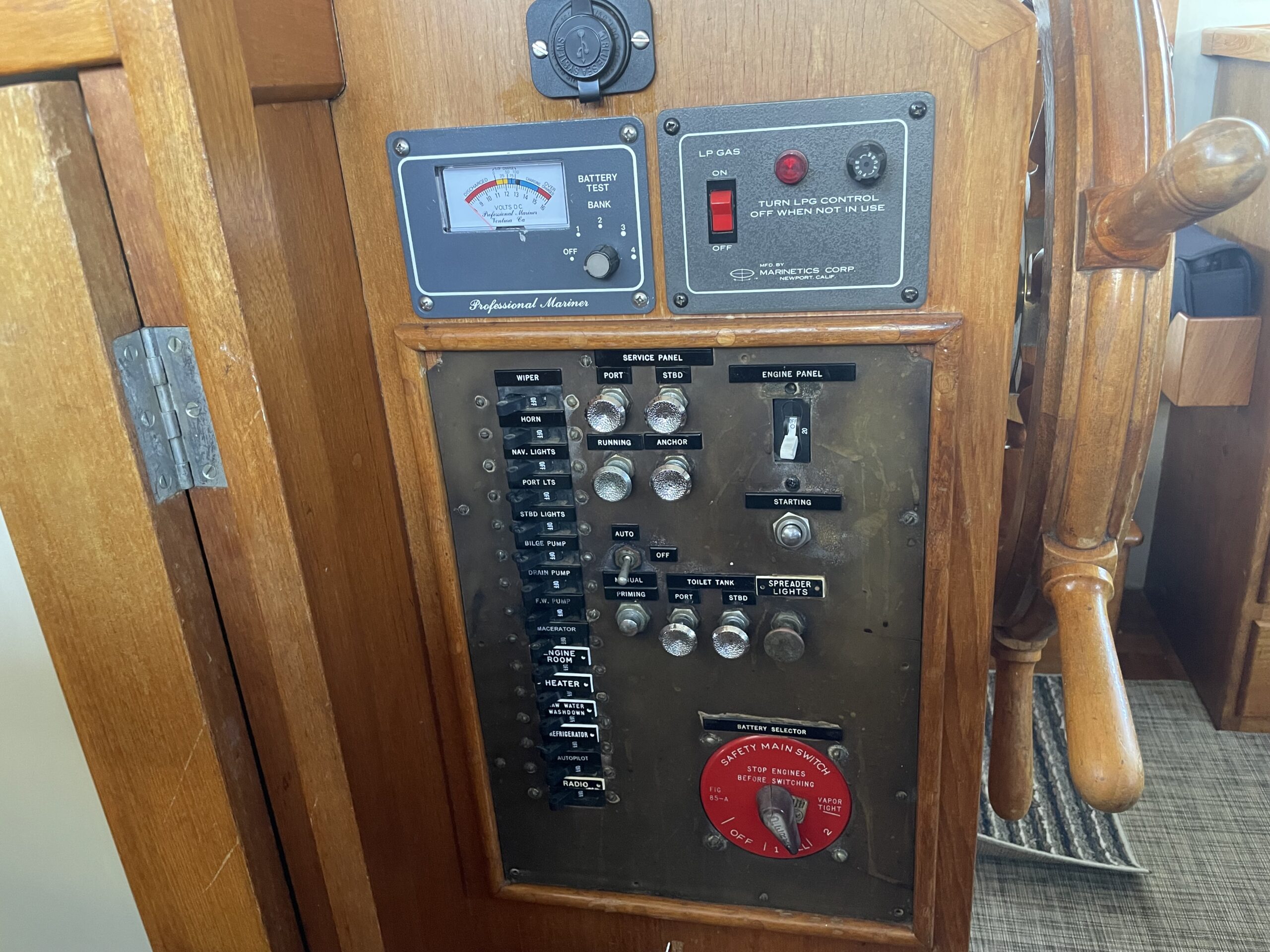

•  DC Circuit Breaker Panel

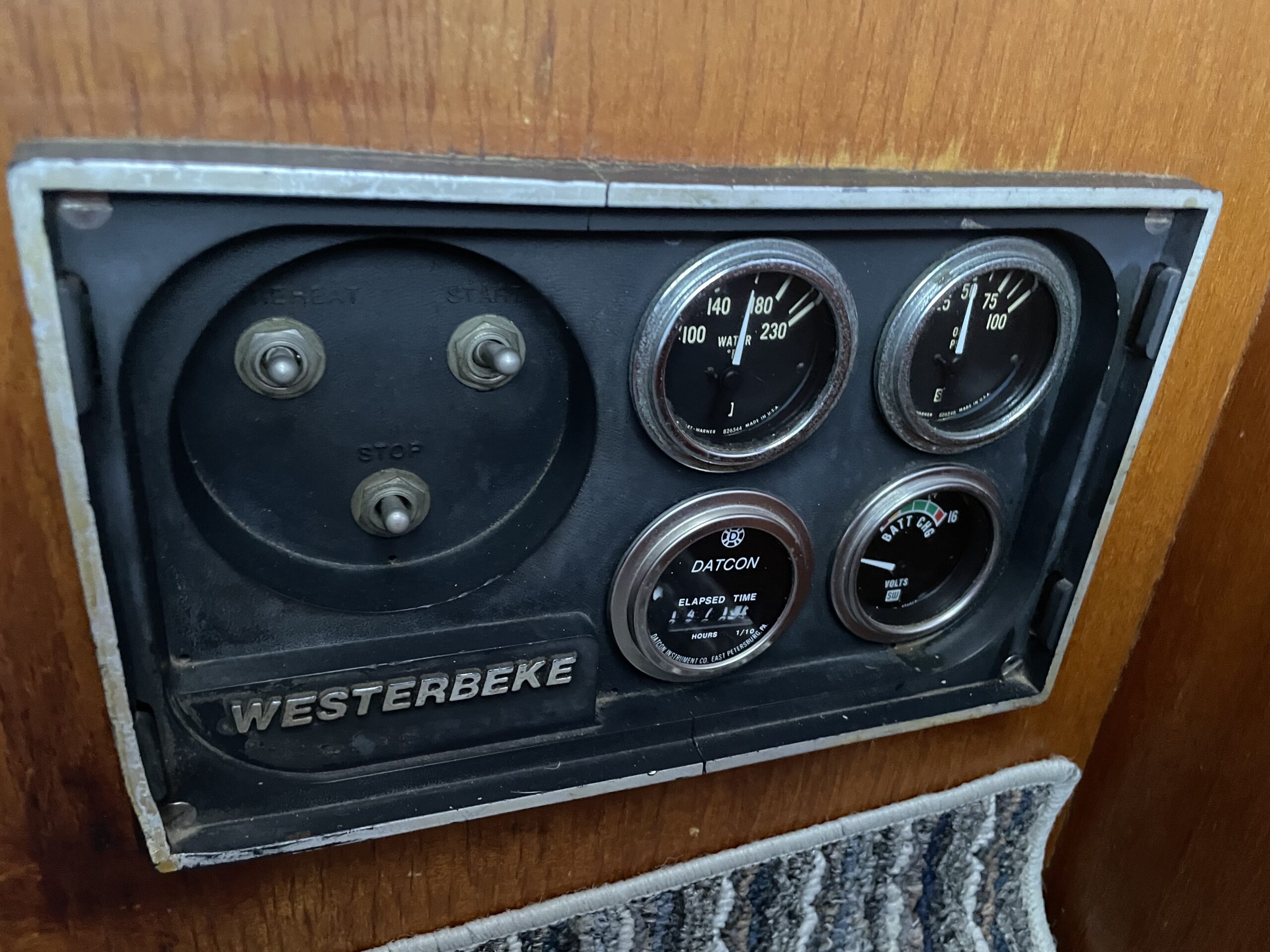

• Generator – Westerbeke 11KW, Freshwater-Cooled

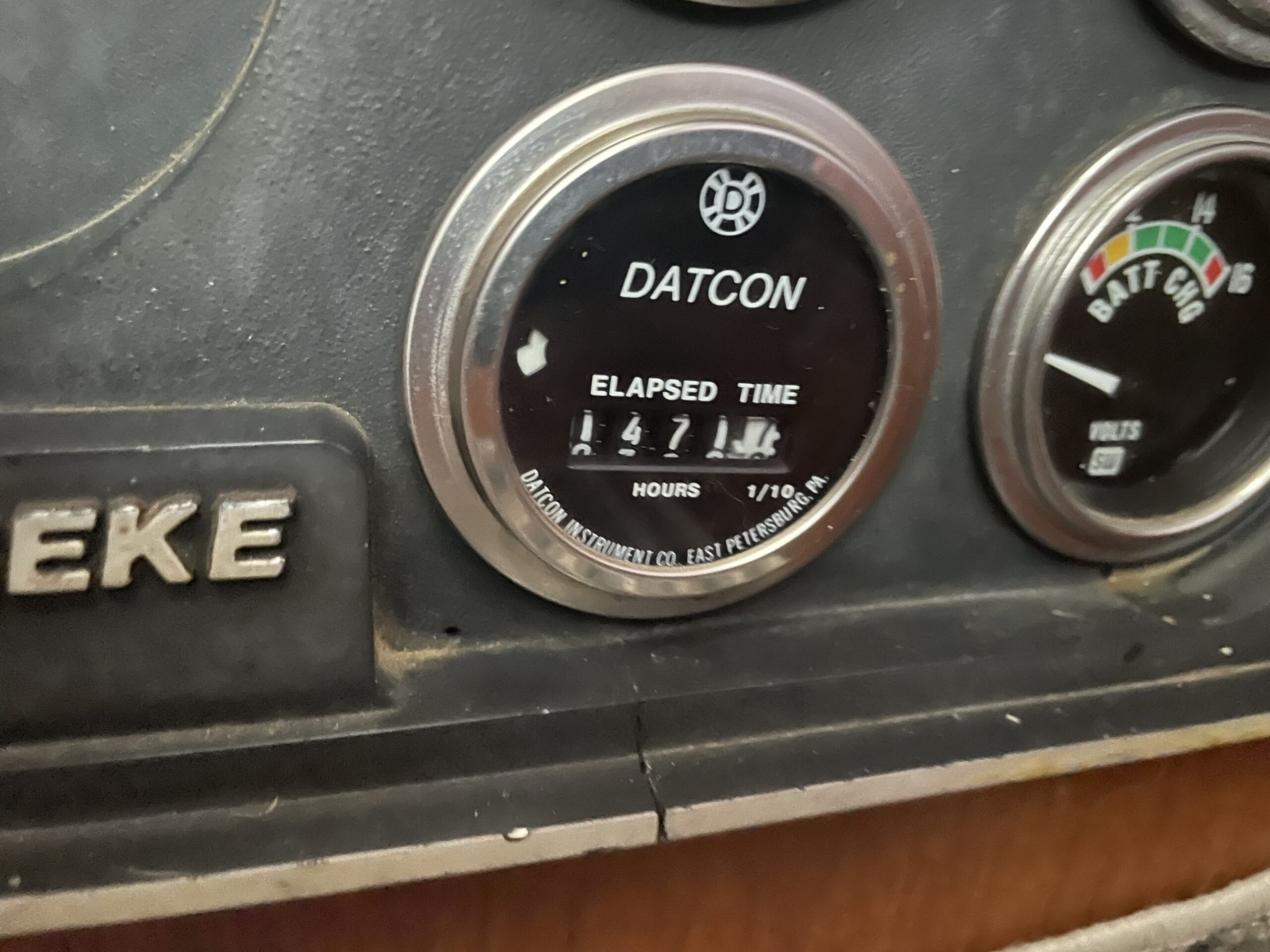

• Hours – 2000
• Sea Strainer – NEW June 2023
• Fuel Filter – (1) Parker Racor R12T

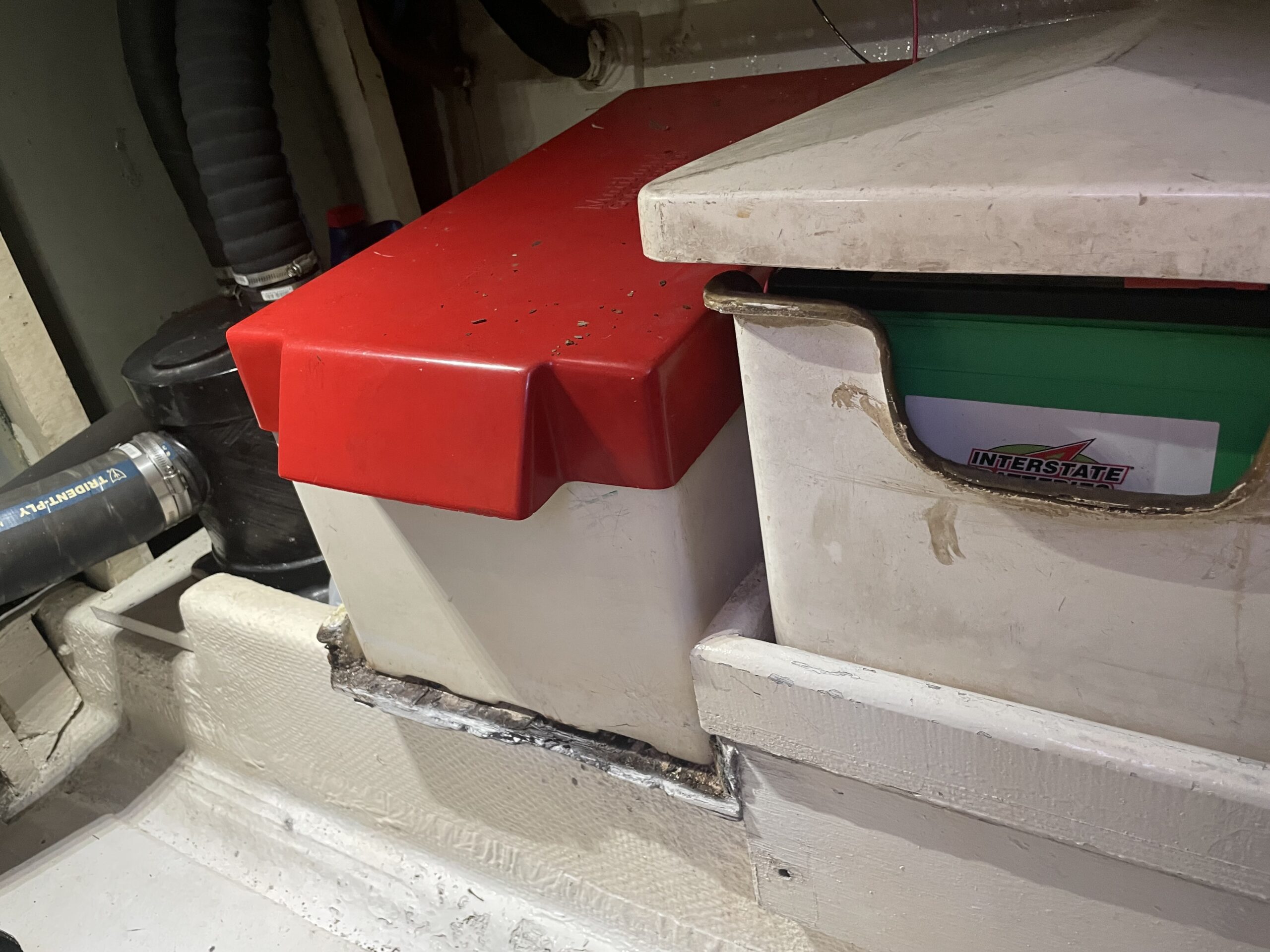

• Batteries – Start Battery – (1) Interstate Group 8D 12Volt – Lead Acid
• House Batteries – (4) Interstate Golf Cart 6Volt – Lead Acid
• Generator Battery – (1) NAPA Group 24 12Volt – Lead Acid

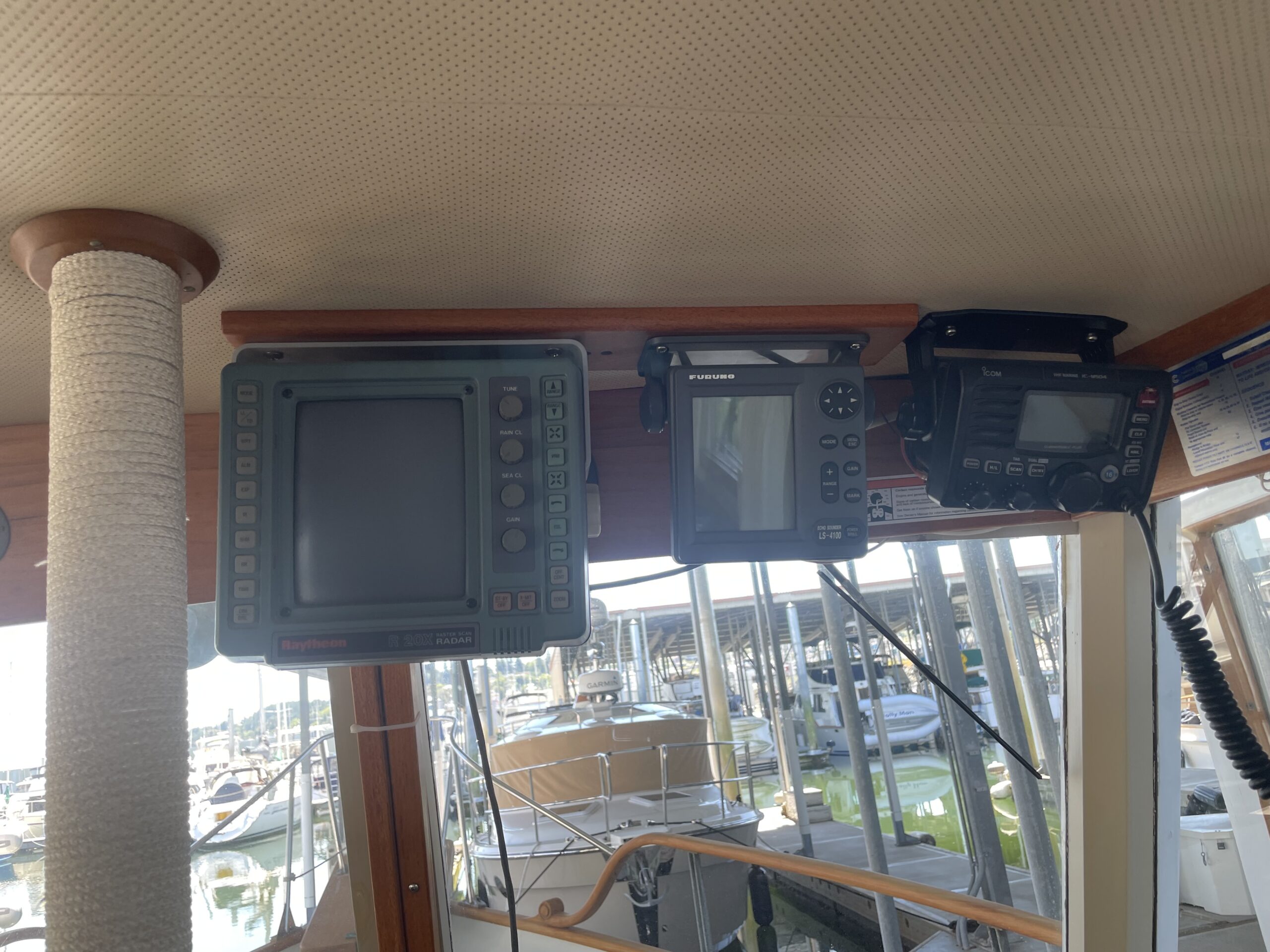

NAVIGATION:

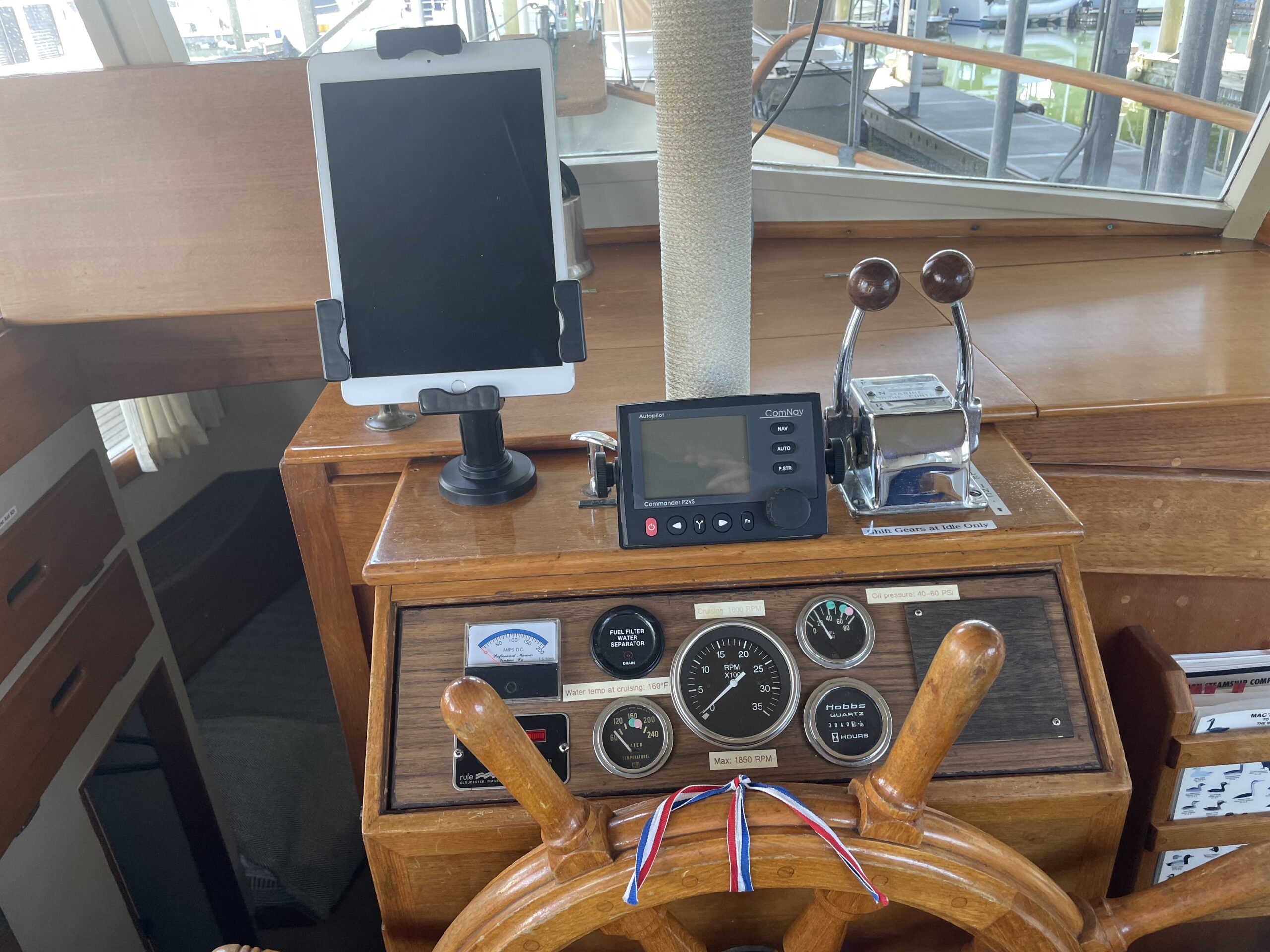

• Lower Helm – Autopilot – Comnav – 12Volt DC
• Compass – Ritchie Magnetic
• Radar – Raytheon Marine – 12Volt DC
• Depth Sounder – Furuno LS 4100 – 12Volt DC
• VHF – ICOM – 12Volt DC
• Flybridge Helm – Autopilot – Comnav – 12Volt DC
• Compass – Ritchie
• Radar – Raytheon – 12Volt DC
• Depth Sounder – Standard Horizon – 12Volt DC
•                  VHF – ICOM Commandmic – 12Volt DC

GROUND TACKLE:

• Windlass – Maxwell 12Volt Electric Deck Winch
• Anchor – Galvanized Steel Claw Type 20KG
• Chain – Adequate Galvanized Steel Chain
• Rode – Adequate Nylon Rode

SAFETY:

• Navigation Lights
• Anchor Light
• Propane Pressure Regulator & Electronic Solenoid Shut-Off Valve
• PDF – (2) USCG Approved Type I Adult
• (4) USCG Approved Type III Adult
• Throwable PDF – (2) USCG Approved Type IV
• Fire Extinguisher Handheld – (4) Type BC
• Sound Signal – (1) Electric Horn – 12Volt DC
• (1) Handheld Air Horn
• (1) Handheld Whistle
• Distress Signal – (1) USCG Approved Distress Signal Mirror
• (1) USCG Approved Orange Distress Signal Flag

MISCELLANEOUS:

• Bottom Paint – Bottom Fully Sanded
• NEW Anti-Fouling Paint Oct. 2023
• BBQ – Magma Newport 2 Grill with Railing Mounts
• Bimini with (3) Bow, Stainless Steel Frame – NEW 2024
• Tender – 1993 Achilles 10’ Rigid Inflatable with FRP Bottom
• NEW Seat 2023
• Outboard – 2017 Yamaha 4-Stroke 9.9
• Davit – Aft Deck Mounted Crane System
• NEW Winch 2023
• Staging & Personal Items to be Removed at Time of Sale
